0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#56382) — 68 parça

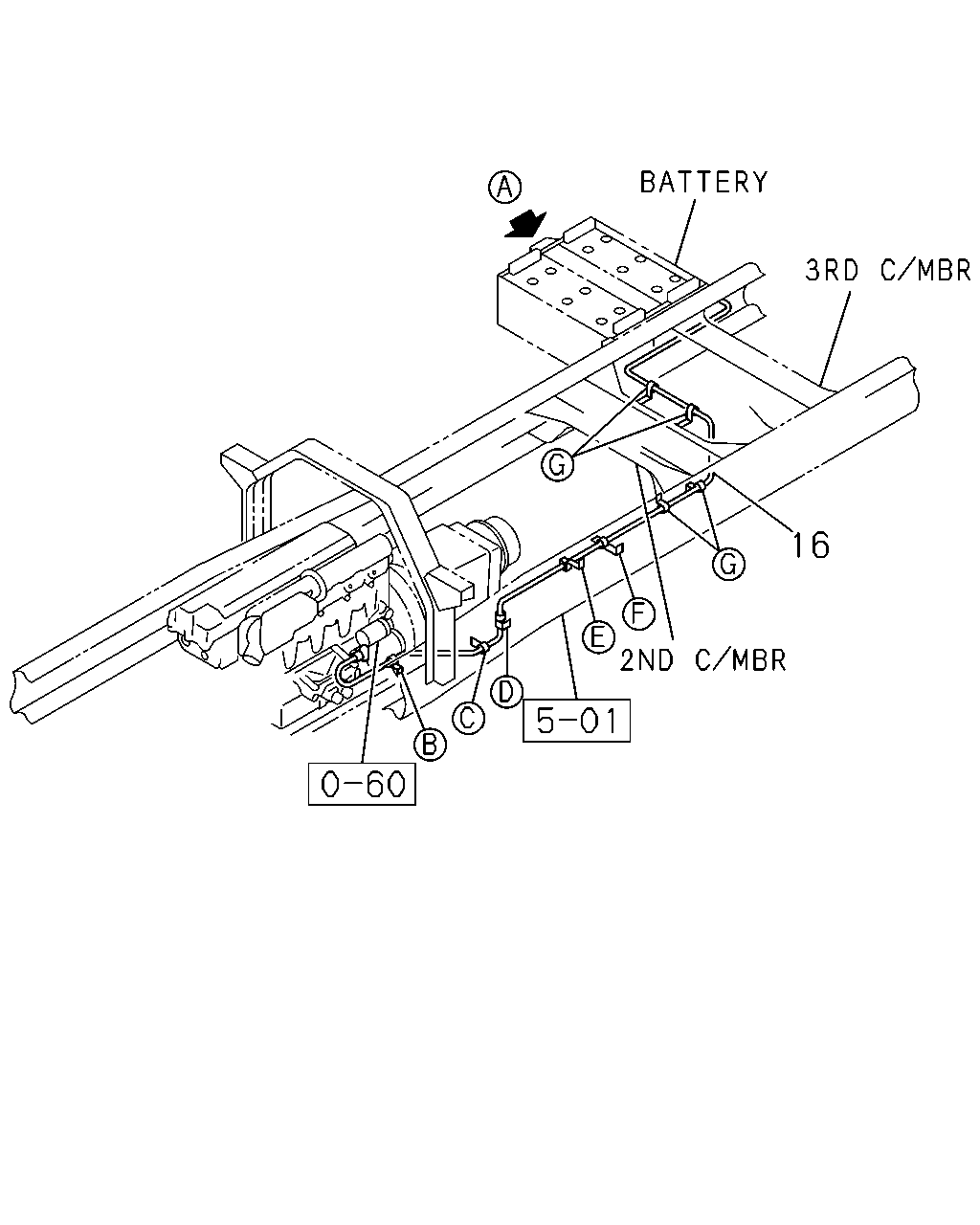

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	16	CABLE; STARTER TO RELAY L=5690	1-82652-897-2	01	1	0811-

64 208 208 208 120 66 180 64 155 13 17 162 69 65 68 158 16 63

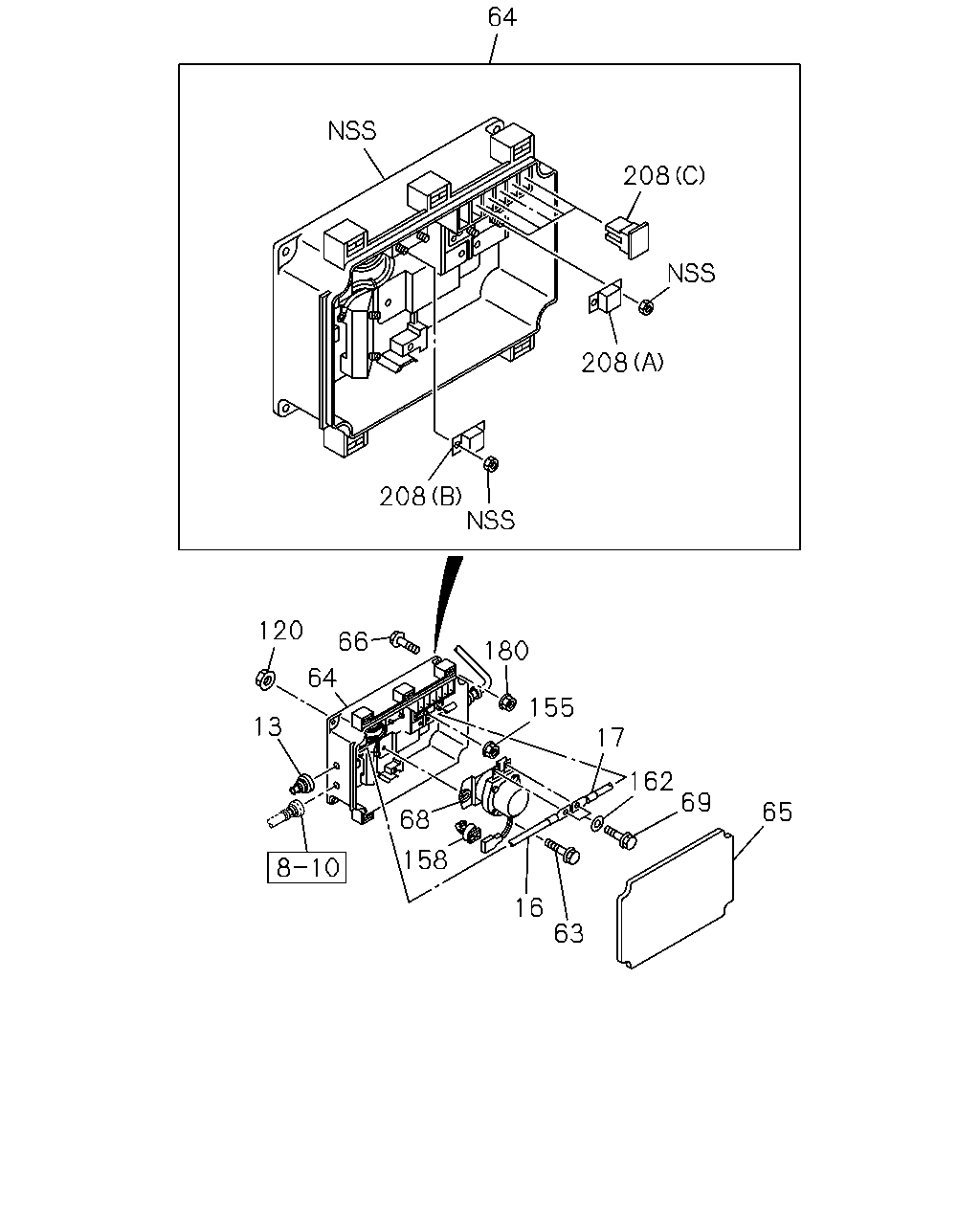

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0811-
16	CABLE; STARTER TO RELAY L=5690	1-82652-897-2	01	1	0811-
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	0811-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	0811-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0811-
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0811-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0811-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0811-
68	RELAY; BATTERY	1-82550-313-0	01	1	0811-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0811-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	0911-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0811-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0811-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0811-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0811-
208	FUSE (B) 80A	1-82516-031-0	01	1	0811-
208	FUSE (A) 100A	1-82516-032-0	01	1	0811-
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	0811-

24 10 21 18 12 18 9 23 100 10 24 28 101 9 28 10 23 23 99 99 12 24 23

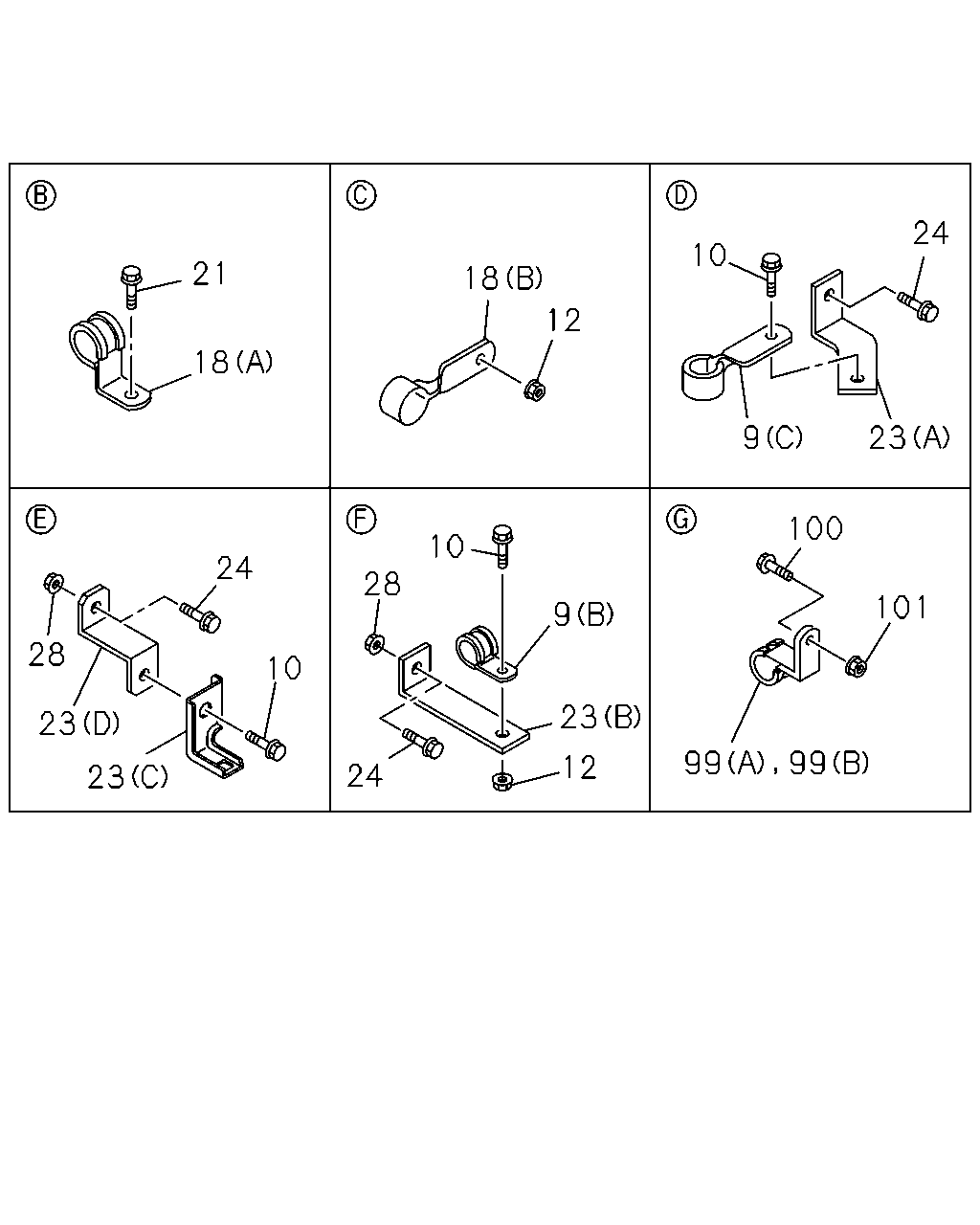

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0811-
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0811-
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	02	1	0811-
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0811-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0811-
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0811-
21	BOLT; CLIP CABLE M8X16 FLANGE	0-28050-816-0	02	1	0811-
23	BRACKET; CABLE CLIP TO FRAME (D)	1-47476-200-0	01	1	0811-
23	BRACKET; CABLE CLIP TO FRAME (A)	1-47479-642-0	01	1	0811-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	0811-
23	BRACKET; CABLE CLIP TO FRAME (C)	8-97304-944-0	01	1	0811-
24	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	02	1	0811-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0811-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0811-
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0811-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0811-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0811-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0811-

14 78 81 81 22 76 15 22 11 109 108 76 57 60 110 17 9 1 2 22 81 9 81 22 16 22 81 76 15 81 81 14 15 14 81 14 22 22 76 78 78 22 78 76 22 81

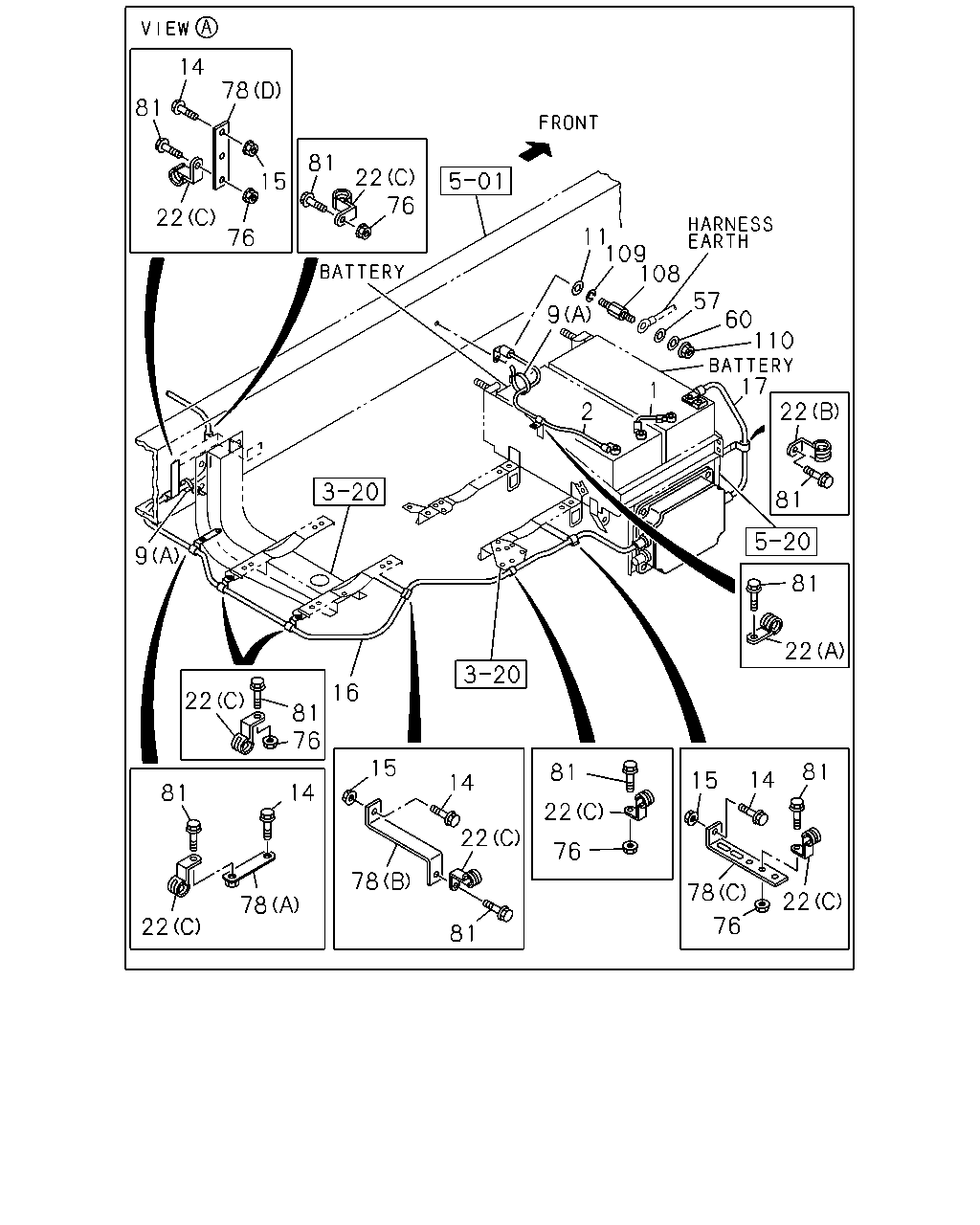

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 115F51 N120<SJ3> L=265	1-82650-390-1	01	1	0811-
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 145G51 N150<SJ8> L=450	1-82650-391-1	01	1	0811-
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=265	1-82650-388-1	01	1	0811-
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-389-1	01	1	0811-
2	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-386-1	01	1	0811-
2	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-384-1	01	1	0811-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0811-
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0811-
9	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	02	1	0811-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0811-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	04	1	0811-
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	03	1	0811-
16	CABLE; STARTER TO RELAY L=5690	1-82652-897-2	01	1	0811-
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	0811-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	0811-
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	08	1	0811-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0811-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0811-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0811-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0811-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	0811-0811
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	06	1	0811-
78	BRACKET; CLIP BATTERY (A)	1-47476-396-1	01	1	0811-
78	BRACKET; CLIP BATTERY (D) L=117	1-47478-116-0	01	1	0811-
78	BRACKET; CLIP BATTERY (C) L=160 H=30	1-47479-759-0	01	1	0811-
78	BRACKET; CLIP BATTERY (B) L=110	1-82699-589-0	01	1	0811-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	10	1	0811-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0811-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0811-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0811-
