0-51 — OIL PUMP AND OIL STRAINER (#56378) — 27 parça

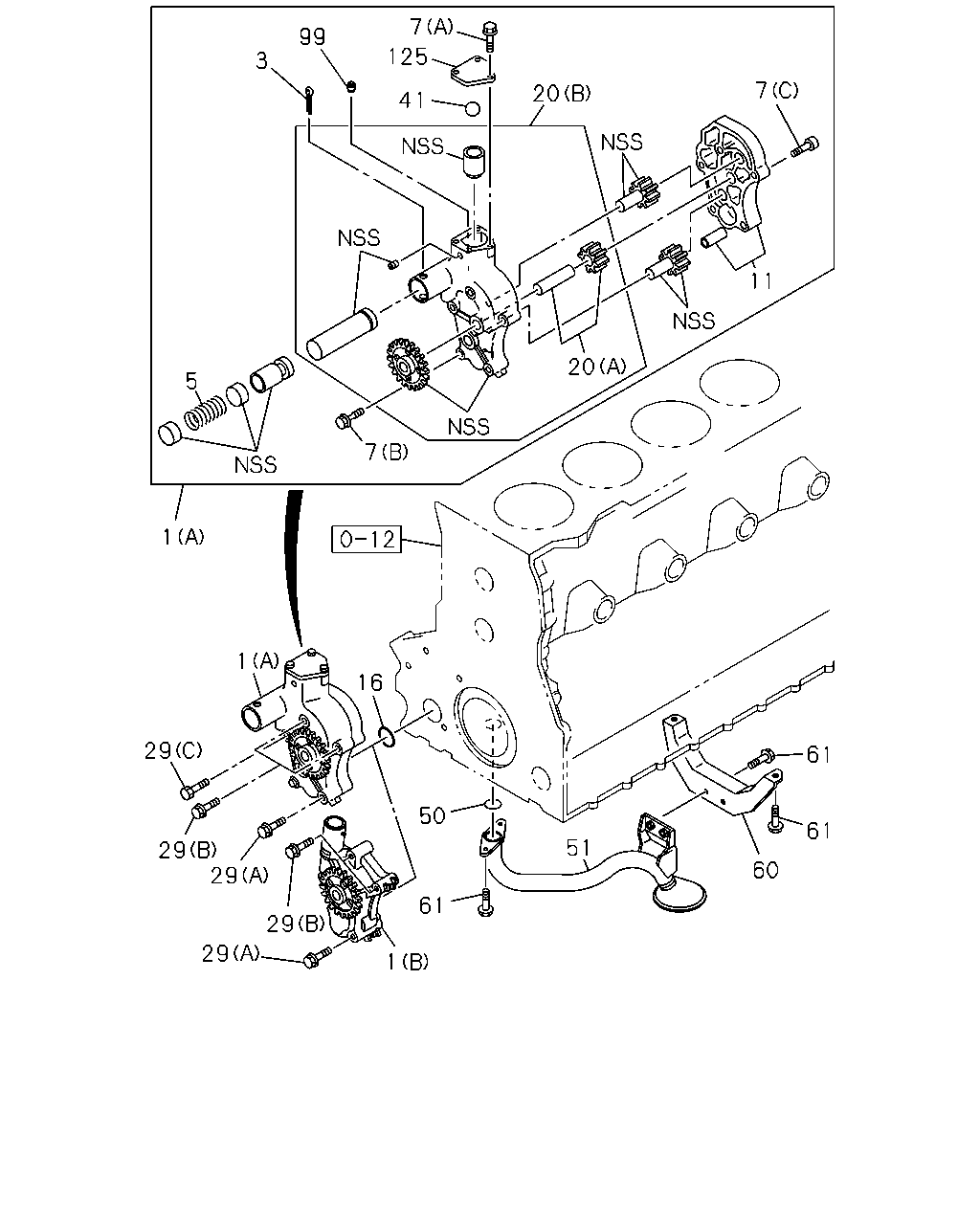

çizim 133940
7 99 41 125 3 20 7 11 20 7 5 16 1 50 61 29 51 60 61 61 29 1 29 29 29 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL
(A) 		1-13100-311-0 01 1 0812-1005
1 PUMP ASM; OIL
(A) 		1-13100-312-2 01 1 1006-1410
1 PUMP ASM; OIL
(B) 		8-98276-988-0 01 1 1411-
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 0812-1410
5 SPRING; COIL 1-09580-511-1 01 1 0812-1005
5 SPRING; COIL 1-09580-534-0 01 1 1006-1410
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 0812-1410
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0812-1410
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 0812-1410
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 0812-1410
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0812-
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-080-0 01 1 0812-1410
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-088-0 01 1 0812-1005
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-089-0 01 1 1006-1410
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0812-1410
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 02 1 1411-
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 0812-1410
29 BOLT; OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1411-
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 0812-1410
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 0812-1410
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0812-
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 0812-1405
51 STRAINER & PIPE ASM; OIL 8-98260-260-0 01 1 1406-
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 0812-
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 0812-
99 PLUG; OIL PUMP 1-13163-002-0 01 1 0812-1410
125 COVER; BALL 1-13163-004-0 01 1 0812-1410
