Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

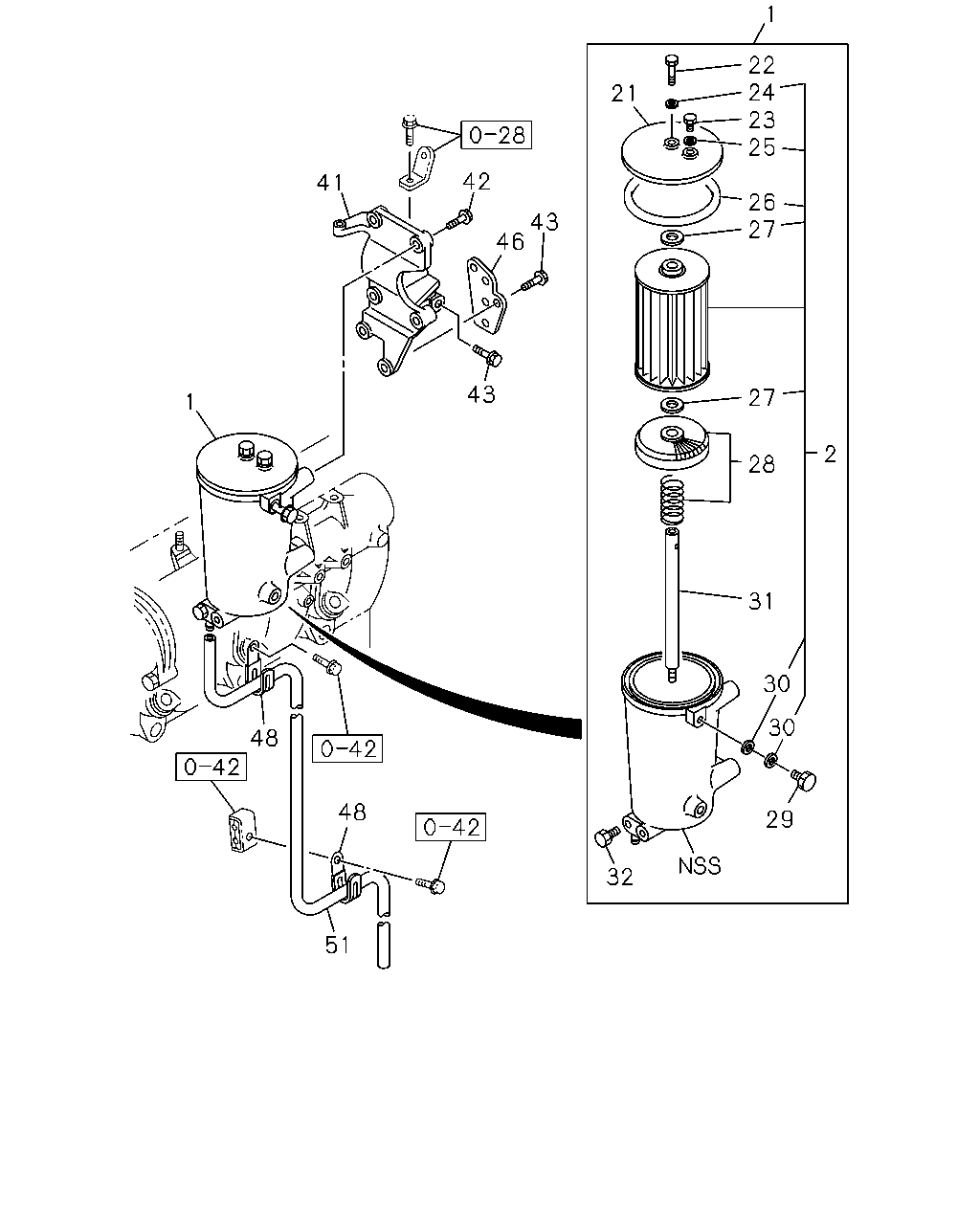

0-41 — FUEL FILTER AND BRACKET
(#56375) — 24 parça
1
22
24
23
25
21
42
41
26
27
43
46
43
27
1
2
28
31
30
30
48
48
29
32
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13201-006-1
01
1
0812-1106
1
FILTER ASM; FUEL
8-98175-164-0
01
1
1107-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0812-1106
2
ELEMENT KIT; FUEL FILTER
8-98174-903-0
01
1
1107-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0812-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0812-
23
PLUG; COVER
1-13219-074-0
01
1
0812-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0812-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0812-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0812-
27
GASKET; ELEMENT
1-09630-007-0
02
1
0812-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0812-
29
VALVE; OVERFLOW
1-13260-116-0
01
1
0812-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0812-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0812-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0812-
41
BRACKET; FUEL FILTER
8-97628-937-0
01
1
0812-
42
BOLT; FUEL FILTER
M10X40 FLANGE
0-28051-040-0
04
1
0812-
43
BOLT; BRKT
M10X30 FLANGE
0-28151-030-0
02
1
0812-
43
BOLT; BRKT
M10X60 FLANGE
0-28151-060-0
02
1
0812-
43
BOLT; BRKT
M10X30 FLANGE
0-28151-030-0
02
1
0812-
46
BRACKET
8-97629-738-1
01
1
0812-
48
CLIP; VINYL PIPE
ID=21 L=47.5
8-94178-108-0
02
1
0812-
51
PIPE; VINYL
L=800 SERVICED BY L=10000
9-09914-909-0
01
1
0812-
