6-01 — FRONT BUMPER (#5637) — 527 parça

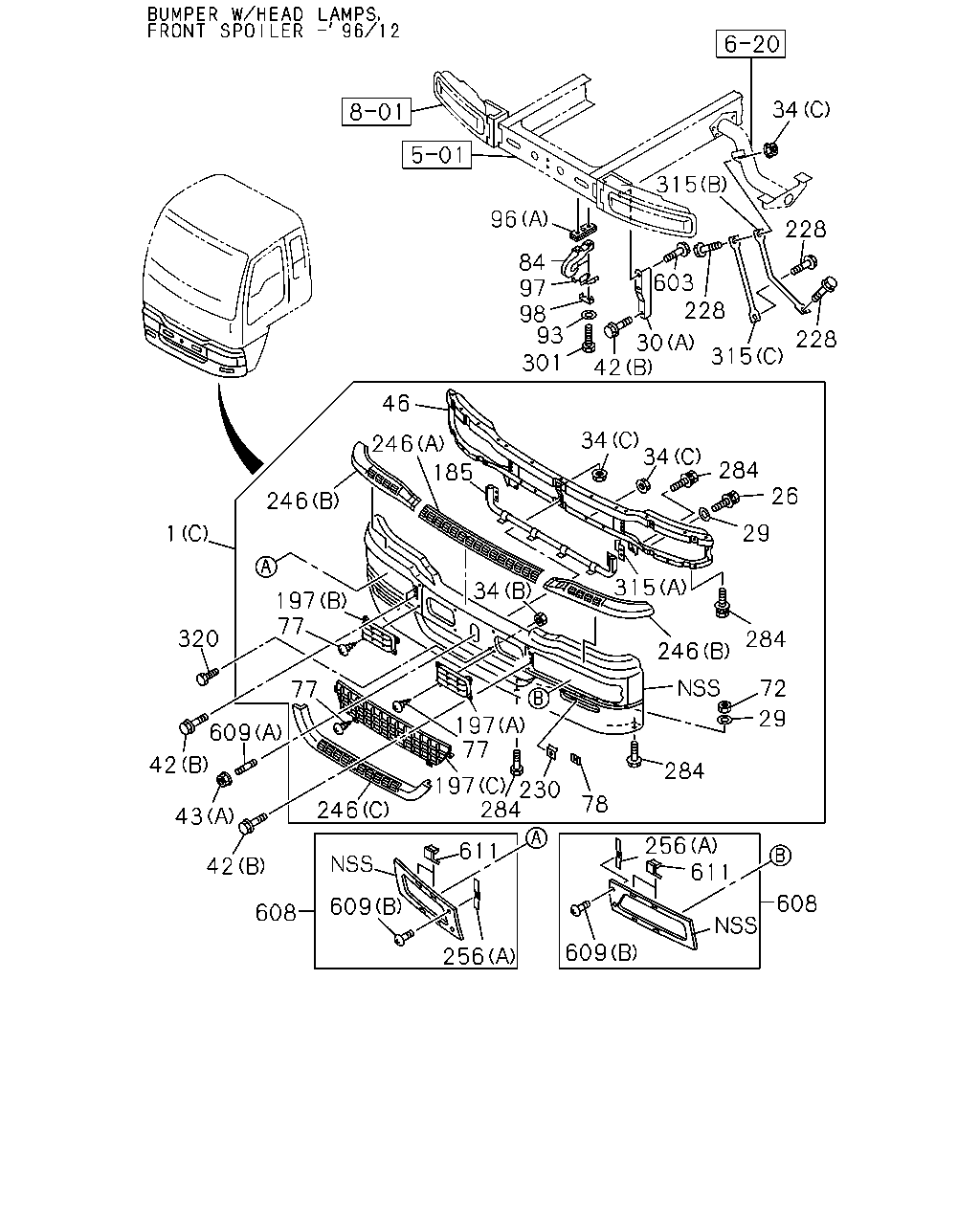

34 315 96 228 84 97 98 93 301 603 228 228 30 42 315 46 34 34 246 284 185 26 246 34 29 1 315 197 77 320 284 246 72 77 29 197 77 609 246 42 284 197 230 284 78 43 256 611 611 42 608 609 608 609 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

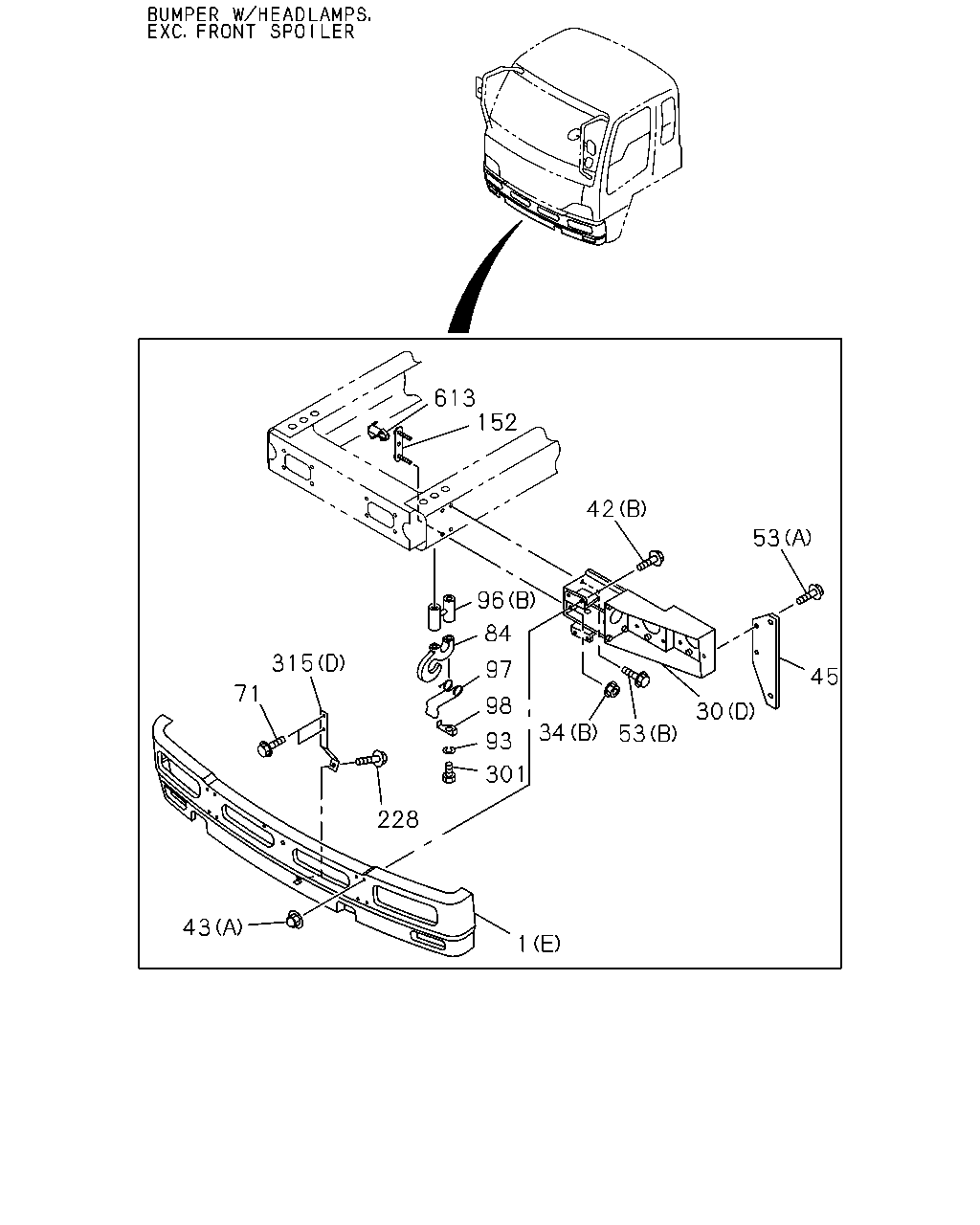

1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	0002-

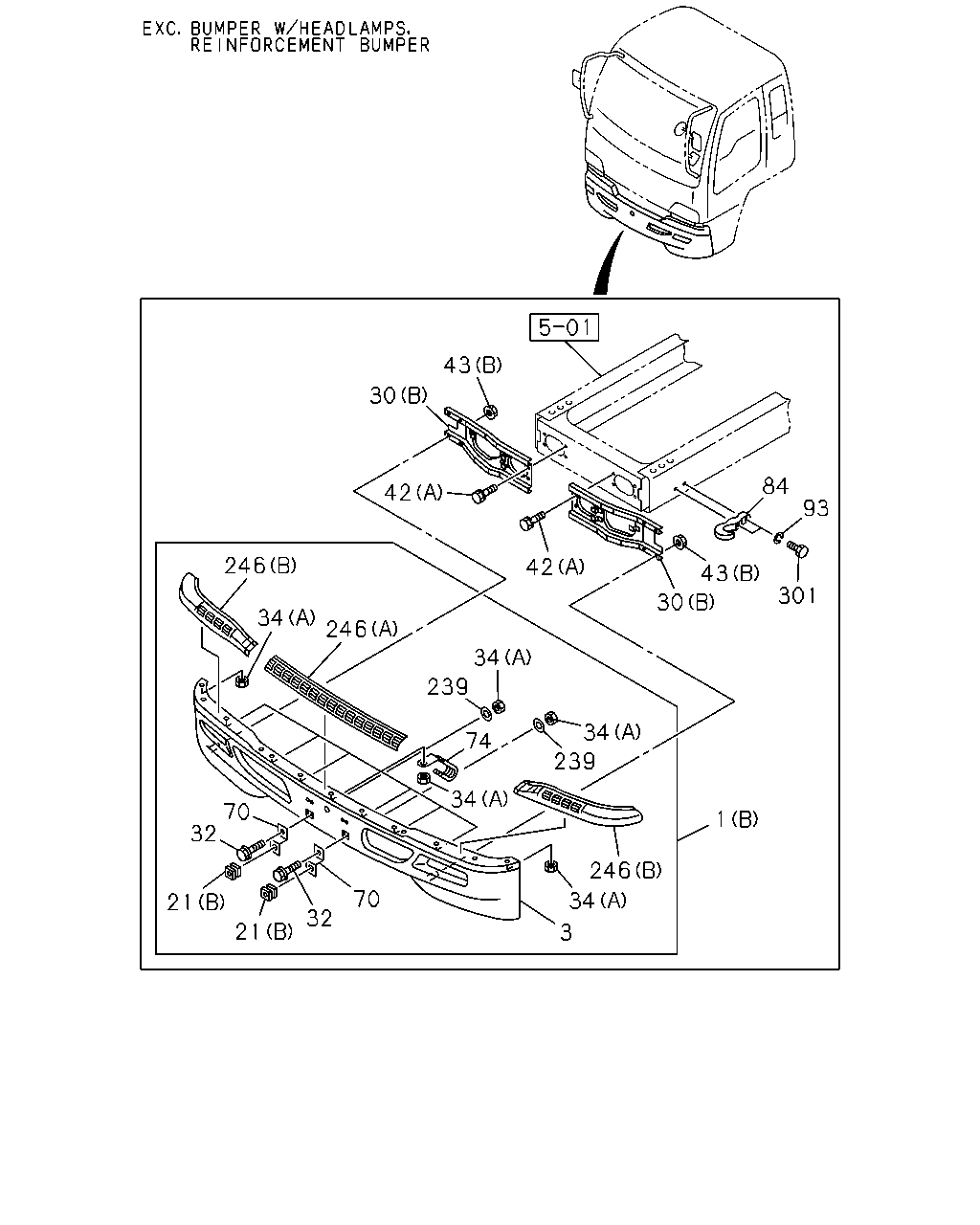

1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-568-9	01	1	9603-9606
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-737-4	01	1	9607-9612
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71210-769-7	01	1	9701-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-718-1	01	1	9603-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	9905-0001
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-546-3	01	1	9603-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-806-0	01	1	9609-9904

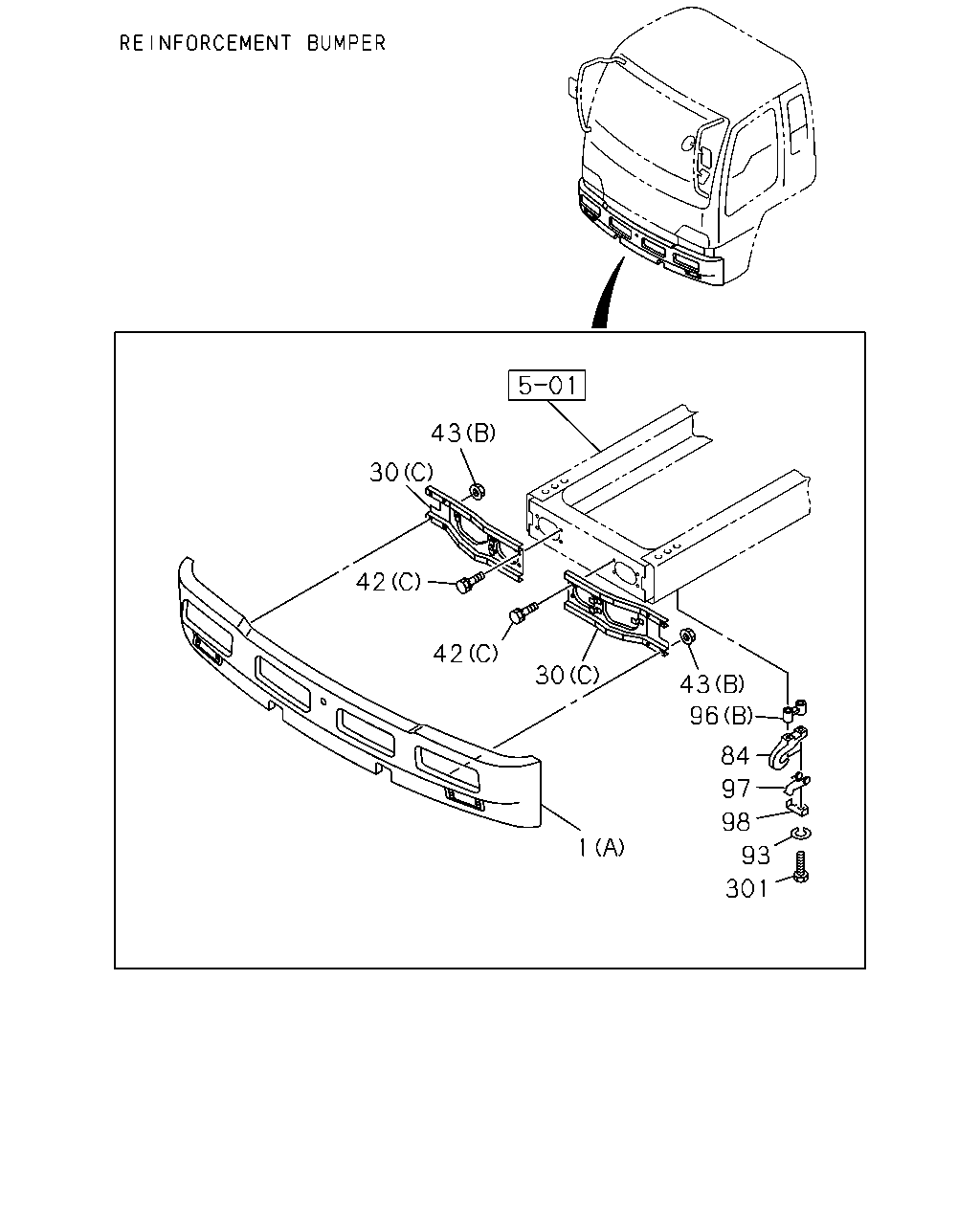

1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-722-1	01	1	9603-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-817-0	01	1	9609-9904
26	BOLT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X16 W/LK&PL WASHER	0-50140-816-0	14	1	9603-9612
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	16	1	9603-9612
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	19	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-342-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-424-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-343-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-425-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-355-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-354-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-9904
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	17	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M8	9-09110-508-0	02	1	9603-9612
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	9603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9603-9904
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28081-025-0	07	1	9603-9606
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28681-025-0	07	1	9607-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	9603-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9603-9904
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9603-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-9904
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	01	1	9603-9606
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10 CAP NUT	1-09650-480-0	08	1	9603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9603-
46	REINFORCEMENT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-564-5	01	1	9603-9606
46	REINFORCEMENT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-731-3	01	1	9607-9612
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8	9-09110-508-0	02	1	9603-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X16 TAPPING	9-07076-516-0	24	1	9603-9612
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X20	9-93490-520-0	24	1	9701-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9603-9612
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	06	1	9701-
84	HOOK	1-57181-027-1	01	1	9603-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9603-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> (B)	1-57189-193-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9603-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9603-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-317-2	01	1	9603-9612
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-416-0	01	1	9701-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-115-1	01	1	9603-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-116-1	01	1	9603-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9603-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28080-825-0	06	1	9603-9609
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9610-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	01	1	9603-
230	NUT; BRK,HD LAMP,LWR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-125-0	04	1	9603-9612
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-098-2	01	1	9603-9612
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9701-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-162-0	06	1	9701-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-153-0	04	1	9603-9612
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-165-0	06	1	9701-9706
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9707-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-173-0	06	1	9701-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9603-9612
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9701-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9701-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9603-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-388-1	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-443-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-387-0	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-442-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	9603-
320	BOLT; BUMPER CTR TO BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9603-9606
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	9603-9606
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9607-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-711-0	01	1	9603-9612
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9701-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-710-0	01	1	9603-9612
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9701-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-151-0	04	1	9603-9612
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-172-0	06	1	9701-9706
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9707-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9603-
611	CLIP; LID,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-627-0	08	1	9603-9612

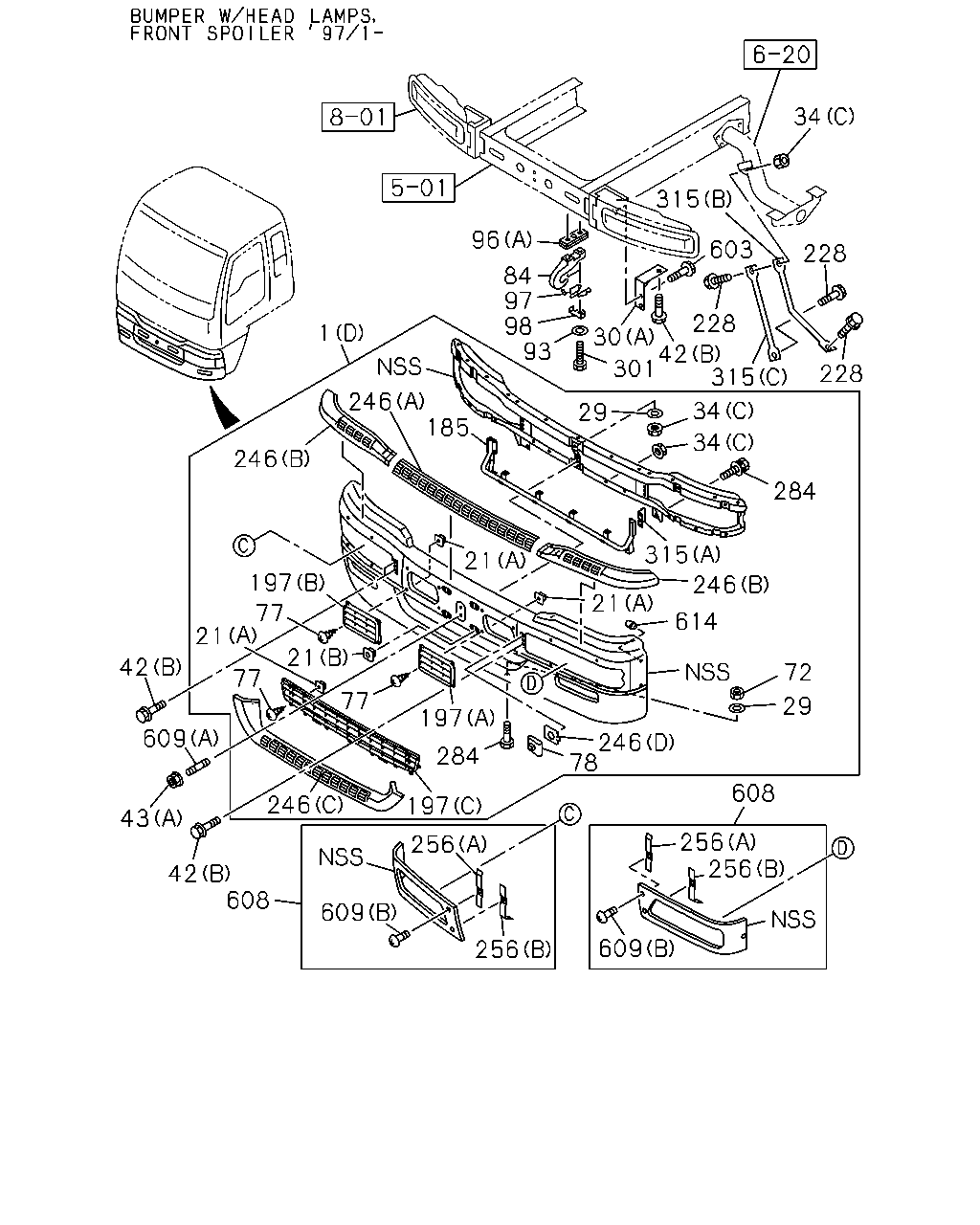

34 315 96 603 228 84 97 98 93 228 1 30 42 301 315 228 246 185 34 29 34 246 21 284 315 197 246 21 77 614 21 21 42 72 77 77 29 197 609 246 78 246 284 608 197 43 256 256 256 42 608 609 609 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	0002-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-568-9	01	1	9603-9606
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-737-4	01	1	9607-9612
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71210-769-7	01	1	9701-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-718-1	01	1	9603-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	9905-0001
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-546-3	01	1	9603-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-806-0	01	1	9609-9904
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-722-1	01	1	9603-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-817-0	01	1	9609-9904
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9701-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9701-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9603-9904
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	16	1	9603-9612
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	19	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-342-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-424-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-343-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-425-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-355-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-354-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-9904
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	17	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M8	9-09110-508-0	02	1	9603-9612
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	9603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9603-9904
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28081-025-0	07	1	9603-9606
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28681-025-0	07	1	9607-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	9603-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9603-9904
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9603-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-9904
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	01	1	9603-9606
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10 CAP NUT	1-09650-480-0	08	1	9603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9603-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8	9-09110-508-0	02	1	9603-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X16 TAPPING	9-07076-516-0	24	1	9603-9612
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X20	9-93490-520-0	24	1	9701-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9603-9612
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	06	1	9701-
84	HOOK	1-57181-027-1	01	1	9603-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9603-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> (B)	1-57189-193-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9603-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9603-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-317-2	01	1	9603-9612
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-416-0	01	1	9701-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-115-1	01	1	9603-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-116-1	01	1	9603-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9603-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28080-825-0	06	1	9603-9609
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9610-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	01	1	9603-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-098-2	01	1	9603-9612
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9701-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-162-0	06	1	9701-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-153-0	04	1	9603-9612
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-165-0	06	1	9701-9706
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9707-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-173-0	06	1	9701-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9603-9612
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9701-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9701-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9603-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-388-1	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-443-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-387-0	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-442-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	9603-
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	9603-9606
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9607-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-711-0	01	1	9603-9612
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9701-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-710-0	01	1	9603-9612
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9701-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-151-0	04	1	9603-9612
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-172-0	06	1	9701-9706
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9707-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9603-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9701-

43 30 42 42 30 43 96 84 97 98 1 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	0002-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-568-9	01	1	9603-9606
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-737-4	01	1	9607-9612
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71210-769-7	01	1	9701-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-718-1	01	1	9603-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	9905-0001
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-546-3	01	1	9603-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-806-0	01	1	9609-9904
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-722-1	01	1	9603-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-817-0	01	1	9609-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-342-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-424-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-343-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-425-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-355-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-354-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-9904
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-9904
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28081-025-0	07	1	9603-9606
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28681-025-0	07	1	9607-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	9603-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9603-9904
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9603-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-9904
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	01	1	9603-9606
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10 CAP NUT	1-09650-480-0	08	1	9603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9603-
84	HOOK	1-57181-027-1	01	1	9603-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9603-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> (B)	1-57189-193-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9603-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9603-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9603-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9905-

613 152 42 53 96 84 315 97 45 71 98 30 34 53 93 301 228 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	0002-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-568-9	01	1	9603-9606
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-737-4	01	1	9607-9612
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71210-769-7	01	1	9701-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-718-1	01	1	9603-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	9905-0001
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-546-3	01	1	9603-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-806-0	01	1	9609-9904
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-722-1	01	1	9603-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-817-0	01	1	9609-9904
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-342-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-424-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-343-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-425-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-355-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-354-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-9904
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-9904
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	17	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M8	9-09110-508-0	02	1	9603-9612
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	9603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9603-9904
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28081-025-0	07	1	9603-9606
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28681-025-0	07	1	9607-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	9603-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9603-9904
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9603-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-9904
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	01	1	9603-9606
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10 CAP NUT	1-09650-480-0	08	1	9603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9603-
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-71230-366-0	02	1	9603-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10X20 FLANGE	0-28081-020-0	08	1	9603-9606
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10X20 FLANGE	0-28681-020-0	08	1	9607-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14X35	0-28081-435-0	04	1	9603-
71	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	02	1	9603-
84	HOOK	1-57181-027-1	01	1	9603-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9603-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-53497-473-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> (B)	1-57189-193-0	01	1	9603-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9603-9904
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9905-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9603-9904
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9905-
152	PLATE; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-53497-546-1	02	1	9603-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28080-825-0	06	1	9603-9609
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9610-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	01	1	9603-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9603-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9905-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-388-1	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-443-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-503-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	9603-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-387-0	01	1	9603-9612
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-442-0	01	1	9701-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-502-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-390-0	01	1	9603-
613	CLIP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> OD=9 H=17.5	1-09709-181-0	02	1	9603-

43 30 84 42 93 246 42 43 301 30 34 246 34 239 34 74 239 34 70 32 1 246 70 34 21 32 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	0002-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	9905-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-568-9	01	1	9603-9606
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71210-737-4	01	1	9607-9612
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71210-769-7	01	1	9701-
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-718-1	01	1	9603-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E)	1-71210-949-0	01	1	9905-0001
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-546-3	01	1	9603-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71210-806-0	01	1	9609-9904
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-722-1	01	1	9603-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (A)	1-71210-817-0	01	1	9609-9904
3	BUMPER; FRT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71210-557-1	01	1	9603-9608
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9701-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9701-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9603-9904
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-342-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-424-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-343-0	01	1	9603-9606
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-425-0	01	1	9607-9612
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	9701-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-355-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-354-0	01	1	9603-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (D)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	9905-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9603-9904
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	9905-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-9904
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9603-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-9904
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9603-9904
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	17	1	9603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M8	9-09110-508-0	02	1	9603-9612
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M14 FLANGE	0-91150-114-0	04	1	9603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9603-9904
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	15	1	9905-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28081-025-0	07	1	9603-9606
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10X25 FLANGE	0-28681-025-0	07	1	9607-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M10X20 FLANGE	0-28081-020-0	06	1	9603-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9603-9904
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28081-025-0	08	1	9905-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9603-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-9904
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-9904
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	01	1	9603-9606
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	01	1	9607-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M10 CAP NUT	1-09650-480-0	08	1	9603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9603-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9603-9904
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71260-150-0	02	1	9905-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9603-9904
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>	1-09701-203-0	07	1	9905-
84	HOOK	1-57181-027-1	01	1	9603-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9603-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9905-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9603-9904
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	02	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-098-2	01	1	9603-9612
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9701-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-155-0	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-095-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9603-9904
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-094-1	01	1	9905-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-162-0	06	1	9701-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	9905-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9603-9904
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9603-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9603-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-9904
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
