◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11321 - EXZ MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#56369) — 7 parça

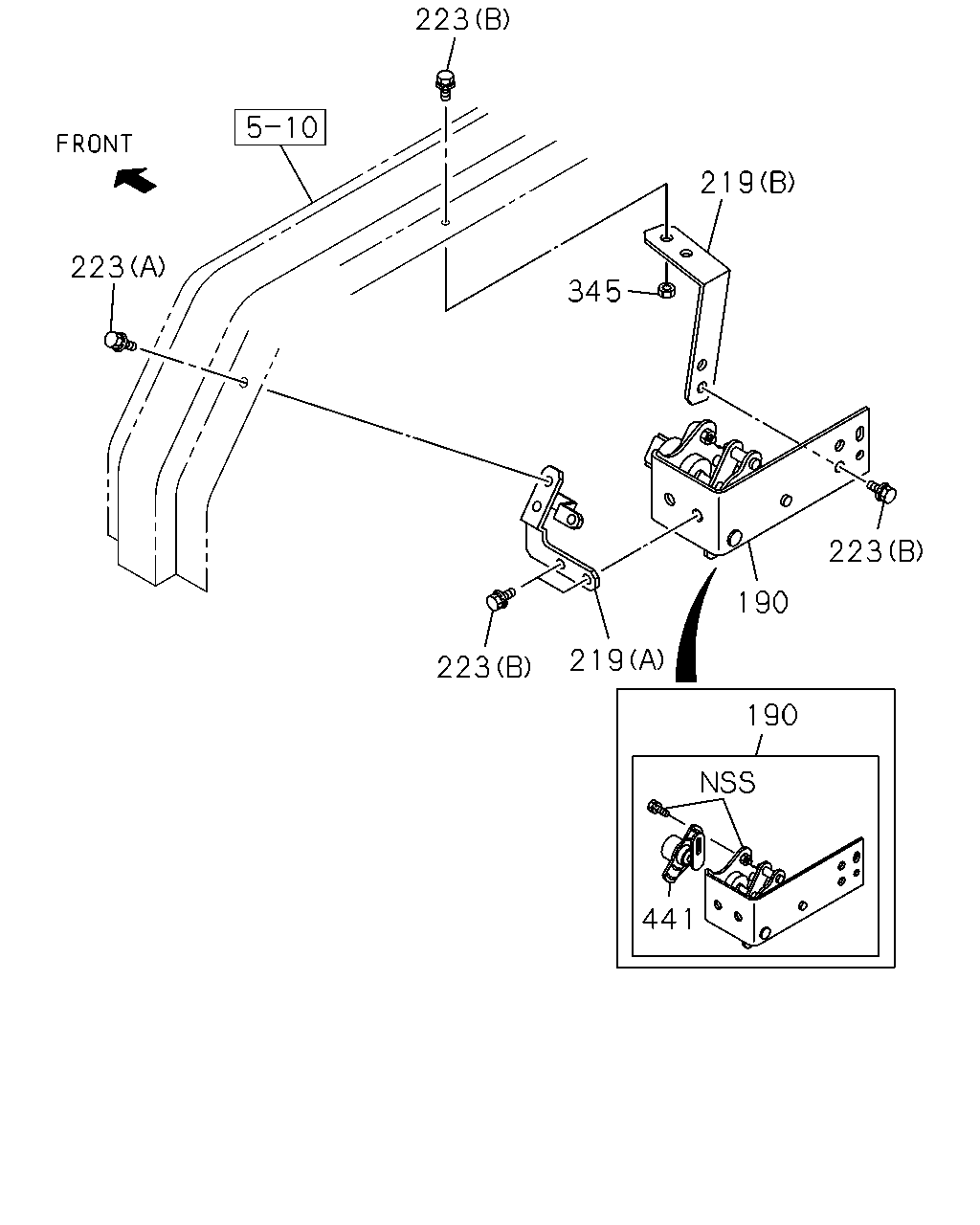

çizim 133934
223 219 223 345 223 190 219 223 190 441
BalonParca AdiParca NoAdetTipApplied Date
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97219-466-4 01 1 0902-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-580-0 01 1 0902-0904
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-581-0 01 1 0902-0904
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28650-820-0 05 1 0902-0904
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0902-0904
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91180-108-0 01 1 0902-0904
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0902-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
