◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11321 - EXZ MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#56358) — 42 parça

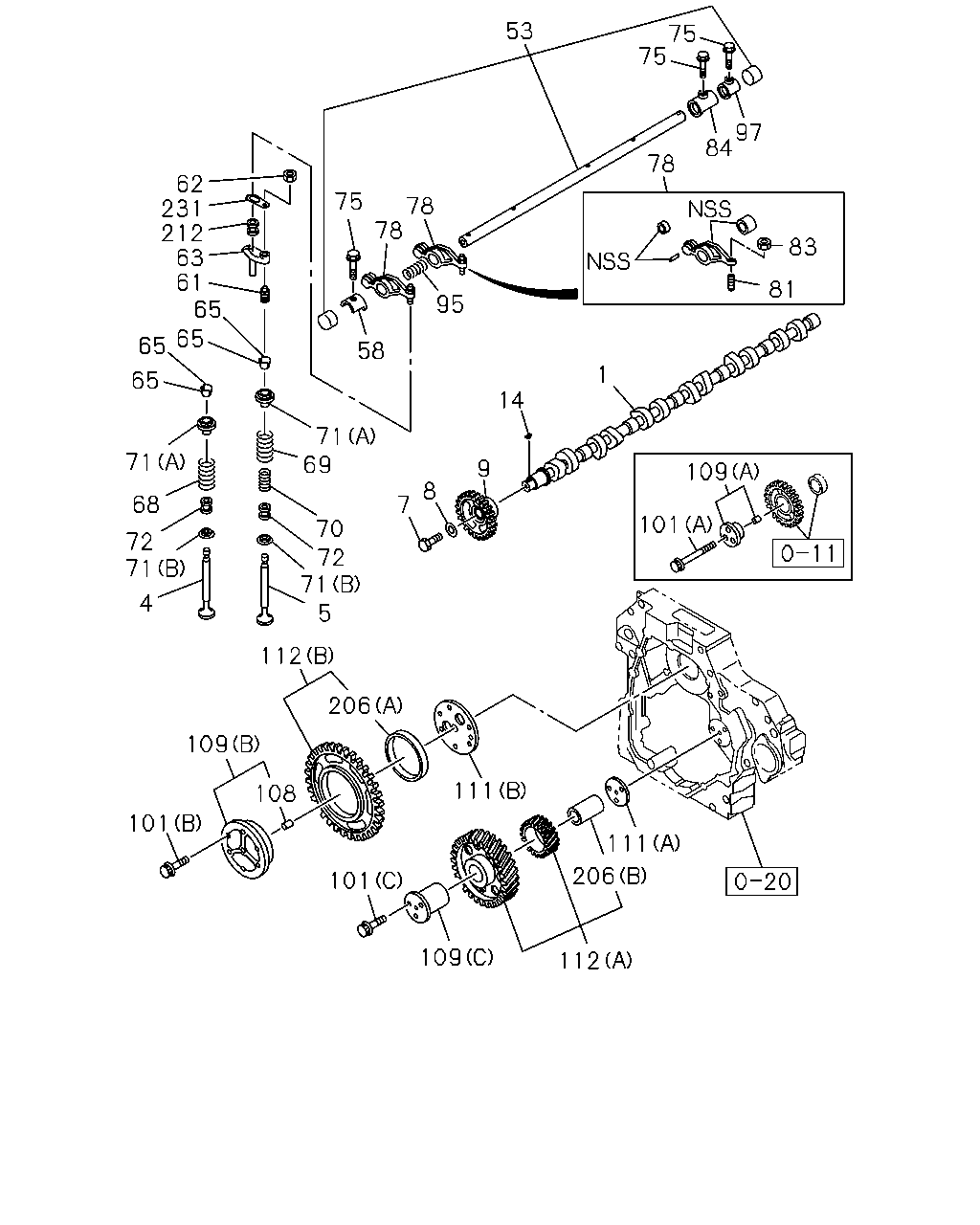

çizim 133924
53 75 75 97 84 78 62 231 212 63 61 65 75 78 78 83 81 95 65 65 58 1 65 14 71 69 71 9 109 8 68 7 101 70 72 71 5 72 71 4 112 206 109 111 108 101 111 206 101 109 112
BalonParca AdiParca NoAdetTipApplied Date
1 CAMSHAFT 1-12511-255-2 01 1 0812-
4 VALVE; INL 1-12551-162-4 12 1 0812-
5 VALVE; EXH 1-12552-100-3 12 1 0812-
7 BOLT; CM/SHF GEAR
M14X28 		9-92061-428-0 01 1 0812-
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0812-
9 GEAR; CM/SHF
Z=54 		1-12522-060-1 01 1 0812-
14 KEY; CM/SHF 9-08055-516-0 01 1 0812-
53 SHAFT; ROCKER ARM 1-12621-092-2 01 1 1210-
53 SHAFT; ROCKER ARM 8-98191-745-2 01 1 0812-
58 BRACKET; ROCKER SHAFT,FRT 1-12628-070-3 01 1 0812-
61 SCREW; ADJ,BRIDGE 1-12616-042-0 12 1 0812-
62 NUT; ADJ SCREW LK BRIDGE
M10 		9-09840-310-0 12 1 0812-
63 BRIDGE 1-12611-277-3 12 1 0812-
65 COLLAR; SPLIT 1-12565-007-0 48 1 0812-
68 SPRING; VLV 8-97603-305-0 12 1 0812-
69 SPRING; VLV,OUTER 1-12561-093-0 12 1 0812-
70 SPRING; VLV,INNER 1-12562-060-0 12 1 0812-
71 SEAT; SPR
(B) 		1-12563-056-2 24 1 0812-
71 SEAT; SPR
(A) 		1-12563-060-0 24 1 0812-
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-020-0 24 1 0812-
75 BOLT; BRKT
M12X97 FLANGE 		1-09044-087-1 07 1 0812-
78 ARM; ROCKER 1-12610-080-2 12 1 0812-
81 SCREW; ADJ,ROCKER ARM 1-12616-034-1 12 1 0812-
83 NUT; ADJ SCREW,LK
M12 		0-91110-512-0 12 1 0812-
84 BRACKET; ROCKER SHAFT,INTER 1-12628-068-2 05 1 0812-
95 SPRING; ROCKER SHAFT 1-09580-472-1 06 1 0812-
97 BRACKET; ROCKER SHAFT,RR 1-12628-072-3 01 1 0812-
101 BOLT; THRUST COLLAR
(A) M10X40 FLANGE 		0-28151-040-0 03 1 0812-
101 BOLT; THRUST COLLAR
(B) M10X60 FLANGE 		0-28151-060-0 06 1 0812-
101 BOLT; THRUST COLLAR
(C) M12X114 		1-09070-087-3 03 1 0812-
108 DOWEL; SHAFT
OD=12 L=32 		9-08161-232-0 01 1 0812-
109 SHAFT; IDLE GEAR
(B) 		1-12531-076-2 01 1 0812-
109 SHAFT; IDLE GEAR
(C) 		1-12531-092-2 01 1 0812-
109 SHAFT; IDLE GEAR
(A) 		1-12531-093-1 01 1 0812-
111 COLLAR; THRUST,IDLE GEAR
(A) 		1-12535-008-1 01 1 0812-
111 COLLAR; THRUST,IDLE GEAR
(B) 		1-12535-019-0 01 1 0812-
112 GEAR; IDLE
(A) 		1-12523-366-1 01 1 0812-
112 GEAR; IDLE
(B) 		1-12523-369-1 01 1 0812-
206 BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. 		1-09330-124-1 01 1 0812-
206 BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. 		8-98081-167-0 01 1 0812-
212 CAP; ADJ SCREW 1-12616-040-0 12 1 0812-
231 PLATE; CAP 1-12619-011-2 12 1 0812-
