Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

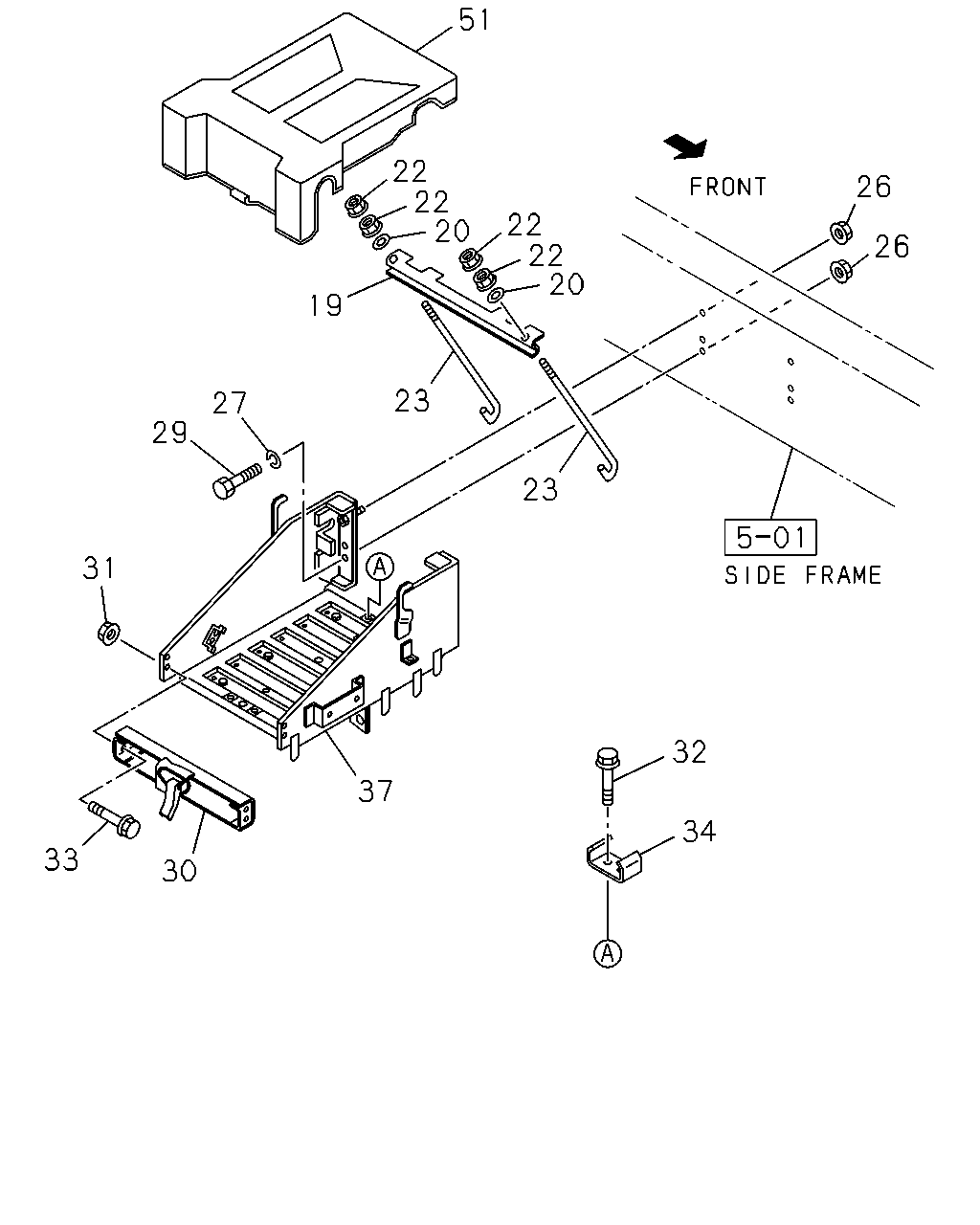

5-20 — BATTERY CARRIER
(#5635) — 21 parça
51
22
22
20
26
22
22
20
26
19
23
27
29
23
31
32
37
34
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
9603-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
9603-
22
NUT; STAY
M8
9-09110-508-0
04
1
9603-9606
22
NUT; STAY
M8 FLANGE
0-91150-108-0
04
1
9607-9805
22
NUT; STAY
M8
9-09110-408-0
04
1
9806-
23
BOLT; STAY
L=260
1-53616-109-0
02
1
9603-9904
23
BOLT; STAY
L=250
1-53616-108-0
02
1
9905-
26
NUT; BRKT
M14
9-99110-514-0
04
1
9603-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
9603-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
9603-
30
PLATE; BATTERY
1-53619-086-0
01
1
9603-
31
NUT; PLATE
M8
9-09110-508-0
04
1
9603-9606
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
9607-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
9603-9606
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X20 FLANGE
0-28680-820-0
04
1
9607-9912
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0001-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
9603-9606
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
04
1
9607-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
9603-
37
BRACKET; BATTERY
1-53610-130-0
01
1
9603-
51
COVER; BATTERY
1-53612-040-1
01
1
9603-
