◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#56347) — 24 parça

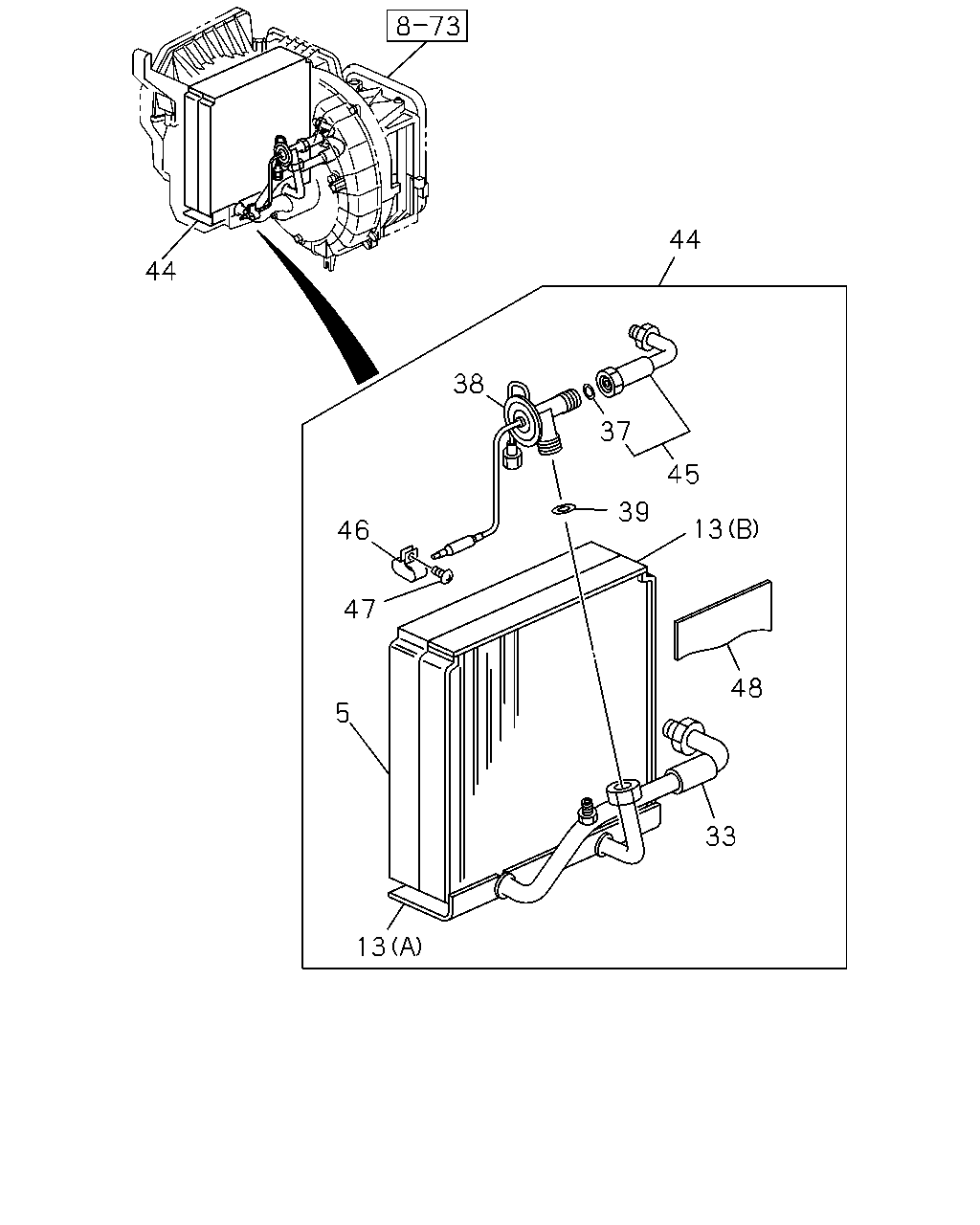

çizim 133311
44 44 38 37 45 39 13 46 47 48 5 33 13
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR 1-83562-098-0 01 1 0707-0708
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-098-0 01 1 0709-
13 SEAL; EVAP
(B) 		1-83579-669-1 01 1 0707-0708
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-669-1 01 1 0709-
13 SEAL; EVAP
(A) 		1-83579-816-0 01 1 0707-0708
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-816-0 01 1 0709-
33 LINING; EVAP 1-83579-817-0 01 1 0707-0708
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-817-0 01 1 0709-
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 0707-0708
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 0709-
38 VALVE; EXPANSION 1-83569-158-0 01 1 0707-0708
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 0709-
39 GASKET; EVAP 8-94481-717-0 01 1 0707-0708
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 0709-
44 EVAPORATOR ASM; A/C 1-83541-142-0 01 1 0707-0708
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-142-0 01 1 0709-
45 PIPE; EXPANSION VLV 1-83567-689-0 01 1 0707-0708
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-689-0 01 1 0709-
46 CLIP; EXPANSION VLV
ID=8X2 		8-94344-881-1 01 1 0707-0708
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) ID=8X2 		8-94344-881-1 01 1 0709-
47 SCREW; EVAP 8-97130-601-0 01 1 0707-0708
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0709-
48 INSULATOR; EVAP 1-83579-784-0 01 1 0707-0708
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-784-0 01 1 0709-
