◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#56346) — 114 parça

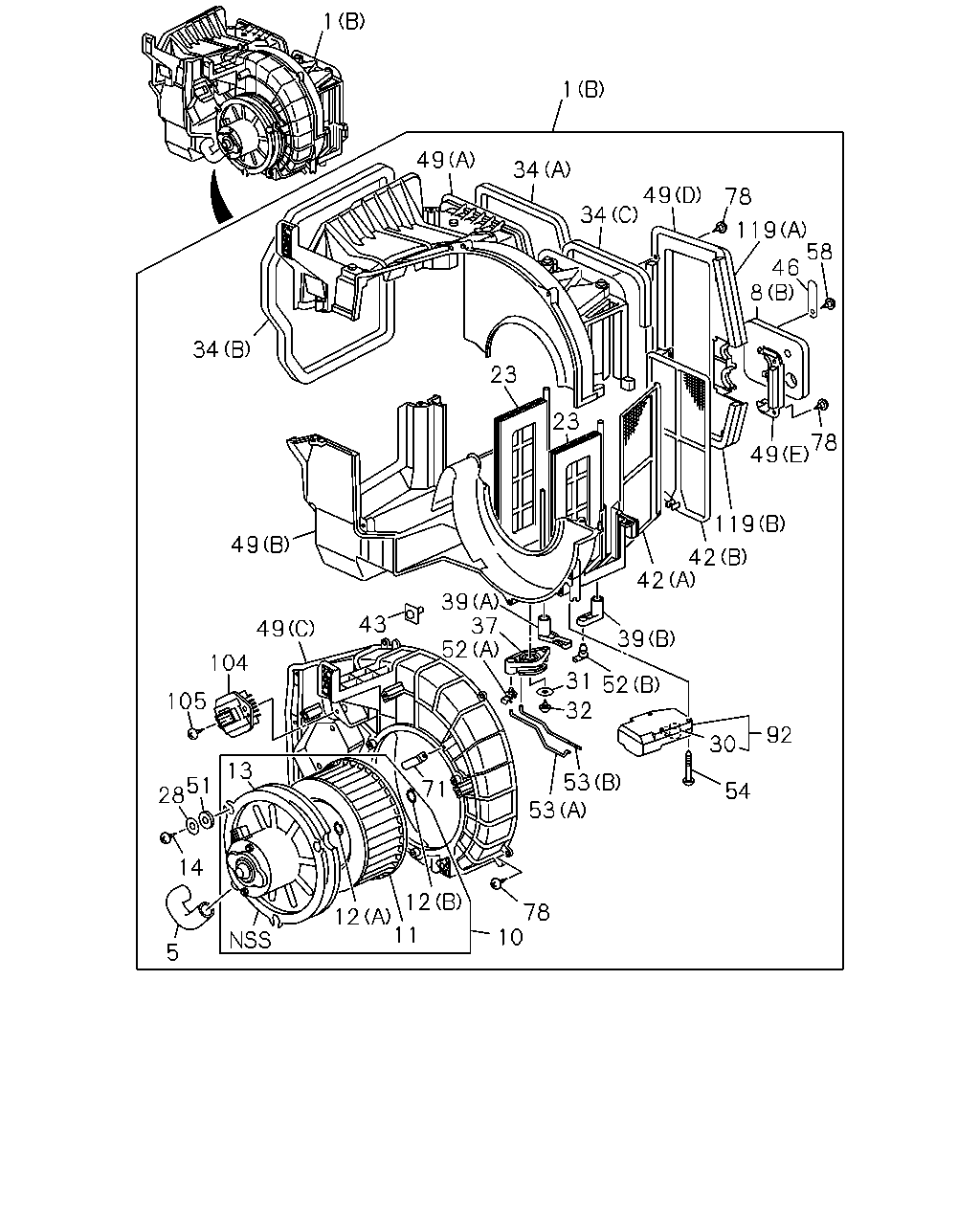

çizim 133322
1 1 49 34 49 34 78 119 58 46 8 34 23 23 78 49 119 49 42 42 39 37 52 43 49 39 104 31 52 105 32 92 30 13 53 53 51 28 71 54 14 12 78 10 12 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
(A) 		1-83561-183-2 01 1 0707-0708
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 0709-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 0709-
5 HOSE; AIR 1-83563-147-0 01 1 0707-
8 SEAL; BLOWER UNIT
(A) 		1-83539-261-1 01 1 0707-0708
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 0709-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 0709-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0707-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 0707-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0707-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0707-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0707-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0707-
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0707-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0707-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0707-
31 WASHER; LEVER 1-83579-095-0 01 1 0707-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0707-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0707-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 0707-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 0707-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0707-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0707-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0707-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0707-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0707-
43 BOLT; CASE 1-83579-657-2 04 1 0707-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 0709-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0707-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0707-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0707-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0707-
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 0707-0708
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 0709-
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 0707-0708
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 0709-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 0709-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0707-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 0707-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0707-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0707-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0707-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0707-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 0709-
71 CLIP; HARNESS 8-97096-145-0 01 1 0707-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0707-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0707-
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 0707-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0707-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0707-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0707-
119 LINING; CASE
(D) 		1-83579-672-0 01 1 0707-0708
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 0709-
119 LINING; CASE
(C) 		1-83579-795-0 01 1 0707-0708
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 0709-

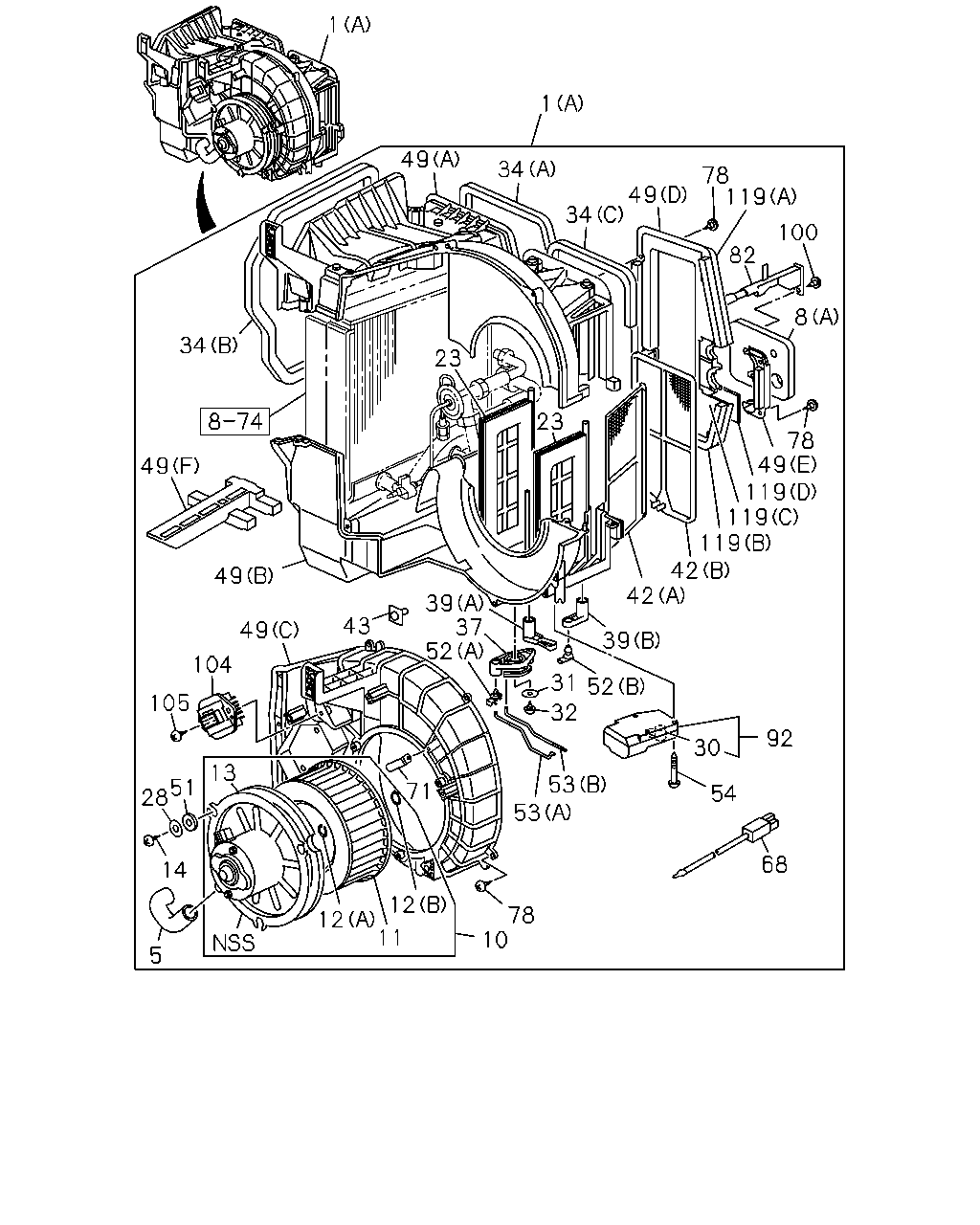

çizim 133324
1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 30 13 53 53 51 28 71 54 68 14 12 78 10 12 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
(A) 		1-83561-183-2 01 1 0707-0708
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 0709-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 0709-
5 HOSE; AIR 1-83563-147-0 01 1 0707-
8 SEAL; BLOWER UNIT
(A) 		1-83539-261-1 01 1 0707-0708
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 0709-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 0709-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 0707-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 0707-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0707-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0707-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0707-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0707-
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 0707-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0707-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0707-
31 WASHER; LEVER 1-83579-095-0 01 1 0707-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0707-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0707-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 0707-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 0707-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 0707-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 0707-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 0707-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 0707-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0707-
43 BOLT; CASE 1-83579-657-2 04 1 0707-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 0707-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 0707-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 0707-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 0707-
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 0707-0708
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 0709-
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 0707-0708
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 0709-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 0709-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0707-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 0707-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 0707-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0707-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 0707-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0707-
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 0707-0708
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 0709-
71 CLIP; HARNESS 8-97096-145-0 01 1 0707-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 0707-
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 0707-0708
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 0709-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 0707-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0707-0708
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 0709-
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 0707-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0707-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0707-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0707-
119 LINING; CASE
(D) 		1-83579-672-0 01 1 0707-0708
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 0709-
119 LINING; CASE
(C) 		1-83579-795-0 01 1 0707-0708
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 0709-
