Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#56340) — 36 parça
◀

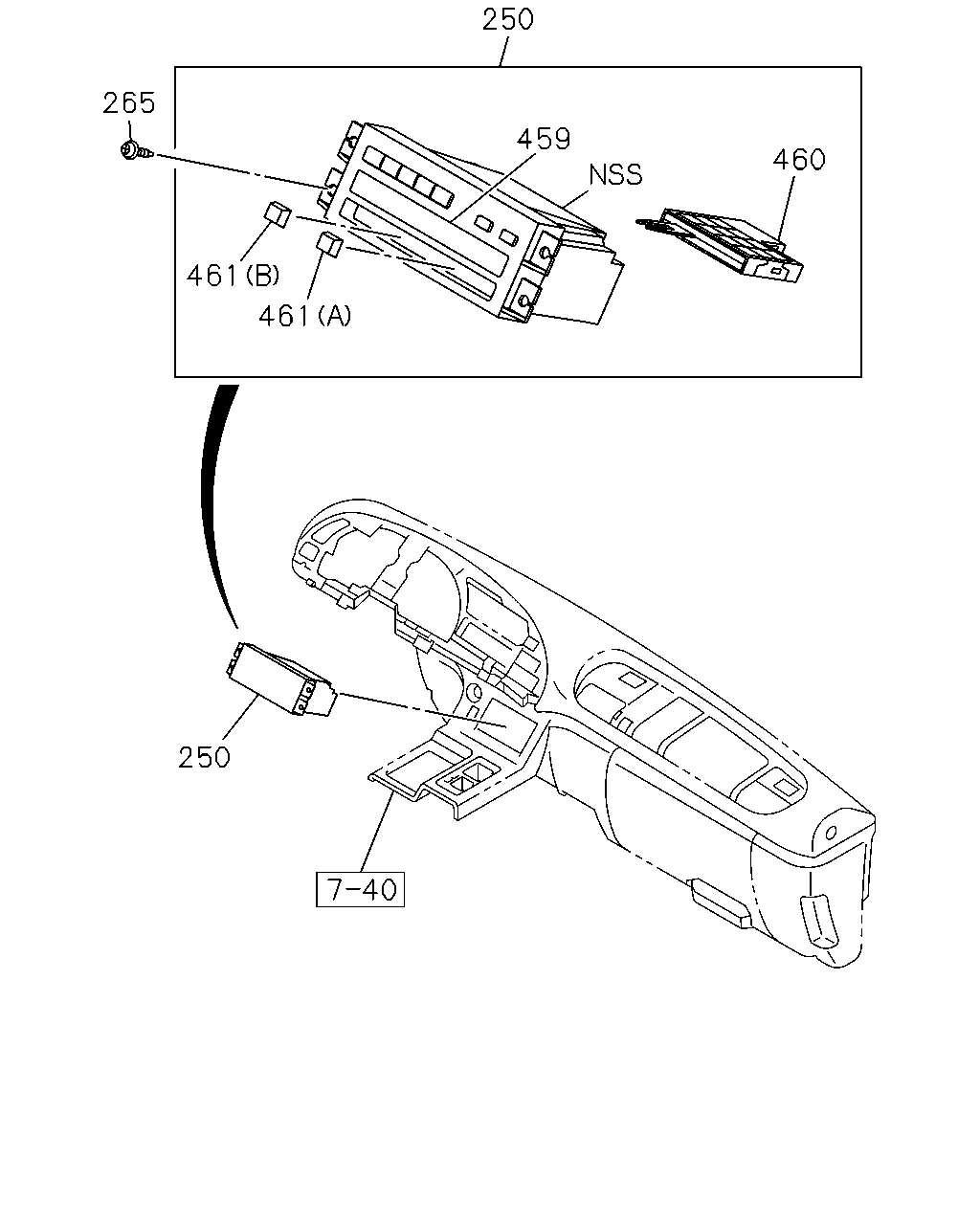

[840A] CONTROL ASM (6 parça)

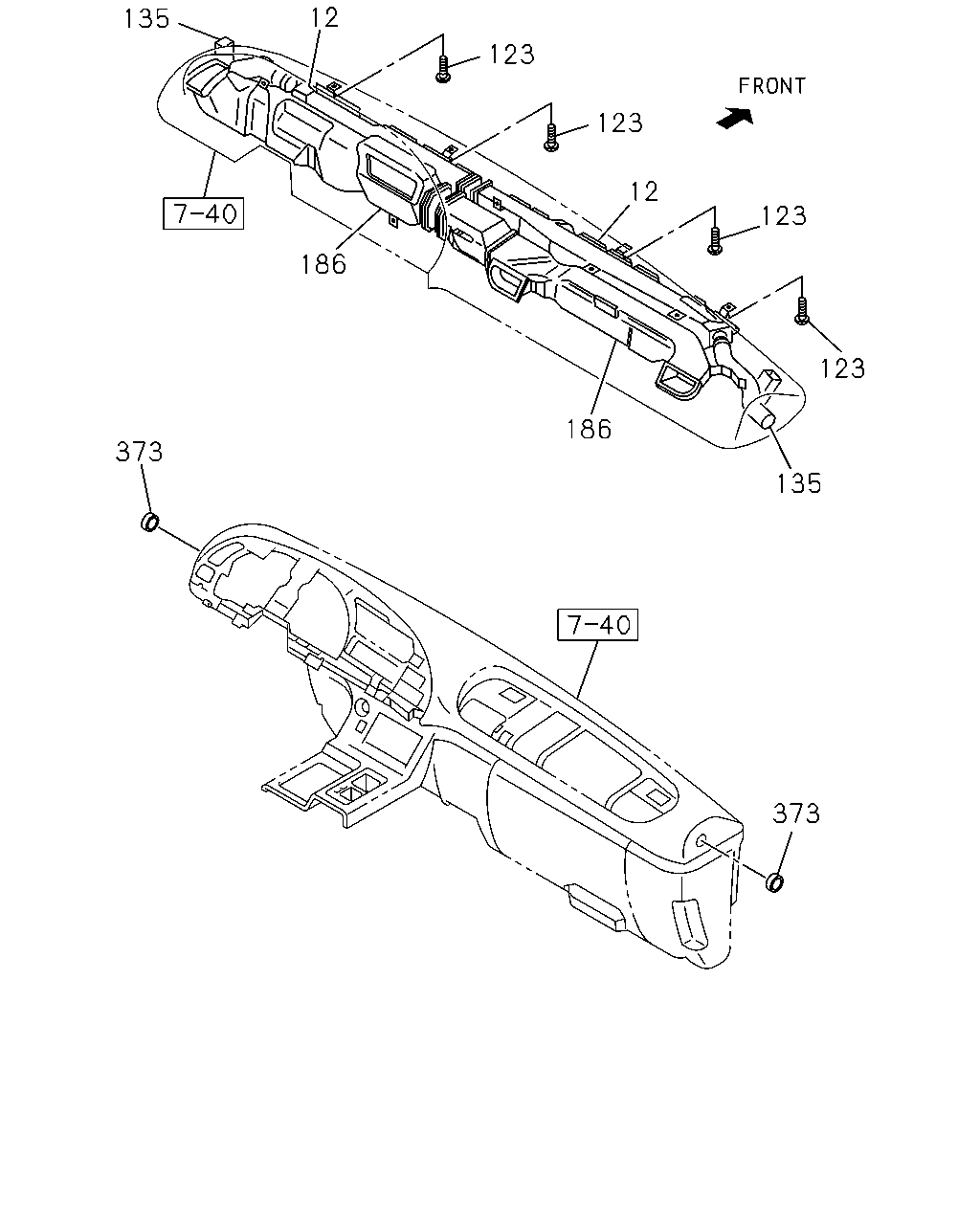

[840A] DUCT NO.1 (9 parça)

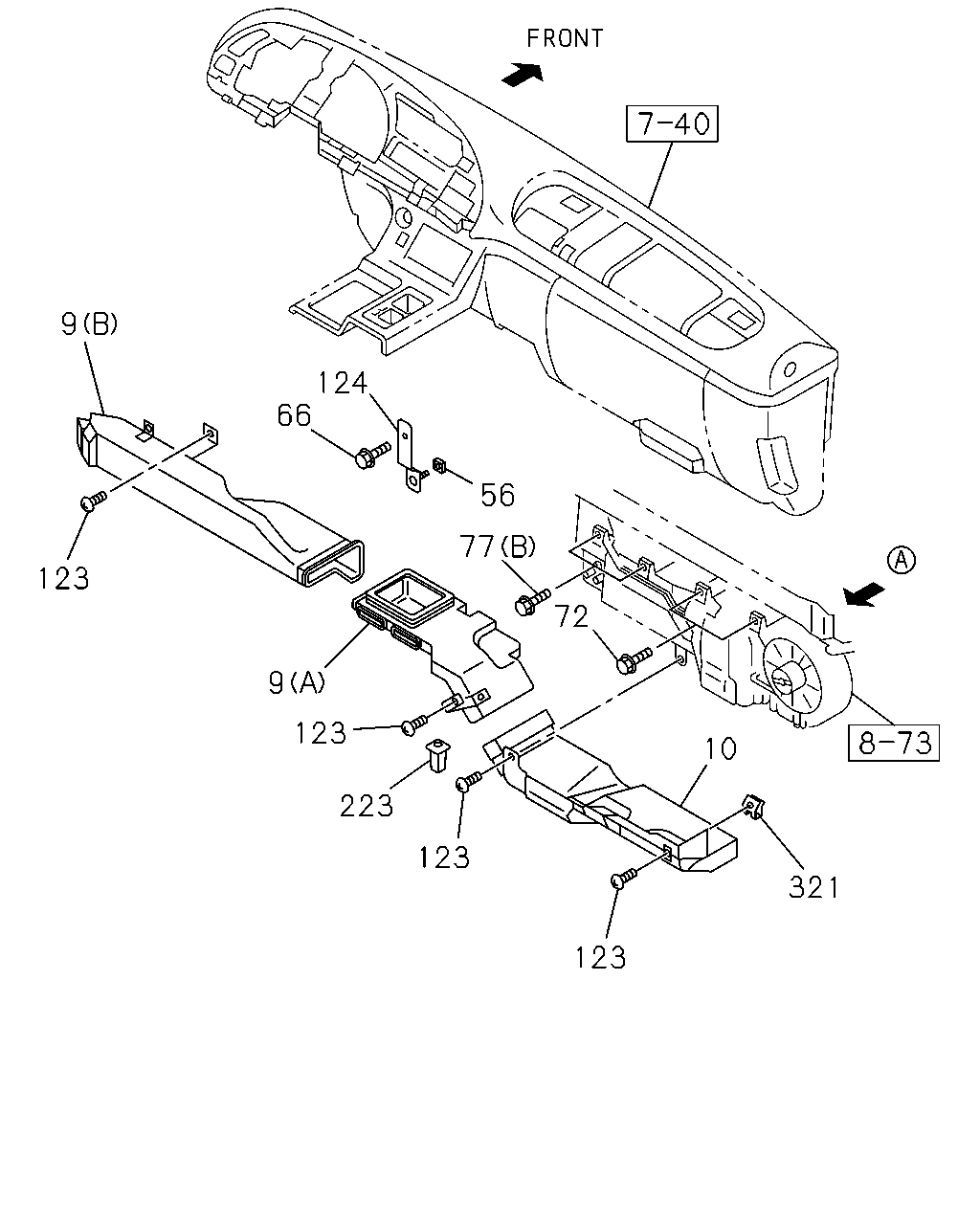

[840A] DUCT NO.2 (13 parça)

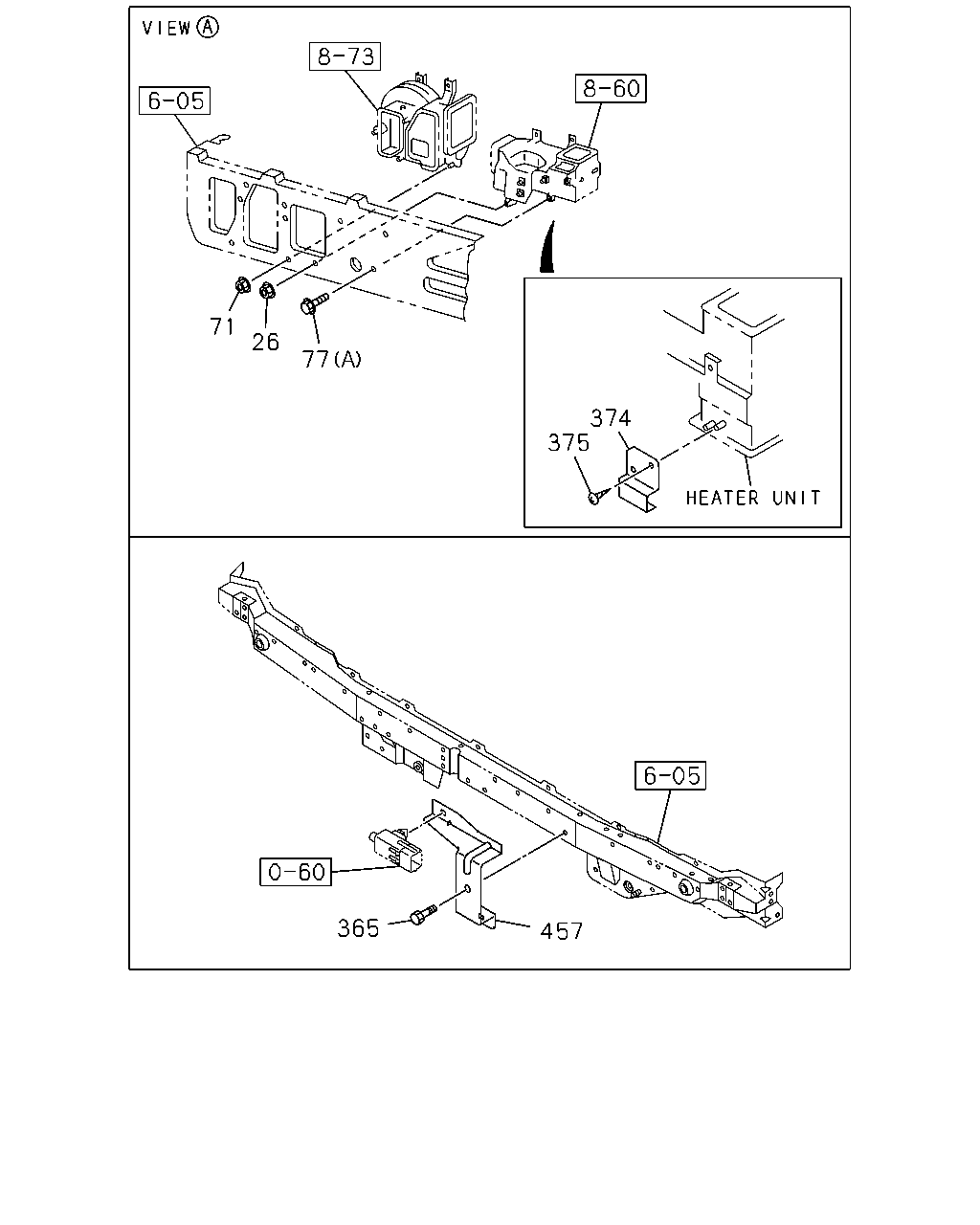

[840A] FRONT PANEL SIDE (8 parça)
▶
250
265
459
460
461
461
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
8-98034-326-0
01
1
0707-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
02
1
0707-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0707-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0707-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0707-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0707-
12
135
123
123
12
123
186
123
186
373
135
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-360-2
01
1
0707-
12
NOZZLE; DEFROSTER
1-76377-196-1
01
1
0707-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0707-
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
0707-
135
HOSE; DEFROSTER
1-76378-364-3
01
1
0707-
135
HOSE; DEFROSTER
1-76377-231-0
01
1
0707-
186
DUCT; VENTILATOR
1-76378-362-4
01
1
0707-
186
DUCT; VENTILATOR
1-76377-197-2
01
1
0707-
373
RUBBER; JOINT
1-76378-291-0
02
1
0707-
9
124
66
56
77
123
72
9
123
10
223
123
321
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-199-1
01
1
0707-
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-228-2
01
1
0707-
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-200-1
01
1
0707-
56
NUT; INL DUCT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
0707-
66
BOLT; DUCT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0707-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0707-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0707-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0707-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
0707-
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
0707-
124
BRACKET ASM; VENT DUCT
1-79738-186-1
01
1
0707-
223
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0707-
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
0707-
71
26
77
374
375
365
457
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0707-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0707-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0707-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0707-
365
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0707-
374
HOLDER; DUCT
1-76398-012-1
01
1
0707-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0707-
457
BRACKET; SENSOR
1-71907-603-1
01
1
0707-
