8-28 — CHASSIS ELECTRICAL (#56339) — 110 parça

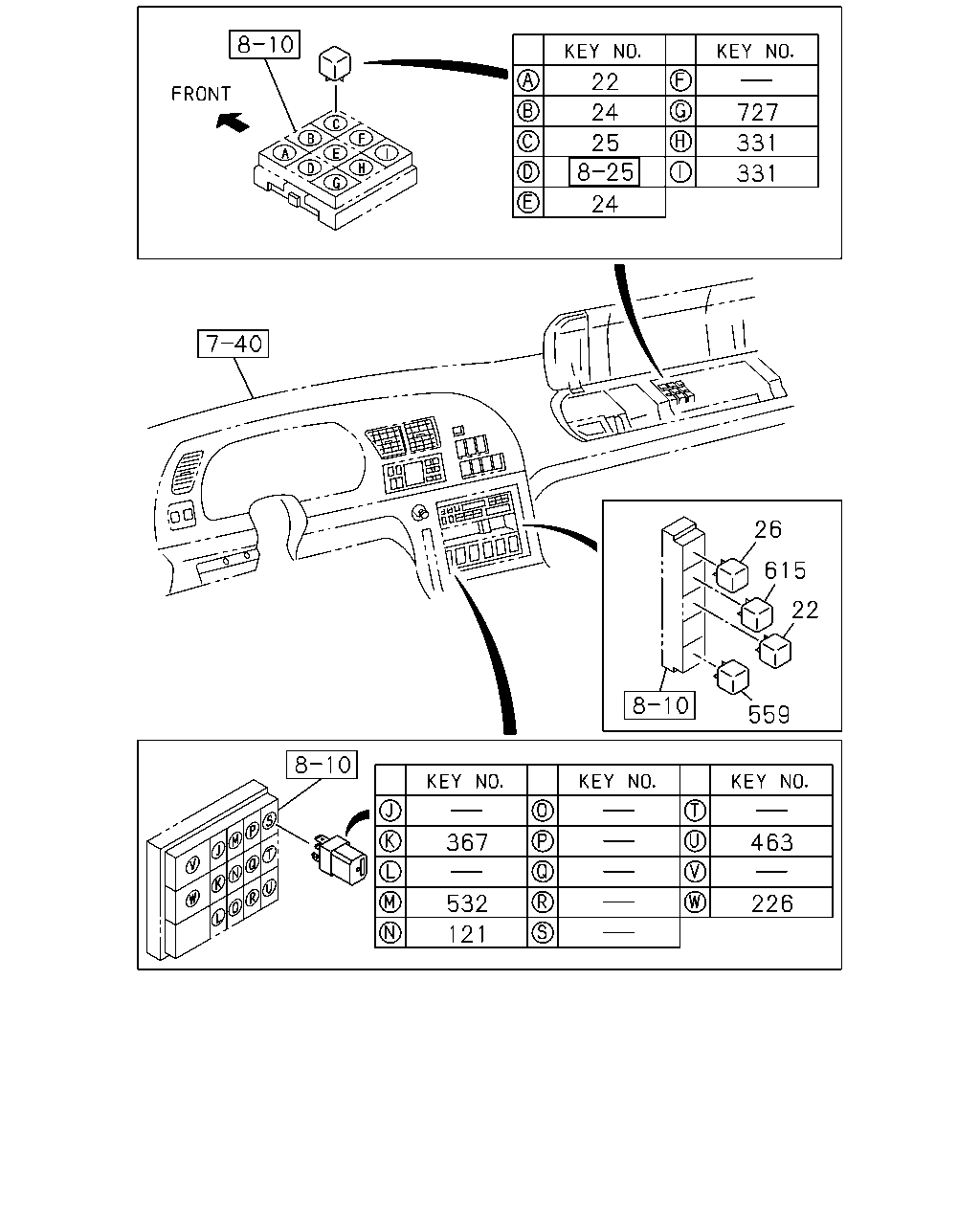

çizim 133281
22 24 727 25 331 331 24 26 615 22 559 367 463 532 226 121
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0707-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0707-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0707-
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0707-0708
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0709-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0707-
463 RELAY; ABS SIGNAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0707-
532 RELAY; SEAT BELT WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 0709-
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-

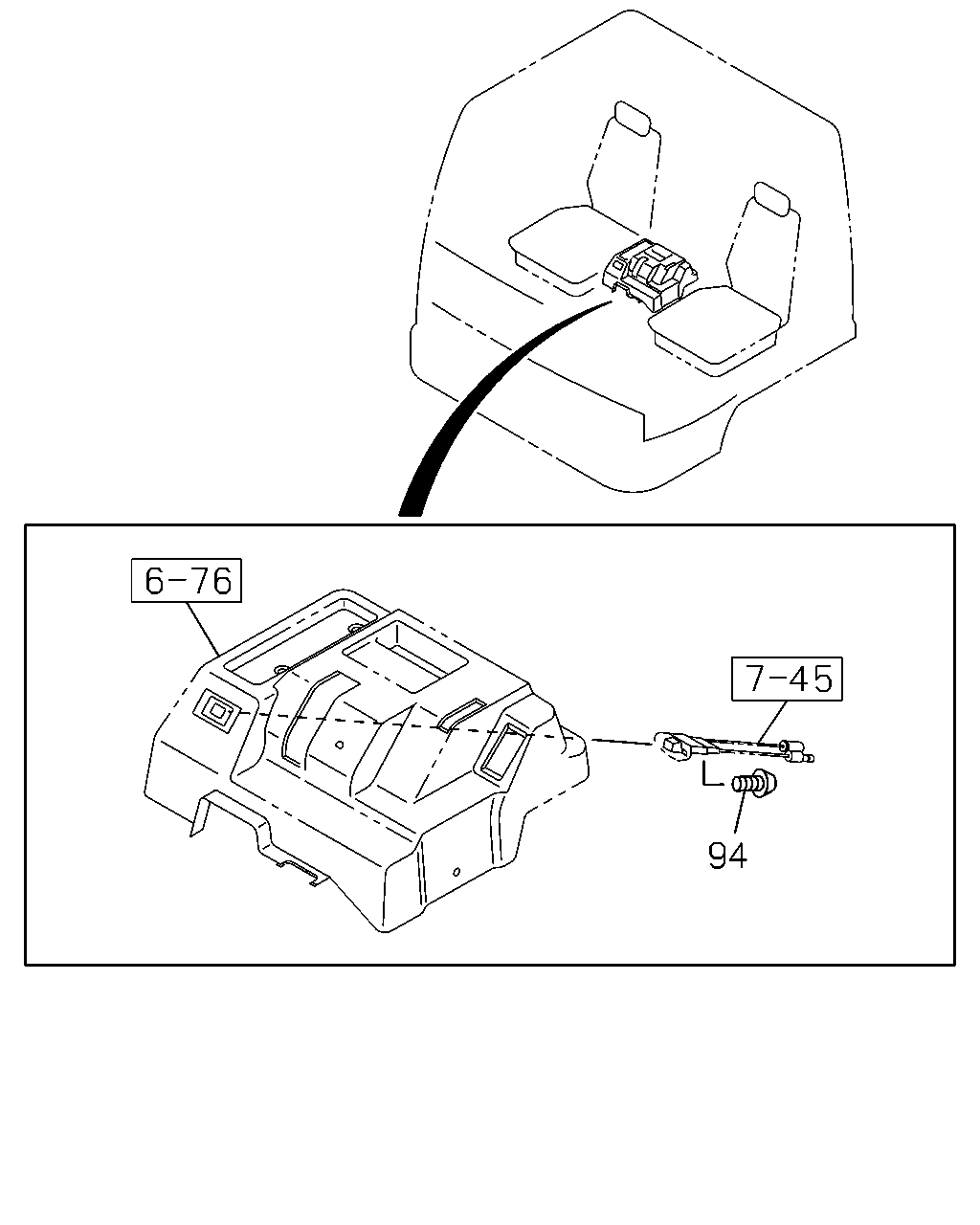

çizim 133283
94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0707-0708

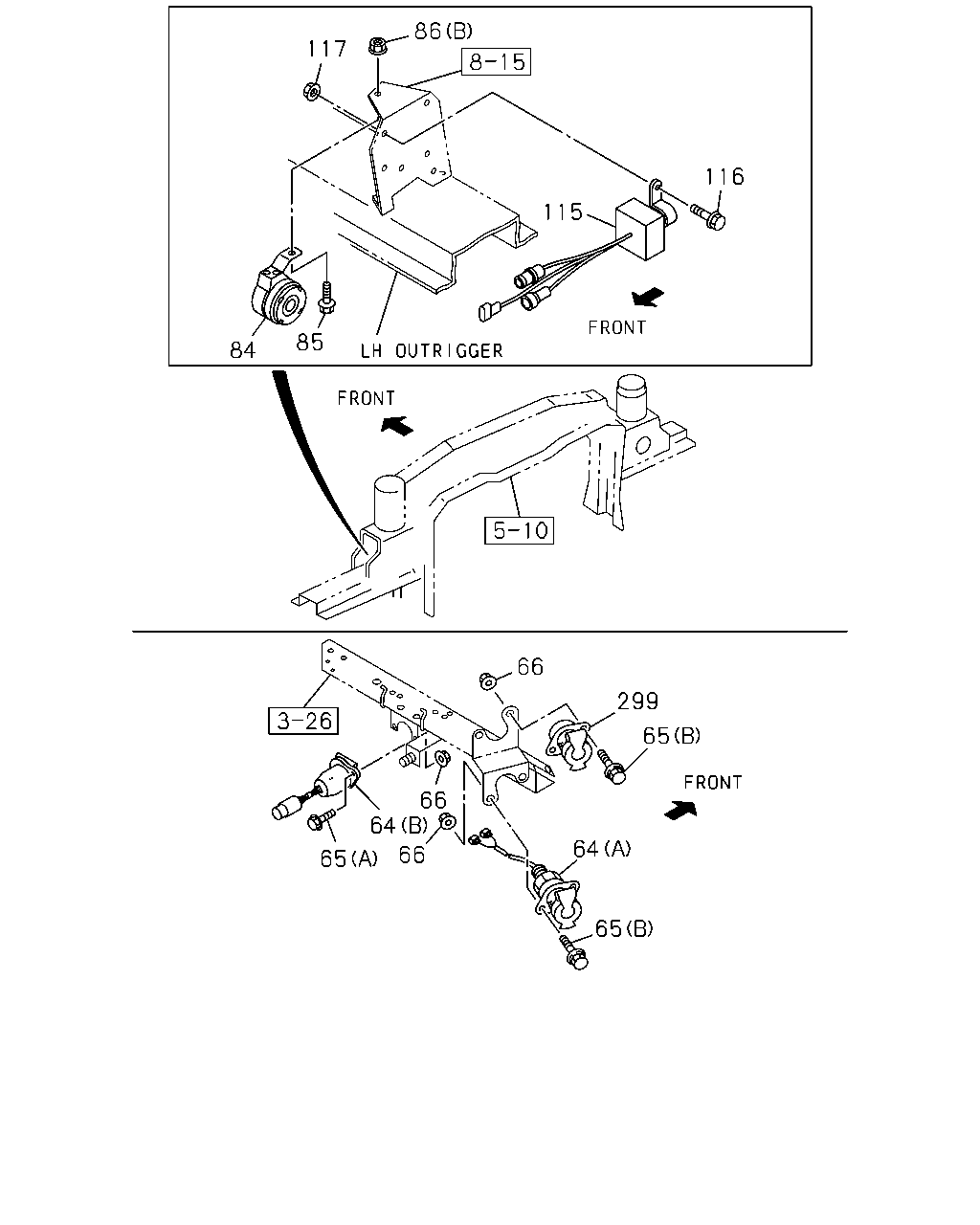

çizim 133287
86 117 116 115 85 84 66 299 65 66 64 64 66 65 65
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0707-
64 SOCKET; TRAILER
(A) L=860 		1-82699-449-2 01 1 0707-1008
64 SOCKET; TRAILER
(A) L=860 		8-98172-008-0 01 1 1009-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0707-
65 BOLT; SOCKET FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0707-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 05 1 0707-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0707-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0707-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0707-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0707-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0707-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0707-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0707-
299 SOCKET; PARKING 1-82699-396-2 01 1 0707-

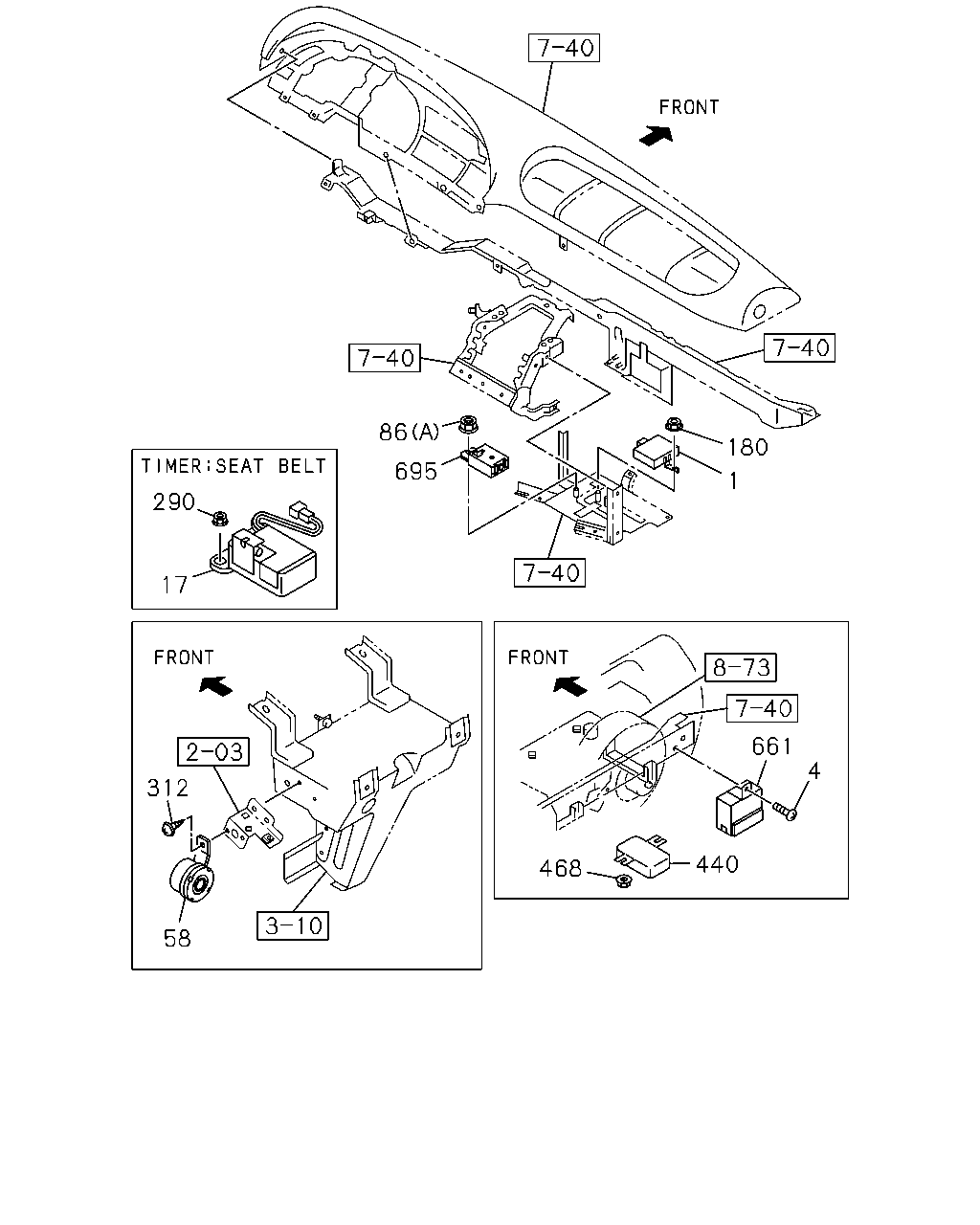

çizim 133290
86 180 695 1 290 17 661 4 312 440 468 58
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-062-1 01 1 0707-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0707-
17 TIMER; SEAT BELT 1-82550-183-1 01 1 0709-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0707-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0707-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0707-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0707-
290 NUT
M6 FLANGE 		0-91180-106-0 02 1 0709-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0707-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0707-
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 0707-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0707-
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0707-

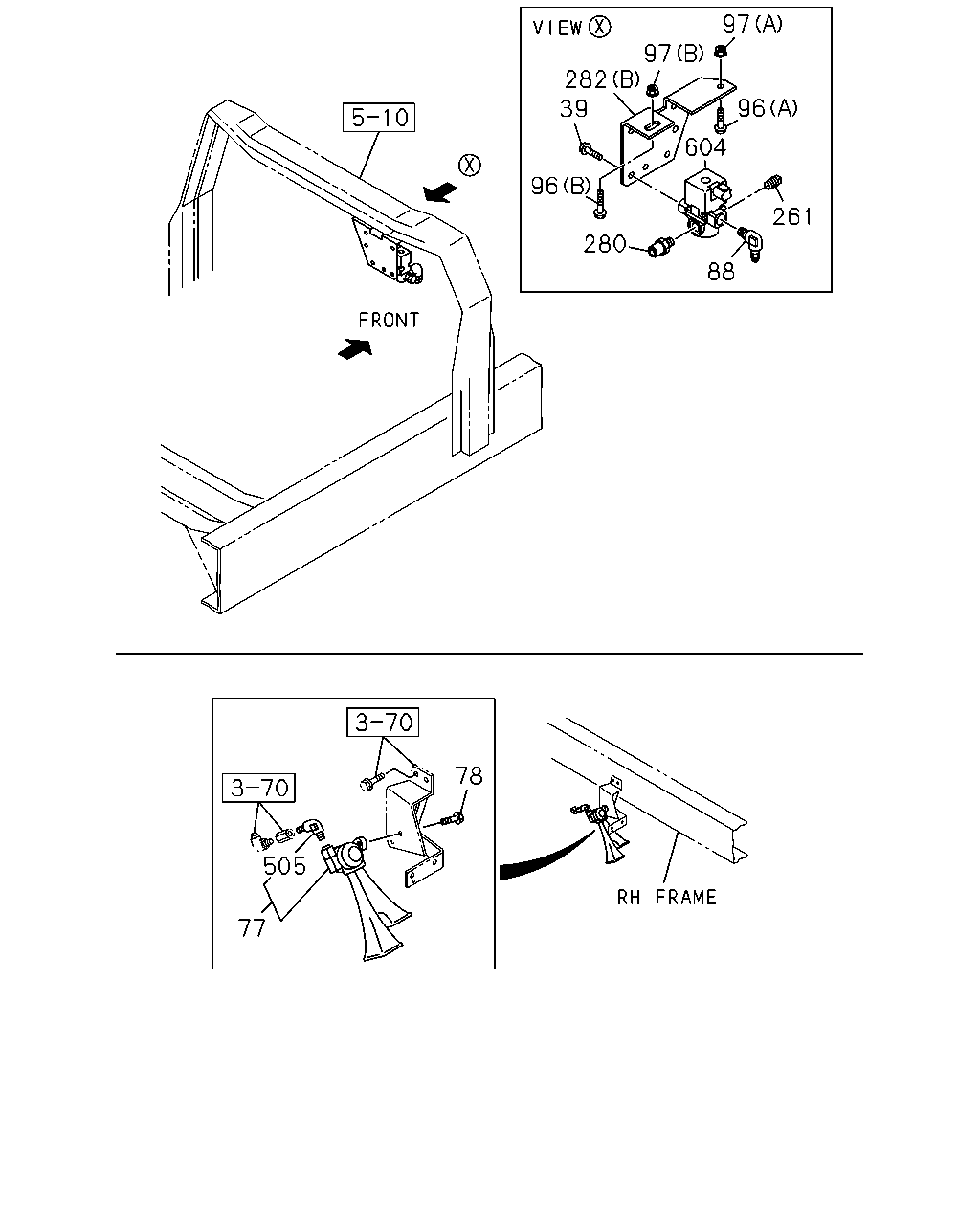

çizim 133291
97 97 282 39 96 604 96 261 280 88 78 505 77
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0810-0810
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0902-
77 HORN ASM 1-83430-041-2 01 1 0707-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0707-
88 CONNECTOR; MAG VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0707-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0707-
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 05 1 0707-
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-110-0 01 1 0707-
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0707-0809
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707-0809
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0811-0901
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811-0901
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0902-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0902-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0902-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
DIFF LOCK<C3N> (A) 		1-47471-387-0 01 1 0707-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0810-0810
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0902-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0707-
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0707-

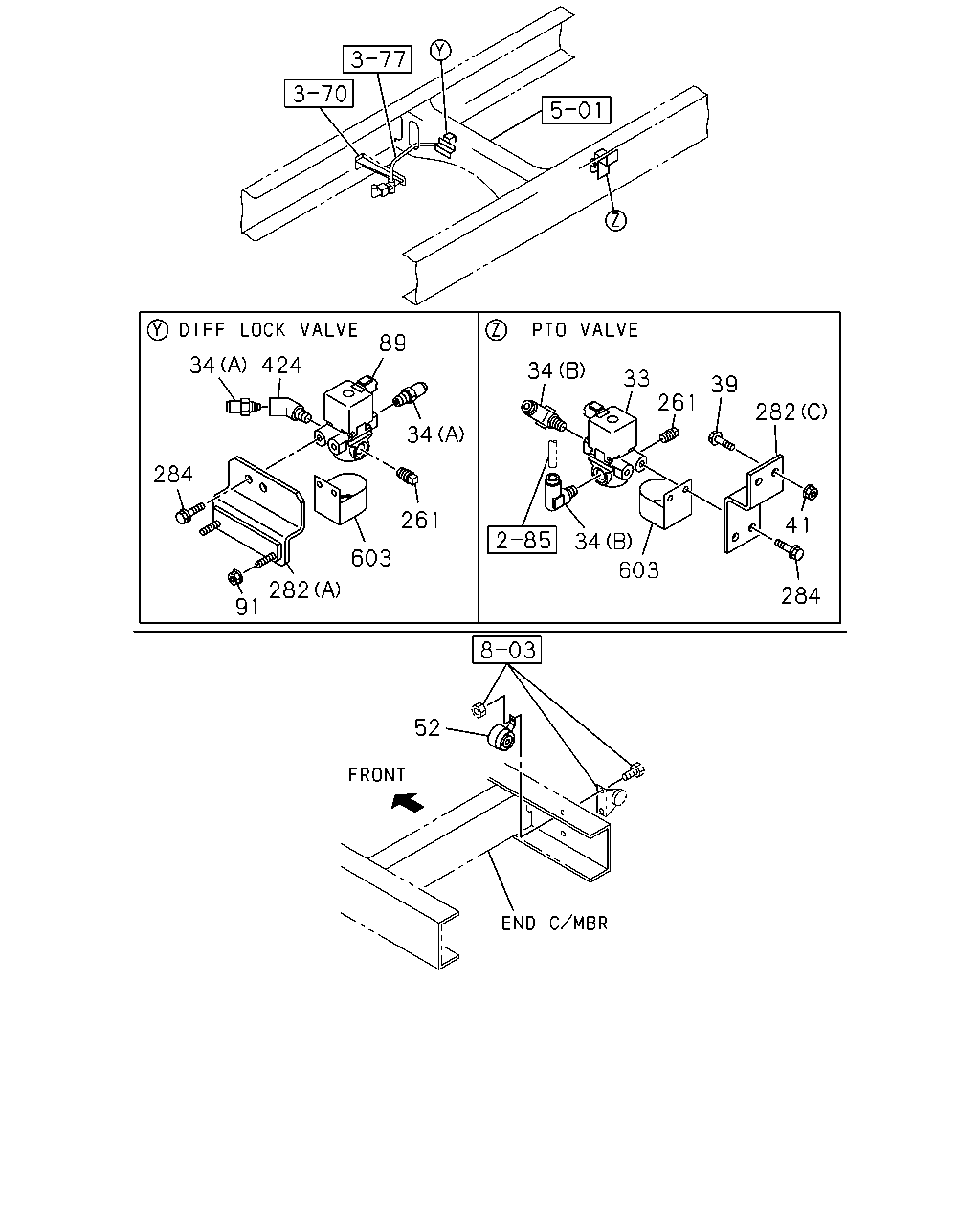

çizim 133293
89 424 34 34 33 261 39 282 34 284 261 41 34 603 603 282 284 91 52
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0810-0810
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0902-
34 CONNECTOR; MAG VLV,INL PORT
DIFF LOCK<C3N> (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 0707-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0810-0810
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0902-
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0707-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0810-0810
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0902-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0810-0810
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0902-
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0707-0708
89 VALVE; MAG,DIFF LOCK
DIFF LOCK<C3N> 		1-82563-871-2 01 1 0707-1205
89 VALVE; MAG,DIFF LOCK
DIFF LOCK<C3N> 		8-97641-594-0 01 1 1206-
91 NUT; MAG VLV
DIFF LOCK<C3N> M10 FLANGE 		0-91180-210-0 02 1 0707-
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0707-0809
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707-0809
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0810-0810
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0811-0901
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811-0901
261 PLUG; MAG VLV
DIFF LOCK<C3N> PT1/4 		9-99204-513-0 01 1 0902-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0902-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0902-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0707-
282 BRACKET; MAG VLV
DIFF LOCK<C3N> (A) 		1-47471-387-0 01 1 0707-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0810-0810
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0902-
284 BOLT; MAG VLV
DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 02 1 0707-0809
284 BOLT; MAG VLV
DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 02 1 0810-0810
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0810-0810
284 BOLT; MAG VLV
DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 02 1 0811-0901
284 BOLT; MAG VLV
DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 02 1 0902-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0902-
424 ADAPTER
DIFF LOCK<C3N> R1/4 & RC1/4 		1-09664-211-0 01 1 0707-
603 PROTECTOR; MAG VLV
DIFF LOCK<C3N> 		1-47471-046-0 01 1 0707-0809
603 PROTECTOR; MAG VLV
DIFF LOCK<C3N> 		1-47471-046-0 01 1 0810-0810
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-046-0 01 1 0810-0810
603 PROTECTOR; MAG VLV
DIFF LOCK<C3N> 		1-47471-046-0 01 1 0811-0901
603 PROTECTOR; MAG VLV
DIFF LOCK<C3N> 		1-47471-046-0 01 1 0902-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-046-0 01 1 0902-
