◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#56337) — 42 parça

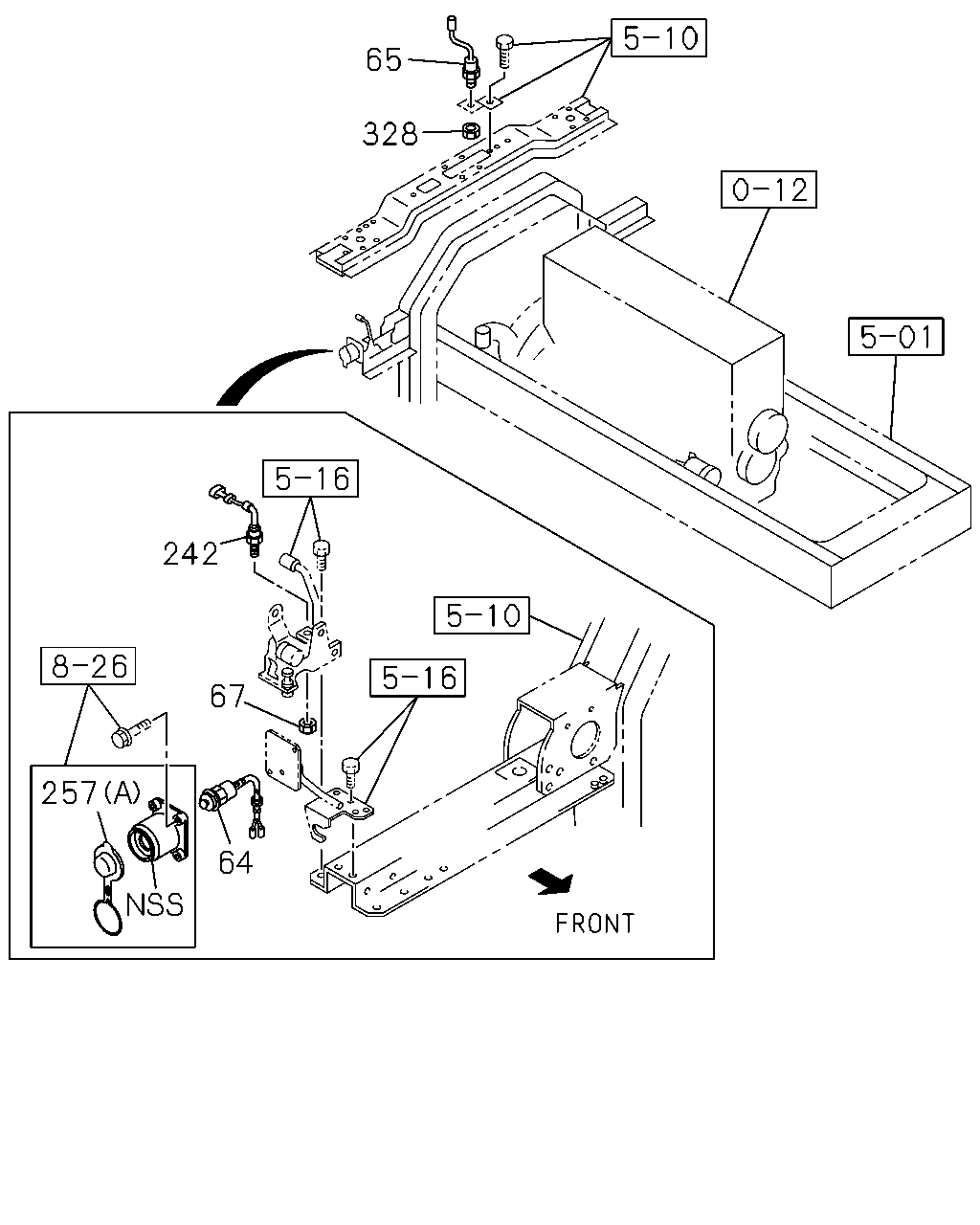

çizim 133269
65 328 242 67 257 64
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0707-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0707-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0707-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0707-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0707-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0707-
328 NUT; SW
M16 		0-91110-516-0 01 1 0707-

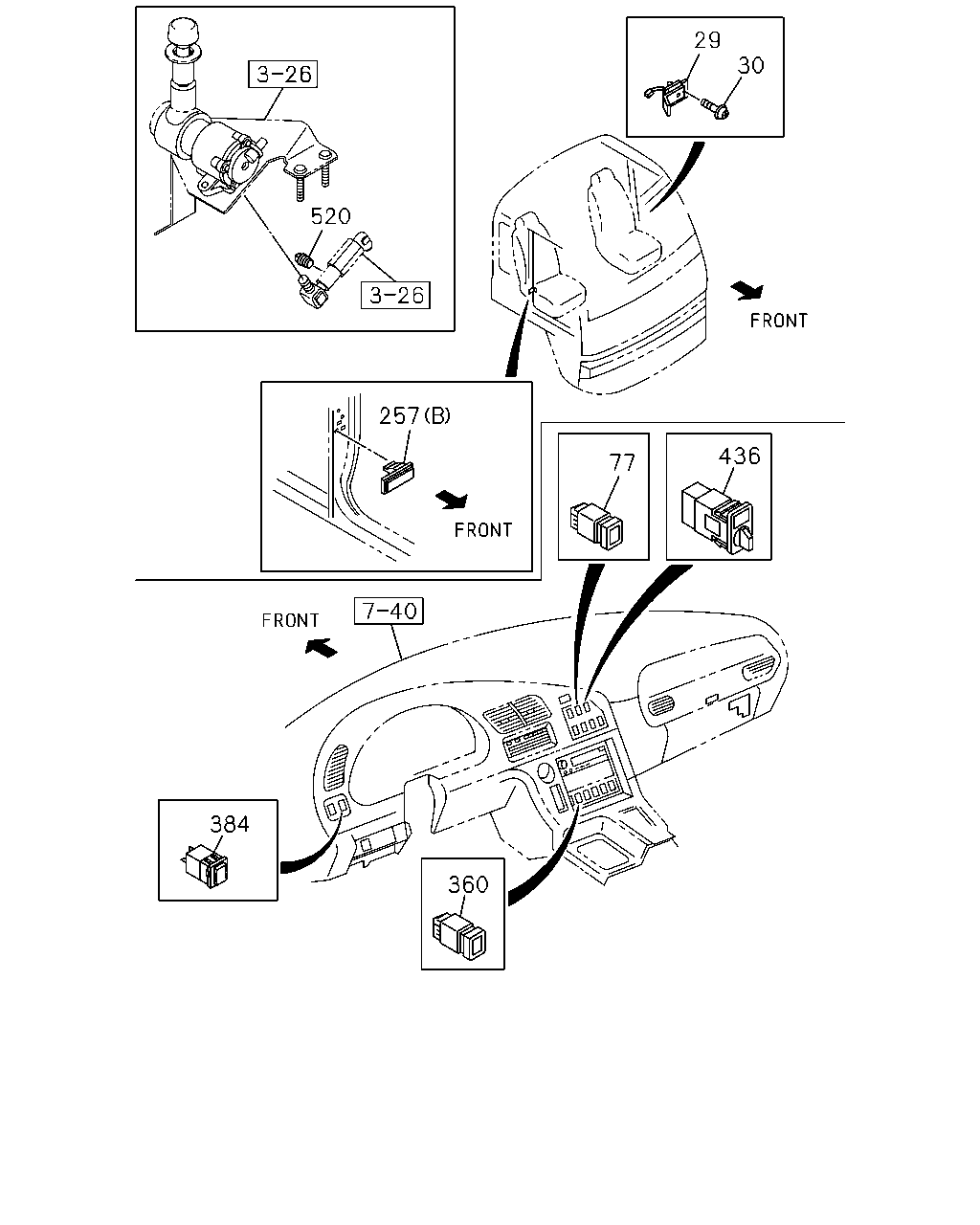

çizim 133271
29 30 520 257 436 77 384 360
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0707-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0707-
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-413-0 01 1 0810-0810
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-413-0 01 1 0902-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0707-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0707-
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		1-82340-660-1 01 1 0707-
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0707-
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 0707-
520 PLUG; CONNECTOR
PT1/4 		9-99204-513-0 01 1 0707-

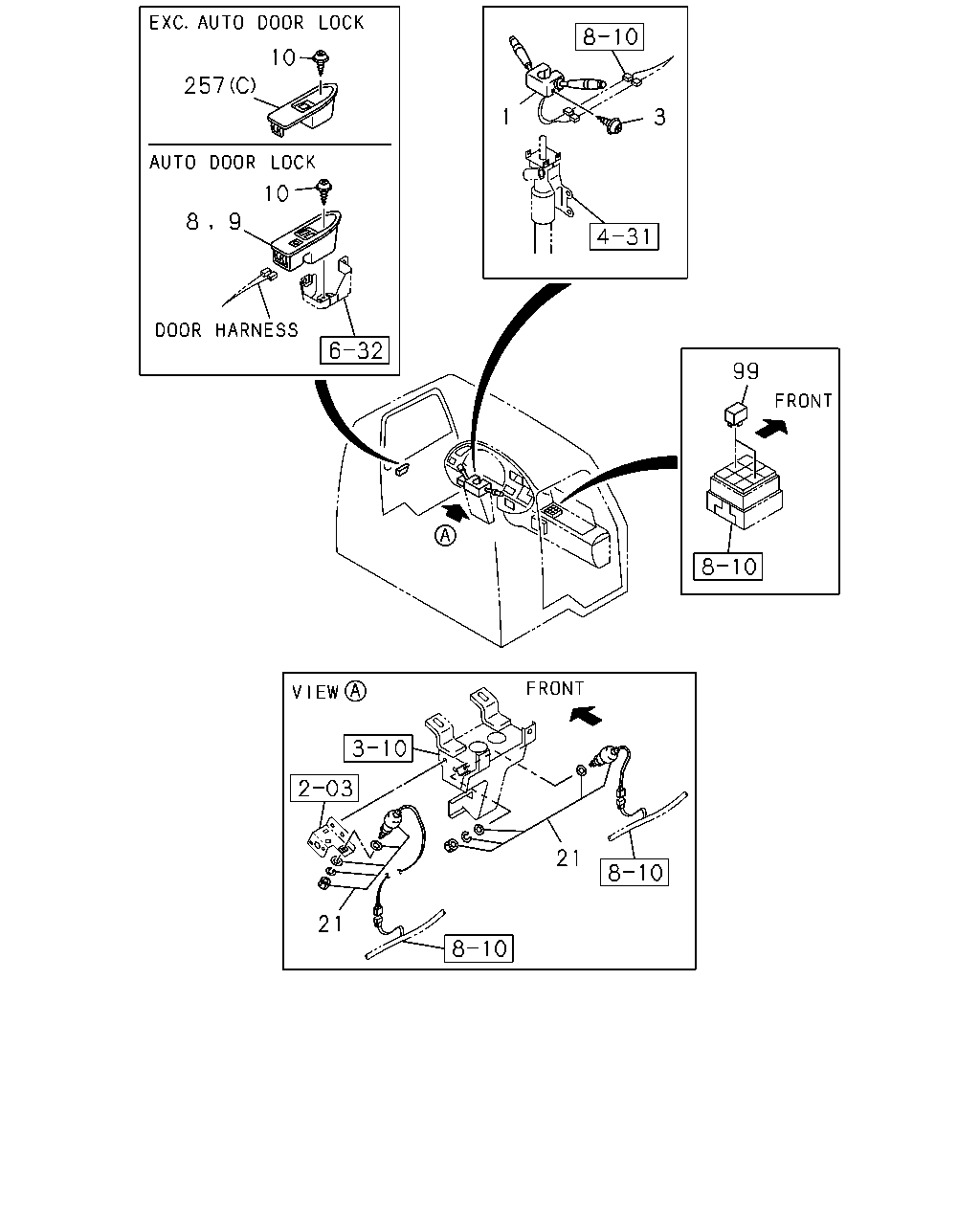

çizim 133635
10 257 3 1 10 8 9 99 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-734-0 01 1 0707-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0707-
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-157-3 01 1 0707-0708
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-174-1 01 1 0709-
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82380-158-3 01 1 0707-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0707-
21 SWITCH; CLU 1-82380-114-3 01 1 0707-0810
21 SWITCH; CLU 1-82380-114-3 01 1 0811-
21 SWITCH; CLU
MJX M/T<Y9N> 		1-82380-114-3 01 1 0811-
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0707-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0707-
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0707-
çizim 133638
255 236 667 482 397 666
BalonParca AdiParca NoAdetTipApplied Date
236 BRACKET; AXLE HARNESS,RR 1-82698-258-0 01 1 0707-
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-97621-403-0 01 1 0707-0711
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-98106-483-0 01 1 0712-
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0707-
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0707-
666 CLIP; AXLE HARNESS
ID=11X2 L=16 		0-95325-025-0 01 1 0707-
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0707-
