8-20 — METER CABLE (#56335) — 20 parça

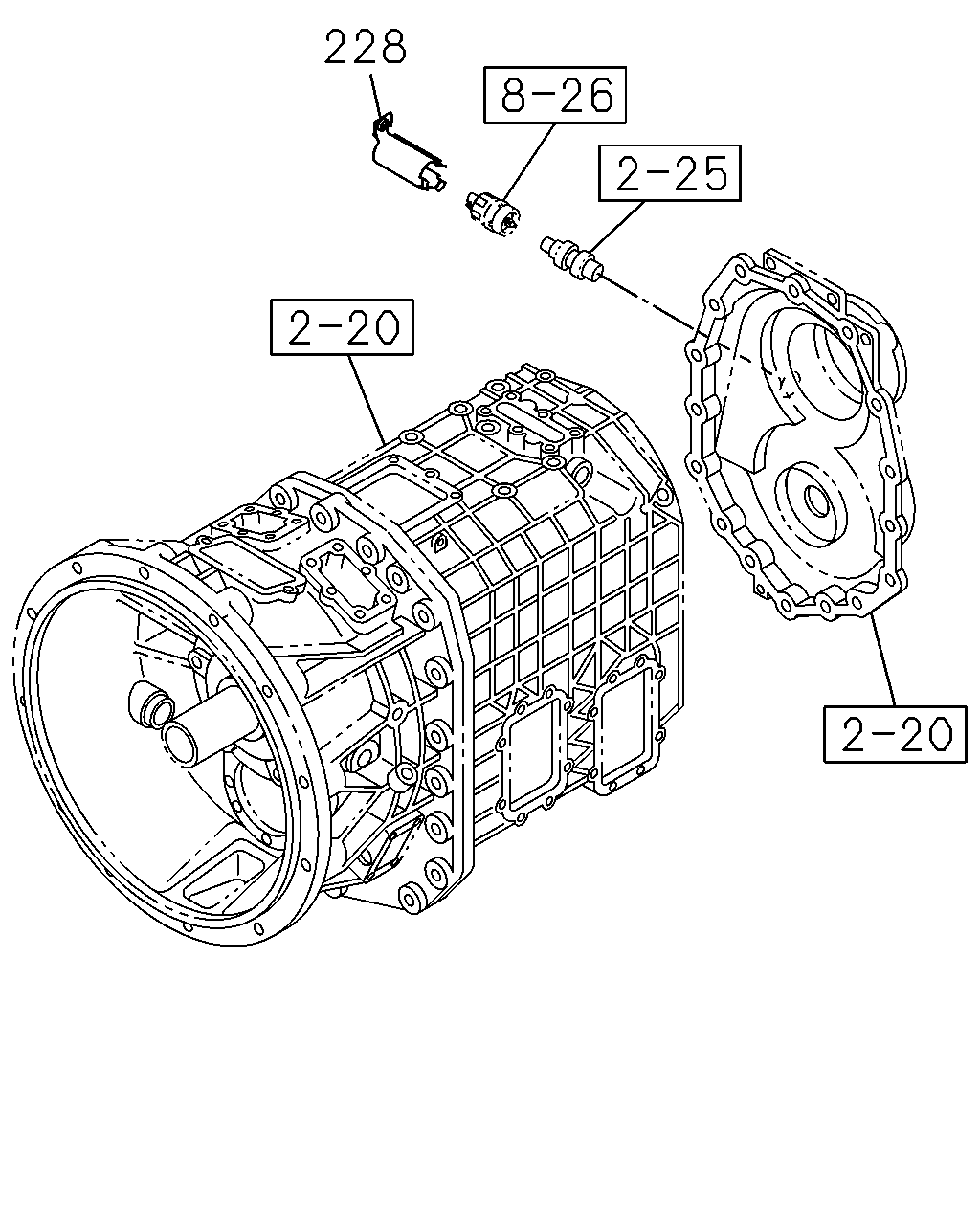

çizim 133288
228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0707-0808
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809-

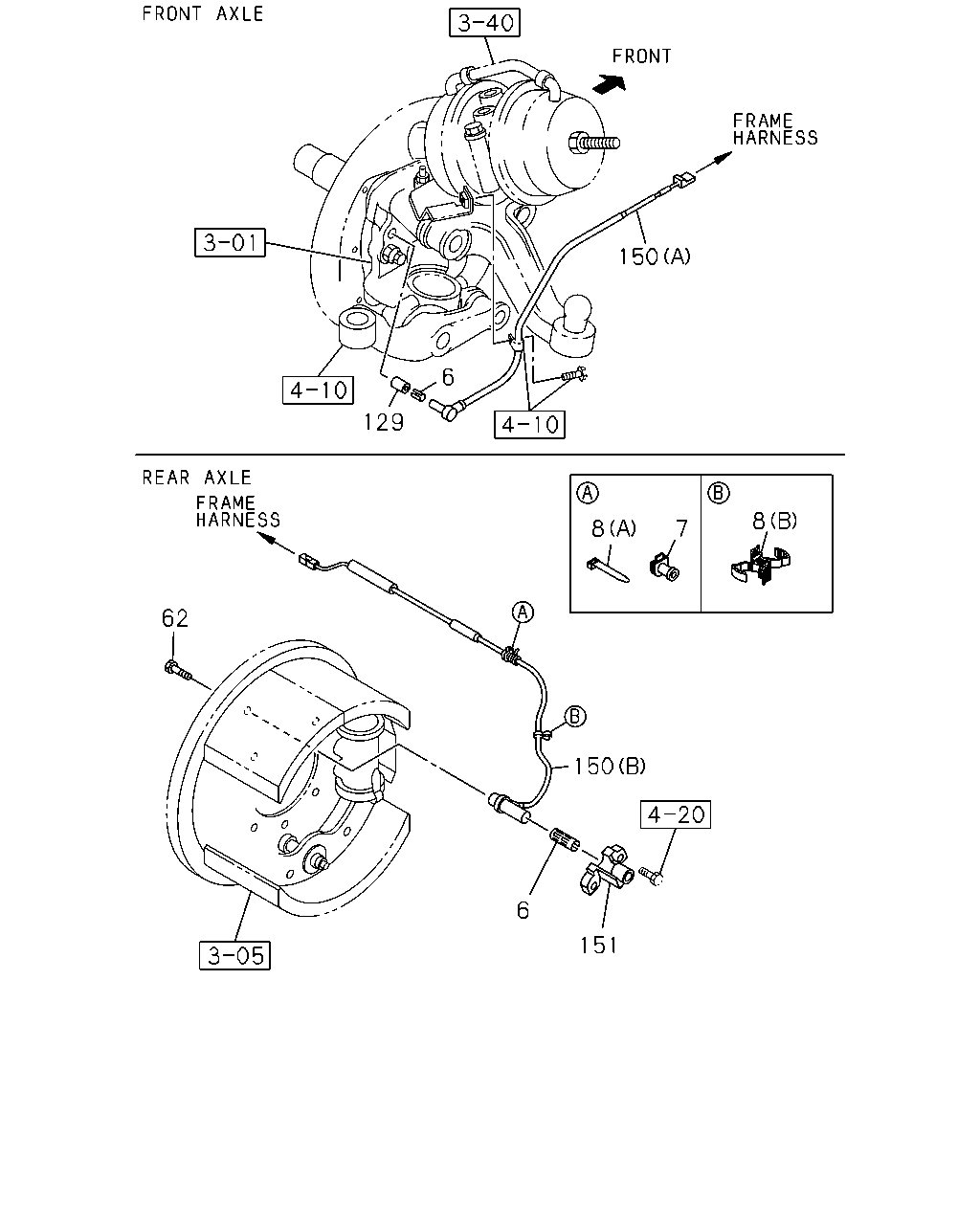

çizim 133292
150 6 129 8 8 7 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0707-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0707-
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0707-
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0707-
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0707-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0707-
129 COLLAR 1-83129-471-0 02 1 0707-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-858-0 01 1 0902-0902
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-858-0 01 1 0902-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-859-0 01 1 0902-0902
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-859-0 01 1 0902-
150 SENSOR; SPEED,ABS
(B) 		1-83127-937-1 01 1 0707-0901
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (B) 		1-83127-937-1 01 1 0902-
150 SENSOR; SPEED,ABS
(B) 		1-83127-938-1 01 1 0707-0901
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (B) 		1-83127-938-1 01 1 0902-
150 SENSOR; SPEED,ABS
(A) 		1-83127-961-1 02 1 0707-
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 0707-
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 0707-
