◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#56334) — 352 parça
çizim 133266
119 64 524 219 294 340 515 515 423
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0707-1202
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0707-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0804-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0707-
219 NUT
M8 FLANGE 		0-91180-108-0 19 1 0707-0806
219 NUT
M8 FLANGE 		0-91180-108-0 18 1 0807-0810
219 NUT
M8 FLANGE 		0-91180-108-0 12 1 0811-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0707-
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 0707-0810
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 0811-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0707-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0707-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0707-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0707-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0707-
çizim 133270
5 224 1 1 178 178 178 178 178 178 178 510 530 292 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0707-
1 SLEEVE; RUBBER
(A) ID=38.1 L=25 		1-09337-052-0 01 1 0707-0708
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=25 		1-09337-052-0 01 1 0709-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0707-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0707-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0707-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0707-
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0707-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0707-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0707-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0707-
178 GROMMET; HARNESS
(G) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0707-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0707-
292 CAP; RUBBER 1-82691-239-0 02 1 0707-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0707-1202
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 01 1 0707-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 04 1 0707-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 08 1 0707-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0707-
530 SEAL; HARNESS
(B) 		1-76770-009-2 01 1 0707-1101
530 SEAL; HARNESS
(B) 		8-98119-974-0 01 1 1102-

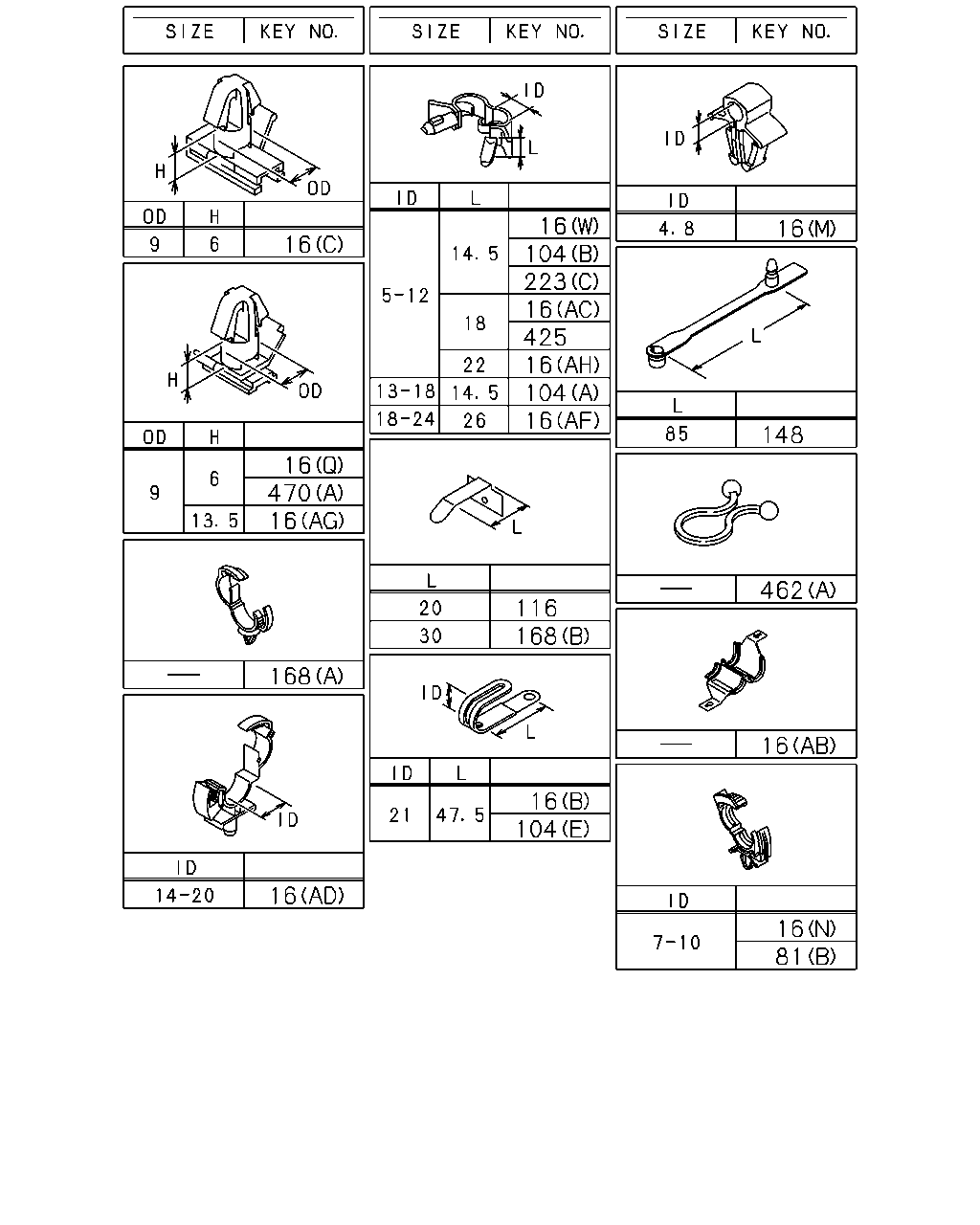

çizim 133272
16 104 223 16 425 16 104 16 16 16 148 16 470 16 462 116 168 168 16 16 104 16 16 81
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0707-0810
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0707-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-0811
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=14 ID=11 L=20 		0-95235-035-0 02 1 0811-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (AI) ID=11 L=40 		0-95235-075-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AJ) ID=16 L=40 		0-95235-576-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AK) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0707-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0707-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0707-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0707-
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0707-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0707-0810
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0707-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0707-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0707-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0707-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0707-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0707-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0707-
16 CLIP; HARNESS
(AE) L=175 		1-09707-176-1 01 1 0707-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0707-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0707-0810
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0707-0810
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 01 1 0811-
16 CLIP; HARNESS
(AF) ID=18-24 L=26 		1-09709-296-0 01 1 0707-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0707-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0707-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0707-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0707-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0707-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0707-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0707-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0707-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0707-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0712-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0707-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0707-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0707-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0707-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0707-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0707-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0707-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0707-0710
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0707-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0707-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0707-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0709-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0707-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0707-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0707-0707
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 0707-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0709-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0707-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0707-

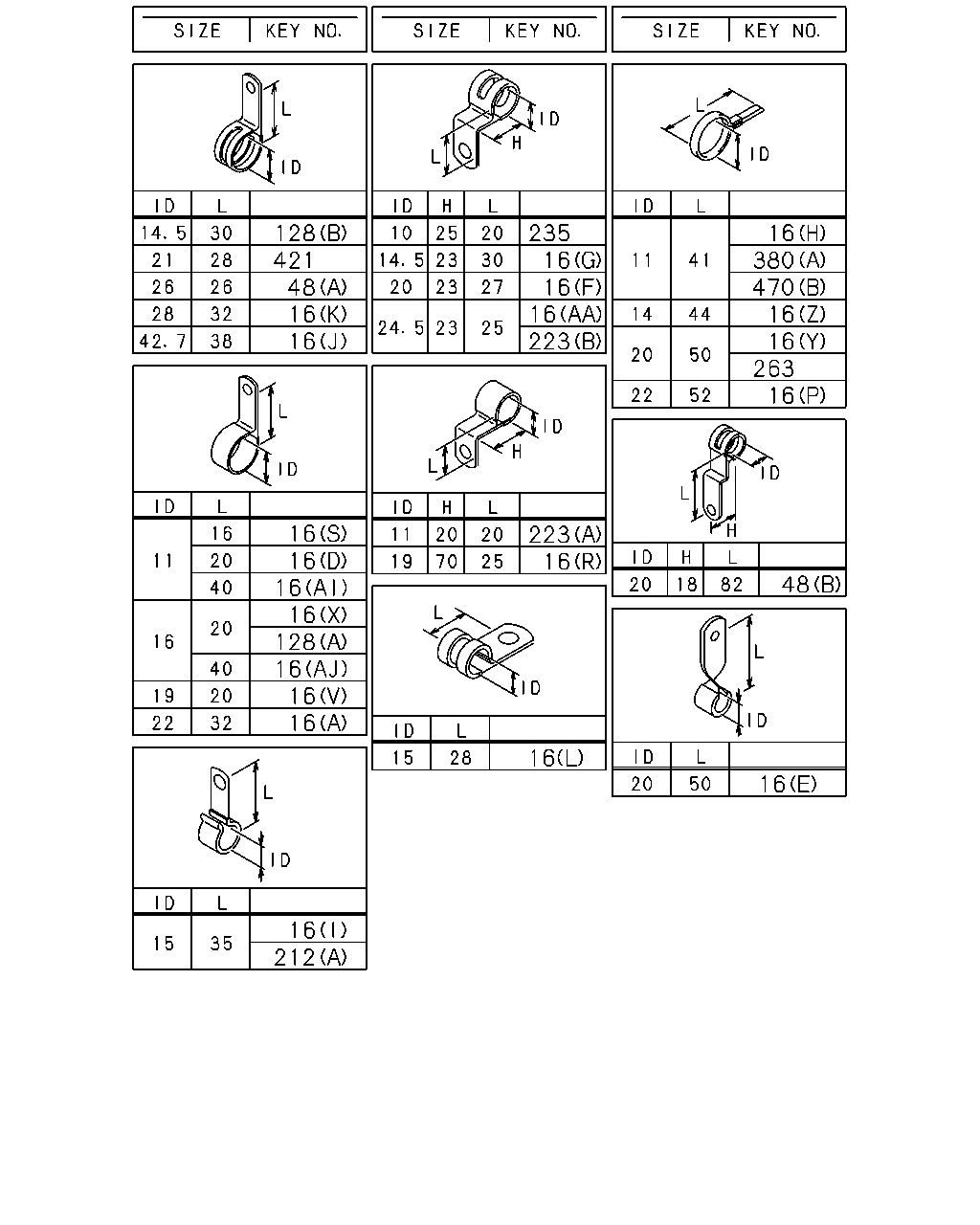

çizim 133273
128 421 48 16 16 235 16 16 16 223 16 380 470 16 16 263 16 16 16 16 16 128 16 16 16 223 16 48 16 16 16 212
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0707-0810
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0707-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-0811
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=14 ID=11 L=20 		0-95235-035-0 02 1 0811-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (AI) ID=11 L=40 		0-95235-075-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AJ) ID=16 L=40 		0-95235-576-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AK) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0707-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0707-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0707-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0707-
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0707-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0707-0810
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0707-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0707-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0707-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0707-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0707-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0707-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0707-
16 CLIP; HARNESS
(AE) L=175 		1-09707-176-1 01 1 0707-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0707-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0707-0810
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0707-0810
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 01 1 0811-
16 CLIP; HARNESS
(AF) ID=18-24 L=26 		1-09709-296-0 01 1 0707-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0707-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0707-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0707-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0707-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0707-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0707-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0707-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0707-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0707-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0712-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0707-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0707-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0707-0810
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0811-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0707-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0707-
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0707-0806
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0707-0810
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0707-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0707-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0707-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0707-0707
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0707-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0707-0810
380 CLIP; EARTH HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0707-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0707-
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0707-1202
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0707-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0707-

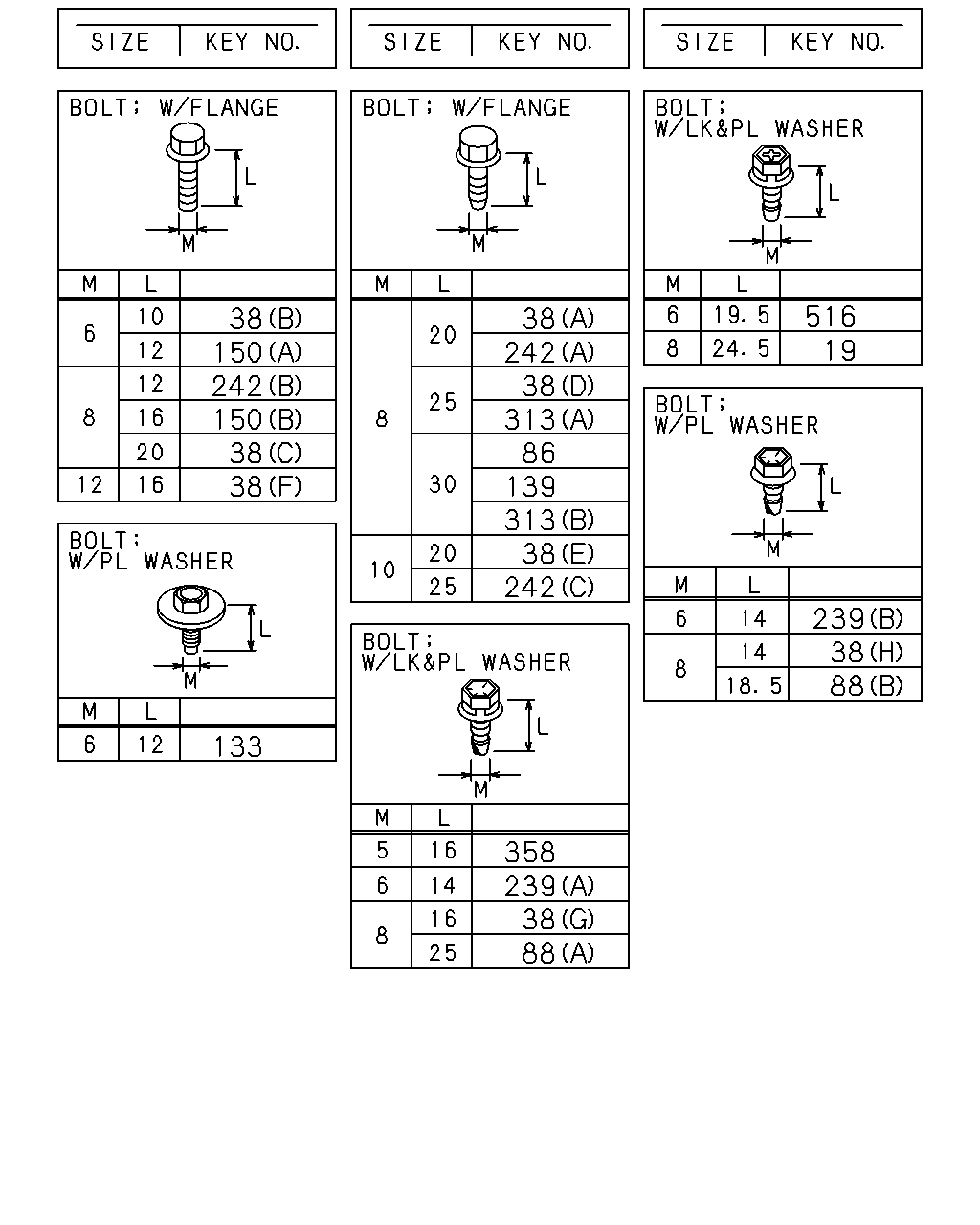

çizim 133280
516 19 38 150 242 150 38 38 38 242 38 313 86 139 313 38 242 239 38 88 133 358 239 38 88
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0707-0904
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 09 1 0707-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0807-0810
38 BOLT; CLIP,HARNESS
MJX M/T<Y9N> (A) M8X20 FLANGE 		0-28650-820-0 05 1 0811-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0707-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0707-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0707-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0811-0811
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0811-1001
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0811-1001
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1002-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0707-0810
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0811-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0707-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0707-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0707-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0707-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1002-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0707-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0707-1007
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0707-1007
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0707-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0707-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0707-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0707-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0707-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0707-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0707-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
242 BOLT; BRKT,HARNESS
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0707-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0707-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0804-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0707-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0707-
çizim 133284
53 27 53 53 334 312 211 312 375 342
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0707-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0707-
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0804-0806
53 BRACKET; HARNESS
(C) 		8-98124-778-0 01 1 0807-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 0707-
312 BRACKET; CLIP HARNESS
MJX M/T<Y9N> (B) L=120 H=35 		1-82698-088-0 01 1 0811-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 0707-0810
312 BRACKET; CLIP HARNESS
EXC. MJX M/T<Y9N> (A) 		1-82698-479-0 01 1 0811-
334 BRACKET 1-53458-709-1 01 1 0707-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0707-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0707-
çizim 133286
14 16 48 194 212 14 16 51 81 104 171 206 212 305 462 14 16 104 171 194 228 369 380 16 51 142 162 194 208 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0707-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0707-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0707-0810
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 09 1 0707-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 08 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-0811
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=14 ID=11 L=20 		0-95235-035-0 02 1 0811-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (AI) ID=11 L=40 		0-95235-075-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AJ) ID=16 L=40 		0-95235-576-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (AK) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0707-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0707-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0707-1208
16 CLIP; HARNESS
MJX M/T<Y9N> (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0707-
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0707-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 0707-0810
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0707-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0707-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0707-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 0707-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0707-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0707-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0707-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0707-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0707-
16 CLIP; HARNESS
(AE) L=175 		1-09707-176-1 01 1 0707-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0707-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0707-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0707-0810
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0707-0810
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 01 1 0811-
16 CLIP; HARNESS
(AF) ID=18-24 L=26 		1-09709-296-0 01 1 0707-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0707-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0707-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0707-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0707-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0707-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0707-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0707-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0707-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0707-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0707-
16 CLIP; HARNESS
(AG) OD=9 H=13.5 		1-09709-180-0 01 1 0712-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0707-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0707-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0811-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0707-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0707-0810
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0811-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 0707-0708
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0709-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 0707-0708
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0707-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0707-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0707-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0707-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0707-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0707-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0707-0710
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0707-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0707-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0707-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0707-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0707-1001
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0707-0804
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 0805-0810
194 CLIP; BAND
(B) L=350 		1-09707-183-0 08 1 0811-1202
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 1203-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0707-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 05 1 0707-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0707-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0810-0810
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0902-
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0707-0806
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0707-0810
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0707-
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 0707-0708
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0709-1112
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1201-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0707-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 0707-
380 CLIP; EARTH HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0707-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0707-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0709-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
