◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#56331) — 100 parça

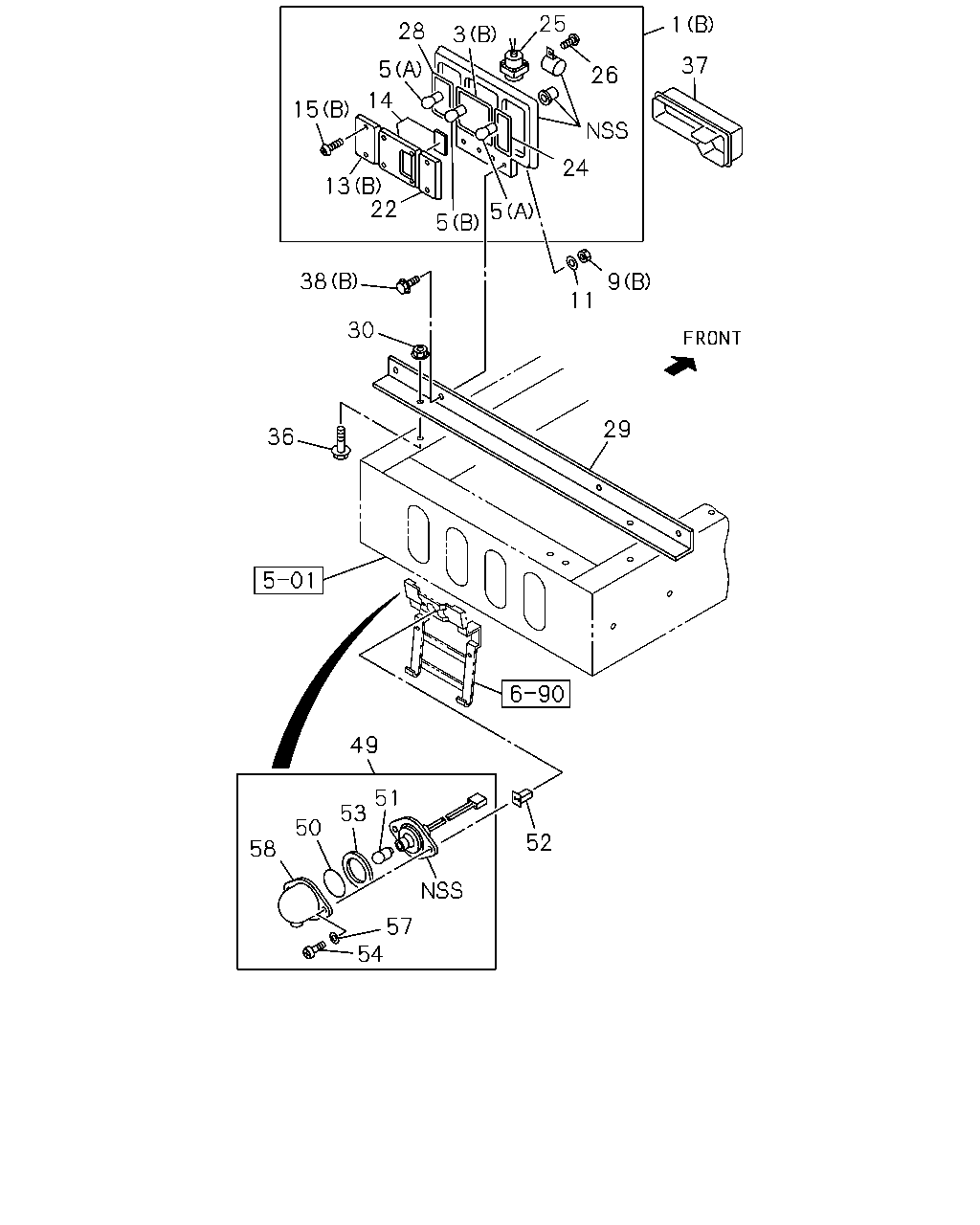

çizim 133624
25 1 28 3 37 5 26 14 15 24 13 22 5 5 38 9 11 30 29 36 49 51 53 50 52 58 57 54
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(A) 		1-82230-160-2 01 1 0707-0708
1 LAMP ASM; RR COMB
(B) 		8-97213-370-0 01 1 0709-0712
1 LAMP ASM; RR COMB
(B) 		1-82230-209-0 01 1 0801-
1 LAMP ASM; RR COMB
(A) 		1-82230-159-2 01 1 0707-0708
1 LAMP ASM; RR COMB
(B) 		8-97213-369-0 01 1 0709-0712
1 LAMP ASM; RR COMB
(B) 		1-82230-208-0 01 1 0801-
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 0707-0708
3 GASKET; RR COMB LAMP
(B) 		8-94257-505-0 01 1 0709-
3 GASKET; RR COMB LAMP
(B) 		8-94257-505-0 01 1 0709-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0707-0708
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0707-0708
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709-
9 NUT; LAMP,RR COMB
(A) M8 FLANGE 		0-91180-108-0 02 1 0707-0708
9 NUT; LAMP,RR COMB
(B) M6 		0-91110-506-0 04 1 0709-
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 0709-
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 0707-0708
13 LENS; TURN SIGNAL
(B) 		8-94174-638-0 01 1 0709-
13 LENS; TURN SIGNAL
(B) 		8-94174-639-0 01 1 0709-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0709-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0709-
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 0707-0708
15 SCREW; RR COMB LAMP
(B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709-
15 SCREW; RR COMB LAMP
(B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0709-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0709-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0709-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0709-
25 HORN ASM; BACK 8-94257-518-0 01 1 0709-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0709-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 0709-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0709-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0709-
29 BRACKET; LAMP,RR COMB 1-53487-021-1 01 1 0709-
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 0709-
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 0709-
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 0709-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 0709-
38 BOLT; LAMP,RR COMB
(A) M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0707-0708
38 BOLT; LAMP,RR COMB
(B) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0709-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0707-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0707-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0707-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0707-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0707-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0707-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0707-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0707-

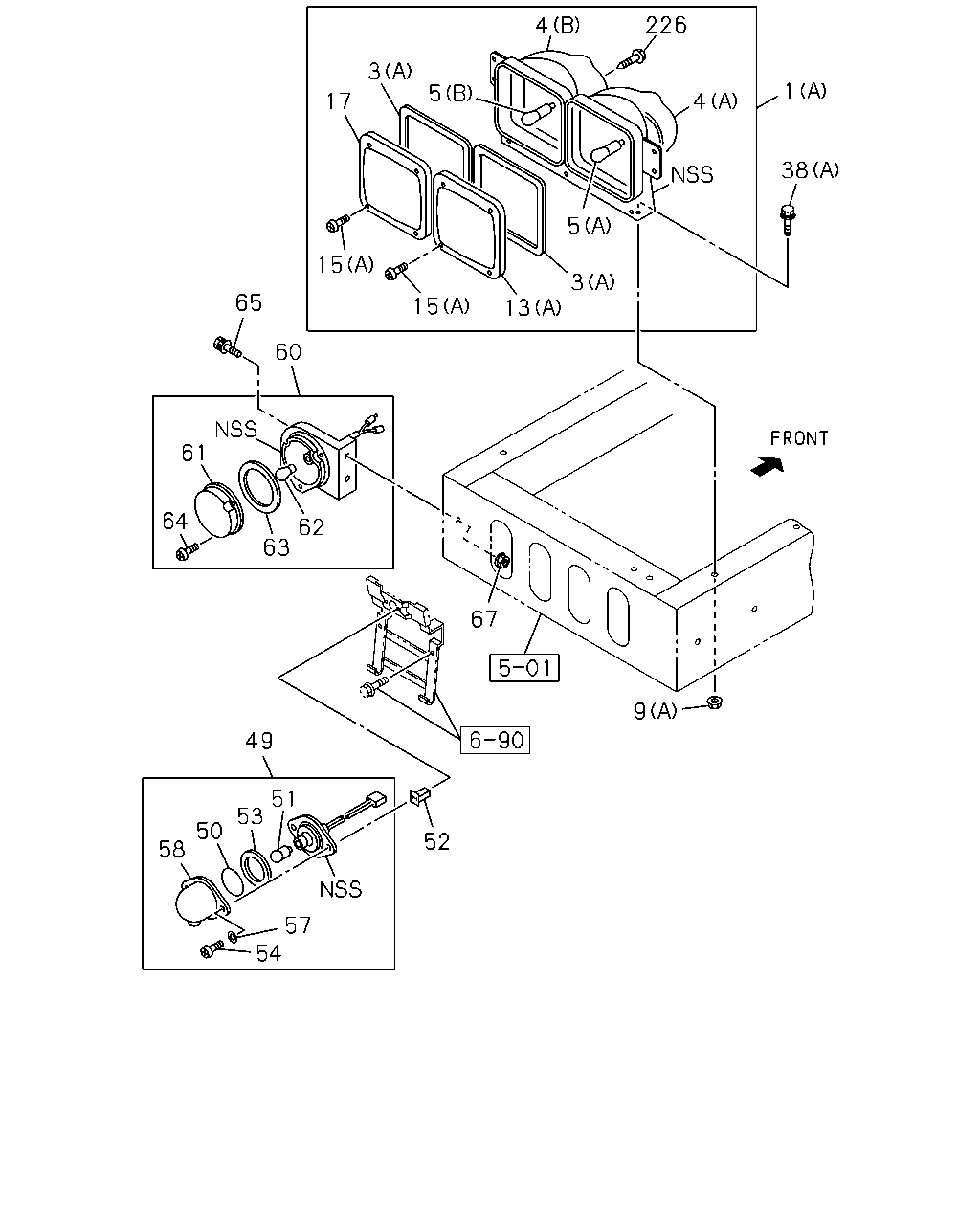

çizim 133632
226 4 3 1 5 17 4 38 5 5 3 65 15 13 60 61 64 62 63 67 9 49 51 53 50 52 58 57 54
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(A) 		1-82230-160-2 01 1 0707-0708
1 LAMP ASM; RR COMB
(B) 		8-97213-370-0 01 1 0709-0712
1 LAMP ASM; RR COMB
(B) 		1-82230-209-0 01 1 0801-
1 LAMP ASM; RR COMB
(A) 		1-82230-159-2 01 1 0707-0708
1 LAMP ASM; RR COMB
(B) 		8-97213-369-0 01 1 0709-0712
1 LAMP ASM; RR COMB
(B) 		1-82230-208-0 01 1 0801-
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 0707-0708
3 GASKET; RR COMB LAMP
(B) 		8-94257-505-0 01 1 0709-
3 GASKET; RR COMB LAMP
(B) 		8-94257-505-0 01 1 0709-
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 0707-0708
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 0707-0708
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0707-0708
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0707-0708
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709-
9 NUT; LAMP,RR COMB
(A) M8 FLANGE 		0-91180-108-0 02 1 0707-0708
9 NUT; LAMP,RR COMB
(B) M6 		0-91110-506-0 04 1 0709-
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 0707-0708
13 LENS; TURN SIGNAL
(B) 		8-94174-638-0 01 1 0709-
13 LENS; TURN SIGNAL
(B) 		8-94174-639-0 01 1 0709-
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 0707-0708
15 SCREW; RR COMB LAMP
(B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709-
15 SCREW; RR COMB LAMP
(B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709-
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 0707-0708
38 BOLT; LAMP,RR COMB
(A) M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0707-0708
38 BOLT; LAMP,RR COMB
(B) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0709-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0707-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0707-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0707-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0707-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0707-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0707-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0707-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0707-
60 LAMP; BACKUP 1-82130-023-1 01 1 0707-0708
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 0707-0708
62 BULB; BACKUP LAMP
24V 21W 		1-82194-036-0 01 1 0707-0708
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 0707-0708
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 0707-0708
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0707-0708
67 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 02 1 0707-0708
226 SCREW; PROTECTOR 1-82239-032-0 08 1 0707-0708
çizim 133633
250 253 255 254 256 257
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82180-012-0 01 1 0707-
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82691-605-0 01 1 0707-
254 LENS; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-207-0 01 1 0707-
255 GASKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-706-0 01 1 0707-
256 RIM; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-402-0 01 1 0707-
257 NUT; SEARCH LIGHT
INSPECTION LAMP<T95> M10 FLANGE 		0-91180-110-0 01 1 0811-
