◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#56327) — 218 parça

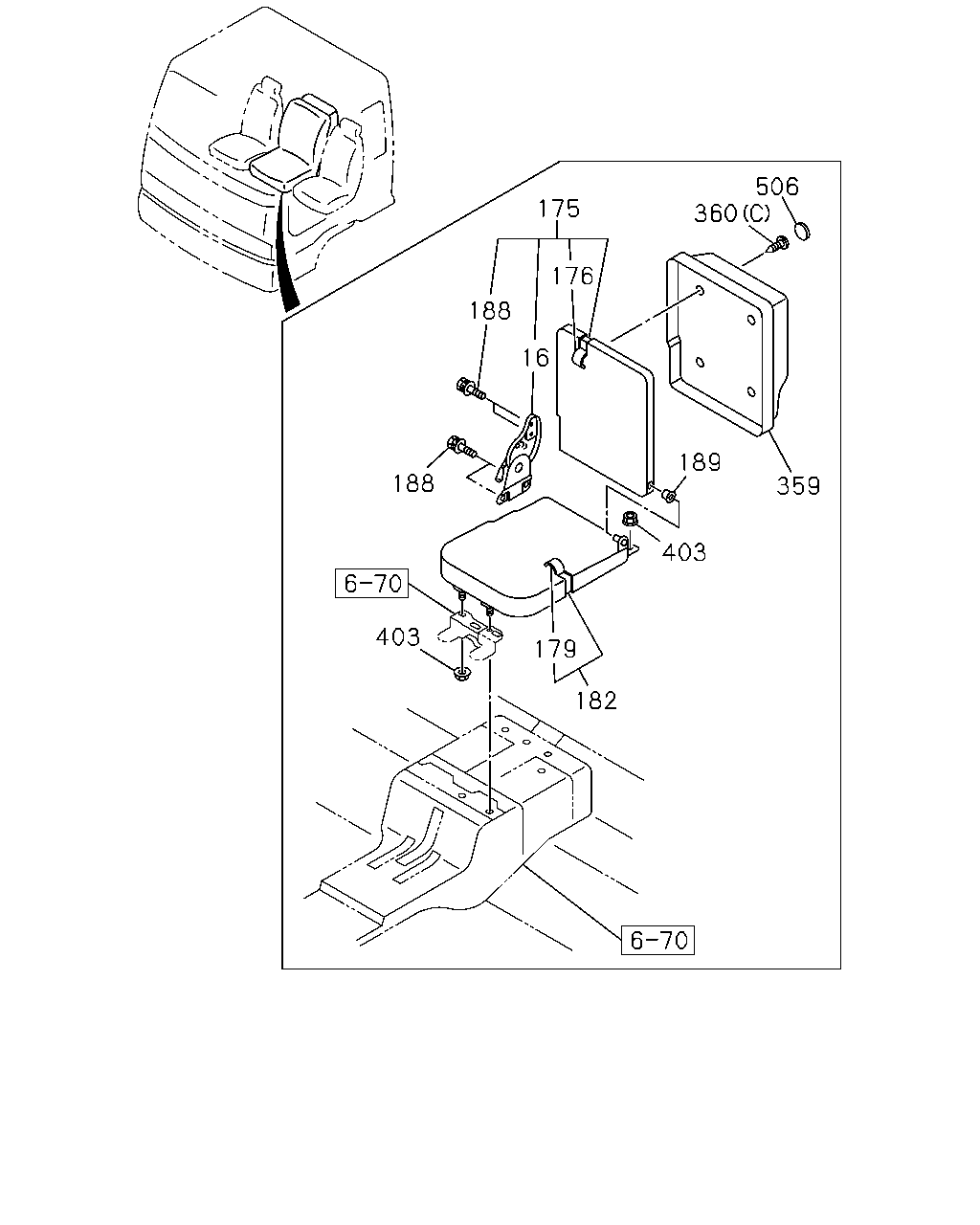

çizim 133606
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0707-
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-602-3 01 1 0707-1011
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-328-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0707-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-156-2 01 1 0707-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-331-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0707-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-164-1 01 1 0707-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-325-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75127-127-1 01 1 0707-
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-644-1 01 1 0707-1011
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-317-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75207-009-4 01 1 0707-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0707-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0707-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0707-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0707-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0707-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0707-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0707-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0707-1006
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-

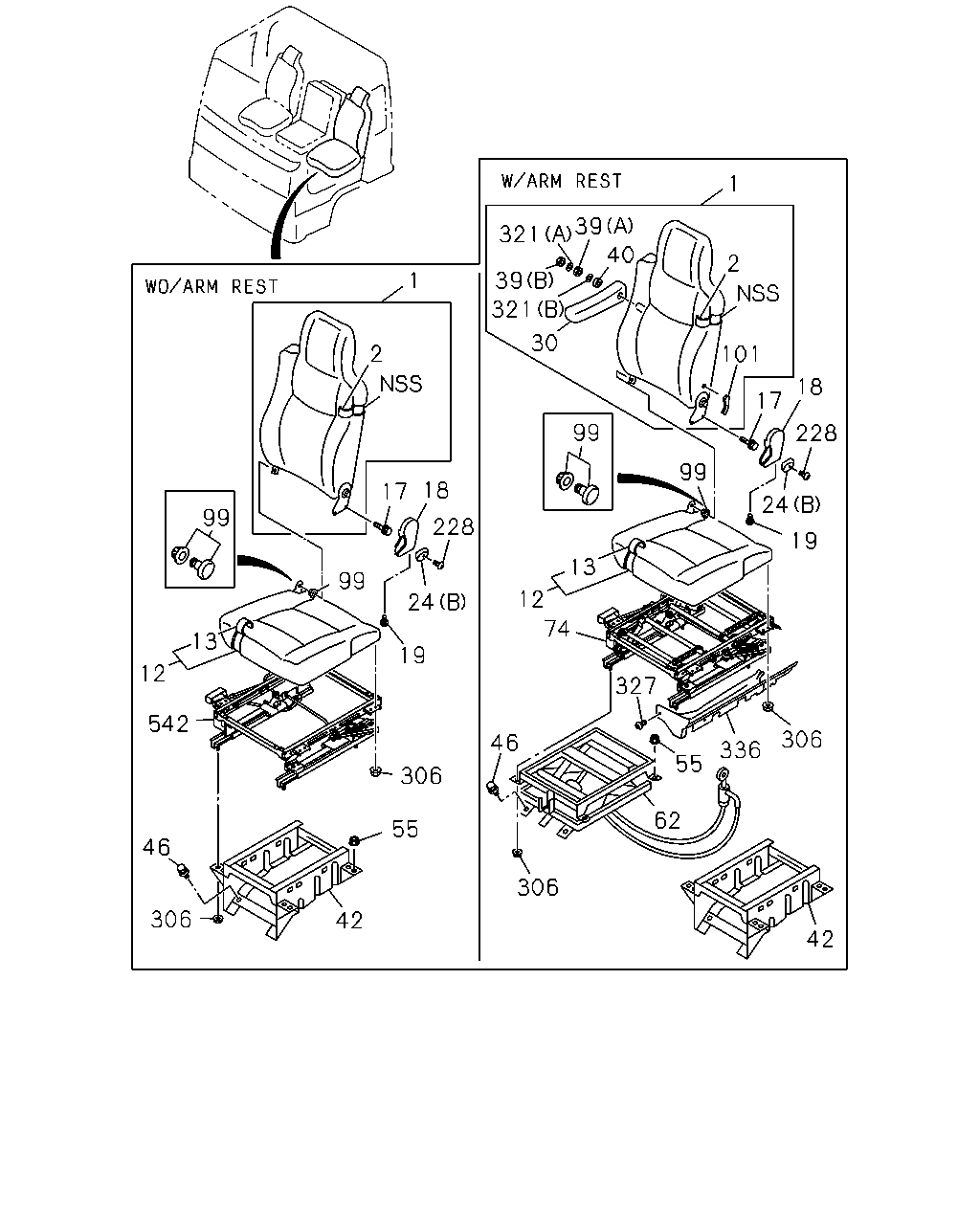

çizim 133614
1 1 2 17 99 18 24 99 19 228 306 55 42 306 46 542 13 12 39 321 39 30 321 40 2 101 228 18 17 99 99 12 74 13 327 55 306 336 62 42 306 46 24 19
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-648-2 01 1 0707-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98135-637-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-065-0 01 1 1012-
1 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-728-2 01 1 0707-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) 		8-98135-638-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-167-1 01 1 0707-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-084-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) 		1-75127-183-1 01 1 0707-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-640-2 01 1 0707-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-044-0 01 1 1012-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-006-3 01 1 0707-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-160-2 01 1 0707-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-075-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-104-1 01 1 0707-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0707-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0707-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0707-
19 SCREW; COVER
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0707-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0707-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0707-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-175-1 01 1 0707-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) (B) M8 		1-75147-657-0 01 1 0707-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) (A) M10 		9-09110-410-0 01 1 0707-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) 		8-94285-921-0 02 1 0707-
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-2 01 1 0707-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) 		1-75558-604-2 01 1 0707-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0707-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0707-

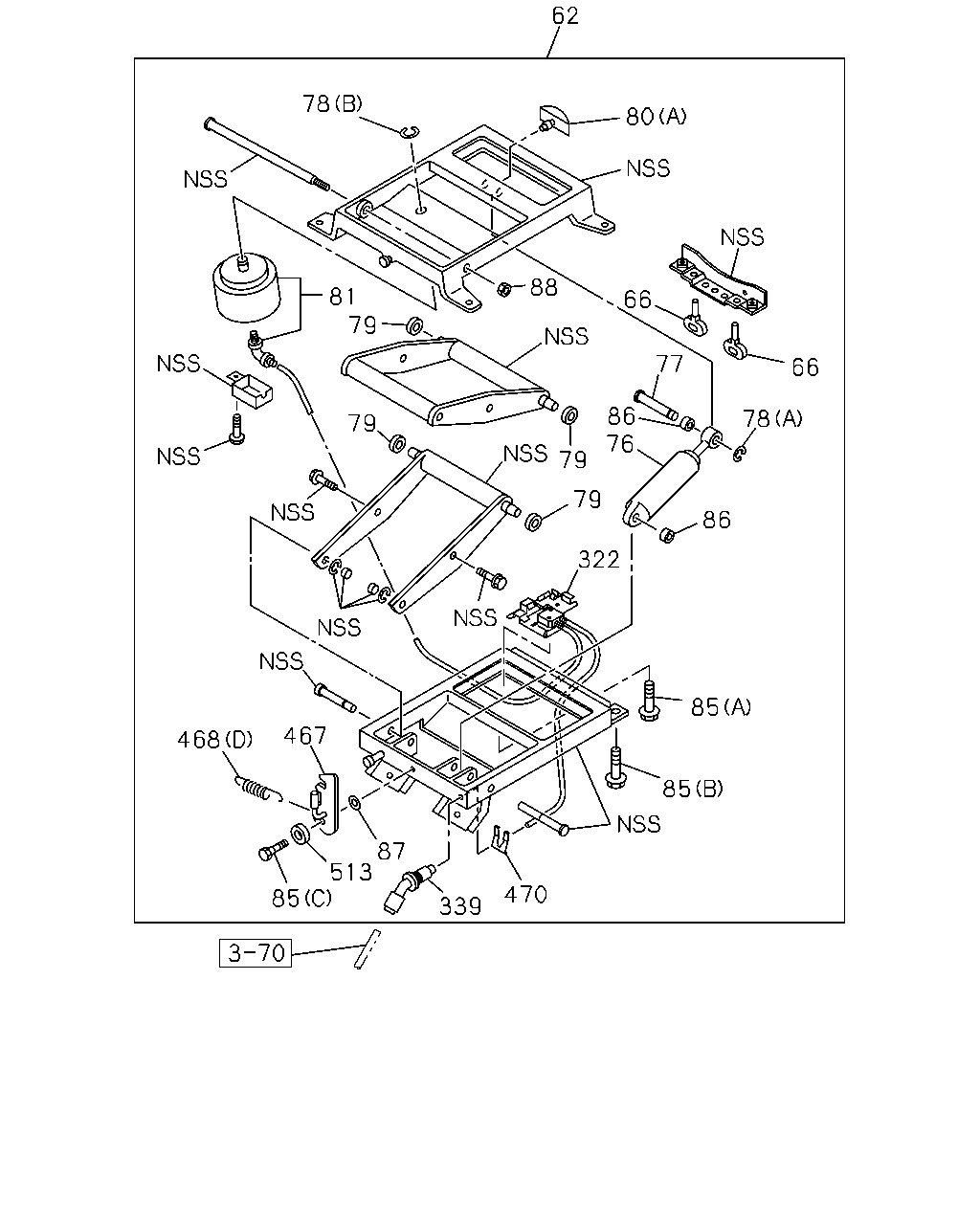

62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0707-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-3 01 1 0707-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0707-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) 		5-75190-138-0 01 1 0902-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 0707-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 0707-0710
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
VINYL SEAT(A83) M4X6 		8-97042-273-0 02 1 0707-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
VINYL SEAT(A83) M4X6 		8-97042-273-0 01 1 1012-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0707-
306 NUT; SEAT ADJ
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 12 1 0707-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) (B) ID=10.5 OD=22 		9-09160-610-0 01 1 0707-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) (A) ID=8.4 OD=22 		9-09164-708-0 01 1 0707-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 01 1 0707-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-313-0 01 1 0707-

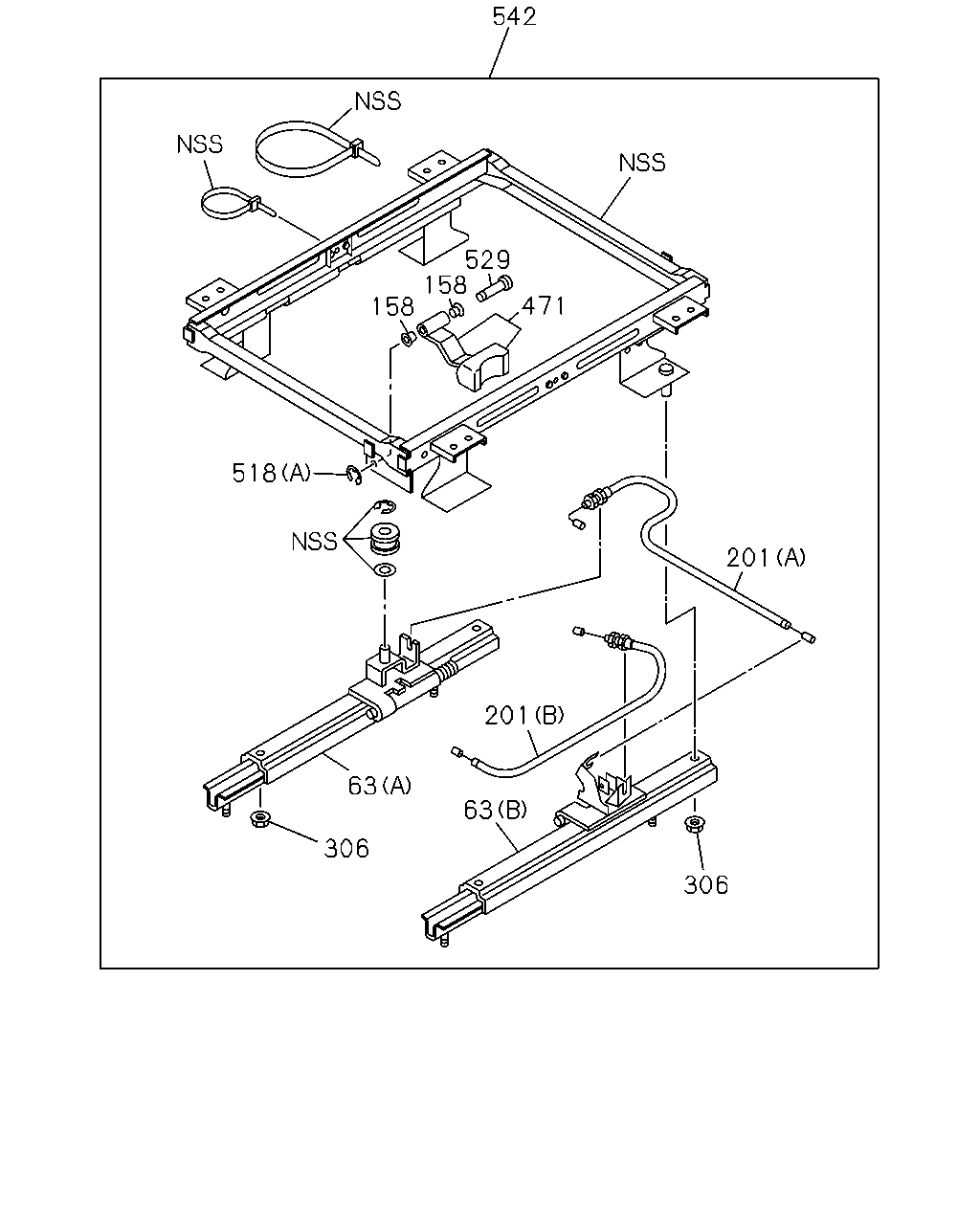

542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) 		1-75518-283-3 01 1 0707-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) 		8-98291-656-0 01 1 1503-

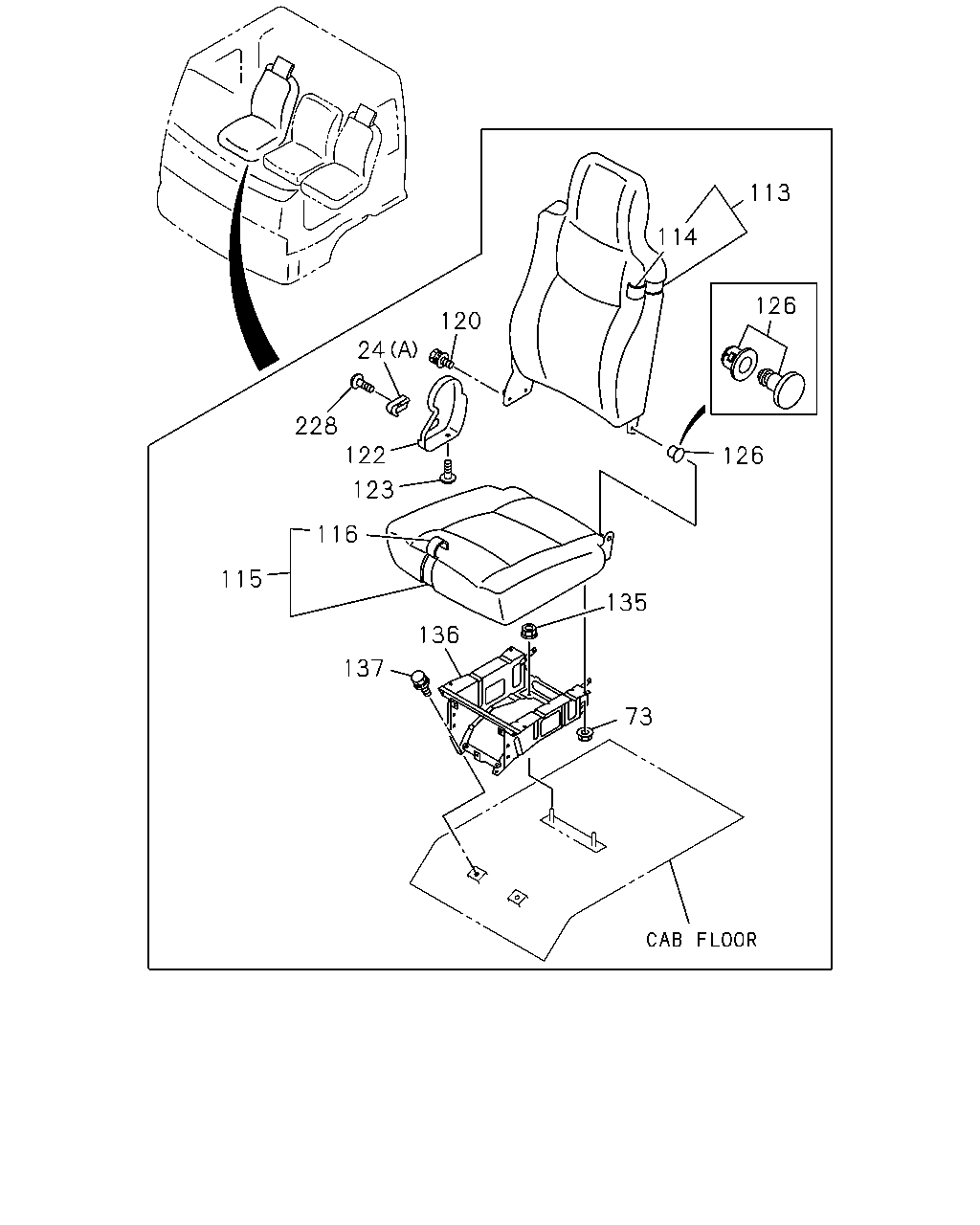

çizim 133615
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0707-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0707-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0707-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-654-2 01 1 0707-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-275-0 01 1 1012-
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75208-241-2 01 1 0707-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-173-1 01 1 0707-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-292-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75116-742-1 01 1 0707-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 0707-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-367-1 01 1 0707-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 0707-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-133-1 01 1 0707-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0707-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0707-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0707-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0707-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0707-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0707-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0707-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 0707-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 0707-0710
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
VINYL SEAT(A83) M4X6 		8-97042-273-0 02 1 0707-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
VINYL SEAT(A83) M4X6 		8-97042-273-0 01 1 1012-

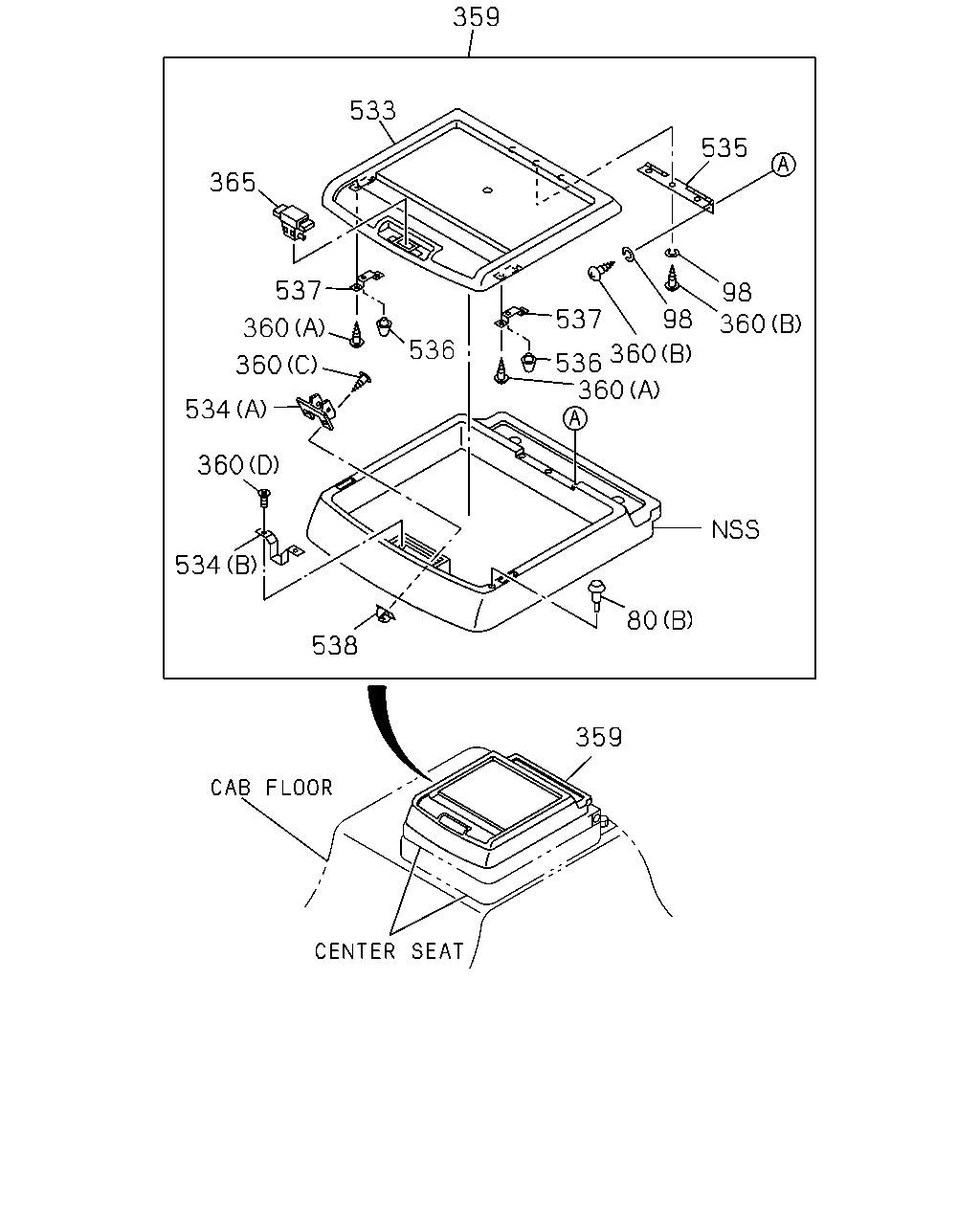

çizim 133622
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-175-1 01 1 0707-
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0707-
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0707-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0707-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0707-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0707-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0707-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0707-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0707-1006
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0707-1006
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0707-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0707-1006
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0707-1006
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0707-1006
çizim 133625
62 78 80 88 81 79 66 77 66 86 76 78 79 79 79 86 322 85 467 468 85 87 513 85 470 339
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0707-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0707-
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0707-
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0707-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0707-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0707-
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0707-1403
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0707-
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0707-1312
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0707-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-1 02 1 0707-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0707-1312
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0707-
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0707-0710
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 0707-
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-3 01 1 0707-
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0707-
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0707-
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0707-
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0707-
çizim 133626
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0707-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-324-0 01 1 0707-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-295-1 01 1 0707-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0707-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0707-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0707-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0707-
306 NUT; SEAT ADJ
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 12 1 0707-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0707-0710
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-264-0 04 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE 		8-94152-886-0 04 1 0707-
529 PIN; LINK 1-75518-262-0 01 1 0707-
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) 		1-75518-283-3 01 1 0707-1502
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) 		8-98291-656-0 01 1 1503-

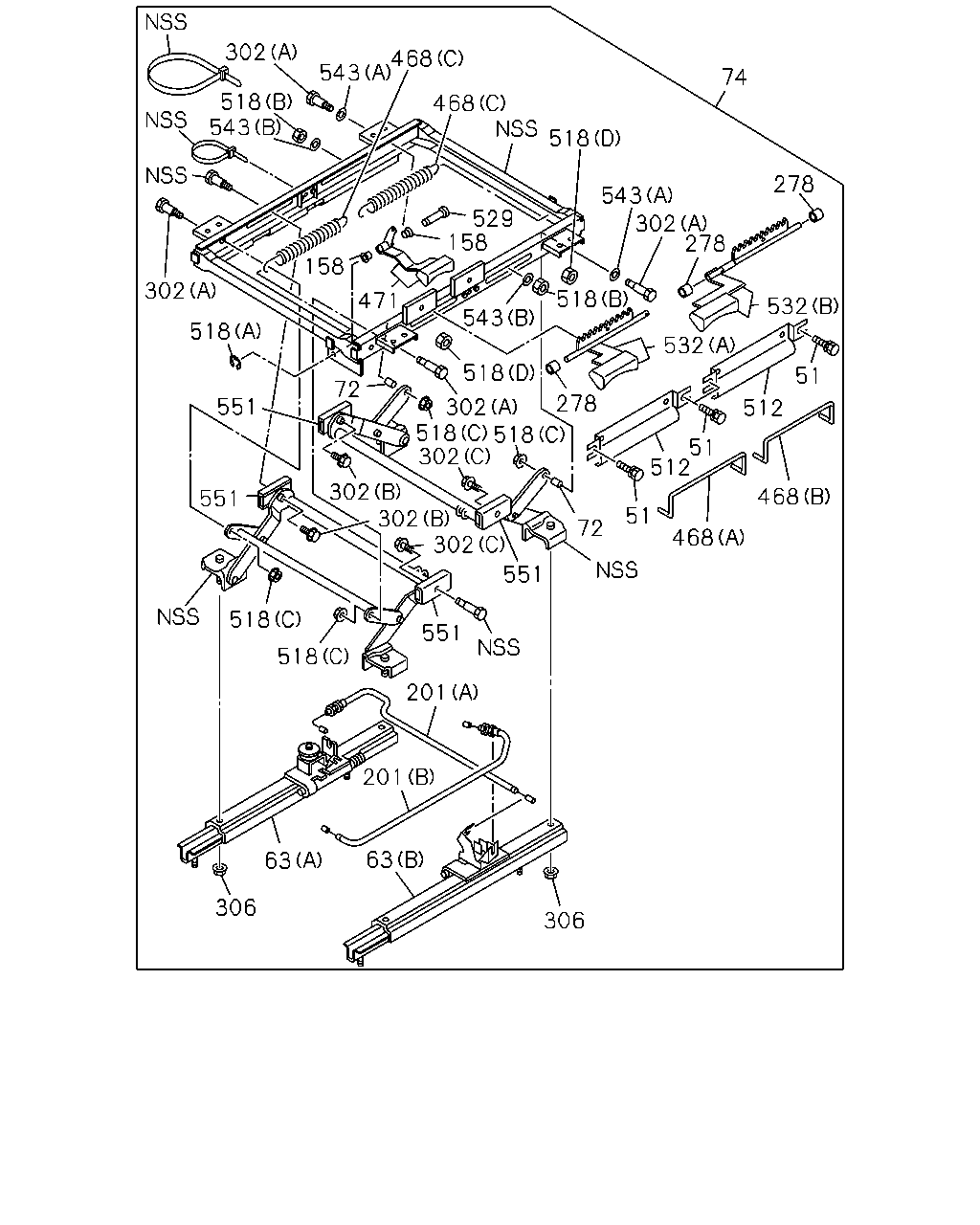

çizim 133631
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-325-1 04 1 0707-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0707-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-324-0 01 1 0707-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-295-1 01 1 0707-
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-334-1 02 1 0707-1502
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-3 01 1 0707-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0707-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0707-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0707-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-244-0 03 1 0707-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-266-2 02 1 0707-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-270-1 04 1 0707-1502
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-336-1 02 1 0707-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0707-
306 NUT; SEAT ADJ
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 12 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0707-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0707-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0707-0710
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-245-1 02 1 0707-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-264-0 04 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0707-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE 		8-94152-886-0 04 1 0707-
529 PIN; LINK 1-75518-262-0 01 1 0707-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-221-0 01 1 0707-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-222-1 01 1 0707-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-335-0 02 1 0707-1502
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (A) 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (B) ID=8.4 		9-09160-508-0 04 1 0707-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-265-0 04 1 0707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
