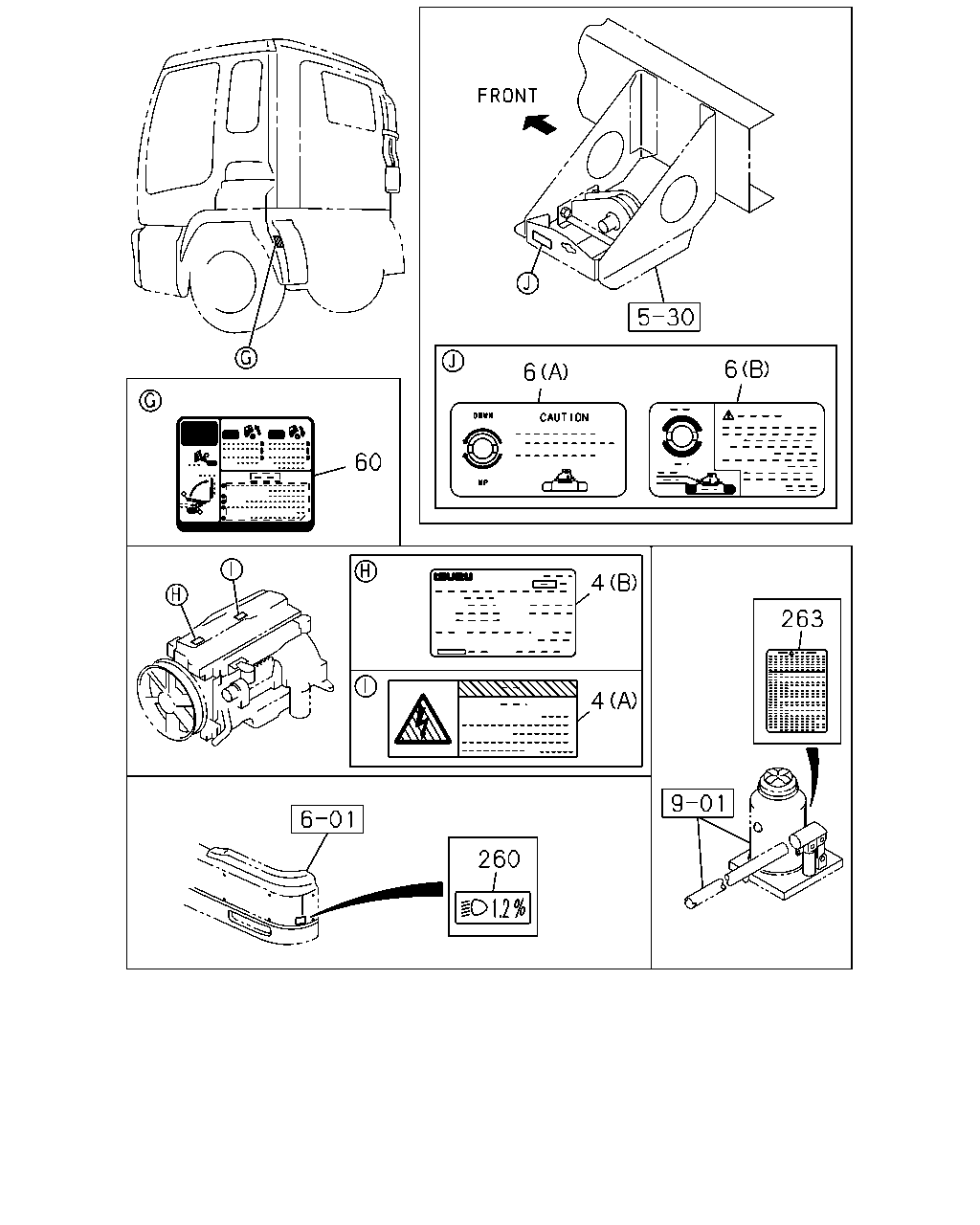

7-10 — CAUTION PLATE AND LABEL (#56321) — 24 parça

6 6 60 4 263 4 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (A)	8-98088-627-0	01	1	0707-
4	LABEL; ENG MAINTENANCE (B)	8-98088-630-0	01	1	0707-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53639-004-0	01	1	0707-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98082-441-0	01	1	0709-
60	PLATE; CAUTION,CAB TILT	1-85883-181-0	01	1	0707-
260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	0707-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CHINESE	1-85881-878-0	01	1	0707-0708
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> ARABIC	8-98094-561-0	01	1	0709-

5 289 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	0707-
144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z)	1-85878-345-0	01	1	0811-
289	PLATE; CAUTION,DRIVING	8-98093-472-0	01	1	0709-

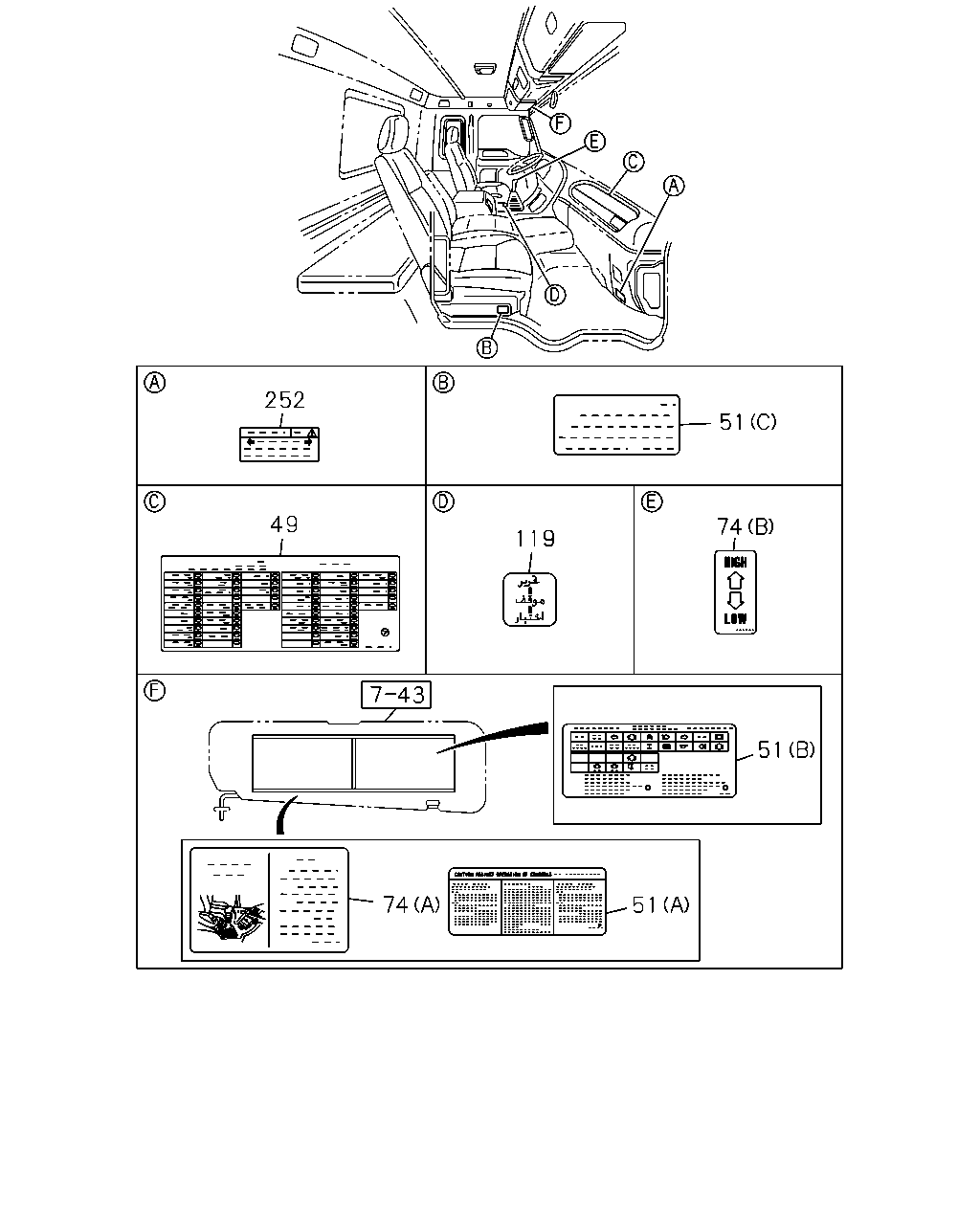

252 51 49 74 119 51 74 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX	1-85878-331-0	01	1	0707-0708
49	PLATE; CAUTION,FUSE BOX	8-97624-086-0	01	1	0709-
51	PLATE; CAUTION,WARNING (B)	1-85878-434-0	01	1	0707-0708
51	PLATE; CAUTION,WARNING (A)	1-85880-787-0	01	1	0709-
51	PLATE; CAUTION,WARNING (C)	8-97624-052-0	01	1	0709-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (A)	1-85881-836-0	01	1	0811-1004
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (B)	8-98118-493-0	01	1	0811-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (A)	8-98124-445-0	01	1	0812-
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-980-0	01	1	0709-
252	PLATE; CAUTION,HARNESS	8-97623-996-0	01	1	0709-

181 181 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	PLATE; CAUTION,FUEL	8-98083-160-0	01	1	0707-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	0707-
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	0707-
