5-15 — CAB MOUNTING; CAB SIDE (#5632) — 103 parça

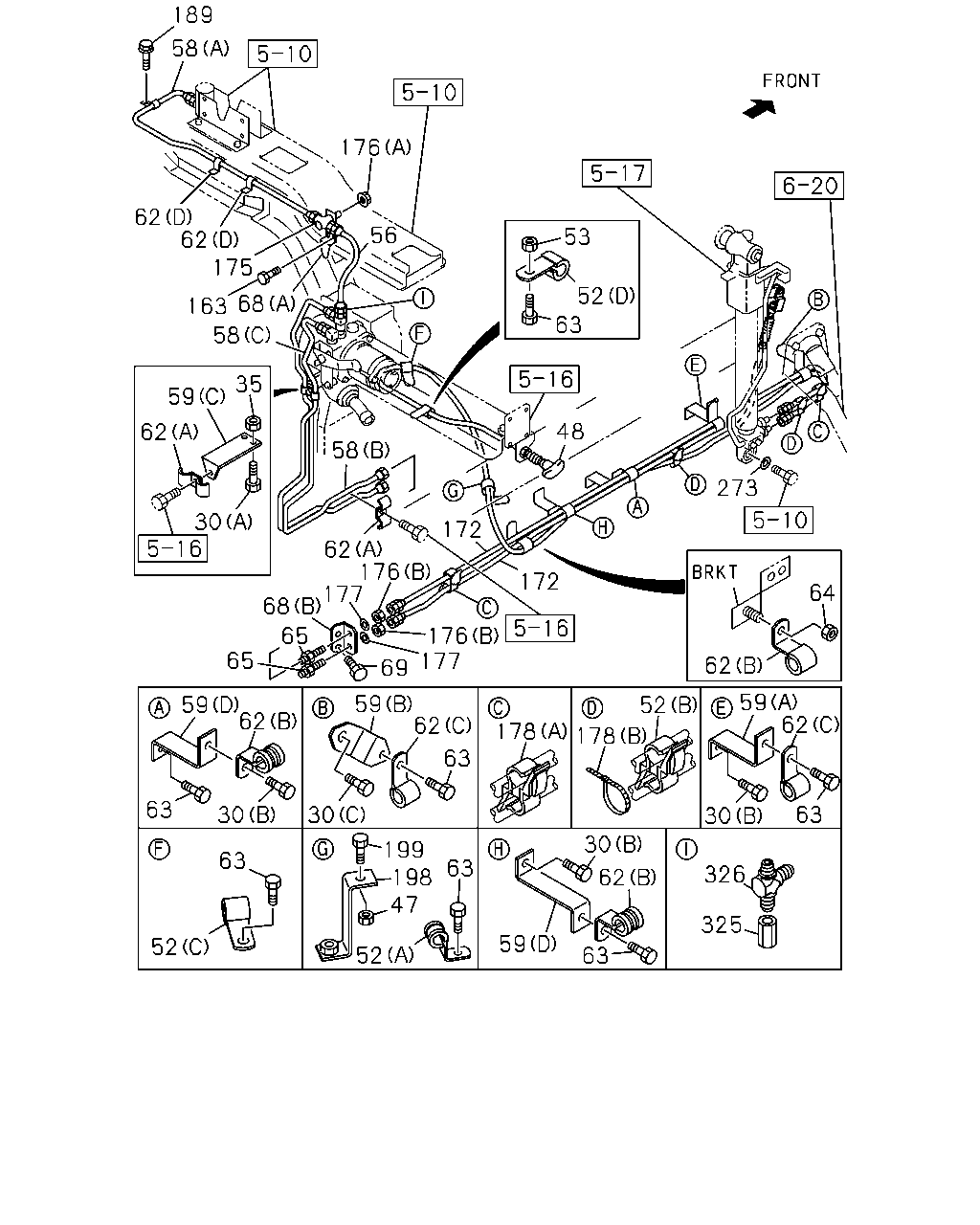

çizim 9031
189 58 176 62 62 175 56 53 52 68 163 63 58 35 59 48 62 58 273 30 172 62 176 177 68 172 64 176 177 65 65 62 69 59 62 59 62 59 62 52 178 178 63 63 63 30 30 30 30 199 198 47 326 63 63 62 325 59 52 52 63
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
30 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28080-825-0 03 1 9603-9606
30 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9607-
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28081-225-0 01 1 9603-9606
30 BOLT; BRKT FIX
(C) M12X25 FLANGE 		0-28681-225-0 01 1 9607-
35 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-
47 NUT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9603-
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9603-
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9603-9910
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 9911-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9603-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9603-9907
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9603-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9603-
52 CLIP; CONT CABLE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9603-9907
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9603-
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-2 01 1 9603-9904
56 HOSE; FLEX,OIL PIPE
L=300 		1-09365-059-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(A) L=1390 		1-47428-967-0 01 1 9603-9904
58 PIPE; OIL,POWER UNIT
(A) L=1396 		1-49163-351-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) L=1000 		1-47429-626-0 01 1 9603-9603
58 PIPE; OIL,POWER UNIT
(B) L=1025 		1-47429-627-0 01 1 9603-9903
58 PIPE; OIL,POWER UNIT
(B) L=1030 		1-49164-392-0 01 1 9904-9904
58 PIPE; OIL,POWER UNIT
(B) L=1054 		1-49164-150-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) L=1002 		1-49164-393-0 01 1 9904-9904
58 PIPE; OIL,POWER UNIT
(C) L=1120 		1-49164-151-0 01 1 9905-9910
58 PIPE; OIL,POWER UNIT
(C) L=1006 		1-49165-034-0 01 1 9911-
59 BRACKET; CLIP
(A) 		1-47476-200-0 01 1 9603-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9603-
59 BRACKET; CLIP
(B) 		1-47477-631-1 01 1 9603-
59 BRACKET; CLIP
(D) L=90 		1-82699-856-0 02 1 9603-
62 CLIP; OIL PIPE
(A) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9603-9904
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 9603-9905
62 CLIP; OIL PIPE
(B) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(C) ID=11X2 L=16 		9-09535-025-0 02 1 9603-9904
62 CLIP; OIL PIPE
(C) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 9603-9905
62 CLIP; OIL PIPE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9906-
62 CLIP; OIL PIPE
FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9904
62 CLIP; OIL PIPE
FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905-
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20 		1-09700-604-0 03 1 9603-9904
62 CLIP; OIL PIPE
EXC. FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20 		1-09700-603-0 03 1 9905-
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9603-9606
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9607-
64 NUT; CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) M8 		9-09110-408-0 01 1 9603-9606
64 NUT; CLIP
BRAKE SYSTEM SPRING BRAKE(BCR) M8 FLANGE 		0-91150-108-0 01 1 9607-
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9603-9904
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9905-
68 BRACKET; UNION
(B) 		1-47477-751-0 01 1 9603-9902
68 BRACKET; UNION
(A) 		1-53458-374-1 01 1 9603-
68 BRACKET; UNION
(B) 		1-47478-500-0 01 1 9903-9904
68 BRACKET; UNION
(B) 		1-47478-384-0 01 1 9905-
69 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9607-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9603-9904
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9905-
175 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 9603-9904
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 9905-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-112-0 01 1 9603-9606
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 9607-
176 NUT; UNION
(B) M14 		9-99111-414-0 02 1 9603-9904
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 9905-
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9603-9904
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-
178 CLIP; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=12-16 & 12-16 		1-09709-191-0 01 1 9603-9706
178 CLIP; FLEX HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) (B) L=140 		5-09707-031-1 01 1 9908-
178 CLIP; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9603-9706
178 CLIP; FLEX HOSE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) L=140 		5-09707-031-1 02 1 9908-
189 BOLT; CLIP
FULL FLOATING CAB<W16> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606
189 BOLT; CLIP
FULL FLOATING CAB<W16> M8X20 FLANGE 		0-28680-820-0 01 1 9607-
189 BOLT; CLIP
EXC. FULL FLOATING CAB<W16> M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606
189 BOLT; CLIP
EXC. FULL FLOATING CAB<W16> M8X20 FLANGE 		0-28680-820-0 03 1 9607-
198 BRACKET; CABLE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> 		1-46147-101-0 01 1 9603-
199 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606
199 BOLT; BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 01 1 9607-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9603-
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9905-
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9905-

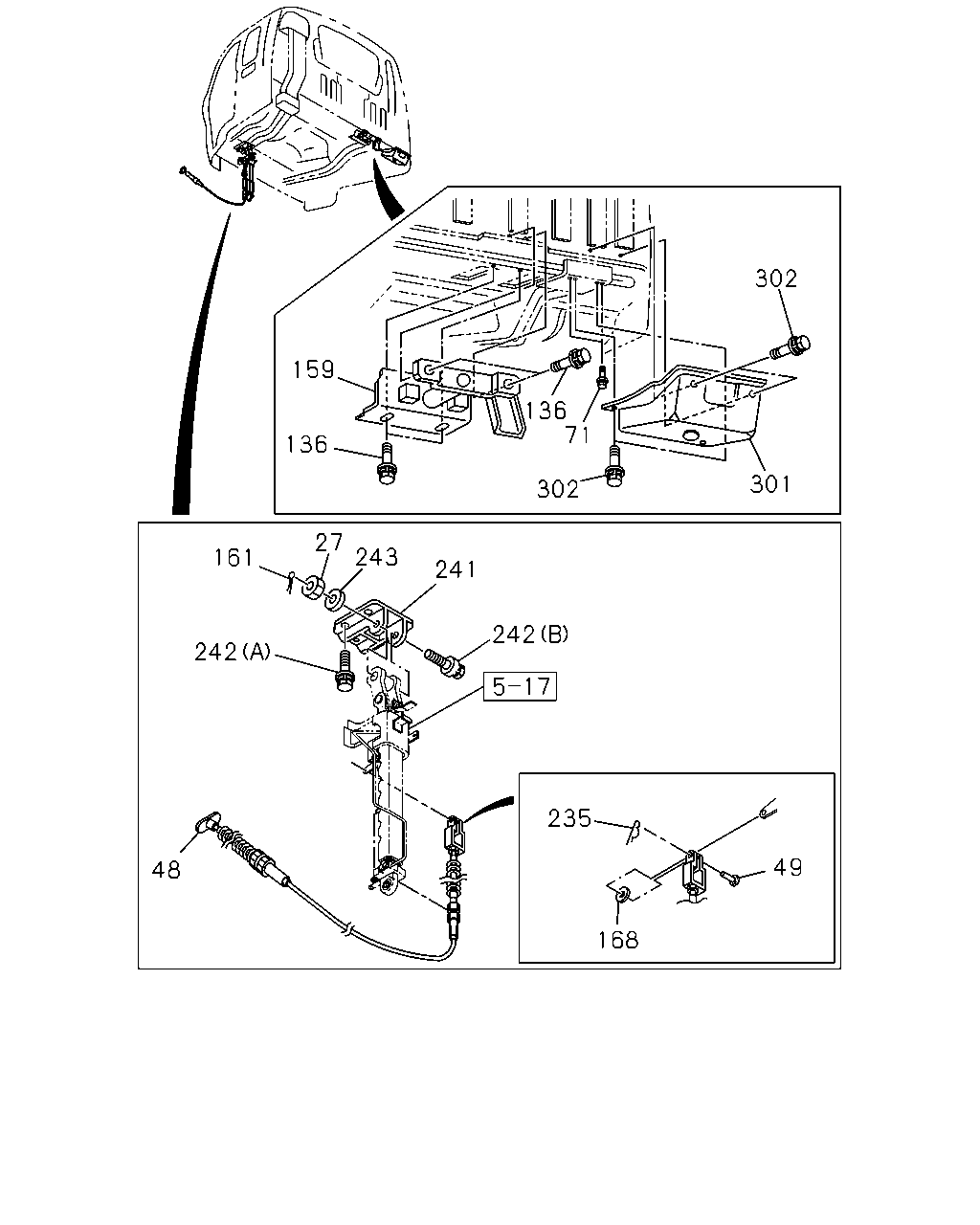

çizim 41267
302 159 136 71 136 301 302 27 243 161 241 242 242 235 49 48 168
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 9603-
48 CABLE ASM; CONT
BRAKE SYSTEM SPRING BRAKE(BCR) L=2688 		1-62500-684-2 01 1 9603-
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-670-6 01 1 9603-9910
48 CABLE ASM; CONT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457 		1-62500-730-0 01 1 9911-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 9603-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 9603-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9603-
159 PIN 1-79717-615-2 01 1 9603-9609
159 PIN 1-79717-627-1 01 1 9610-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 9603-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9603-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 9603-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-0 01 1 9603-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 9603-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 9603-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 9603-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 9603-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 9603-
