Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

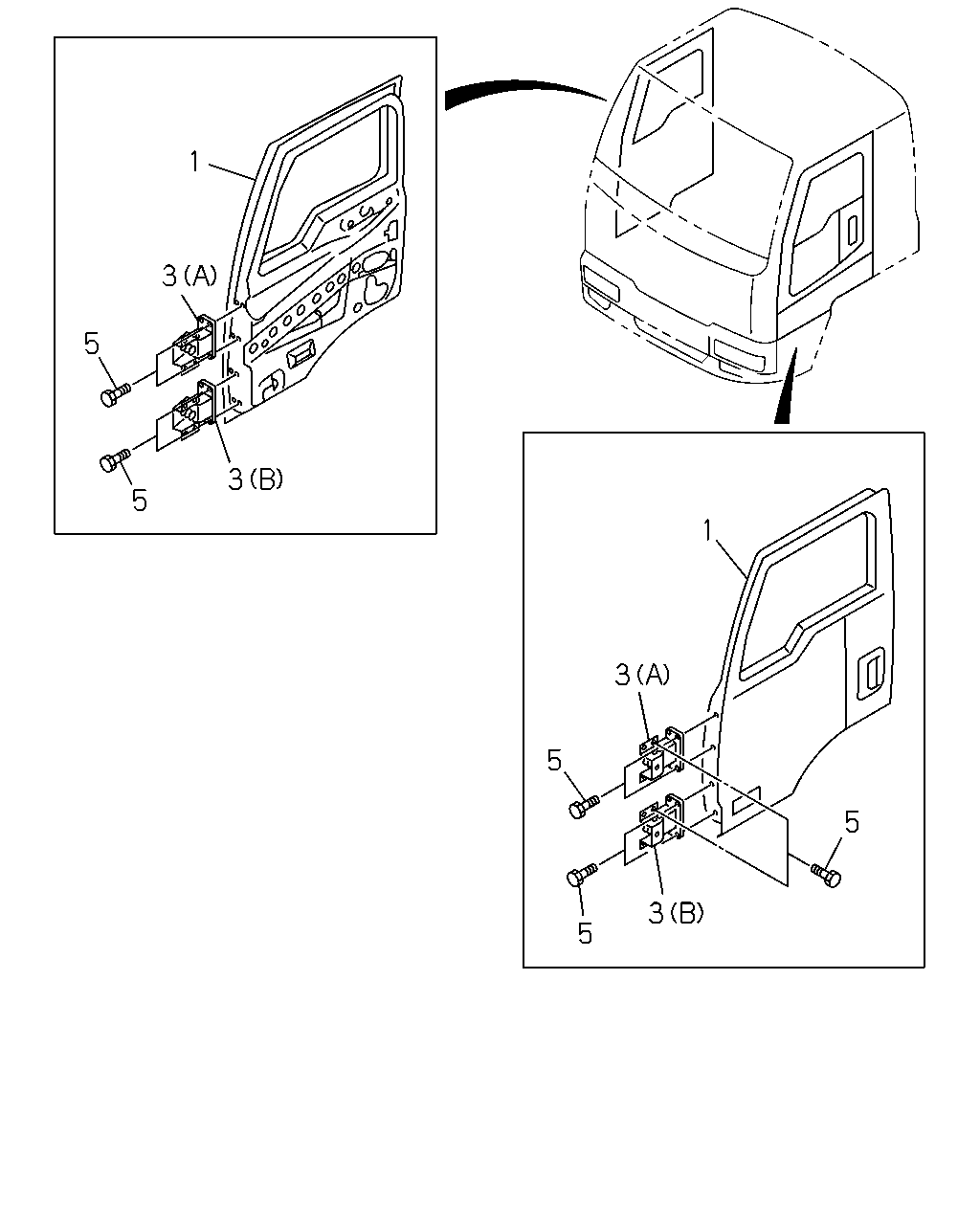

6-30 — FRONT DOOR AND HINGE
(#56302) — 11 parça
1
3
5
3
5
1
3
5
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-2
01
1
0707-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-64080-390-2
01
1
0707-0708
1
DOOR ASM; FRT,WO/TRIM
1-64080-390-2
01
1
0709-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-64080-388-2
01
1
0707-0708
3
HINGE; DOOR FRT
(A) UPPER
1-64780-097-1
02
1
0707-0708
3
HINGE; DOOR FRT
(A) UPPER
1-64780-088-3
02
1
0709-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-098-2
02
1
0707-0708
3
HINGE; DOOR FRT
(B) LOWER
1-64780-089-4
02
1
0709-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
32
1
0707-0708
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0709-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0709-
