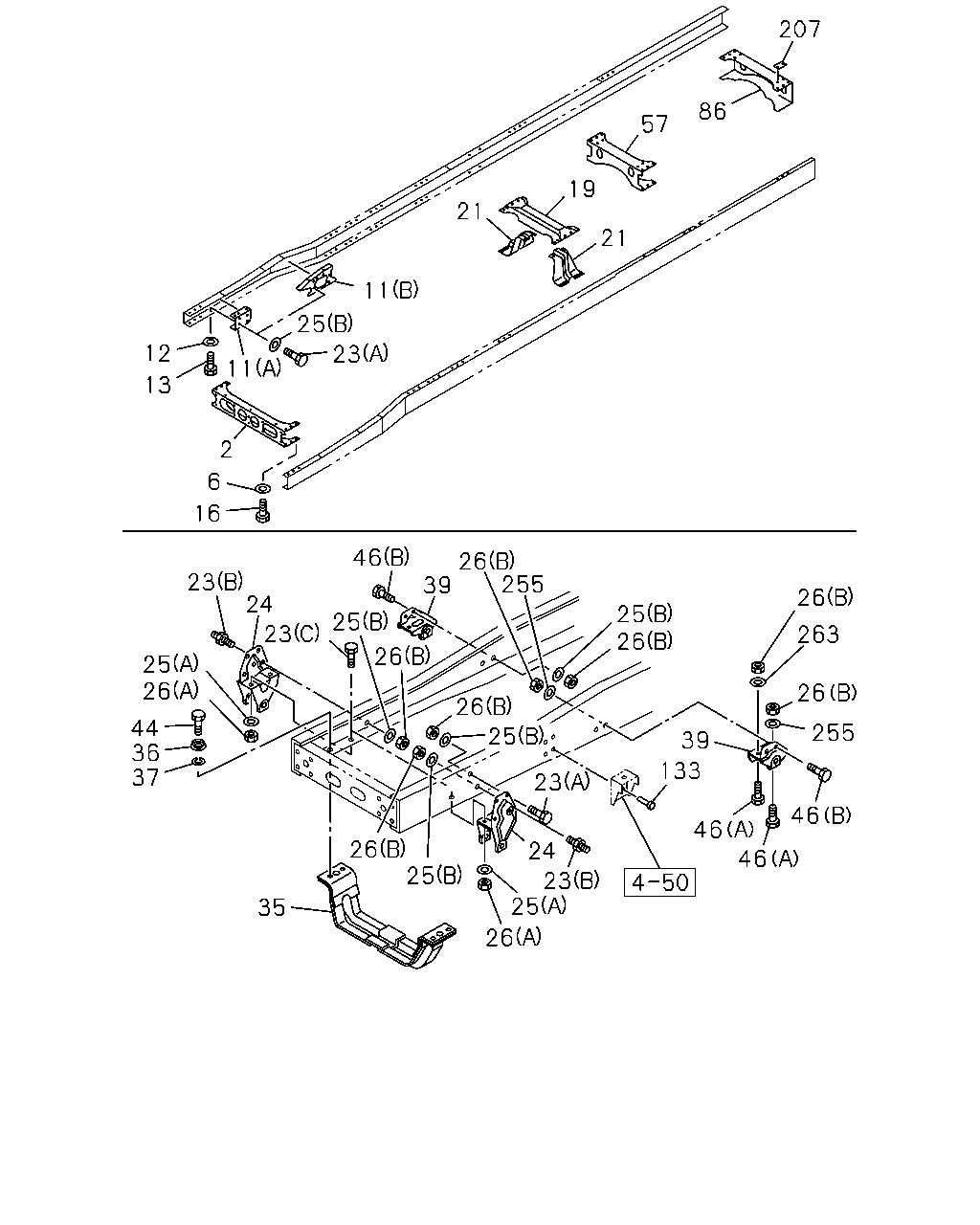

5-01 — FRAME AND OTHER PARTS (#5630) — 119 parça

207 86 57 21 19 21 11 25 12 23 11 13 2 6 16 46 26 39 255 23 24 26 25 26 25 26 23 263 25 26 26 26 44 36 37 255 25 39 133 23 46 46 26 25 24 46 23 25 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST HEADLAMPS RECTANGULAR<TR4>	1-53181-710-0	01	1	9603-9904
2	MEMBER; CROSS,1ST BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-53181-710-1	01	1	9905-
2	MEMBER; CROSS,1ST EXC. BUMPER W/HEADLAMPS<SLB>	1-53181-710-1	01	1	9905-
2	MEMBER; CROSS,1ST EXC. HEADLAMPS RECTANGULAR<TR4>	1-53181-526-3	01	1	9603-9904
2	MEMBER; CROSS,1ST BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53181-526-4	01	1	9905-
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9603-9904
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB> ID=16.2	9-09150-616-0	02	1	9905-
11	BRACKET; ENG MTG V TYPE ENG<91L> (A)	1-53219-583-0	01	1	9905-
11	BRACKET; ENG MTG V TYPE ENG<91L> (B)	1-53219-585-3	01	1	9905-
11	BRACKET; ENG MTG V TYPE ENG<91L> (A)	1-53219-582-0	01	1	9905-
11	BRACKET; ENG MTG V TYPE ENG<91L> (B)	1-53219-584-3	01	1	9905-
11	BRACKET; ENG MTG L TYPE ENG<90L> (A)	1-53219-472-1	01	1	9905-
11	BRACKET; ENG MTG 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (A)	1-53219-583-0	01	1	9603-9904
11	BRACKET; ENG MTG 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (B)	1-53219-585-3	01	1	9603-9904
11	BRACKET; ENG MTG 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (A)	1-53219-582-0	01	1	9603-9904
11	BRACKET; ENG MTG 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (B)	1-53219-584-3	01	1	9603-9904
11	BRACKET; ENG MTG 6WA1 TC-S(56L) (A)	1-53219-472-1	01	1	9603-9904
11	BRACKET; ENG MTG 6WA1 TC-S(56L) (B)	1-53219-577-2	01	1	9603-9904
11	BRACKET; ENG MTG 6WA1 TC-S(56L) (A)	1-53219-471-0	01	1	9603-9904
11	BRACKET; ENG MTG 6WA1 TC-S(56L) (B)	1-53219-576-2	01	1	9603-9904
11	BRACKET; ENG MTG L TYPE ENG<90L> (B)	1-53219-577-2	01	1	9905-
11	BRACKET; ENG MTG L TYPE ENG<90L> (A)	1-53219-471-0	01	1	9905-
11	BRACKET; ENG MTG L TYPE ENG<90L> (B)	1-53219-576-2	01	1	9905-
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	02	1	9603-9802
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-S(56L) FRONT STABILIZER SHAFT<F59> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> ID=15	9-09651-069-0	02	1	9803-9904
12	WASHER; PL,BRKT,ENG MTG V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=15	9-09651-069-0	02	1	9905-9905
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-C(55L) FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=15	9-09651-069-0	02	1	9906-
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	03	1	9603-9802
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-S(56L) EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> ID=15	9-09651-069-0	03	1	9803-9904
12	WASHER; PL,BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61>,FRONT SPOILER<VP1> ID=15	9-09651-069-0	03	1	9905-9905
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-C(55L) BUMPER W/HEADLAMPS<SLB> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61>,FRONT SPOILER<VP1> ID=15	9-09651-069-0	03	1	9906-
12	WASHER; PL,BRKT,ENG MTG 6WA1 TC-R(93L) EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	03	1	9906-
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59> M14X40	9-92061-440-0	02	1	9603-9802
13	BOLT; BRKT,ENG MTG 6WA1 TC-S(56L) FRONT STABILIZER SHAFT<F59> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> M14X40	9-92061-440-0	02	1	9803-9904
13	BOLT; BRKT,ENG MTG V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M14X40	9-92061-440-0	02	1	9905-9905
13	BOLT; BRKT,ENG MTG 6WA1 TC-C(55L) FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M14X40	9-92061-440-0	02	1	9906-
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> M14X40	9-92061-440-0	03	1	9603-9802
13	BOLT; BRKT,ENG MTG L TYPE ENG<90L> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61>,FRONT SPOILER<VP1> M14X40	9-92061-440-0	03	1	9803-9905
13	BOLT; BRKT,ENG MTG 6WA1 TC-C(55L) BUMPER W/HEADLAMPS<SLB> EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61>,FRONT SPOILER<VP1> M14X40	9-92061-440-0	03	1	9906-
13	BOLT; BRKT,ENG MTG 6WA1 TC-R(93L) EXC. FRONT STABILIZER SHAFT<F59>,REAR STABILIZER SHAFT<F61> M14X40	9-92061-440-0	03	1	9906-
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9603-9904
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB> M16X40	0-20801-640-0	02	1	9905-
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	9603-
21	GUSSET; 2ND CROSS	1-53164-212-0	02	1	9603-
23	BOLT; BRKT,SPR (B) M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	04	1	9603-
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9603-
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9603-
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9603-
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	24	1	9603-9802
25	WASHER; PL,BRKT 6WA1 TC-S(56L) FUEL TANK 400L<SDH> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> (B) ID=15	9-09651-069-0	24	1	9803-9904
25	WASHER; PL,BRKT V TYPE ENG<91L> (A) ID=16.2	1-09503-223-0	06	1	9905-
25	WASHER; PL,BRKT 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (A) ID=16.2	1-09503-223-0	06	1	9603-9904
25	WASHER; PL,BRKT L TYPE ENG<90L> (A) ID=16.2	1-09503-223-0	08	1	9905-
25	WASHER; PL,BRKT 6WA1 TC-S(56L) (A) ID=16.2	1-09503-223-0	08	1	9603-9904
25	WASHER; PL,BRKT 6WA1 TC-S(56L) EXC. FUEL TANK 400L<SDH> (B) ID=15	9-09651-069-0	32	1	9803-9904
25	WASHER; PL,BRKT 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (B) ID=15	9-09651-069-0	32	1	9803-9904
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	32	1	9905-
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9603-9904
26	NUT; BRKT,SPR L TYPE ENG<90L> (A) M16	9-99110-516-0	04	1	9905-
26	NUT; BRKT,SPR V TYPE ENG<91L> (A) M16	9-99110-516-0	02	1	9905-
26	NUT; BRKT,SPR 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> (A) M16	9-99110-516-0	02	1	9603-9904
26	NUT; BRKT,SPR 6WA1 TC-S(56L) (A) M16	9-99110-516-0	04	1	9603-9904
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9905-
35	MEMBER; UNDER	1-53174-214-2	01	1	9603-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9603-
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9603-
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9603-
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9603-
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9603-9606
44	BOLT; UNDER MBR M16X45	9-92061-645-0	04	1	9607-
46	BOLT; BRKT FIX (B) M14X40	9-92061-440-0	04	1	9603-
46	BOLT; BRKT FIX (A) M14X50	9-92061-450-0	04	1	9603-
57	MEMBER; CROSS,RR SUSP FRT	1-53181-319-8	01	1	9603-
86	MEMBER; CROSS,RR SUSP RR	1-53181-319-8	01	1	9603-
133	RIVET; BRKT 6WA1 TC-S(56L) EXC. FUEL TANK 400L<SDH> D13X36 PLATED TAPER END	9-06771-336-0	08	1	9803-9904
133	RIVET; BRKT 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> D13X36 PLATED TAPER END	9-06771-336-0	08	1	9803-9904
133	RIVET; BRKT D13X36 PLATED TAPER END	9-06771-336-0	08	1	9905-
207	SPACER; 4TH C/MBR	1-53168-171-1	02	1	9603-
255	WASHER; PL,BRKT 6WA1 TC-S(56L) EXC. FUEL TANK 400L<SDH> ID=15	9-09651-069-0	12	1	9803-9904
255	WASHER; PL,BRKT 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	12	1	9803-9904
255	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9905-9912
255	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	0001-
263	WASHER; PL,SUB FRAME FRONT STABILIZER SHAFT<F59> FUEL TANK 400L<SDH> L TYPE ENG<90L> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> ID=15	9-09651-069-0	04	1	9803-9904
263	WASHER; PL,SUB FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=15	9-09651-069-0	04	1	9905-9905
263	WASHER; PL,SUB FRAME 6WA1 TC-C(55L) FRONT STABILIZER SHAFT<F59> BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=15	9-09651-069-0	04	1	9906-

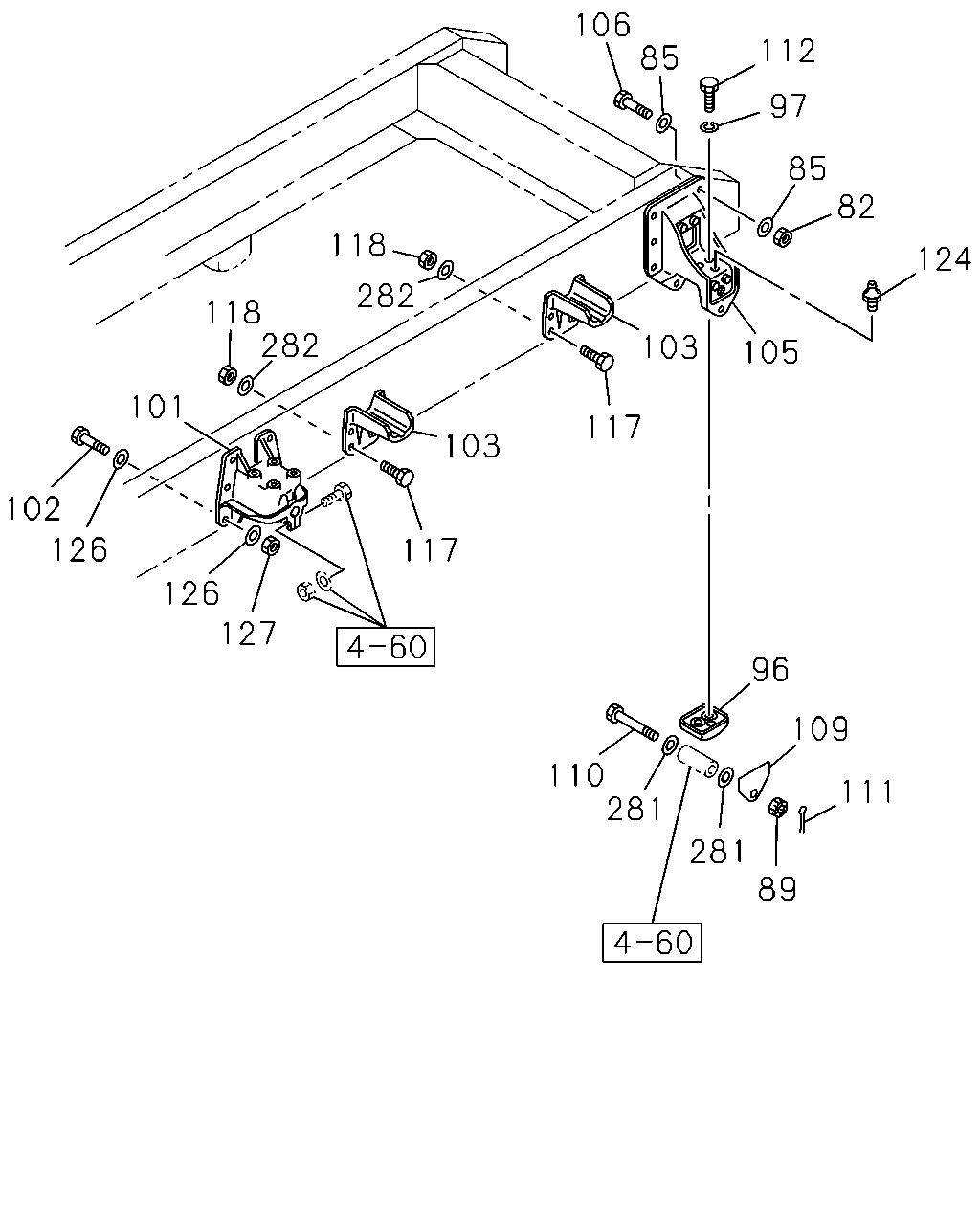

106 85 112 97 85 82 118 124 282 118 282 103 101 117 103 102 126 117 126 127 96 109 110 281 111 281 89 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	NUT; BRKT M14	9-99110-514-0	12	1	9603-9802
82	NUT; BRKT 6WA1 TC-S(56L) FUEL TANK 400L<SDH> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> M14	9-99110-514-0	12	1	9803-9904
85	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9603-9802
85	WASHER; PL,BRKT 6WA1 TC-S(56L) FUEL TANK 400L<SDH> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> ID=15	9-09651-069-0	12	1	9803-9904
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9603-
96	PAD; RR SPR	1-53359-047-0	02	1	9603-
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9603-9606
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9609-
101	BRACKET; RR SPR,FRT	1-53353-081-2	02	1	9603-
102	BOLT; BRKT,RR SPR M14X40	9-92061-440-0	12	1	9603-9912
102	BOLT; BRKT,RR SPR M14X50	9-92061-450-0	12	1	0001-
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9603-
105	BRACKET; RR SPR,RR	1-53354-066-2	02	1	9603-
106	BOLT; BRKT M14X40	9-92061-440-0	12	1	9603-9912
106	BOLT; BRKT M14X50	9-92061-450-0	12	1	0001-
109	SHIM; RR SPR T=4.5	1-53359-061-1	02	1	9603-
109	SHIM; RR SPR T=3.2	1-53359-062-1	02	1	9603-
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9603-
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9603-
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9603-9606
112	BOLT; PAD M14X30 FLANGE	0-28681-430-0	04	1	9607-9608
112	BOLT; PAD M14X35	9-92061-435-0	04	1	9609-
117	BOLT; STOPPER M14X40	9-92061-440-0	16	1	9603-
118	NUT; STOPPER M14	9-99110-514-0	16	1	9603-
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9603-
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9603-
127	NUT; BRKT M14	9-99110-514-0	12	1	9603-9802
127	NUT; BRKT 6WA1 TC-S(56L) FUEL TANK 400L<SDH> EXC. REAR STABILIZER SHAFT<F61>,HEADLAMPS RECTANGULAR<TR4> M14	9-99110-514-0	12	1	9803-9904
127	NUT; BRKT M14	9-99110-514-0	24	1	9905-
127	NUT; BRKT 6WA1 TC-S(56L) EXC. FUEL TANK 400L<SDH> M14	9-99110-514-0	24	1	9803-9904
127	NUT; BRKT 10PE1S(60L) EXC. REAR STABILIZER SHAFT<F61> M14	9-99110-514-0	24	1	9803-9904
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9603-
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9603-
