◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#563) — 96 parça

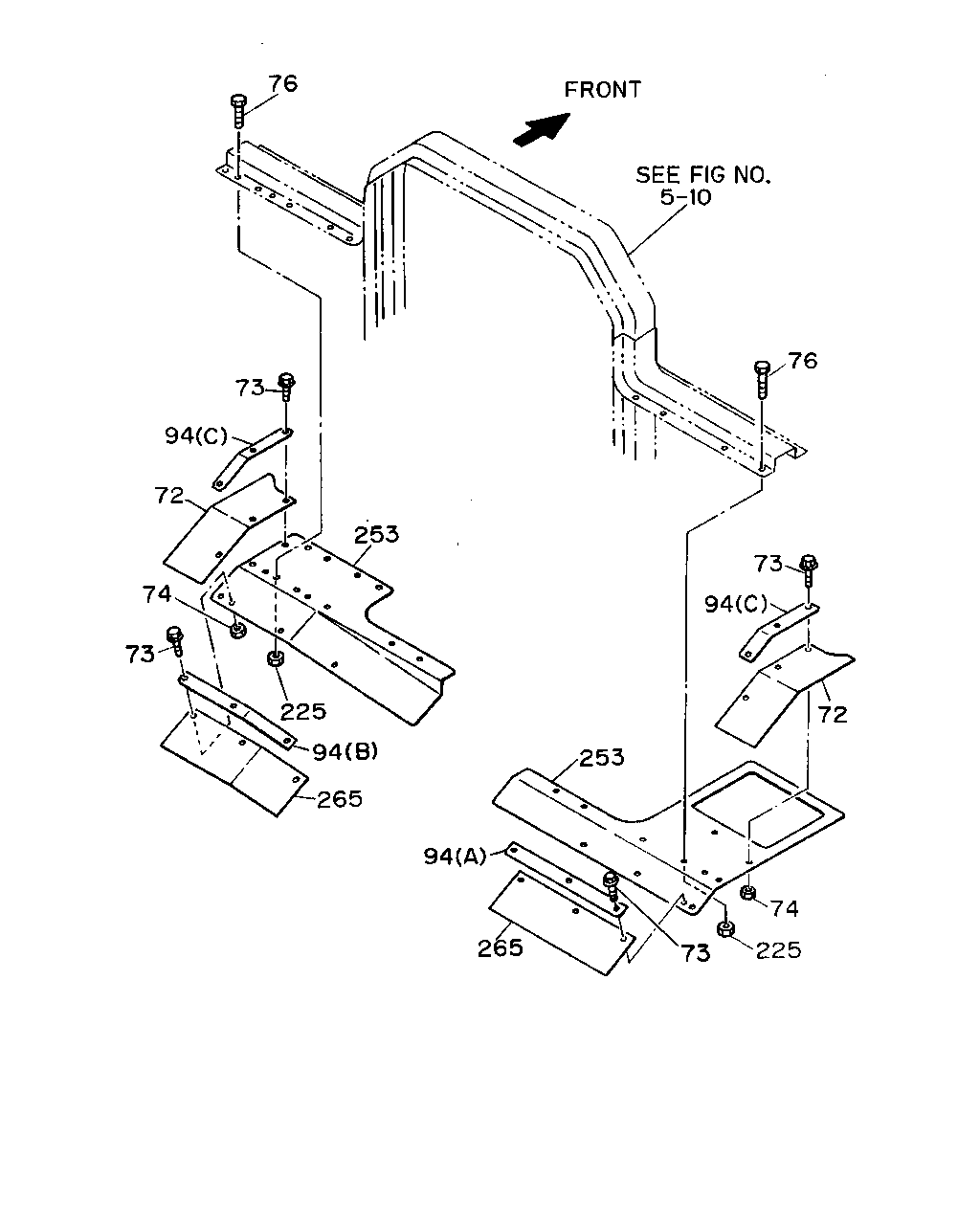

çizim 95638
76 73 94 72 74 73 265 94 225 253 76 73 94 72 253 74 225 73 265 94
BalonParca AdiParca NoAdetTipApplied Date
72 RUBBER; FLAP,SIDE 1-79930-350-4 02 1 8712-
73 BOLT; MUD COVER BRKT
M8X16 W/LK WASHER 		9-01900-816-0 12 1 8712-9204
73 BOLT; MUD COVER BRKT
M8X16 W/LK WASHER 		0-50040-816-0 12 1 9205-
74 NUT
M8 		9-09110-408-0 06 1 8712-9306
74 NUT
M8 		9-09110-408-0 12 1 9307-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 8712-
76 BOLT; MUD GUARD
M8X16 W/LK WASHER 		9-01910-816-0 02 1 8712-9005
76 BOLT; MUD GUARD
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9006-9302
76 BOLT; MUD GUARD
M8X16 FLANGE 		0-28080-816-0 02 1 9303-
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		9-01911-020-0 07 1 8712-9002
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 07 1 9003-9106
76 BOLT; MUD GUARD
M10X25 W/LK WASHER 		0-50041-025-0 07 1 9107-
94 RETAINER; FLAP RUBBER
(A) 		1-79930-346-1 01 1 8712-9310
94 RETAINER; FLAP RUBBER
(A) 		1-79930-945-0 01 1 9311-
94 RETAINER; FLAP RUBBER
(B) 		1-79930-347-2 01 1 8712-9310
94 RETAINER; FLAP RUBBER
(B) 		1-79930-946-0 01 1 9311-
94 RETAINER; FLAP RUBBER
(C) 		1-79930-348-2 02 1 8712-9310
94 RETAINER; FLAP RUBBER
(C) 		1-79930-947-0 02 1 9311-
225 NUT; MUD GUARD
M8 M8 		9-09110-508-0 02 1 8712-9306
225 NUT; MUD GUARD
M10 		9-09110-510-0 07 1 8712-
225 NUT; MUD GUARD
M8 		9-09110-408-0 02 1 9307-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-389-2 01 1 8712-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-344-2 01 1 8712-8901
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-722-1 01 1 8902-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79930-550-0 01 1 8712-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79930-549-0 01 1 8712-8901
253 GUARD; MUD
V TYPE ENG<91L> 		1-79930-723-0 01 1 8902-
265 RUBBER; FLAP,REAR 1-79930-349-2 02 1 8712-

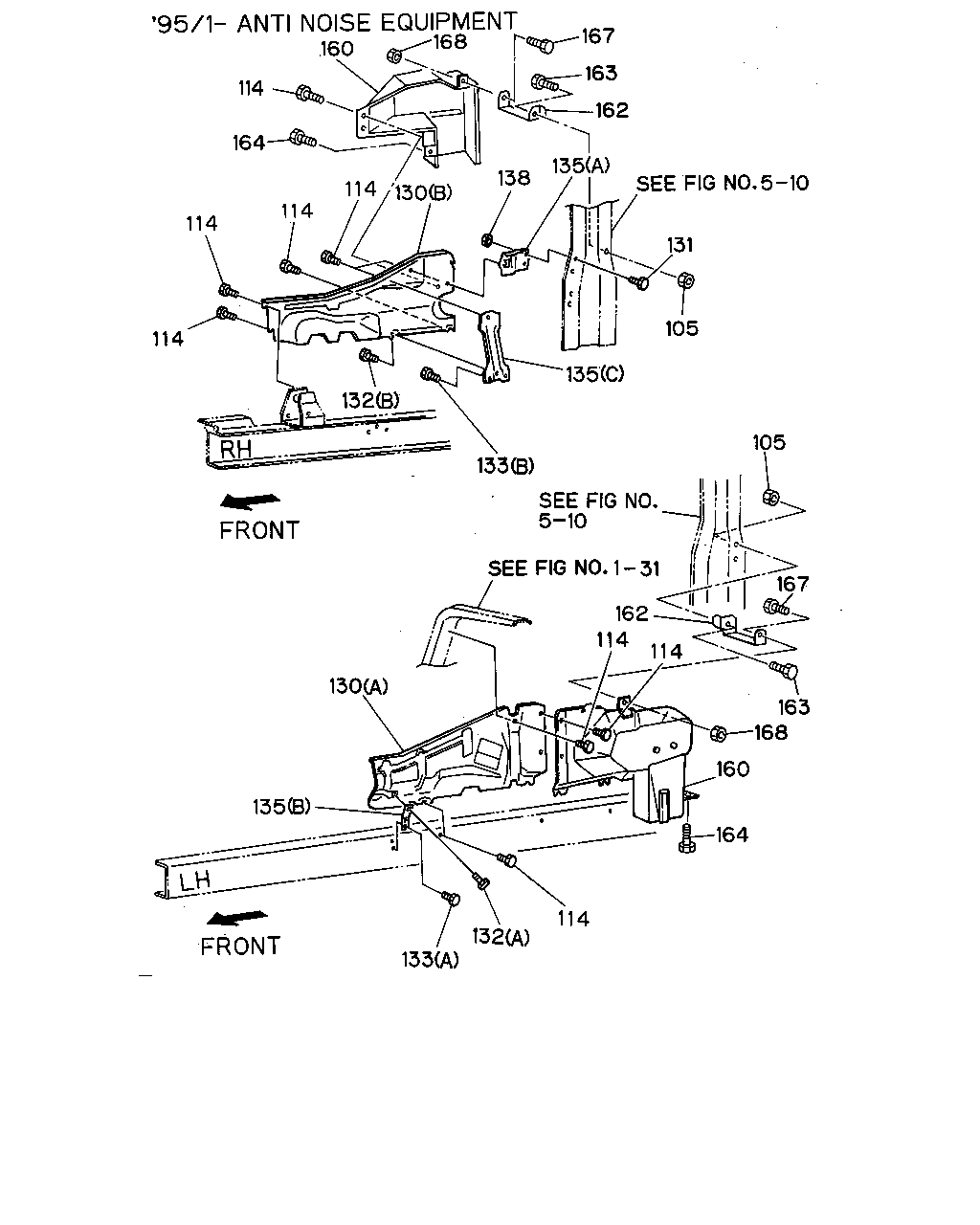

çizim 96318
160 114 164 114 114 114 130 138 135 162 163 167 168 131 105 135 132 114 133 105 167 163 114 114 162 168 160 164 114 132 133 135 130
BalonParca AdiParca NoAdetTipApplied Date
105 NUT; BRKT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 03 1 9501-
114 BOLT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X14 FLANGE 		0-28080-814-0 01 1 9501-
114 BOLT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9501-
114 BOLT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9501-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502-
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9501-
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-335-1 01 1 9501-9502
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) 		1-53193-156-0 01 1 9503-
131 BOLT; PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 02 1 9501-
132 BOLT; SIDE PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9501-
132 BOLT; SIDE PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) M8X35 W/LK&PL WASHER 		1-09030-073-0 01 1 9501-
133 BOLT; FRAME
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) M8X30 FLANGE 		0-28080-830-0 02 1 9501-
133 BOLT; FRAME
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 9501-
135 BRACKET; SIDE PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-494-1 01 1 9501-
135 BRACKET; SIDE PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-558-0 01 1 9501-
135 BRACKET; SIDE PANEL
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-491-0 01 1 9501-
138 NUT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 02 1 9501-
160 COVER ASM; EXH
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-79930-935-2 01 1 9501-
160 COVER ASM; EXH
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-79930-931-2 01 1 9501-
162 BRACKET
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-53441-488-0 01 1 9501-
162 BRACKET
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-53441-487-0 01 1 9501-
163 BOLT; BRKT
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 03 1 9501-
164 BOLT; FLEX COVER
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 04 1 9501-
167 BOLT; EXH COVER
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 9501-
168 NUT; EXH COVER
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		5-09440-005-0 02 1 9501-

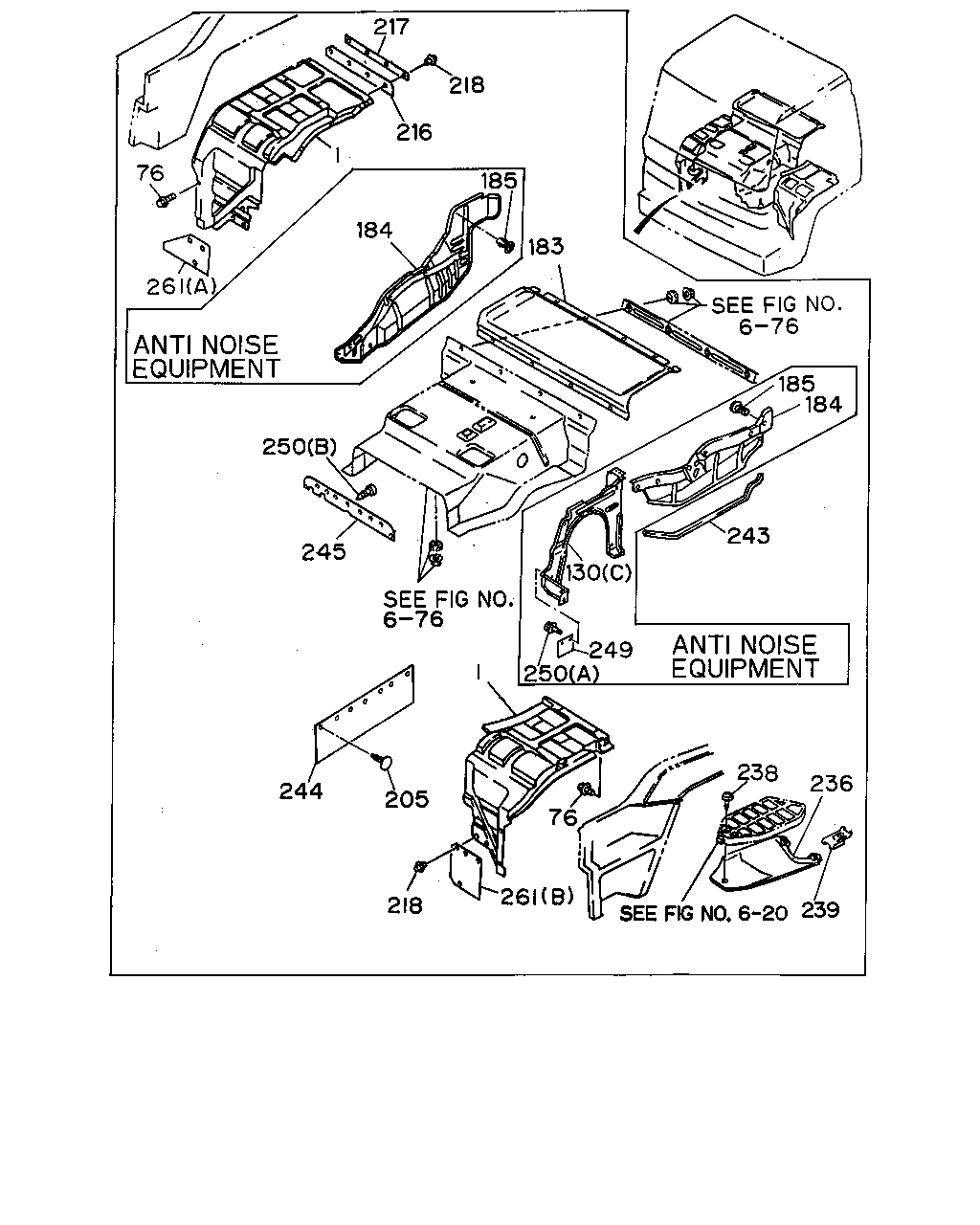

çizim 96324
76 261 217 218 216 184 185 183 185 184 243 130 249 250 245 250 244 205 218 261 76 1 238 236 239
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-711-9 01 1 8712-9301
1 GUARD; MUD,FRT 1-79937-923-0 01 1 9302-
1 GUARD; MUD,FRT 1-79937-710-9 01 1 8712-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 8712-
76 BOLT; MUD GUARD
M8X16 W/LK WASHER 		9-01910-816-0 02 1 8712-9005
76 BOLT; MUD GUARD
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9006-9302
76 BOLT; MUD GUARD
M8X16 FLANGE 		0-28080-816-0 02 1 9303-
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		9-01911-020-0 07 1 8712-9002
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 07 1 9003-9106
76 BOLT; MUD GUARD
M10X25 W/LK WASHER 		0-50041-025-0 07 1 9107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502-
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9501-
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-335-1 01 1 9501-9502
130 PANEL; SHUTTER NOISE
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) 		1-53193-156-0 01 1 9503-
183 INSULATOR; HEAT,BED PAN 1-71997-486-5 01 1 8712-
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> 		1-71997-970-0 01 1 9502-
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> 		1-71997-748-2 01 1 9502-
185 CLIP; HEAT INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 17 1 9502-
205 FASTENER; MUD COVER
D6X23 BLACK 		1-09987-114-0 07 1 8712-9212
205 FASTENER; MUD COVER 1-09987-189-0 07 1 9301-9501
205 FASTENER; MUD COVER
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-09987-189-0 07 1 9502-
205 FASTENER; MUD COVER
ANTI NOISE EQUIPMENT<SV9> 		1-09987-189-0 06 1 9502-
216 RUBBER; RR,MUD GUARD FRT 1-79937-716-1 01 1 8712-
217 RETAINER; RUBBER,MUD GUARD FRT 1-79937-717-1 01 1 8712-
218 FASTENER; RUBBER 5-09989-002-0 06 1 8712-
218 FASTENER; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 03 1 8712-
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 02 1 8712-
236 GUARD ASM; MUD 1ST STEP 1-79937-797-2 01 1 8712-
236 GUARD ASM; MUD 1ST STEP 1-79937-796-2 01 1 8712-
238 SCREW; MUD GUARD
M5X25 W/PL WASHER 		1-09981-478-0 08 1 8712-
239 NUT; GUARD 2ND STEP 1-09984-157-0 08 1 8712-
243 PROTECTOR; NOISE SHUT PANEL
L=985 		1-79937-721-2 01 1 8712-8810
244 GUARD; MUD,SPLASH
CAB UP +50MM<W60> 		1-79937-773-1 01 1 8712-
244 GUARD; MUD,SPLASH
EXC. CAB UP +50MM<W60> 		1-79937-772-1 01 1 8712-9502
244 GUARD; MUD,SPLASH
EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP +50MM<W60> 		1-79937-772-1 01 1 9503-
245 RUBBER; SHUTTER,RAD 1-79937-709-8 01 1 8712-
249 RUBBER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> 		1-79937-886-0 01 1 9502-
250 FASTENER; SHUTTER
(B) D6X23 BLACK 		1-09987-114-0 07 1 8712-8802
250 FASTENER; SHUTTER
(B) 		1-09987-189-0 07 1 8803-
250 FASTENER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> (A) 		1-09983-105-0 02 1 9502-
261 RUBBER; FRT,MUD GUARD
(A) 		1-79937-742-0 01 1 8712-
261 RUBBER; FRT,MUD GUARD
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-79937-742-0 01 1 8712-
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-79937-774-1 01 1 8712-
