◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#56293) — 159 parça

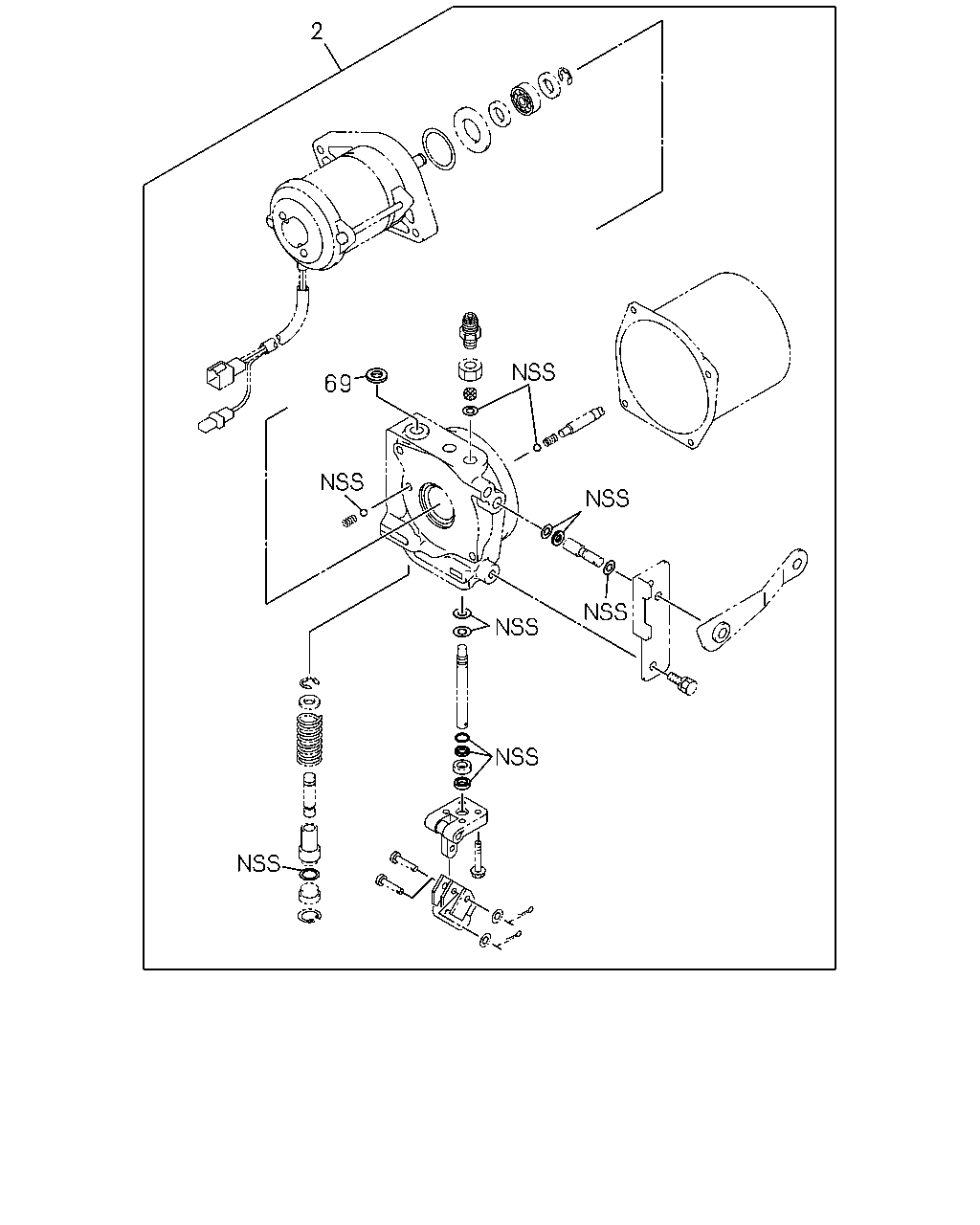

çizim 133545
2 69
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0707-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0707-

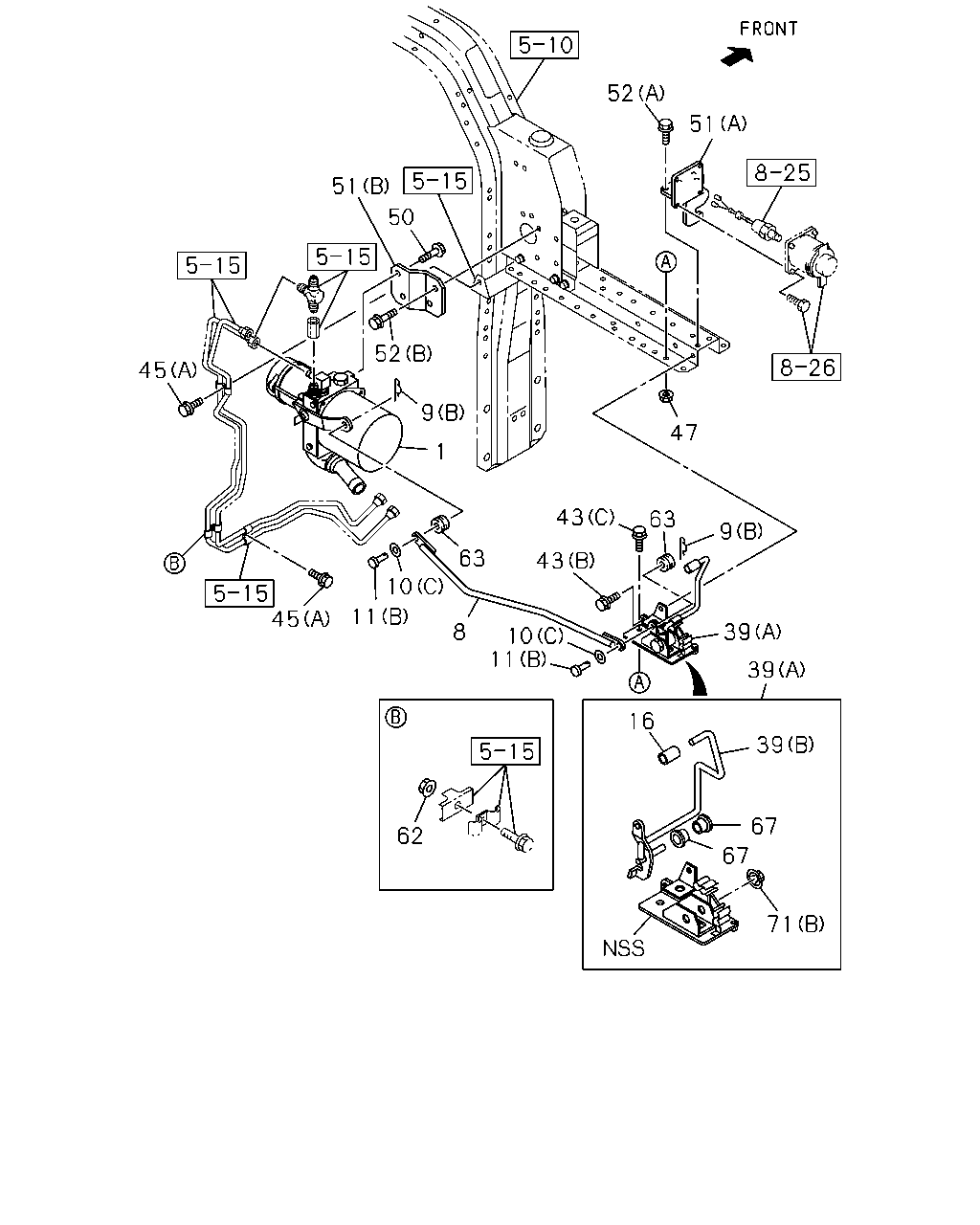

çizim 133552
52 51 51 50 52 45 9 1 47 9 63 43 43 63 10 11 45 8 10 11 39 39 16 39 67 67 71 62
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0707-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
8 LINK; OIL PUMP 1-53458-929-0 01 1 0707-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0707-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0707-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0707-0911
9 PIN; OIL PUMP
(D) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0707-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0707-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0707-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0707-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0707-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
16 CAP
ID=9.0 		8-94207-303-0 01 1 0707-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0707-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0707-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0707-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0707-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0707-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0707-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0707-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0707-
47 NUT; LEVER
M10 FLANGE 		0-91180-210-0 01 1 0707-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 0707-
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 0707-
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 0707-
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0804
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0805-
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0707-
62 NUT; COVER
M8 FLANGE 		0-91180-108-0 01 1 0707-0810
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0707-
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 0707-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0707-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0707-

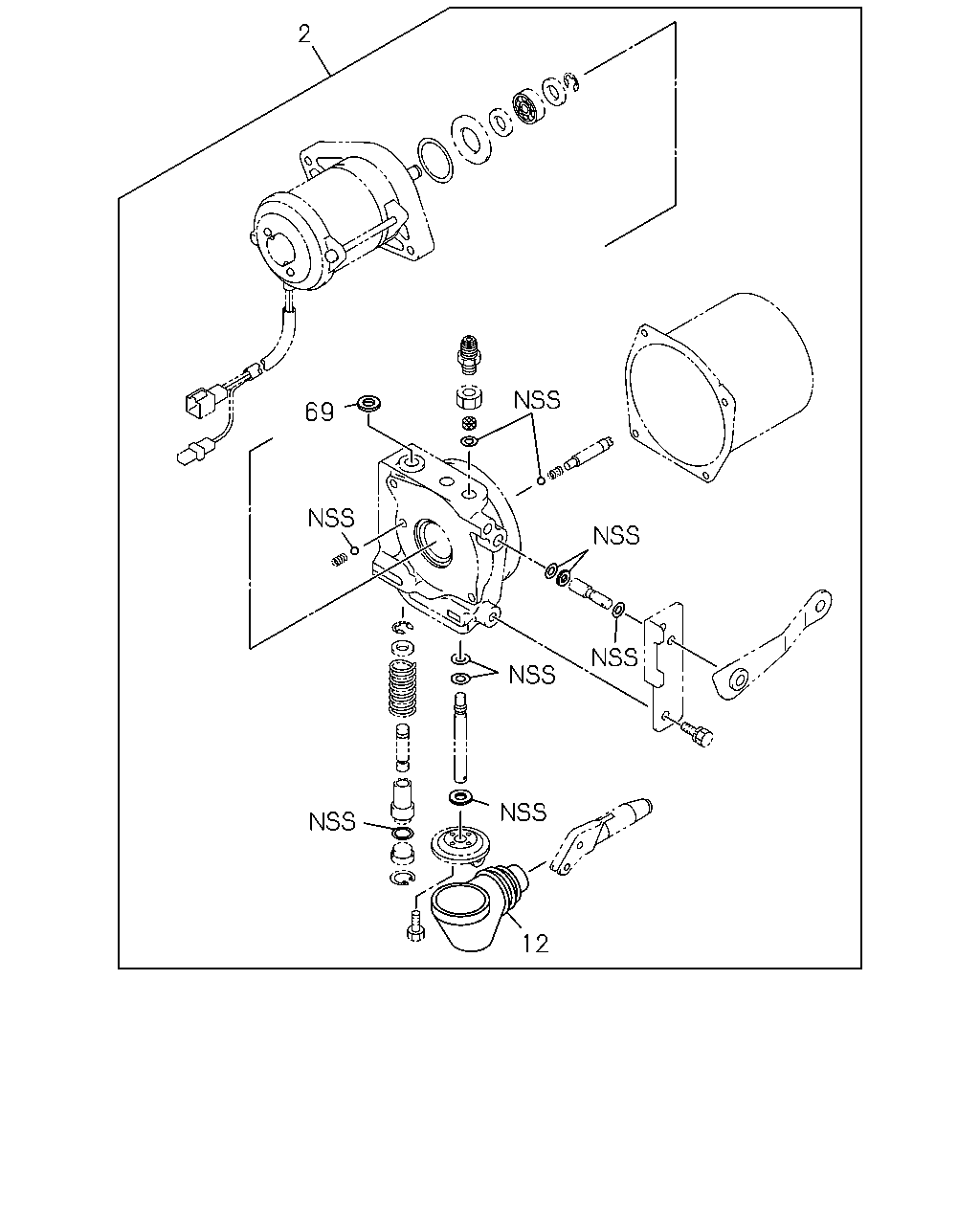

çizim 133555
2 69 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0707-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0707-0911
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0707-

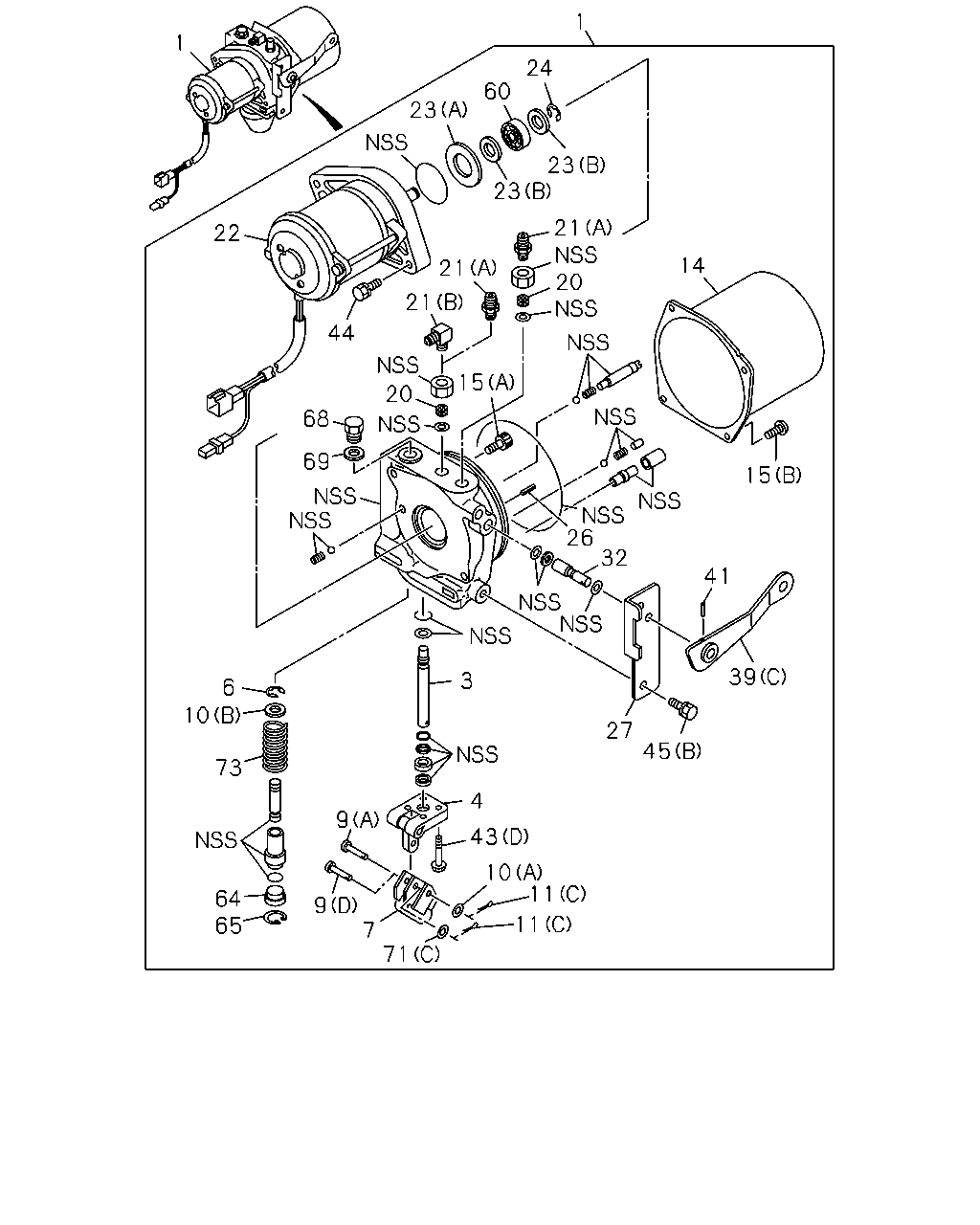

çizim 133556
1 1 24 60 23 23 23 21 20 22 14 21 21 44 15 20 68 69 15 26 32 41 39 3 6 10 27 45 73 4 9 43 10 11 64 65 9 7 71 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0707-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
3 PISTON; MANUAL 1-53458-842-0 01 1 0707-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0707-0911
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0707-
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 0707-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0707-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0707-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0707-0911
9 PIN; OIL PUMP
(D) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0707-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0707-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0707-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0707-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0707-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0707-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0707-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0707-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0707-
21 CONNECTOR; OIL PUMP
(B) 		1-53457-026-0 01 1 0707-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 01 1 0707-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 02 1 1010-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0707-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0707-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0707-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0707-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0707-
27 COVER; OIL PUMP 1-53458-725-0 01 1 0707-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0707-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0707-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0707-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0707-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0707-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0707-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0707-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0707-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0707-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0707-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0707-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0707-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0707-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0707-
68 PLUG; FILLER 1-53458-428-0 01 1 0707-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0707-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0707-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0707-
73 SPRING; PISTON 1-53458-040-0 01 1 0707-

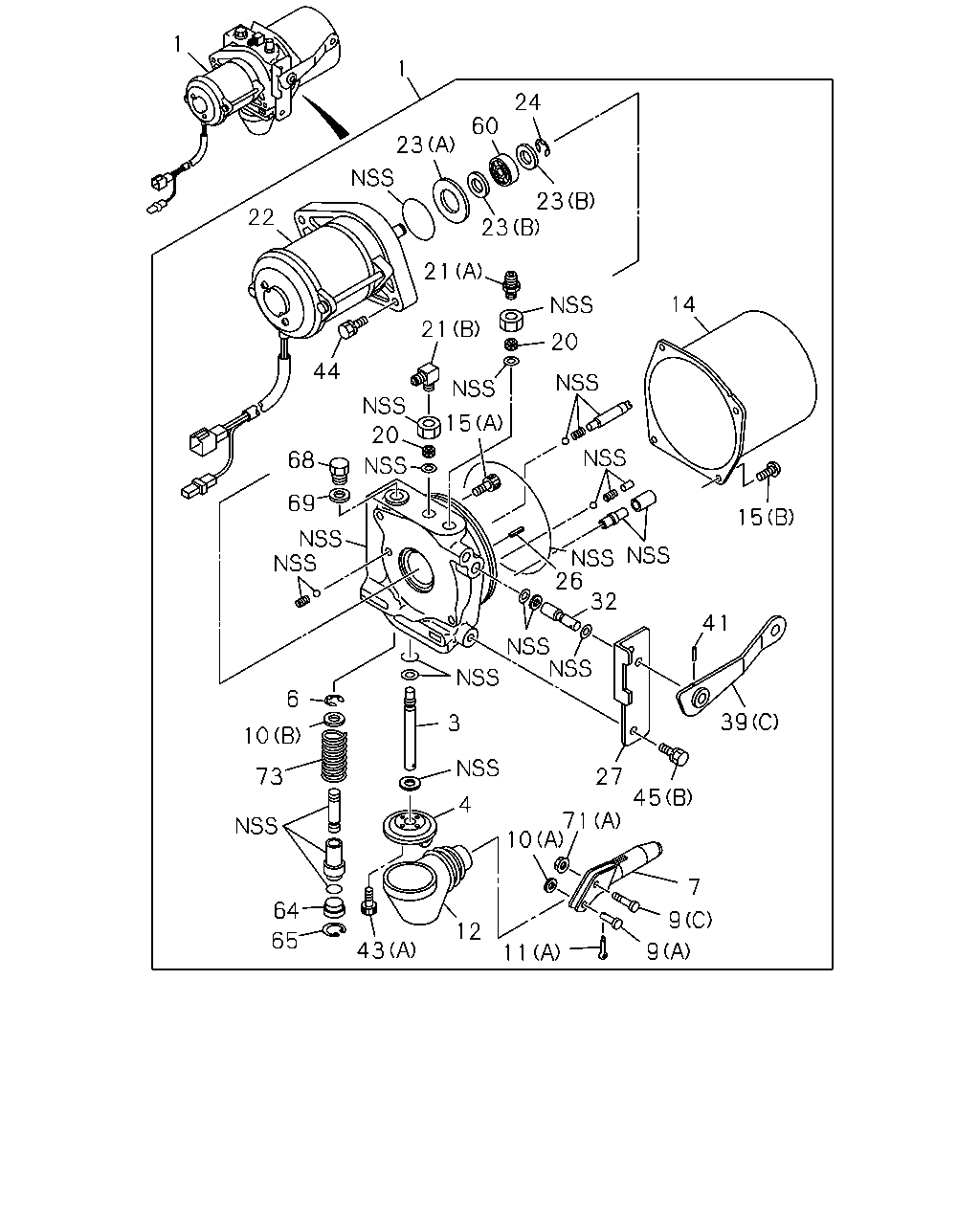

çizim 133565
1 1 24 60 23 23 23 22 21 21 14 20 44 20 15 15 26 32 41 39 68 69 6 10 73 3 27 45 4 71 10 7 9 9 11 12 43 64 65
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0707-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
3 PISTON; MANUAL 1-53458-842-0 01 1 0707-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0707-0911
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0707-
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 0707-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0707-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0707-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0707-0911
9 PIN; OIL PUMP
(D) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0707-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0707-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0707-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0707-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0707-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0707-0911
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0707-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0707-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0707-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0707-
21 CONNECTOR; OIL PUMP
(B) 		1-53457-026-0 01 1 0707-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 01 1 0707-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 02 1 1010-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0707-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0707-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0707-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0707-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0707-
27 COVER; OIL PUMP 1-53458-725-0 01 1 0707-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0707-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0707-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0707-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0707-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0707-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0707-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0707-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0707-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0707-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0707-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0707-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0707-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0707-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0707-
68 PLUG; FILLER 1-53458-428-0 01 1 0707-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0707-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0707-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0707-
73 SPRING; PISTON 1-53458-040-0 01 1 0707-
