◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#5629) — 64 parça

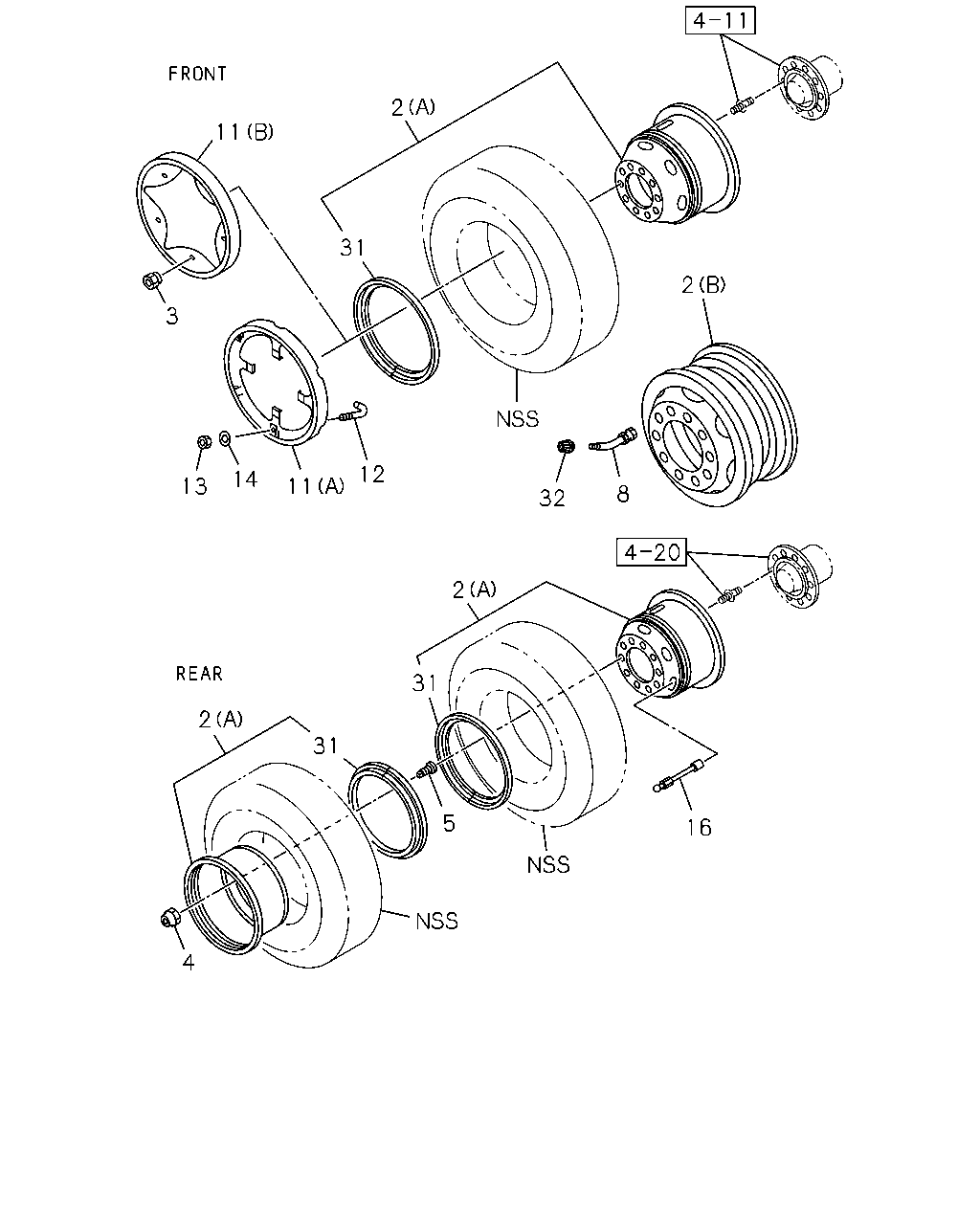

çizim 41118
2 11 31 2 3 12 14 13 11 8 32 2 31 2 31 5 16 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) SPARE 		1-42350-496-0 01 1 9603-9904
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) SPARE 		1-42350-496-0 01 1 9603-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) SPARE 		1-42350-450-1 01 1 9905-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 06 1 9603-9904
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-467-1 06 1 9905-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-471-0 01 1 9603-9904
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-471-0 01 1 9603-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SPARE 		1-42350-470-1 01 1 9905-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42350-470-1 06 1 9905-
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 06 1 9905-
2 WHEEL; DISC
WHEEL 8.25X22.5 165-13<QM6> (B) 		1-42350-414-1 06 1 9603-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) SPARE 		1-42350-590-0 01 1 9905-
2 WHEEL; DISC
WHEEL 8.25X22.5 165-13<QM6> DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-414-1 01 1 9603-9904
2 WHEEL; DISC
WHEEL 8.25X22.5 165-13<QM6> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-414-1 01 1 9603-9904
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE 		1-42350-467-1 01 1 9905-
2 WHEEL; DISC
EXC. WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-496-0 06 1 9603-9904
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-450-1 06 1 9905-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-42350-420-0 06 1 9603-9904
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-469-0 06 1 9905-9905
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-538-0 06 1 9906-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-420-0 01 1 9603-9904
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-420-0 01 1 9603-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) SPARE 		1-42350-469-0 01 1 9905-9905
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-538-0 01 1 9906-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-538-0 01 1 9906-
3 NUT; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M24 LH THREAD 		1-42334-022-0 08 1 9603-9904
3 NUT; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M24 		1-42333-022-0 08 1 9603-9904
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-043-0 20 1 9905-
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 20 1 9603-9704
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-047-0 20 1 9705-9807
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 RH THREAD 		1-42333-048-1 20 1 9808-9904
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-048-1 20 1 9905-
4 NUT; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M30 LH THREAD 		1-42334-023-0 08 1 9603-9904
4 NUT; WHEEL,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M30 		1-42333-023-0 08 1 9603-9904
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-043-0 20 1 9905-
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-040-0 20 1 9603-9704
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 		1-42333-047-0 20 1 9705-9807
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> M22 RH THREAD 		1-42333-048-1 20 1 9808-9904
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-048-1 20 1 9905-
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9603-9904
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9603-9904
8 VALVE; TIRE
WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42370-020-3 01 1 9603-9904
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42370-020-3 01 1 9905-
8 VALVE; TIRE
WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 06 1 9603-9904
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 06 1 9905-
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-43139-012-2 02 1 9603-9704
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-43139-034-0 02 1 9705-9904
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-43139-034-0 02 1 9905-
11 STEP; DISC WHEEL SIDE
WHEEL 8.25X22.5 165-13<QM6> DISC WHEEL STEP<W66> (A) 		1-43139-029-0 02 1 9603-9904
11 STEP; DISC WHEEL SIDE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEP<W66> (A) 		1-43139-012-2 02 1 9905-
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.50VX20 165-13<Q62> DISC WHEEL STEP<W66> (A) 		1-43139-028-0 02 1 9603-9904
12 U-BOLT; STEP DISC
WHEEL 8.25X22.5 165-13<QM6> DISC WHEEL STEP<W66> L=60 		1-43139-016-0 06 1 9603-9904
12 U-BOLT; STEP DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> DISC WHEEL STEP<W66> L=44 		9-43139-023-1 06 1 9603-9904
13 NUT; STEP DISC
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> DISC WHEEL STEP<W66> M10 		9-09110-510-0 06 1 9603-9904
14 WASHER; LK,STEP DISC
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> DISC WHEEL STEP<W66> ID=10.2 		9-09150-510-0 06 1 9603-9904
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9603-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42355-044-0 01 1 9905-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42355-004-1 01 1 9603-9904
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE 		1-42355-033-1 01 1 9905-
31 RING; SIDE,DISC WHEEL
WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 06 1 9905-
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8.25X22.5 165-13<QM6>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 06 1 9603-9904
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-033-1 06 1 9905-
32 CAP; VALVE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9603-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9603-
