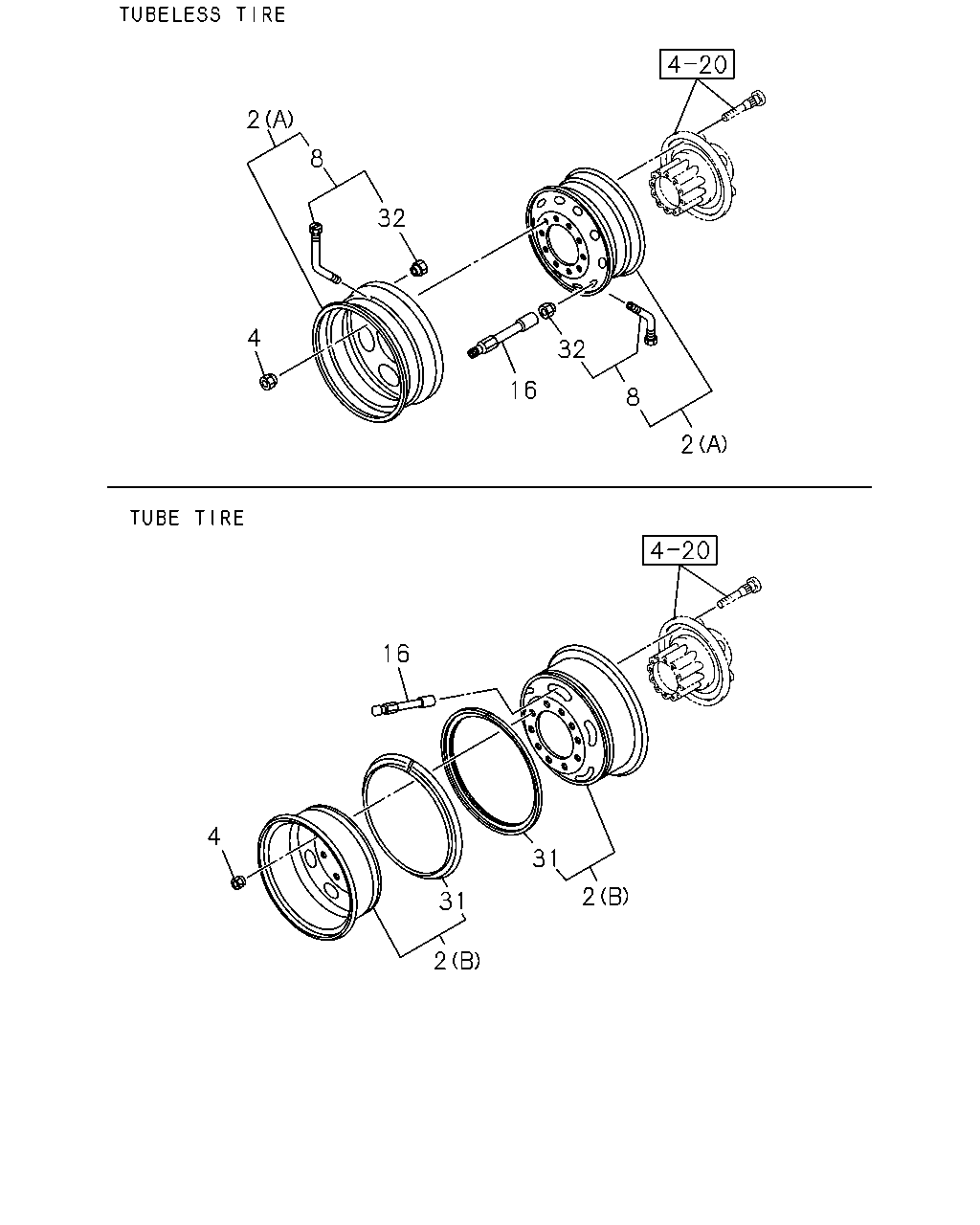

4-80 — ROAD WHEEL (#56289) — 55 parça

2 8 32 3 3 2 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT,REAR	1-42350-448-0	06	1	0709-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0709-
2	WHEEL; DISC (A) FRONT,REAR	1-42350-730-0	06	1	0707-0708
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	1-42350-730-0	06	1	0709-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98281-497-0	06	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	0707-0708
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	0709-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-050-1	20	1	0707-0907
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	0707-0708
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-020-3	06	1	0709-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0707-0708
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0709-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-019-3	01	1	1408-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	06	1	0709-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0709-
32	CAP; VALVE FRONT,REAR	1-42374-001-0	06	1	0707-0708
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42374-001-0	06	1	0709-
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	0707-0708
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	0709-

2 8 32 4 16 32 8 2 16 4 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT,REAR	1-42350-448-0	06	1	0709-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0709-
2	WHEEL; DISC (A) FRONT,REAR	1-42350-730-0	06	1	0707-0708
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	1-42350-730-0	06	1	0709-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98281-497-0	06	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	0707-0708
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	0709-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-050-1	20	1	0707-0907
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE FRONT,REAR	1-42370-020-3	06	1	0707-0708
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-020-3	06	1	0709-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0707-0708
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0709-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-019-3	01	1	1408-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0707-0708
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	02	1	0709-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	8-98167-052-0	02	1	1004-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	06	1	0709-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0709-
32	CAP; VALVE FRONT,REAR	1-42374-001-0	06	1	0707-0708
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42374-001-0	06	1	0709-
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	0707-0708
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42374-001-0	01	1	0709-
