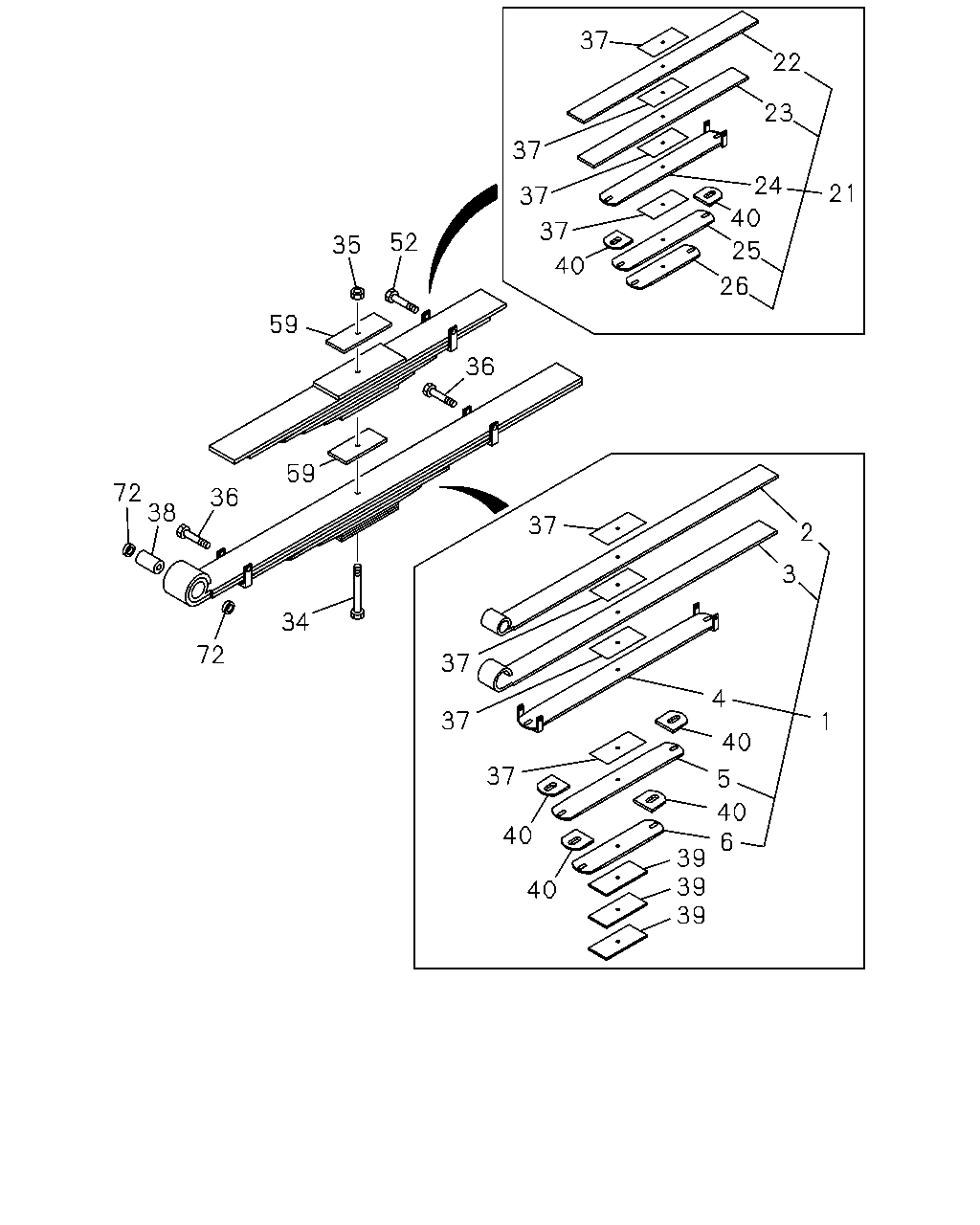

4-65 — REAR LEAF SPRING (#56288) — 22 parça

37 22 23 37 24 21 37 40 37 52 35 25 40 26 59 36 59 72 38 36 37 2 3 34 72 37 4 37 1 40 37 5 40 6 40 39 39 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-645-0	1-51410-262-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-645-0	1-51411-262-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-645-0	1-51412-262-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-645-0	1-51413-262-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-645-0	1-51414-262-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-645-0	1-51415-262-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-645-0	1-51340-672-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-645-0	1-51341-672-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-645-0	1-51342-672-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-645-0	1-51343-672-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-645-0	1-51344-672-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-645-0	1-51345-672-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-645-0	1-51356-213-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-645-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-645-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-645-0	1-51377-159-0	08	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-645-0	1-51351-045-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 1-51300-645-0	1-51359-018-0	03	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-645-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-645-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-645-0	1-51359-018-0	02	1	-
72	SEAL; DUST ASM PART: A = 1-51300-645-0	1-51177-321-0	02	1	-
