Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#56284) — 33 parça
◀

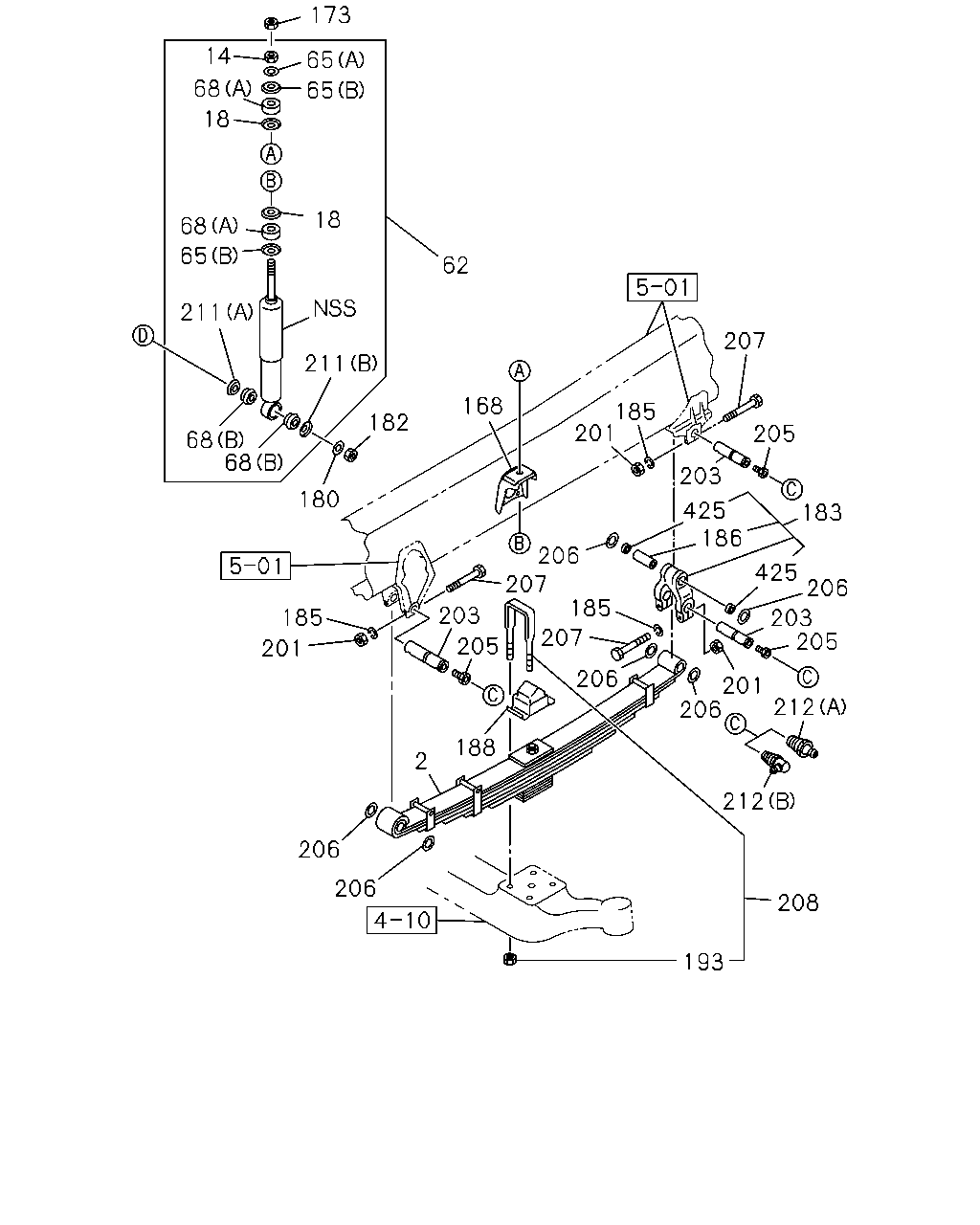

[450A] LEAF SPRING,ABSORBER AND OTHER PARTS (31 parça)

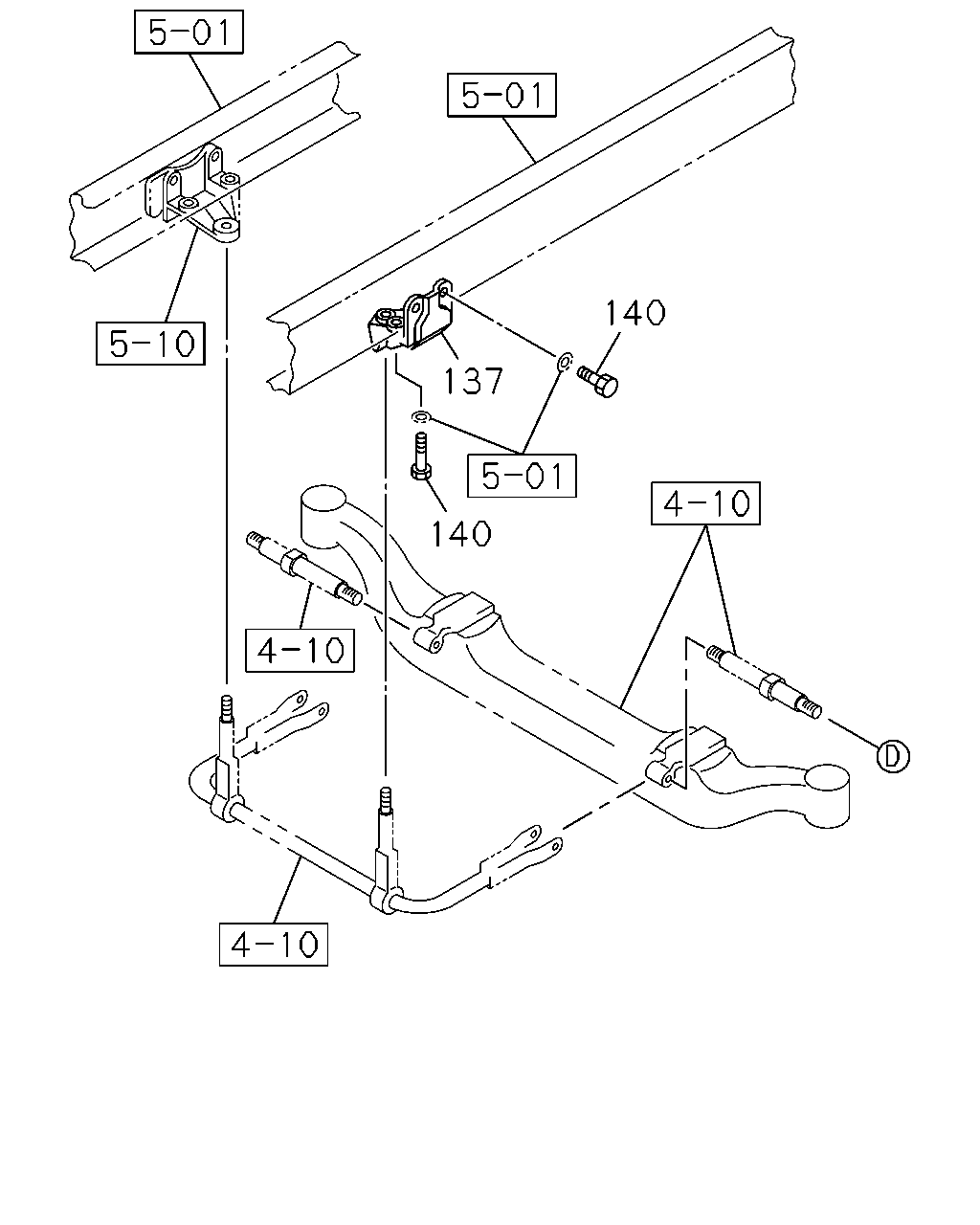

[450A] FIXING;STABILIZER BRACKET (2 parça)
▶
173
14
65
68
65
18
18
68
65
62
211
207
211
168
185
201
182
205
68
68
203
183
180
425
186
206
207
425
206
185
203
185
203
205
207
205
201
206
201
206
212
188
2
212
206
206
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-97614-074-0
02
1
0707-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0707-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0707-
62
ABSORBER ASM; SHOCK,FRT
1-51630-512-0
02
1
0707-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0707-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0707-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0707-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0707-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0707-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0707-
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0707-
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
0707-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0707-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0707-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0707-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-088-1
02
1
0707-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0707-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0707-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0707-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0707-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0707-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0707-
208
U-BOLT SET; FRT SPRING
L=270
1-87870-327-2
04
1
0707-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0707-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0707-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0707-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
0707-
425
SEAL; DUST
1-51177-321-0
04
1
0707-1005
140
137
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
1-51781-112-0
01
1
0707-
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0707-
