Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶

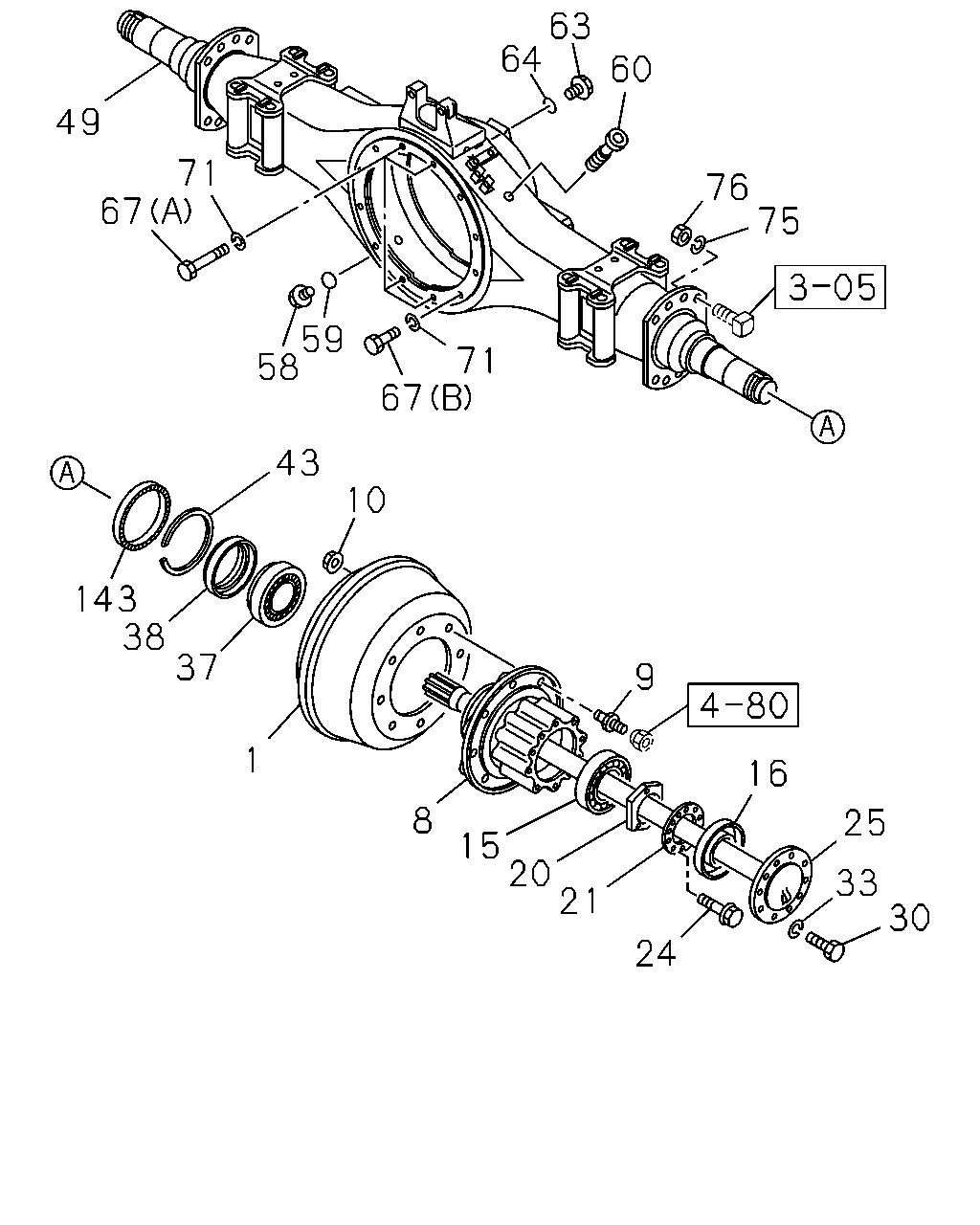

4-20 — REAR AXLE CASE AND SHAFT
(#56271) — 29 parça
63
64
60
49
71
76
75
67
59
58
71
67
43
10
143
38
37
9
1
16
8
25
15
20
21
33
30
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
1-42315-368-0
02
1
0906-
8
HUB; RR AXLE
8-97379-877-1
02
1
0906-
9
PIN; WHEEL,RR AXLE
M20X34.5,M22X49.5 RH THREAD
1-42331-114-2
08
1
0906-
9
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X49.5 RH THREAD
1-42332-114-2
08
1
0906-
10
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
1-09440-065-0
16
1
0906-
15
BEARING; HUB OUTER,RR AXLE
JTEKT
1-09812-222-0
02
1
0906-
16
SEAL; OIL,RR HUB,OUTER
TKK
1-09625-331-1
02
1
0906-
20
NUT; BRG,RR HUB
M64
9-09843-721-2
02
1
0906-
21
WASHER; LK,BRG NUT
ID=64
9-09854-122-0
02
1
0906-
24
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
06
1
0906-
25
SHAFT; AXLE,RR
L=925
8-97380-682-0
02
1
0906-
30
BOLT; HUB TO AXLE SHAFT
M12X45
9-09804-239-1
20
1
0906-
33
WASHER; AXLE SHAFT
ID=12.2
0-91510-812-0
20
1
0906-
37
BEARING; HUB INNER,RR AXLE
JTEKT
1-09812-221-0
02
1
0906-
38
SEAL; OIL,RR HUB,INNER
TKK
1-09625-569-0
02
1
0906-
43
RING; SNAP,HUB SEAL,RR AXLE
9-09950-201-0
02
1
0906-
49
CASE; RR AXLE
8-98012-446-3
01
1
0906-1302
49
CASE; RR AXLE
8-98223-711-0
01
1
1303-
58
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
1-09604-023-0
01
1
0906-
59
GASKET; DRAIN PLUG
ID=26.8
9-09920-605-0
01
1
0906-
60
BREATHER; RR AXLE CASE
1-09893-003-0
01
1
0906-
63
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
1-09604-022-0
01
1
0906-
64
GASKET; OIL FILLER,AXLE CASE
ID=26.8
9-09920-605-0
01
1
0906-
67
BOLT; FINAL DRIVE SETTING
(A) M12X60
0-10956-260-0
04
1
0906-
67
BOLT; FINAL DRIVE SETTING
(B) M12X35
0-20951-235-0
08
1
0906-
71
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
0-91510-812-0
12
1
0906-
75
WASHER; LK,RR BRK ASM SETTING
ID=14.2
0-91510-814-0
16
1
0906-
76
NUT; RR BRK ASM SETTING
M14
0-91110-514-0
16
1
0906-
143
RING; EXCITER
1-42319-169-1
02
1
0906-
