◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#56265) — 29 parça

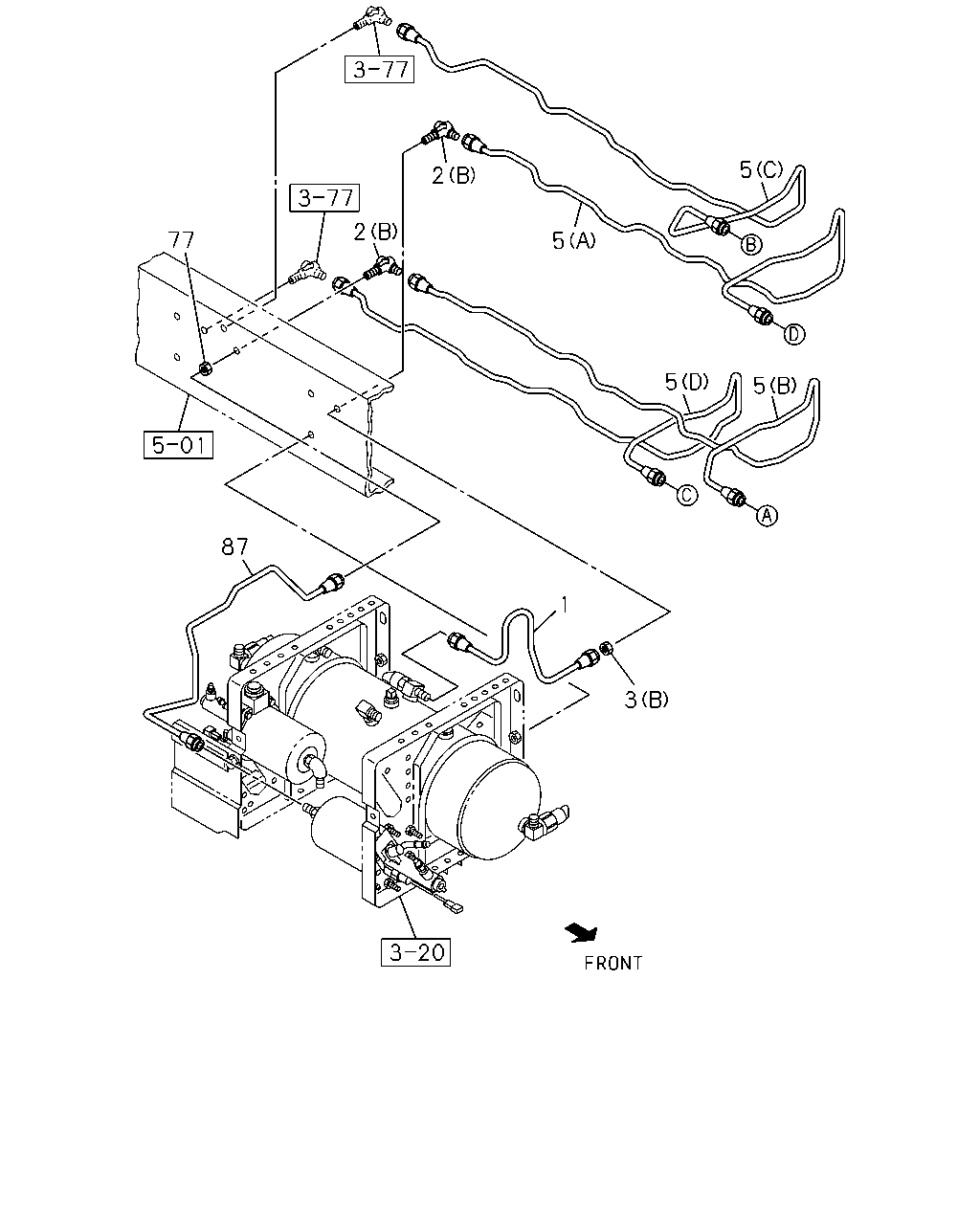

çizim 165394
5 2 2 77 5 5 5 87 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 0906-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0906-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 0906-1203
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(B) L=2382 SERVICED BY L=2500 		1-47428-883-0 01 1 0906-1203
5 PIPE; AIR,UNION TO UNION
(B) L=2375 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 0906-1203
5 PIPE; AIR,UNION TO UNION
(D) L=2509 		8-98210-099-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(C) L=2513 		8-98103-314-1 01 1 0906-1203
5 PIPE; AIR,UNION TO UNION
(C) L=2515 		8-98210-102-0 01 1 1204-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0906-
87 PIPE; AIR,UNION TO AIR MASTER
L=1115 SERVICED BY L=1250 		1-47428-791-0 01 1 0906-

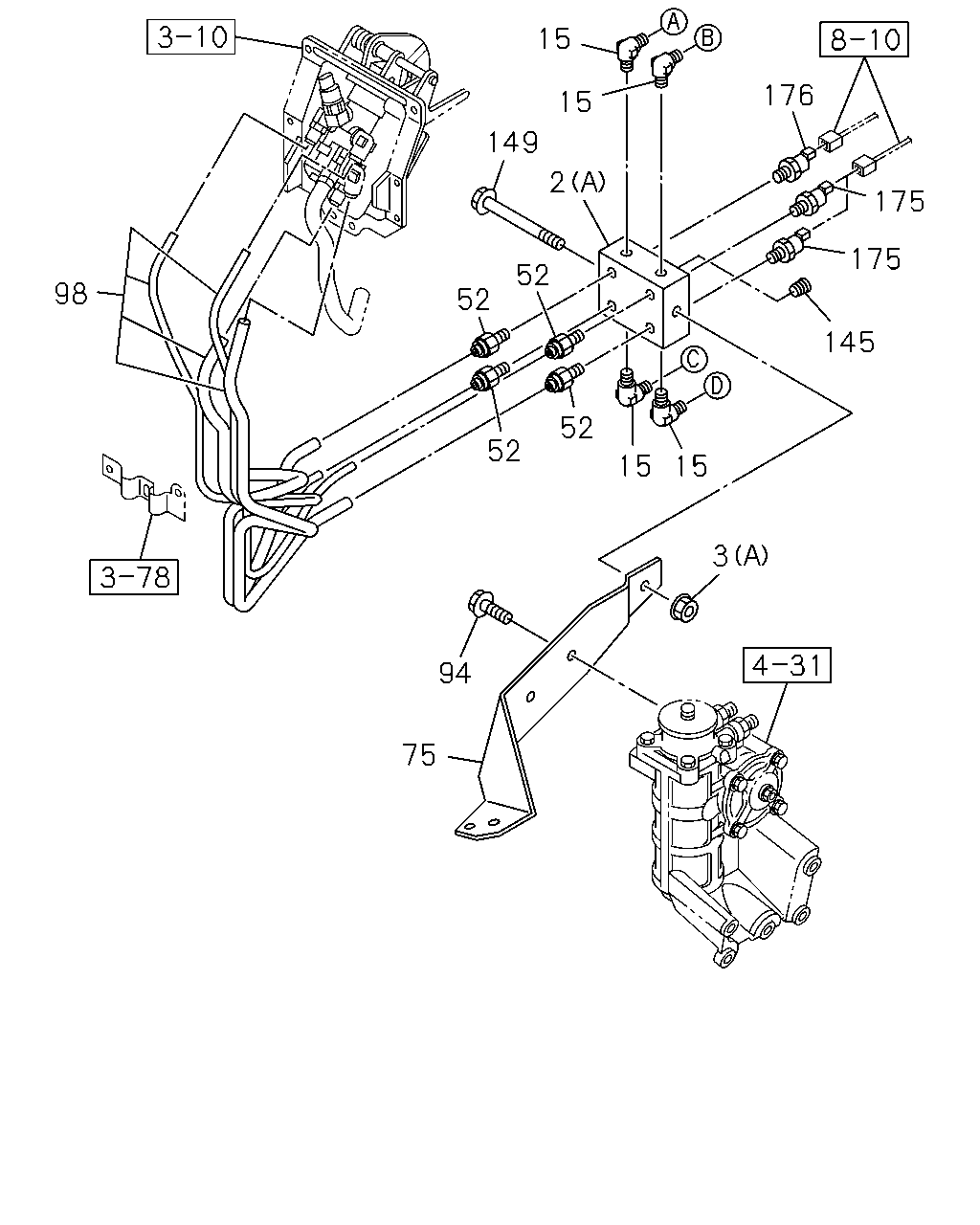

çizim 165421
15 176 15 149 2 175 175 52 98 52 145 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0906-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0906-
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0906-
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0906-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0906-
75 BRACKET; UNION 8-98066-785-0 01 1 0906-
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0906-0911
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON 8-98079-179-0 01 1 0906-
145 PLUG
PT1/4 		9-99204-513-0 01 1 0906-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0906-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0906-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0906-
