Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#56263) — 18 parça
◀

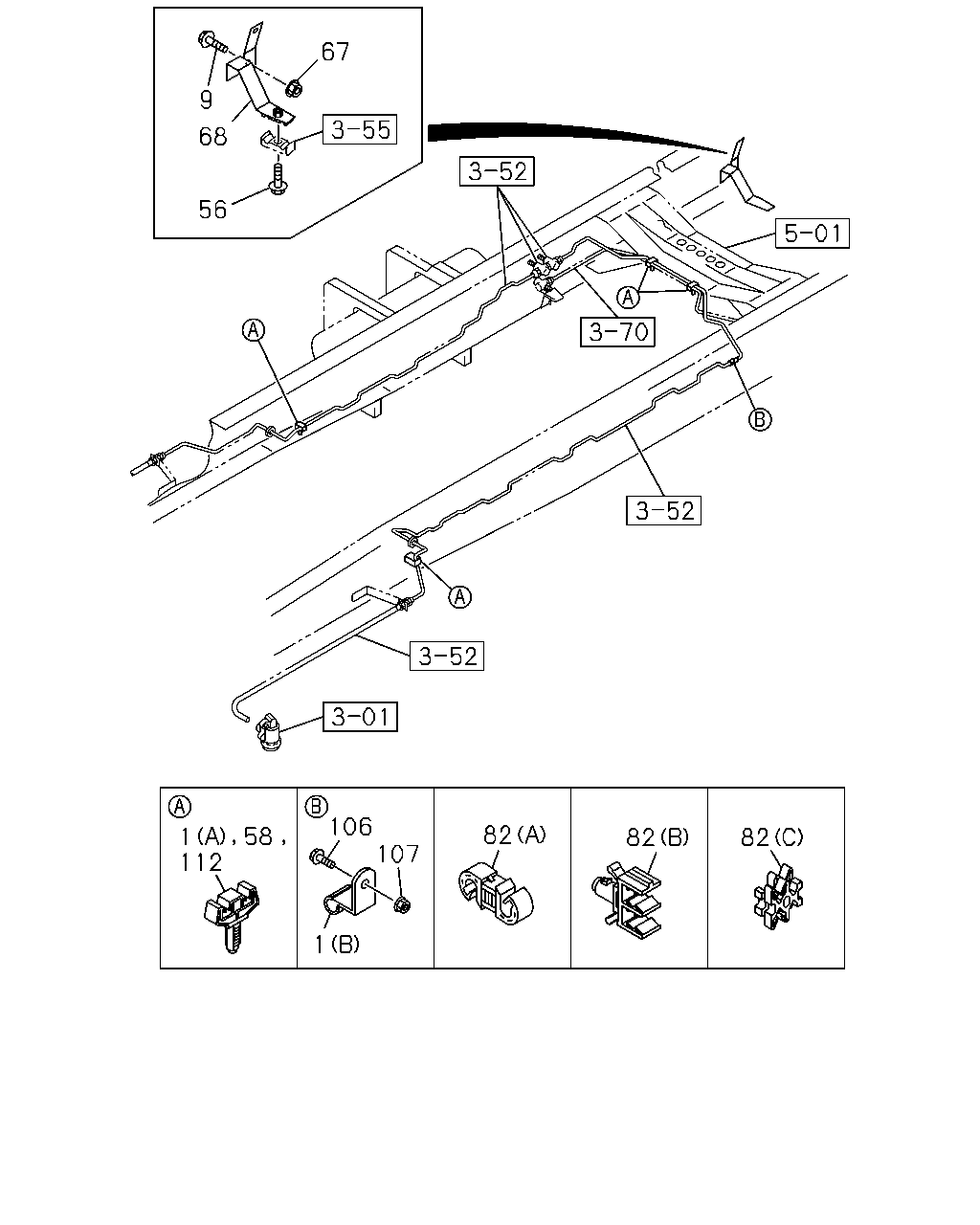

[358A] FRAME SIDE (15 parça)
[358A] REAR AXLE SIDE (3 parça)
▶
67
9
68
56
106
107
82
112
82
82
1
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
08
1
0906-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
05
1
0906-
9
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0906-
56
BOLT; CLIP
M8X40 FLANGE
0-28050-840-0
01
1
0906-
58
CLIP; OIL PIPE
8-98012-254-1
03
1
0906-
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0906-
68
BRACKET; CLIP
8-98012-145-2
01
1
0906-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
0906-
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
0906-
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
03
1
0906-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
0906-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
03
1
0906-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
05
1
0906-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
05
1
0906-
112
CLIP; OIL PIPE
8-98012-254-1
08
1
0906-
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
05
1
0906-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
0906-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
0906-
