11237 - FSR-R(EU)EU5 EXC.SPA
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#56262) — 26 parça
◀

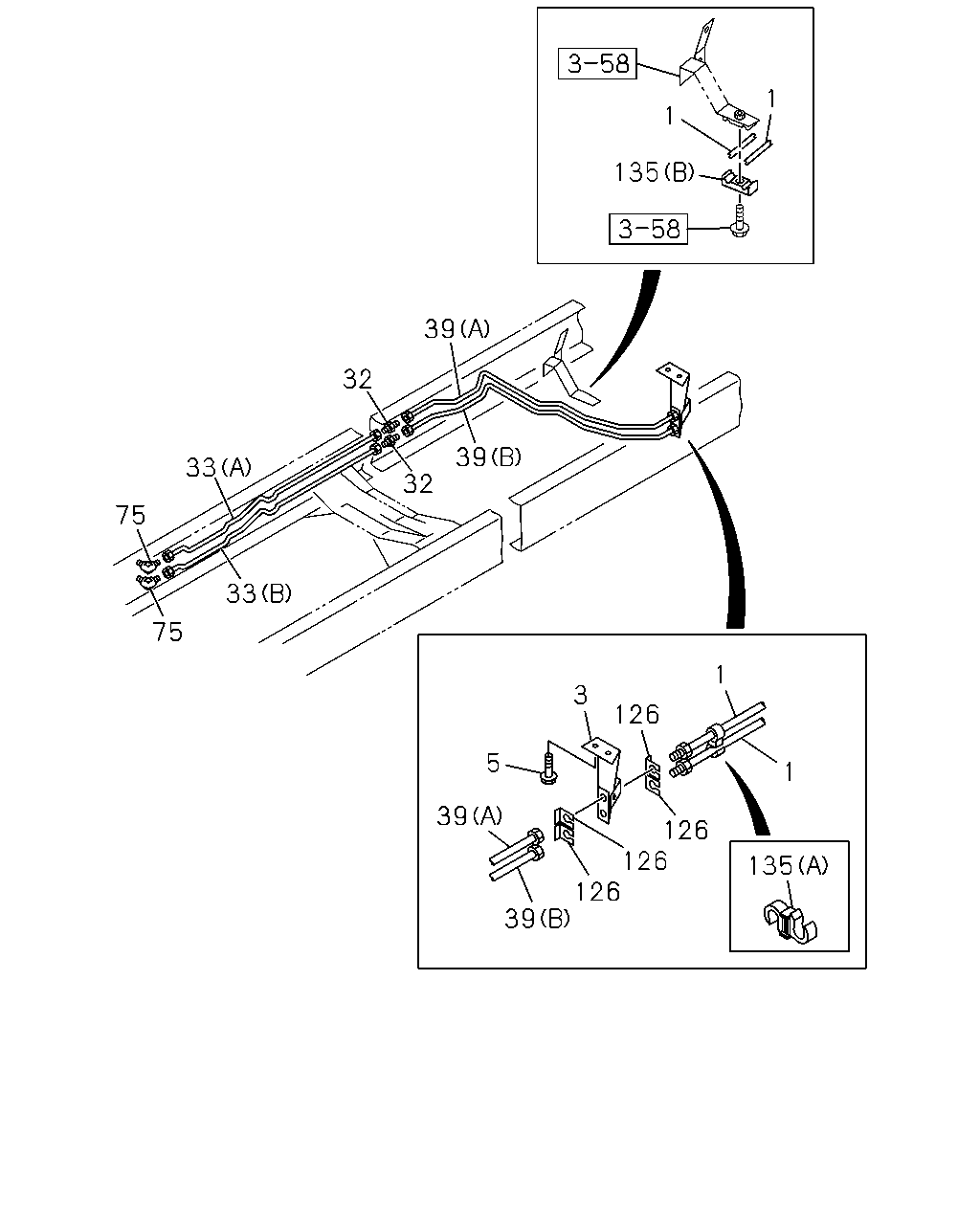

[355A] FRAME SIDE (12 parça)
[355A] AIR TANK SIDE (7 parça)

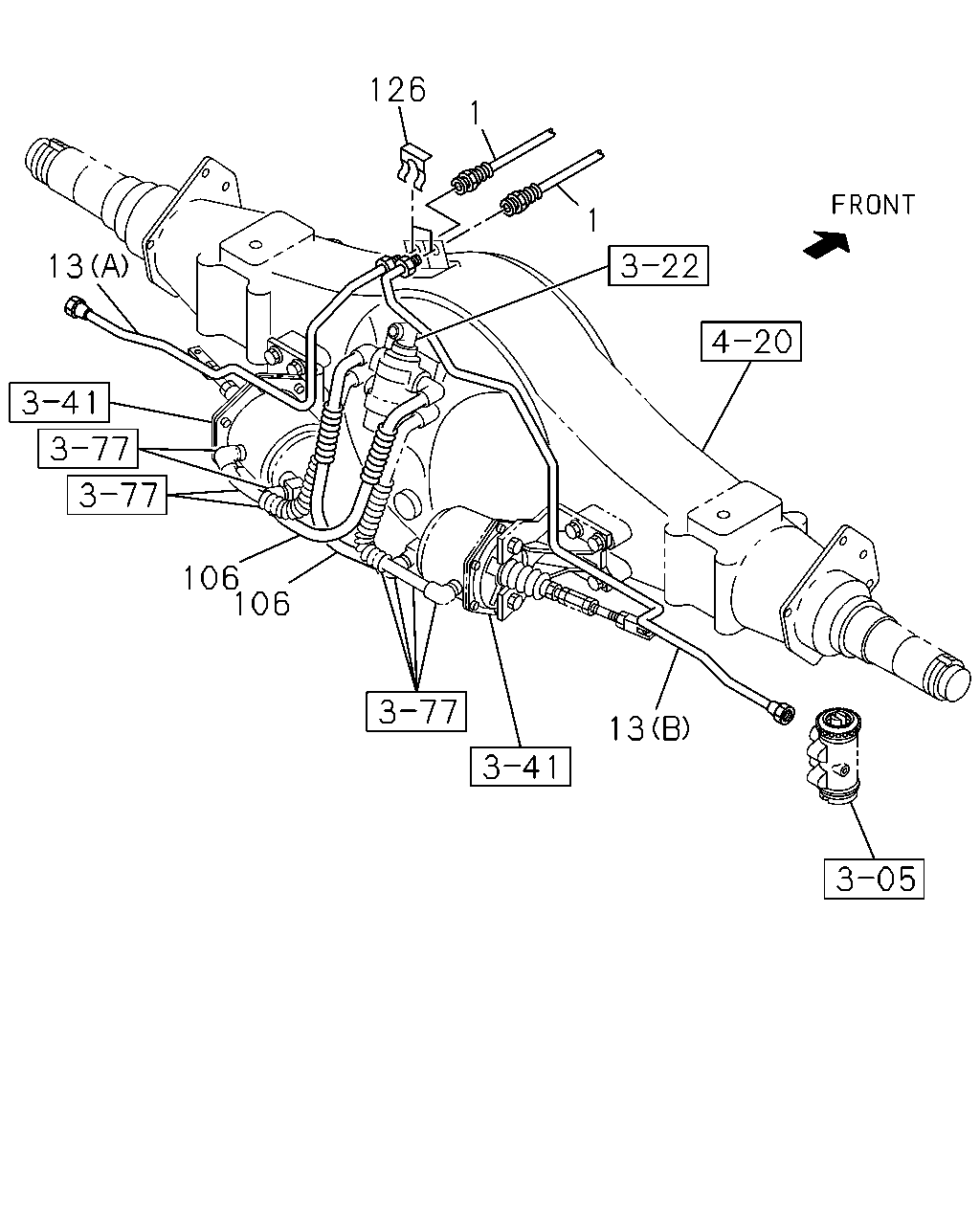

[355A] REAR AXLE SIDE (7 parça)
▶
1
1
135
39
32
39
33
32
75
33
75
1
3
126
5
1
39
126
126
126
39
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=480
8-98067-398-0
02
1
0906-
3
BRACKET; FLEX HOSE,RR BRK
8-98012-144-1
01
1
0906-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE
0-28650-820-0
02
1
0906-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0906-
33
PIPE; OIL,UNION TO UNION
(A) LH LINE
8-98113-314-0
01
1
0906-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE
8-98113-315-0
01
1
0906-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1169
8-98076-353-0
01
1
0906-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1178
8-98076-354-0
01
1
0906-
75
UNION; OIL PIPE
8-98018-438-0
02
1
0906-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
0906-
135
CLIP; FLEX HOSE
(B)
1-09701-278-2
01
1
0906-
135
CLIP; FLEX HOSE
(A) ID=10 & 10
1-09709-277-1
01
1
0906-
33
75
33
46
75
46
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
(A) LH LINE
8-98113-314-0
01
1
0906-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE
8-98113-315-0
01
1
0906-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0906-
75
UNION; OIL PIPE
8-98018-438-0
02
1
0906-
138
PIPE; HYDRAULIC UNIT
(A) L=681
8-98101-777-0
01
1
0906-
138
PIPE; HYDRAULIC UNIT
(B) L=618
8-98101-778-0
01
1
0906-
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
0906-
13
126
1
1
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=480
8-98067-398-0
02
1
0906-
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98059-745-0
01
1
0906-1302
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98207-109-0
01
1
1303-
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98059-747-0
01
1
0906-1302
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98207-110-0
01
1
1303-
106
TUBE; NYLON
8-98061-971-0
02
1
0906-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
0906-
