◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#5626) — 60 parça

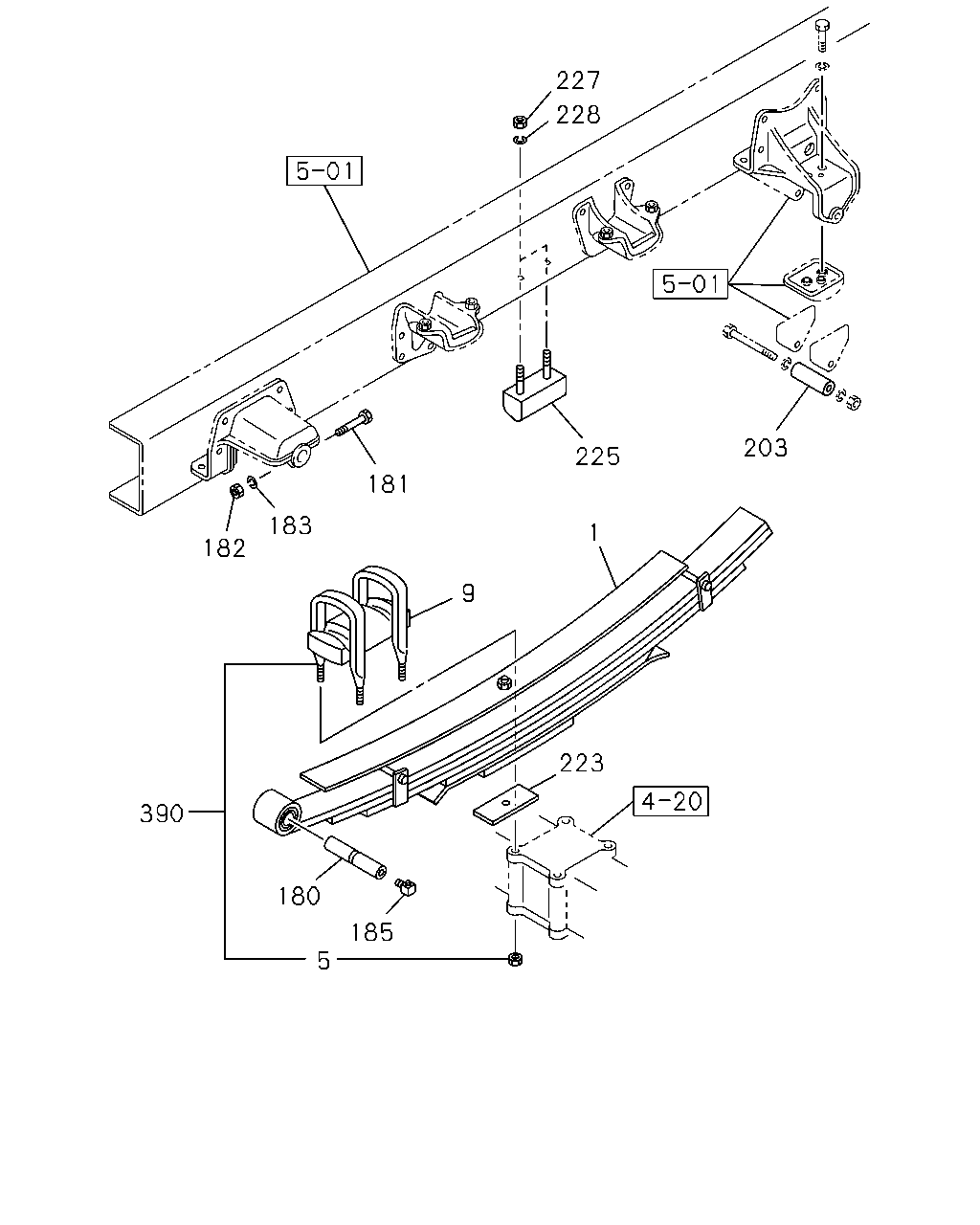

çizim 6341
227 228 203 225 181 183 1 182 9 223 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-260-1 02 1 9603-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-257-1 02 1 9603-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9603-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9603-
180 PIN; RR SPR 1-51361-020-0 02 1 9603-
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9603-
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9603-
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9603-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-
203 COLLAR; LEAF SPR STOPPER 1-53359-004-0 02 1 9603-
223 SPACER; U BOLT,RR SPR
L TYPE ENG<90L> 		1-51377-357-0 02 1 9603-
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-296-0 02 1 9603-9803
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-369-1 02 1 9804-
225 RUBBER; CUSHION,RR SPR
L TYPE ENG<90L> 		1-53366-041-2 02 1 9603-
225 RUBBER; CUSHION,RR SPR
V TYPE ENG<91L> 		1-53366-028-1 02 1 9603-
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9603-9606
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9607-
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9603-9606
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> L=490 		1-87870-299-0 04 1 9603-
390 U-BOLT SET; RR SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9603-
390 U-BOLT SET; RR SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9603-

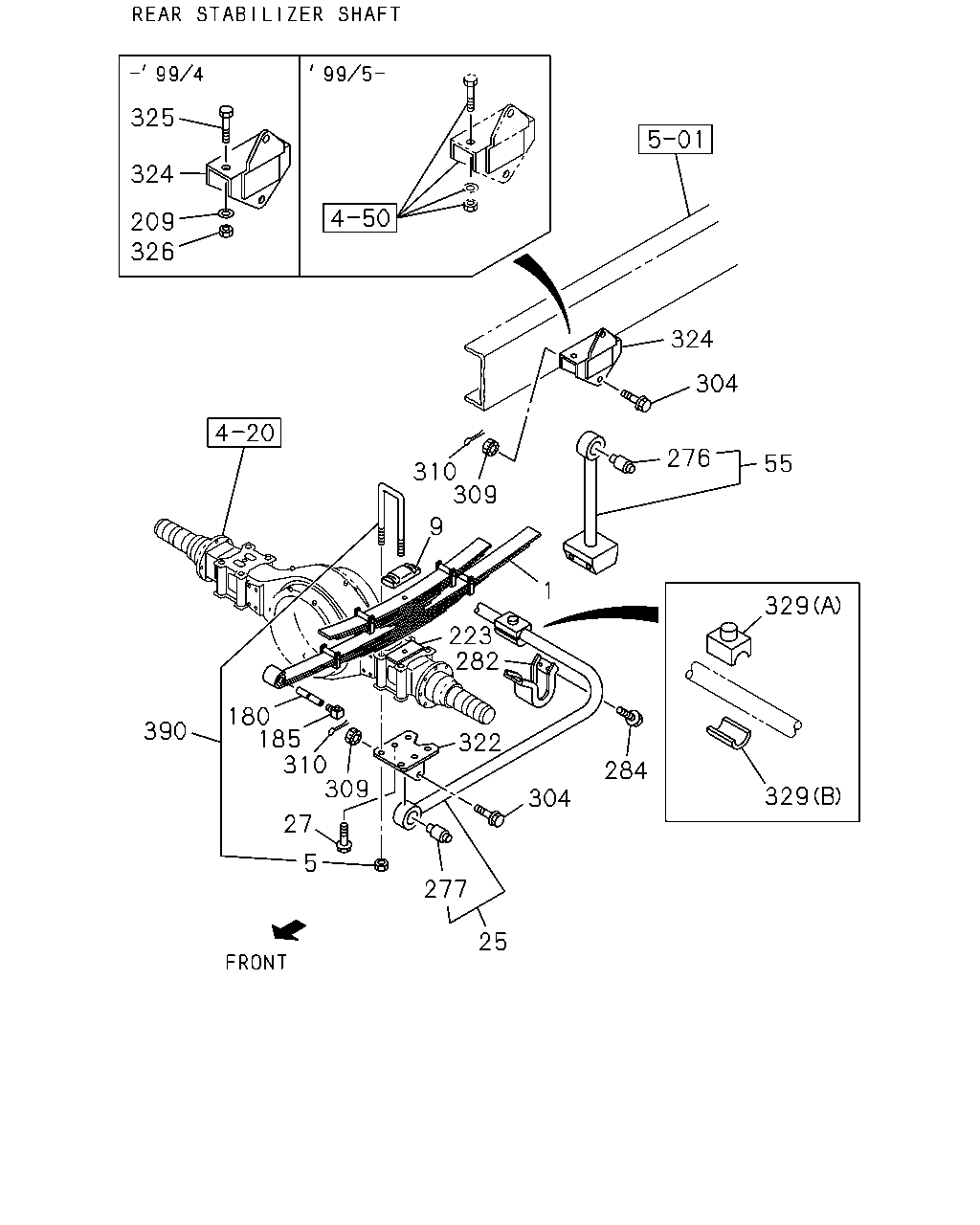

çizim 42216
325 324 209 326 324 304 276 55 310 309 9 1 329 223 282 180 185 310 309 390 322 284 329 304 27 5 277 25
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-260-1 02 1 9603-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51300-257-1 02 1 9603-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9603-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9603-
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 9603-
27 BOLT; STAB
REAR STABILIZER SHAFT<F61> M10X20 FLANGE 		0-28081-020-0 04 1 9603-
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 9603-
180 PIN; RR SPR 1-51361-020-0 02 1 9603-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9603-
209 WASHER; PL
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> ID=15 		9-09651-069-0 06 1 9603-9802
209 WASHER; PL
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 9803-9904
223 SPACER; U BOLT,RR SPR
L TYPE ENG<90L> 		1-51377-357-0 02 1 9603-
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-296-0 02 1 9603-9803
223 SPACER; U BOLT,RR SPR
V TYPE ENG<91L> 		1-51377-369-1 02 1 9804-
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 9603-
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9603-
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9603-
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9603-
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 9603-
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9603-
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9603-
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-102-0 02 1 9603-
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> 		1-51781-074-0 02 1 9603-9802
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-074-0 02 1 9803-9904
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> M14X40 		9-92061-440-0 06 1 9603-9802
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		9-92061-440-0 06 1 9803-9904
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> M14 		9-99110-514-0 06 1 9603-9802
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9803-9904
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-051-1 02 1 9603-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-052-0 02 1 9603-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> EXC. REAR STABILIZER SHAFT<F61> L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=470 		1-87870-300-0 04 1 9603-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT<F61> L TYPE ENG<90L> L=490 		1-87870-299-0 04 1 9603-
390 U-BOLT SET; RR SPRING
L TYPE ENG<90L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),REAR STABILIZER SHAFT<F61> L=430 		1-87870-095-2 04 1 9603-
390 U-BOLT SET; RR SPRING
V TYPE ENG<91L> EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=430 		1-87870-095-2 04 1 9603-
