3-22 — AIR CONTROL PARTS (#56255) — 25 parça

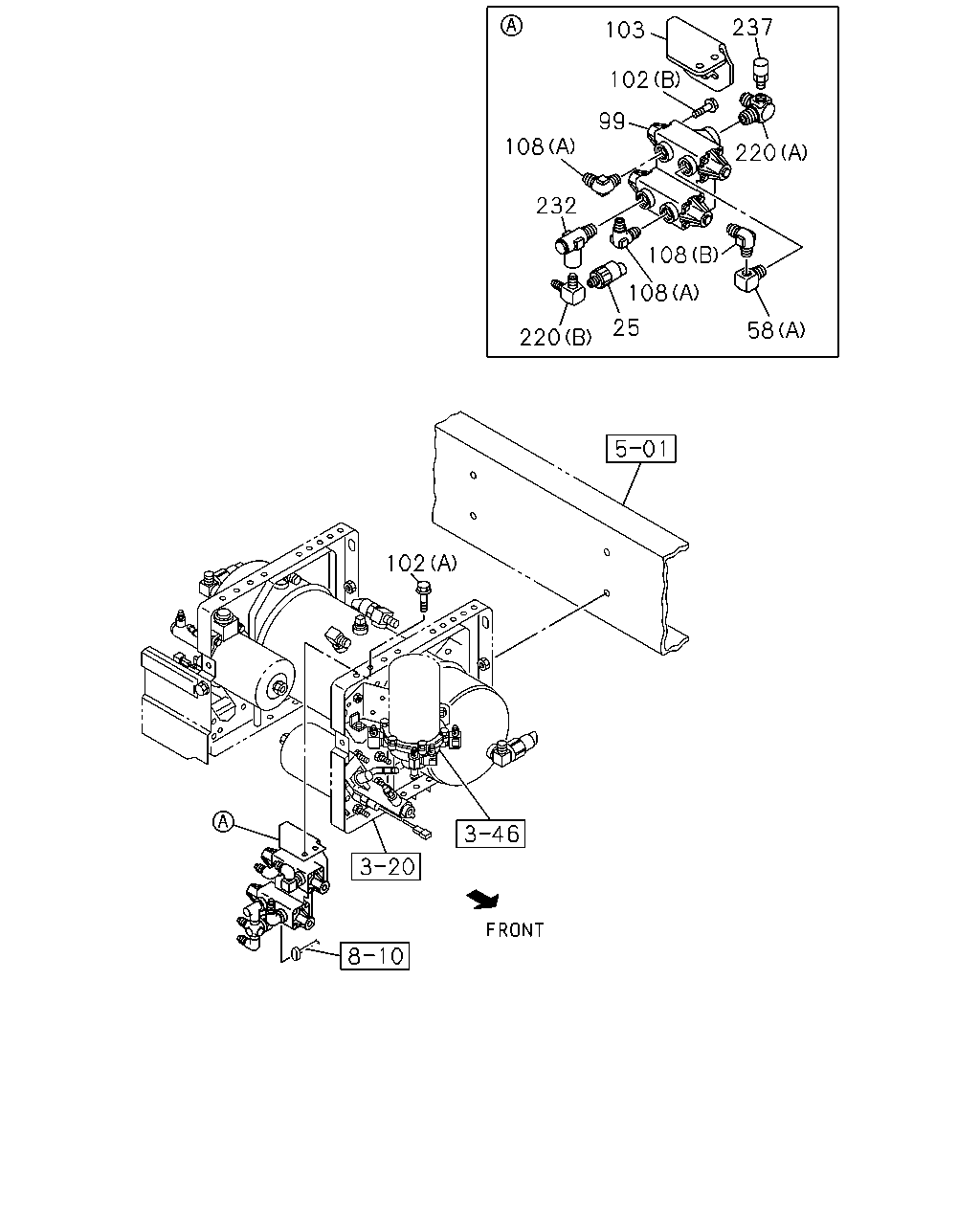

237 103 102 99 108 220 232 108 108 25 58 220 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0906-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-
58	ADAPTER (B)	1-09661-815-0	02	1	0906-
99	VALVE; PROTECTION	1-48110-290-2	01	1	0906-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0906-
102	BOLT; PROTECTION VALVE (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
103	BRACKET; PROTECTION VALVE	8-98034-985-1	01	1	0906-1311
103	BRACKET; PROTECTION VALVE	8-98221-293-0	01	1	1312-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0906-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0906-
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	0906-
220	CONNECTOR; 3WAY (A)	8-98031-239-0	01	1	0906-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0906-
237	VALVE; SAFETY	1-48320-012-2	01	1	0906-

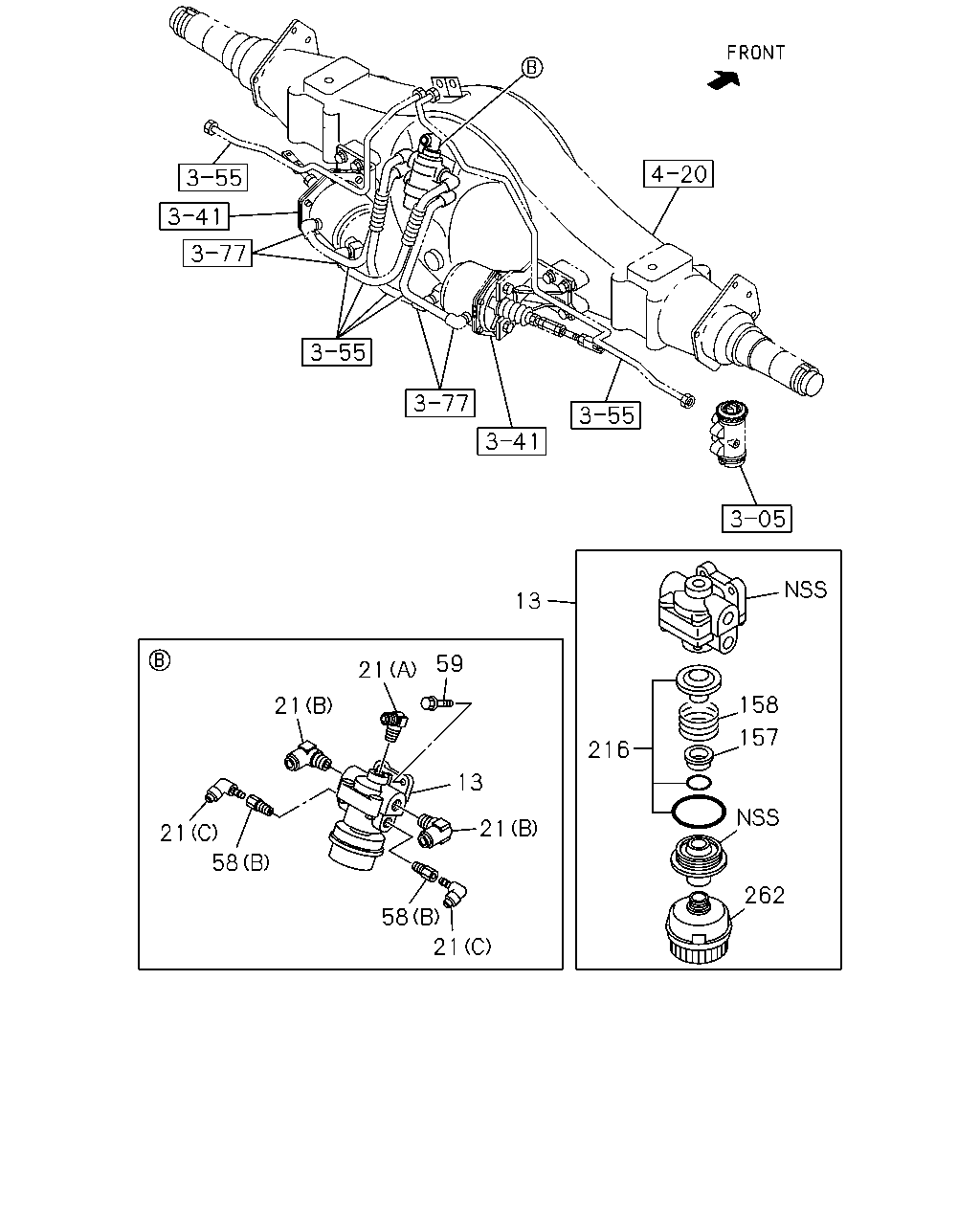

59 13 216 158 157 262 21 58 21 13 21 21 21 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-781-2	01	1	0906-
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0906-
21	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
21	CONNECTOR; QUICK RELEASE VLV (C)	1-09661-816-0	02	1	0906-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-
58	ADAPTER (B)	1-09661-815-0	02	1	0906-
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	0906-
157	RETAINER; VALVE	1-48419-036-0	01	1	0906-
158	SPRING; VALVE	9-48419-003-0	01	1	0906-
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	01	1	0906-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0906-
