Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#56247) — 230 parça

13 12 1 27 26 195 20 220 40 131 44 15 82 184 42 83 83 19 131 18 220 85 188 84 196 195 9 37 36 160 215 21 45 31 49 35 33 32 67 8 23 67 30 9 2 8 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	0906-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	0906-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	0906-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	0906-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	0906-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	0906-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	0906-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	0906-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	0906-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	0906-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	0906-		●

1 45 20 9 40 26 19 18 42 12 9 37 13 15 33 8 11 50 22 36 35 50 23 31 32 30 17 31 4 8 6 9 67 66 2 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-1	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	04	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-043-0	02	1	0906-	●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●

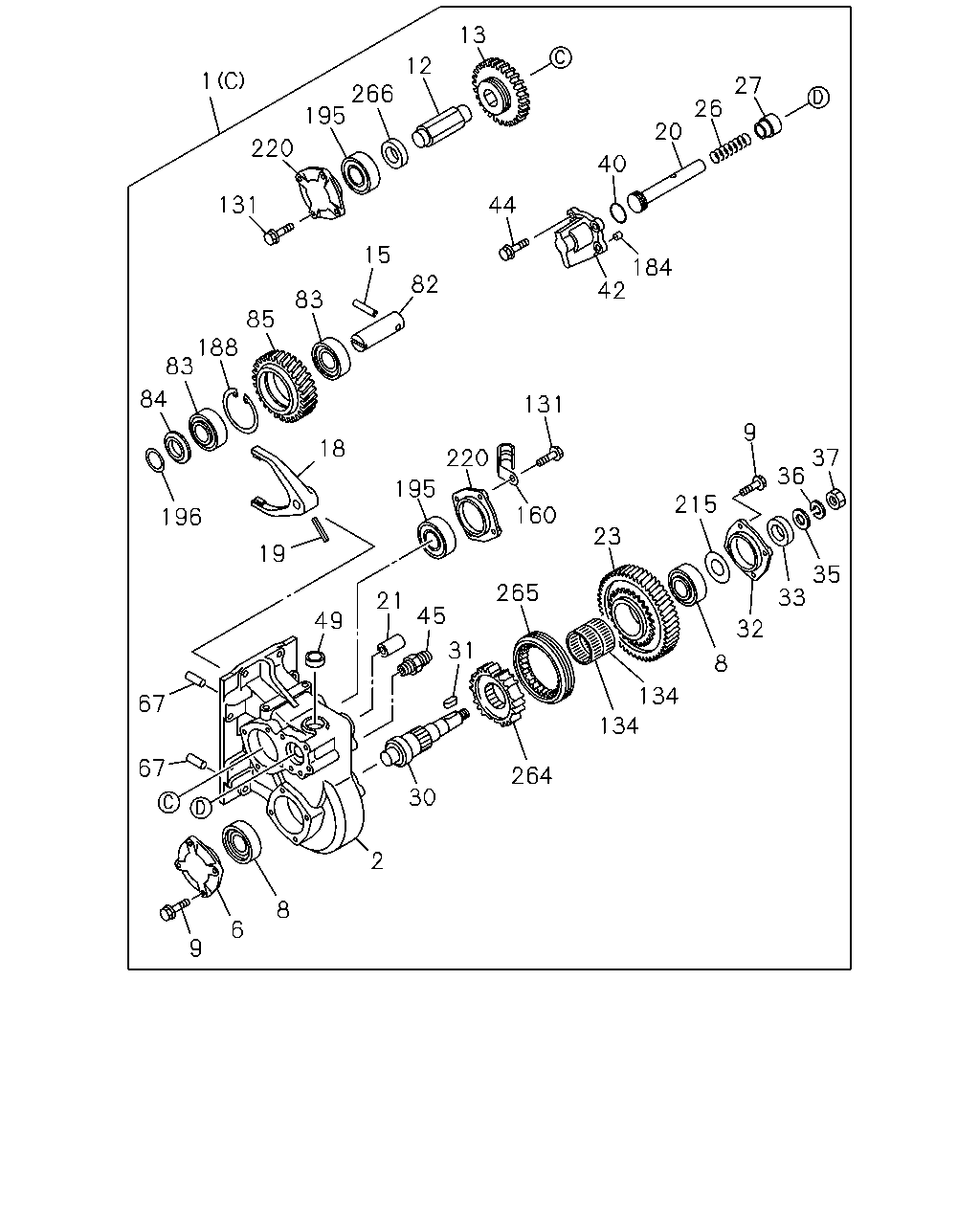

1 131 220 195 266 12 13 84 83 188 85 83 15 82 196 18 19 44 40 20 26 27 67 67 9 6 8 2 30 49 21 45 31 195 220 160 265 264 131 23 134 134 215 8 32 9 33 36 35 37 42 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98113-702-0	01	1	0906-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-98118-443-3	01	1	0906-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	0906-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	0906-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	0906-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	0906-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	0906-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	0906-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0906-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	0906-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	0906-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	0906-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0906-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	0906-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	0906-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-914-0	01	1	0906-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1201-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0906-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	0906-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	0906-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	0906-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	0906-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	0906-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	0906-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0906-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	0906-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	0906-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	0906-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1201-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	0906-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	0906-1112	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1201-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	0906-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	0906-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	0906-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	0906-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	0906-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0906-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	0906-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	0906-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	0906-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	0906-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	0906-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	0906-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	0906-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	0906-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	0906-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	0906-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	0906-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	0906-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	0906-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	0906-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	0906-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	0906-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	0906-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	0906-		●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-		●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-		●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
