2-05 — CLUTCH PIPING (#56235) — 29 parça

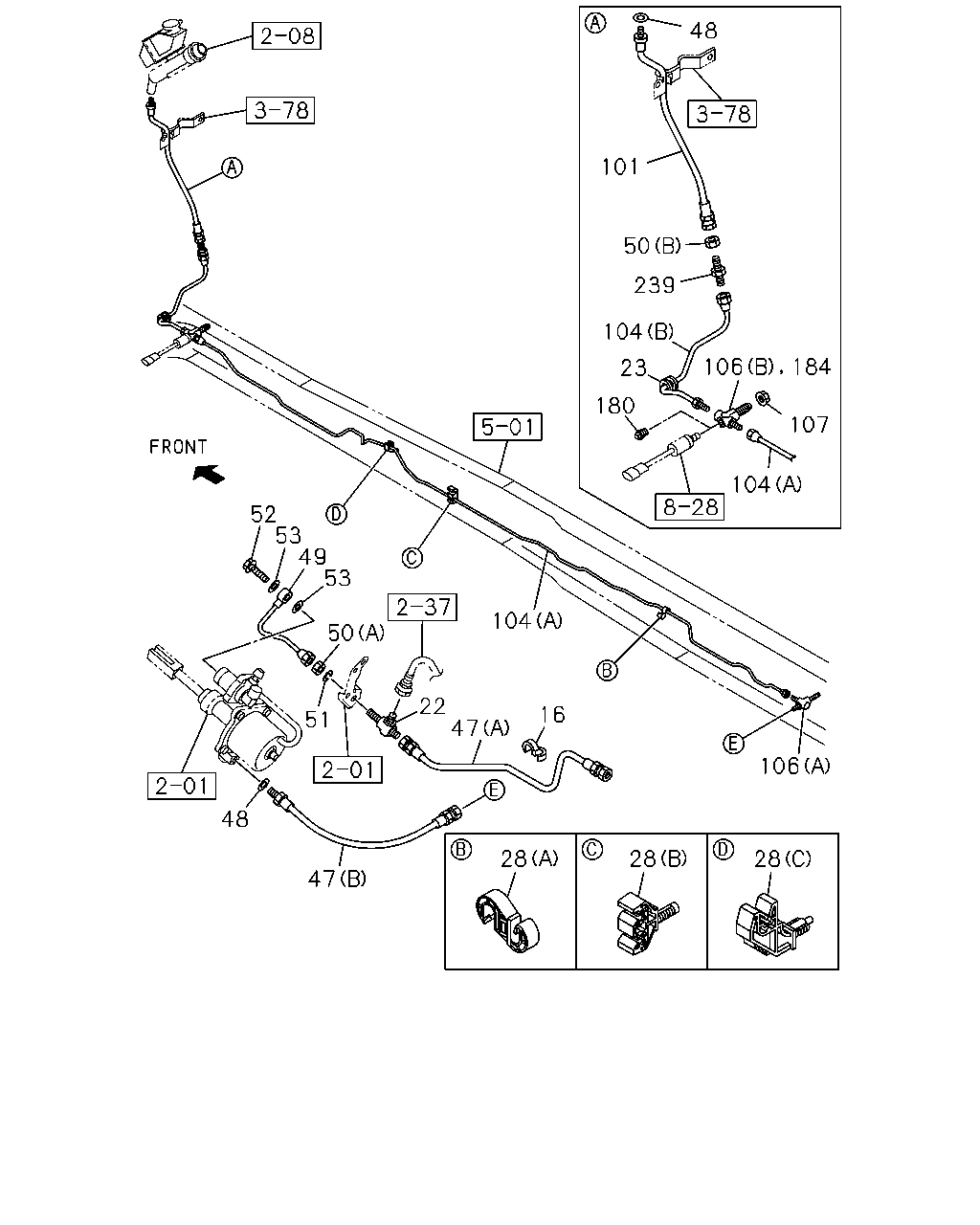

çizim 165328
48 101 50 239 104 106 184 23 180 107 104 52 53 49 53 104 50 22 47 16 51 106 48 28 28 28 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6W M/T(Y2C) ID=10 & 12 		1-09709-278-1 02 1 0906-
16 CLIP; FLEX HOSE
MZW6P M/T(RSZ) ID=10 & 12 		1-09709-278-1 01 1 0906-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0906-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0906-
28 CLIP; OIL PIPE
(C) ID=6.35 		1-09701-247-1 01 1 0906-1005
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0906-
28 CLIP; OIL PIPE
(A) ID=4.76 & 6.35 		1-09709-304-0 01 1 0906-
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 02 1 0906-
47 HOSE; FLEX,CLU CONT
(B) L=470 		8-98072-353-0 01 1 0906-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-612-1 01 1 0906-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=640 		1-09363-974-0 01 1 0906-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0906-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0906-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0906-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0906-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0906-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0906-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0906-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) SERVICED BY L=2650 		1-47428-743-0 01 1 0906-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 0906-
106 UNION; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 0906-
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0906-0910
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0906-
180 PLUG; PIPE 9-09204-510-0 01 1 0906-0910
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 0906-
