Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

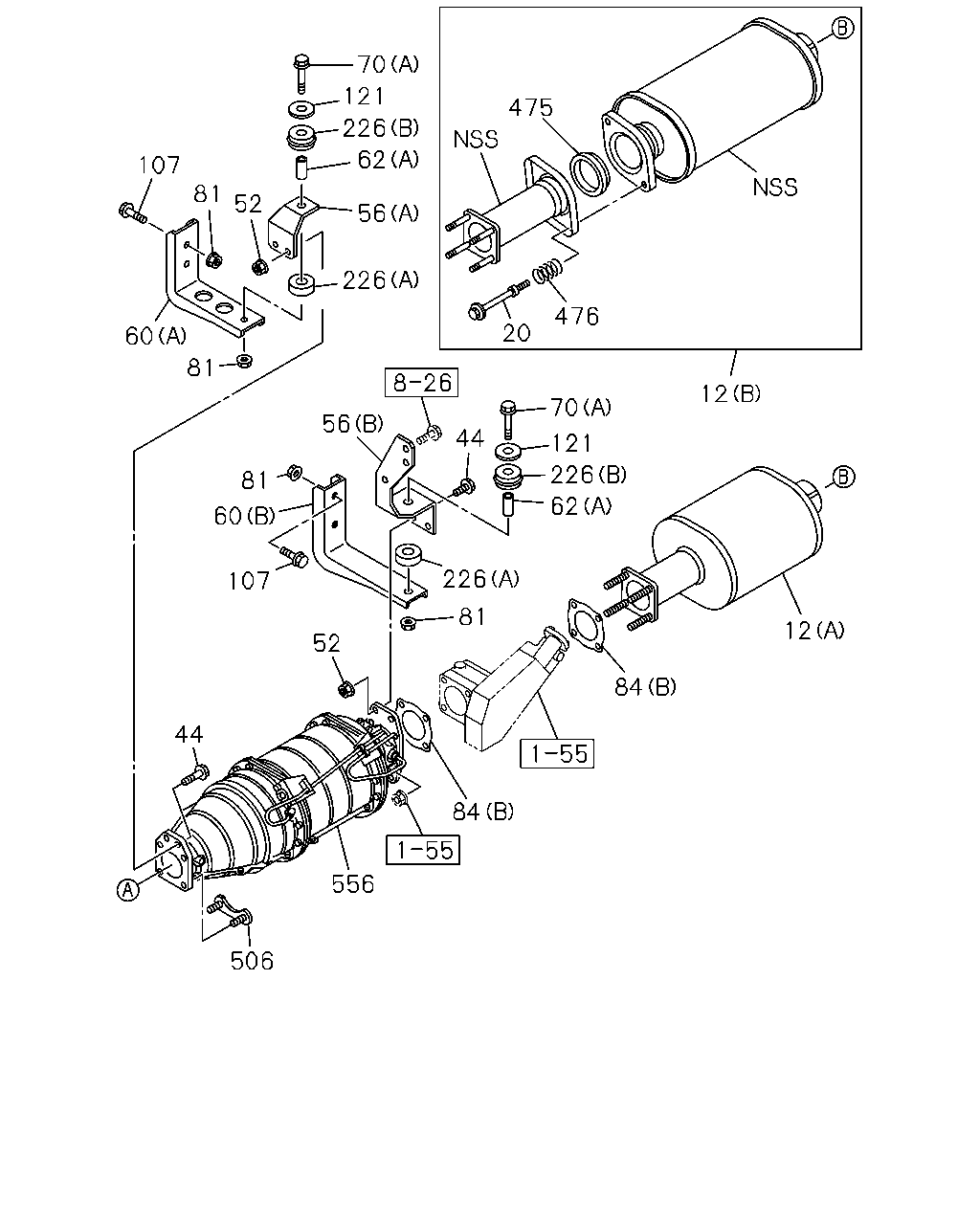

1-50 — EXHAUST PIPE AND SILENCER
(#56230) — 192 parça
◀
[150A] REAR NO.2 (63 parça)

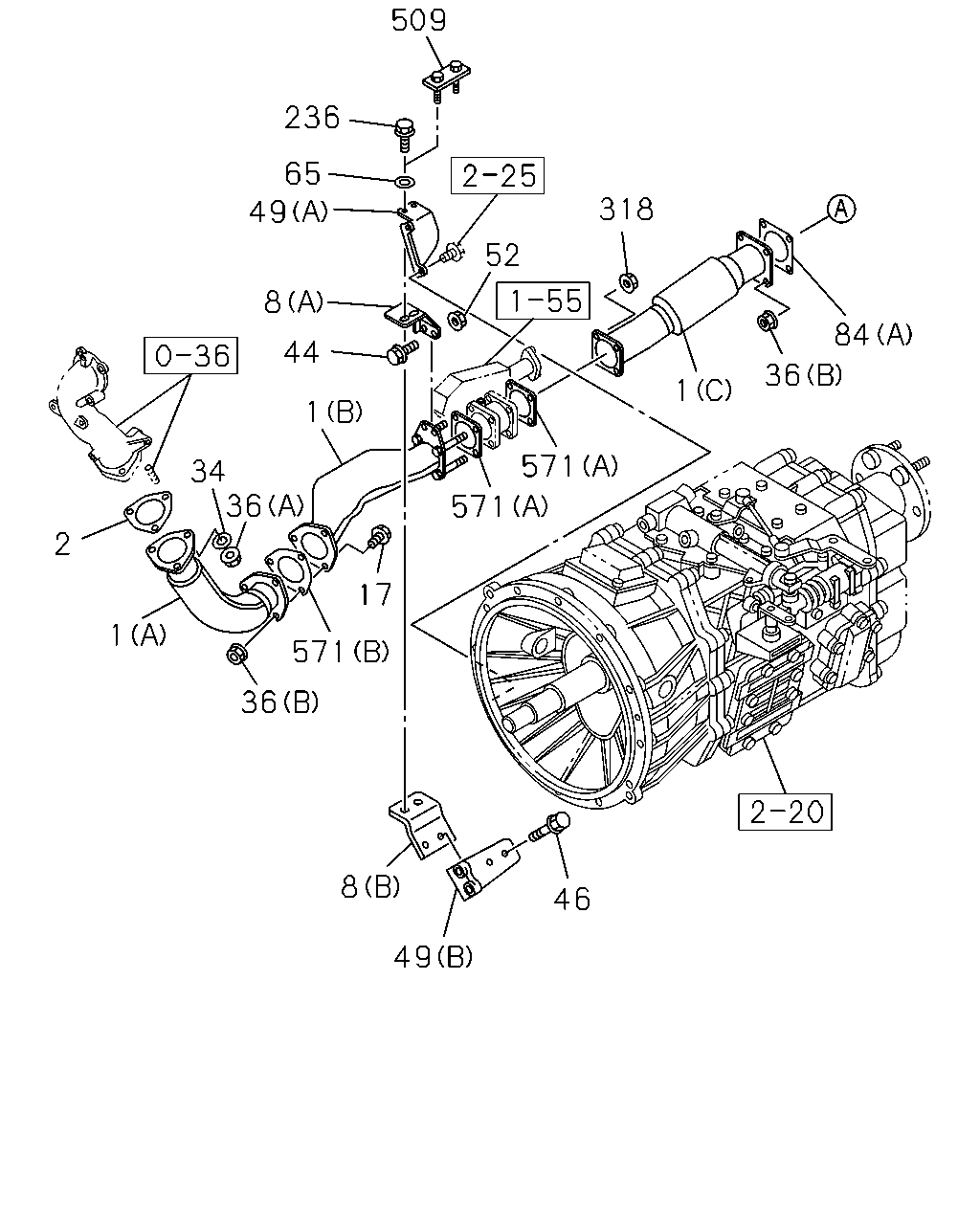

[150A] FRONT (40 parça)
[150A] REAR NO.1 (63 parça)

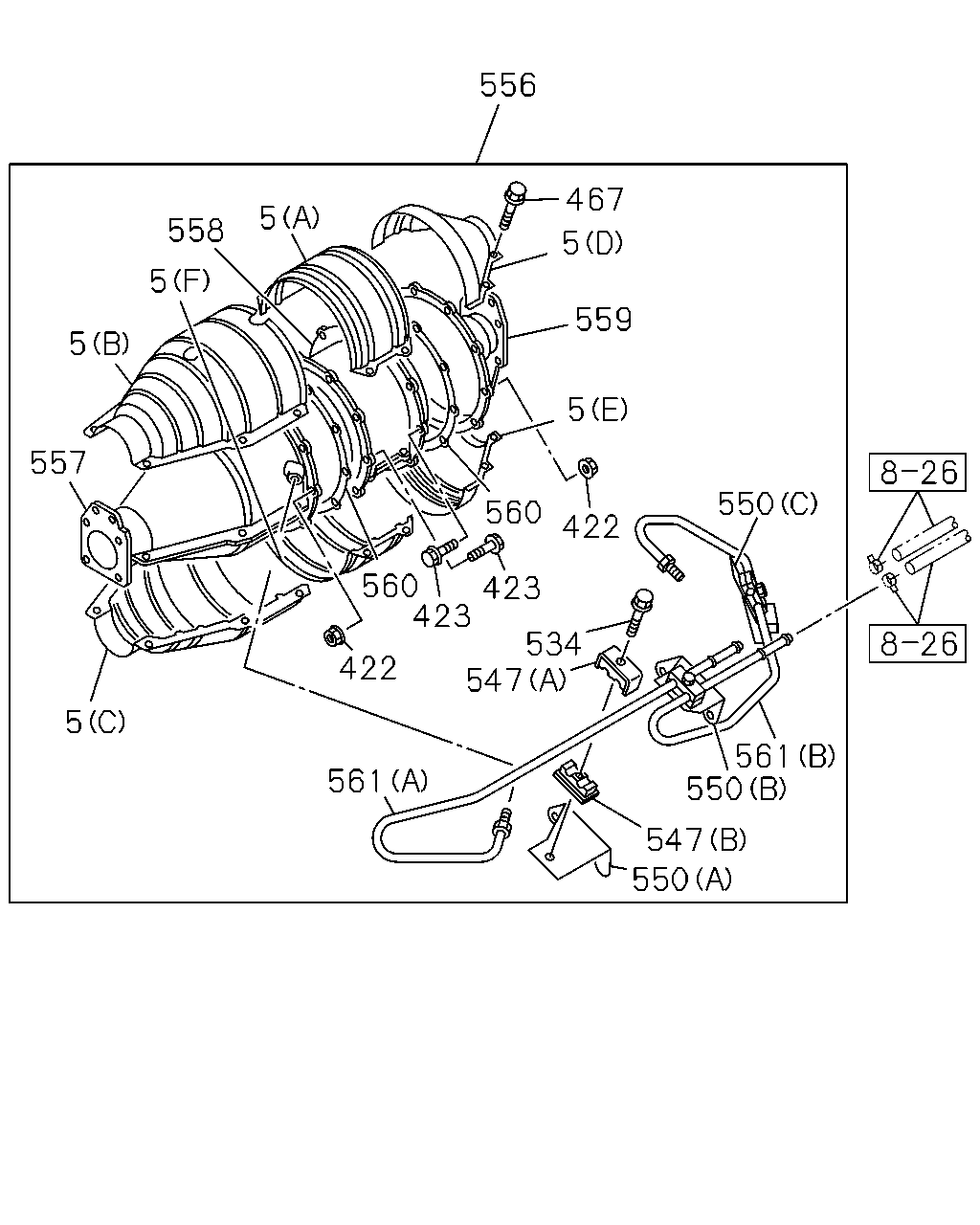

[150A] DPD ASM (26 parça)
▶
81
22
22
94
75
75
62
60
56
81
107
70
81
118
105
60
121
226
107
226
70
105
22
22
94
56
62
56
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
0906-1301
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
0906-1301
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
1302-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
1302-
56
BRACKET; CLAMP,EXH PIPE
(C)
8-98059-756-0
02
1
0906-1301
56
BRACKET; CLAMP,EXH PIPE
(E)
8-98233-506-0
01
1
1302-
56
BRACKET; CLAMP,EXH PIPE
(D)
1-22131-584-0
01
1
0906-1309
56
BRACKET; CLAMP,EXH PIPE
(D)
8-98245-522-0
01
1
1310-
56
BRACKET; CLAMP,EXH PIPE
(A)
8-98074-829-1
01
1
0906-
56
BRACKET; CLAMP,EXH PIPE
(B)
8-98074-830-0
01
1
0906-
60
BRACKET; FRAME TO BRKT
(D)
8-98059-753-1
02
1
0906-1301
60
BRACKET; FRAME TO BRKT
(D)
8-98233-509-0
01
1
1302-
60
BRACKET; FRAME TO BRKT
(A)
1-22152-274-1
01
1
0906-
60
BRACKET; FRAME TO BRKT
(B)
8-98059-712-1
01
1
0906-
60
BRACKET; FRAME TO BRKT
(C)
8-98070-640-0
01
1
0906-1309
60
BRACKET; FRAME TO BRKT
(C)
8-98245-521-0
01
1
1310-
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
1302-
62
TUBE; DIST,BRKT
(B) L=22
1-22159-392-0
01
1
0906-0906
62
TUBE; DIST,BRKT
(B) L=22
9-22159-024-0
01
1
0907-
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
0906-1301
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
0906-1301
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
01
1
1302-
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
1302-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
0906-
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0906-1301
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0906-1301
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
01
1
1302-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-193-0
02
1
0906-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1009-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1009-1301
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1009-1301
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1302-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
0906-1301
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
0906-1301
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1302-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1302-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
0906-1301
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
0906-1301
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1302-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1302-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0906-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
01
1
0906-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
02
1
0906-
126
PIPE; EXH,RR
8-98043-365-2
01
1
0906-1301
126
PIPE; EXH,RR
8-98233-516-0
01
1
1302-
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
1302-
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
1302-
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
0906-1301
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
0906-1301
226
RUBBER; CUSHION
(A)
8-94457-277-1
01
1
1302-
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
0906-1301
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
0906-1301
226
RUBBER; CUSHION
(B)
8-94457-278-1
01
1
1302-
49
46
8
36
1
2
34
1
17
571
44
8
49
65
236
509
52
318
1
571
571
36
84
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(C)
1-22123-885-1
01
1
0906-
1
PIPE; EXH
(B)
8-98056-496-1
01
1
0906-1209
1
PIPE; EXH
(A)
8-98215-406-0
01
1
1210-
1
PIPE; EXH
(A)
8-98120-560-0
01
1
0906-1209
1
PIPE; EXH
(B)
8-98215-407-1
01
1
1210-
2
GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81
8-98043-481-0
01
1
0906-
8
BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A)
8-98113-013-0
01
1
0906-1301
8
BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B)
8-98233-345-0
01
1
1302-1310
8
BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B)
8-98259-873-0
01
1
1311-
8
BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B)
8-98114-390-0
01
1
0906-1301
8
BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A)
8-98233-348-0
01
1
1302-
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B)
8-98122-677-0
01
1
0906-1301
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B)
8-98233-626-0
01
1
1302-1310
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B)
8-98259-870-0
01
1
1311-
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A)
8-98122-679-1
01
1
0906-1301
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A)
8-98233-627-0
01
1
1302-1404
8
BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A)
8-98275-817-0
01
1
1405-
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28051-235-0
04
1
1204-
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28051-235-0
03
1
0906-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
0906-
36
NUT; EXH PIPE
(B) M12 FLANGE
0-91180-212-0
07
1
0906-
36
NUT; EXH PIPE
(A) M12
1-09400-010-0
03
1
0906-
44
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0906-0907
44
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
0908-
44
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
08
1
0906-
46
BOLT; BRKT,EXH PIPE
M10X30 FLANGE
0-28051-030-0
02
1
0906-
49
BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B)
8-98113-008-0
01
1
0906-
49
BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) (A)
8-98122-671-0
01
1
0906-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
07
1
0906-
65
WASHER; PL
ID=10.5
8-98073-091-0
02
1
0906-
84
GASKET; EXH PIPE
(A)
1-22116-040-0
01
1
0906-
84
GASKET; EXH PIPE
(B) ID=85.8
1-22116-043-0
01
1
0906-
84
GASKET; EXH PIPE
(B) ID=85.8
1-22116-043-0
01
1
0906-
236
BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE
0-28051-035-0
02
1
0906-1301
318
NUT; EXH PIPE,FRT
M10 FLANGE
0-91180-210-0
04
1
0906-
509
STUD; BRKT
8-98233-625-0
01
1
1302-1311
509
STUD; BRKT
8-98259-983-0
01
1
1312-
571
GASKET
(A) ID=85.8
1-22116-043-0
02
1
0906-
571
GASKET
(B) ID=81
8-98043-481-0
01
1
0906-
70
107
60
81
81
52
121
226
62
56
226
475
476
20
56
81
60
107
52
44
506
556
84
84
12
12
62
226
121
70
44
226
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
(A)
8-98041-925-1
01
1
0906-1301
12
SILENCER ASM; EXH
(B)
8-98234-507-0
01
1
1302-
20
BOLT; FLANGE,EXH PIPE
8-98233-481-0
02
1
1302-
44
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0906-0907
44
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
0908-
44
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
08
1
0906-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
07
1
0906-
56
BRACKET; CLAMP,EXH PIPE
(C)
8-98059-756-0
02
1
0906-1301
56
BRACKET; CLAMP,EXH PIPE
(E)
8-98233-506-0
01
1
1302-
56
BRACKET; CLAMP,EXH PIPE
(D)
1-22131-584-0
01
1
0906-1309
56
BRACKET; CLAMP,EXH PIPE
(D)
8-98245-522-0
01
1
1310-
56
BRACKET; CLAMP,EXH PIPE
(A)
8-98074-829-1
01
1
0906-
56
BRACKET; CLAMP,EXH PIPE
(B)
8-98074-830-0
01
1
0906-
60
BRACKET; FRAME TO BRKT
(D)
8-98059-753-1
02
1
0906-1301
60
BRACKET; FRAME TO BRKT
(D)
8-98233-509-0
01
1
1302-
60
BRACKET; FRAME TO BRKT
(A)
1-22152-274-1
01
1
0906-
60
BRACKET; FRAME TO BRKT
(B)
8-98059-712-1
01
1
0906-
60
BRACKET; FRAME TO BRKT
(C)
8-98070-640-0
01
1
0906-1309
60
BRACKET; FRAME TO BRKT
(C)
8-98245-521-0
01
1
1310-
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
1302-
62
TUBE; DIST,BRKT
(B) L=22
1-22159-392-0
01
1
0906-0906
62
TUBE; DIST,BRKT
(B) L=22
9-22159-024-0
01
1
0907-
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
0906-1301
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
02
1
0906-1301
62
TUBE; DIST,BRKT
(A) L=39
8-98060-852-0
01
1
1302-
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
1302-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
0906-
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0906-1301
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0906-1301
70
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
01
1
1302-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1009-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0906-1008
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1009-1301
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1009-1301
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-1302
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1302-
84
GASKET; EXH PIPE
(A)
1-22116-040-0
01
1
0906-
84
GASKET; EXH PIPE
(B) ID=85.8
1-22116-043-0
01
1
0906-
84
GASKET; EXH PIPE
(B) ID=85.8
1-22116-043-0
01
1
0906-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0906-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
01
1
0906-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
02
1
0906-
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
1302-
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
1302-
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
0906-1301
226
RUBBER; CUSHION
(A)
8-94457-277-1
02
1
0906-1301
226
RUBBER; CUSHION
(A)
8-94457-277-1
01
1
1302-
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
0906-1301
226
RUBBER; CUSHION
(B)
8-94457-278-1
02
1
0906-1301
226
RUBBER; CUSHION
(B)
8-94457-278-1
01
1
1302-
475
BEARING; SEAL,VIBNON,EXH PIPE
8-98233-479-0
01
1
1302-
476
SPRING; VIBNON,EXH PIPE
8-98233-482-0
02
1
1302-
506
BRACKET; STUD
M12X35
1-22131-963-0
02
1
0906-1203
556
DPD ASM
8-97613-331-6
01
1
0906-1010
556
DPD ASM
8-97622-883-3
01
1
1011-
556
467
5
558
5
5
559
5
5
557
550
560
422
560
423
423
534
547
422
5
561
550
561
547
550
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
PROTECTOR; HEAT
(A)
8-97605-172-0
01
1
0906-
5
PROTECTOR; HEAT
(B)
8-97611-086-0
01
1
0906-
5
PROTECTOR; HEAT
(C)
8-97611-087-0
01
1
0906-
5
PROTECTOR; HEAT
(D)
8-97611-088-0
01
1
0906-
5
PROTECTOR; HEAT
(E)
8-97611-089-0
01
1
0906-
5
PROTECTOR; HEAT
(F)
8-97613-390-0
01
1
0906-
422
NUT; PIPE
M8 FLANGE
0-91180-108-0
20
1
0906-
423
BOLT; PIPE
M8X35 FLANGE
0-28650-835-0
20
1
0906-
467
BOLT; PROTECTOR
M6X16
8-98019-179-0
14
1
0906-
534
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
03
1
0906-
547
CLIP; PIPE
(A)
8-97381-635-0
03
1
0906-
547
CLIP; PIPE
(B)
8-97381-636-0
03
1
0906-
550
BRACKET; DPD
(A)
8-97611-083-0
01
1
0906-
550
BRACKET; DPD
(B)
8-97611-084-0
01
1
0906-
550
BRACKET; DPD
(C)
8-97611-085-0
01
1
0906-
556
DPD ASM
8-97613-331-6
01
1
0906-1010
556
DPD ASM
8-97622-883-3
01
1
1011-
557
CATALYST ASM
8-97608-055-7
01
1
0906-
558
FILTER ASM
8-97608-057-3
01
1
0906-
559
COVER; RR
8-97611-078-0
01
1
0906-1010
559
COVER; RR
8-97622-887-0
01
1
1011-
560
GASKET; DPD
8-97611-080-0
02
1
0906-
561
PIPE; DPD
(A)
8-97611-081-0
01
1
0906-1010
561
PIPE; DPD
(A)
8-97622-888-0
01
1
1011-
561
PIPE; DPD
(B)
8-97611-082-0
01
1
0906-1010
561
PIPE; DPD
(B)
8-97622-889-0
01
1
1011-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
