Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#56228) — 230 parça

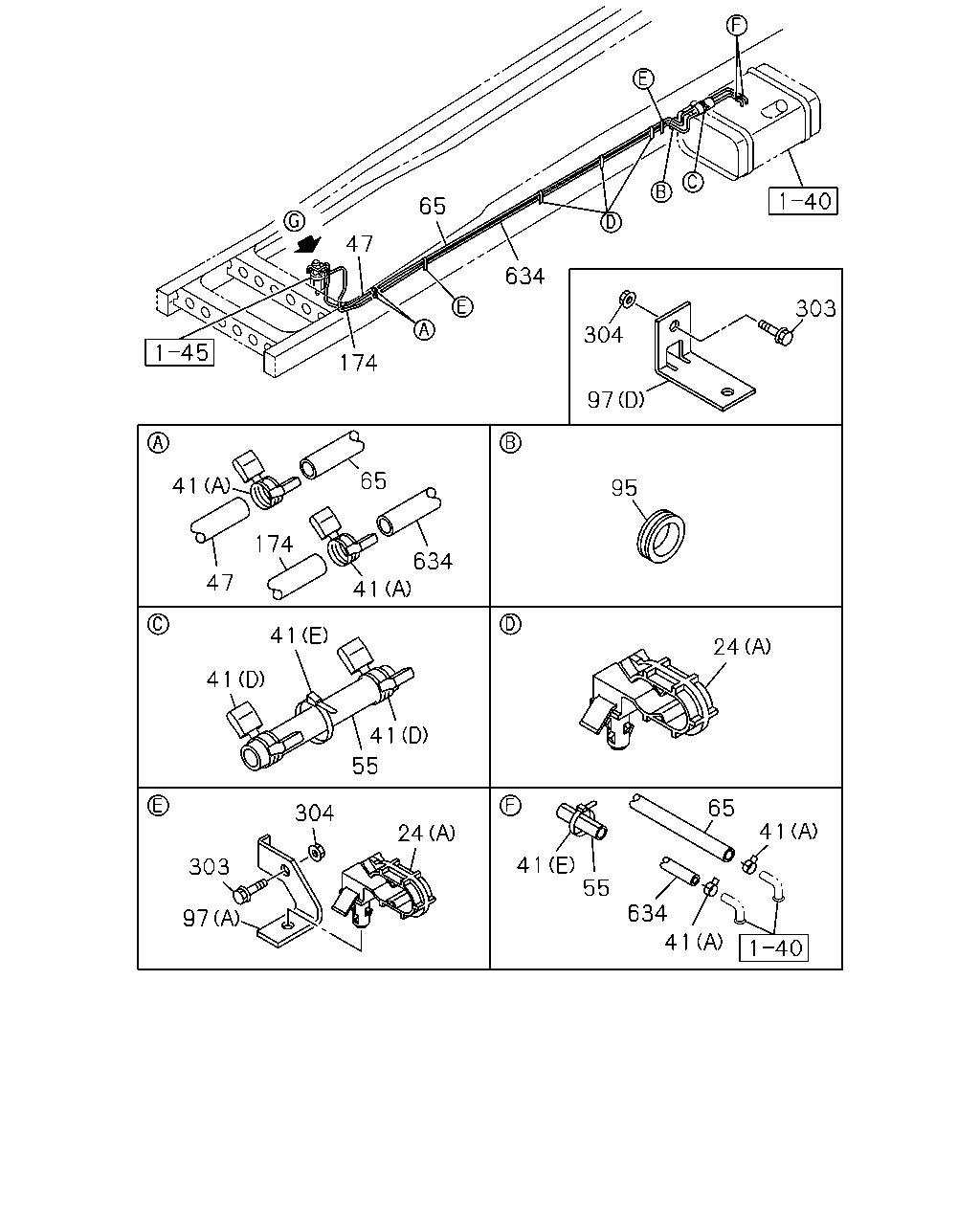

634 65 174 47 309 309 65 41 83 174 217 80 62 41 97 303 24 304 47 304 64 634 97 303 634 41 95 65 41 80 41 83 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=17	1-09700-840-0	02	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	02	1	1005-1103
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=32 L=50	1-09701-055-1	01	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	04	1	1004-1103
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	01	1	1104-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	01	1	1004-1009
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	03	1	1004-1004
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	02	1	1005-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0906-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2627	8-98156-446-0	01	1	1004-1103
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2307	8-98179-132-0	01	1	1104-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0906-1003
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=413	8-98078-210-0	01	1	1004-
62	BOLT; CLIP FIX BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	02	1	1004-1103
62	BOLT; CLIP FIX BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	01	1	1104-
64	NUT; CLIP BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	02	1	1004-1103
64	NUT; CLIP BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1104-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV>	8-98172-297-0	01	1	1005-1103
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1104-1107
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-
65	HOSE; FUEL,DELIVERY PIPE L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1004-
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	02	1	1004-1103
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	04	1	1104-
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	04	1	1004-1103
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	01	1	1104-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0906-
83	NUT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-1103
83	NUT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	05	1	1104-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0906-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-1003
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-
95	BUSHING; PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	01	1	1104-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	02	1	1004-1103
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	01	1	1104-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0906-
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98083-349-0	01	1	1004-
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	02	1	1004-
97	BRACKET; CLIP (B)	8-98105-216-1	01	1	0906-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98156-443-0	01	1	1004-1008
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98178-520-0	01	1	1009-1103
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98179-133-0	01	1	1104-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0906-1003
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV>	8-98078-209-0	01	1	1004-
217	COLLAR; FUEL PIPE FIX BIO DIESEL FUEL B10<8NV> ID=8	1-47459-011-0	02	1	1004-1103
217	COLLAR; FUEL PIPE FIX BIO DIESEL FUEL B10<8NV> ID=8	1-47459-011-0	04	1	1104-
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1104-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0906-1003
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0906-1103
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1104-
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1104-
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1104-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1103
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
309	CLIP; PIPE BIO DIESEL FUEL B10<8NV> (A) ID=10 & 10	1-09709-241-0	02	1	1004-1103
309	CLIP; PIPE BIO DIESEL FUEL B10<8NV> (A) ID=10 & 10	1-09709-241-0	04	1	1104-
309	CLIP; PIPE BIO DIESEL FUEL B10<8NV> (B) ID=10 & 10	1-09709-243-0	02	1	1004-1103
309	CLIP; PIPE BIO DIESEL FUEL B10<8NV> (B) ID=10 & 10	1-09709-243-0	04	1	1104-
634	HOSE; RUBBER RETURN BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-1103
634	HOSE; RUBBER RETURN BIO DIESEL FUEL B10<8NV> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	1104-
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003
634	HOSE; RUBBER RETURN EXC. BIO DIESEL FUEL B10<8NV> L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1004-

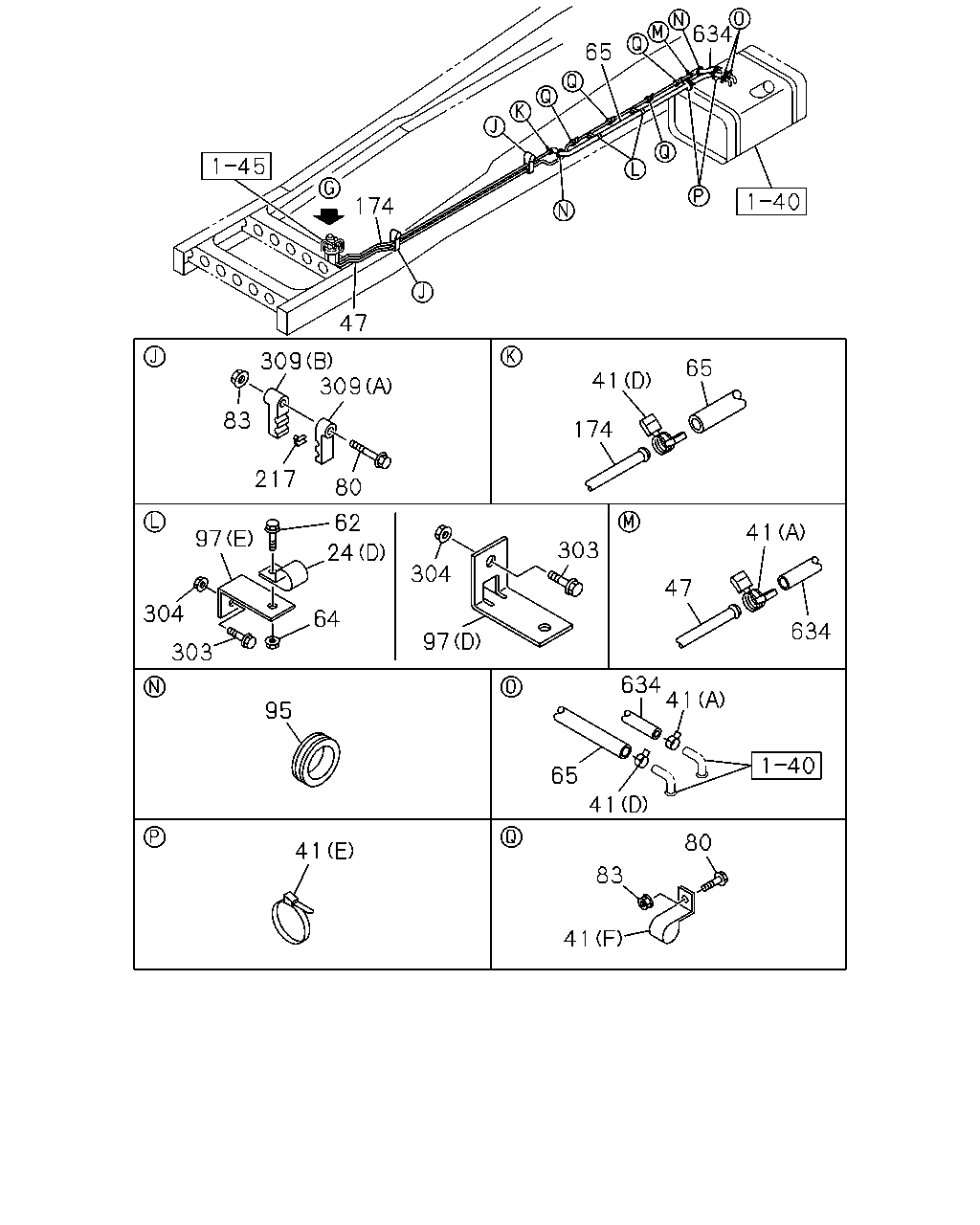

65 47 634 303 304 174 97 65 41 95 174 634 47 41 41 24 41 41 55 65 304 41 24 41 55 303 634 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=17	1-09700-840-0	02	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	02	1	1005-1103
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=32 L=50	1-09701-055-1	01	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	04	1	1004-1103
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	01	1	1104-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	01	1	1004-1009
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	03	1	1004-1004
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	02	1	1005-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0906-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2627	8-98156-446-0	01	1	1004-1103
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2307	8-98179-132-0	01	1	1104-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0906-1003
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=413	8-98078-210-0	01	1	1004-
55	COVER; PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> ID=27 L=500	8-98119-327-0	01	1	1004-1004
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0906-1003
55	COVER; PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1004-1009
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1010-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1850 SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV>	8-98172-297-0	01	1	1005-1103
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1104-1107
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-
65	HOSE; FUEL,DELIVERY PIPE L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	1004-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-1003
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-
95	BUSHING; PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	01	1	1104-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	02	1	1004-1103
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	01	1	1104-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0906-
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98083-349-0	01	1	1004-
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	02	1	1004-
97	BRACKET; CLIP (B)	8-98105-216-1	01	1	0906-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98156-443-0	01	1	1004-1008
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98178-520-0	01	1	1009-1103
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98179-133-0	01	1	1104-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0906-1003
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV>	8-98078-209-0	01	1	1004-
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1104-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0906-1003
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0906-1103
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1104-
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1104-
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1104-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1103
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
634	HOSE; RUBBER RETURN BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-1103
634	HOSE; RUBBER RETURN BIO DIESEL FUEL B10<8NV> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	1104-
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003
634	HOSE; RUBBER RETURN EXC. BIO DIESEL FUEL B10<8NV> L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1004-

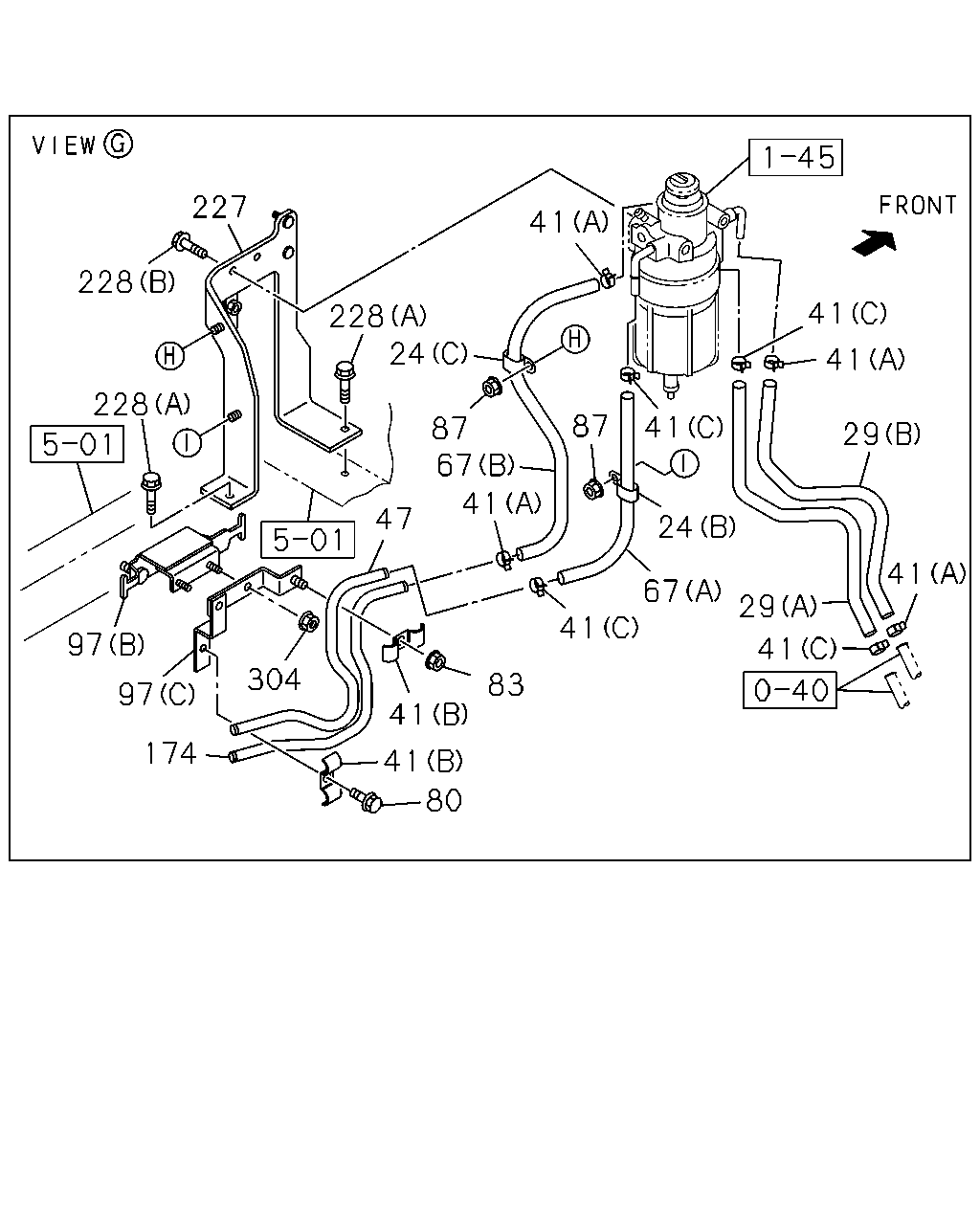

227 228 228 97 174 97 304 41 41 80 83 41 67 29 41 41 29 41 41 41 24 87 41 41 67 87 24 228 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=17	1-09700-840-0	02	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	02	1	1005-1103
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=21 L=24	8-98019-191-0	01	1	1104-
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=32 L=50	1-09701-055-1	01	1	1004-1004
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98156-579-0	01	1	1004-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0906-1003
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98078-196-2	01	1	1004-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	04	1	1004-1103
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=8 H=20 L=20	1-09700-604-0	01	1	1104-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	01	1	1004-1009
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	04	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0906-1003
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	03	1	1004-1004
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250	5-09707-030-1	02	1	1005-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0906-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2627	8-98156-446-0	01	1	1004-1103
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2307	8-98179-132-0	01	1	1104-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0906-1003
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=413	8-98078-210-0	01	1	1004-
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0906-
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1004-
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1004-
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	02	1	1004-1103
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	04	1	1104-
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	04	1	1004-1103
80	BOLT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	01	1	1104-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0906-
83	NUT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-1103
83	NUT; CLIP,FUEL TANK BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	05	1	1104-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0906-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0906-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	01	1	1104-
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	02	1	1004-1103
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E) L=55	1-47476-177-0	01	1	1104-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0906-
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98083-349-0	01	1	1004-
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	0906-1003
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98109-768-0	02	1	1004-
97	BRACKET; CLIP (B)	8-98105-216-1	01	1	0906-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98156-443-0	01	1	1004-1008
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98178-520-0	01	1	1009-1103
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98179-133-0	01	1	1104-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0906-1003
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV>	8-98078-209-0	01	1	1004-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0906-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0906-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0906-
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1104-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-1103
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1104-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
