Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#56225) — 55 parça
◀
[131A] DUCT FIXING NO.1 (19 parça)
[131A] PIPING (6 parça)
[131A] DUCT FIXING NO.2 (30 parça)
▶

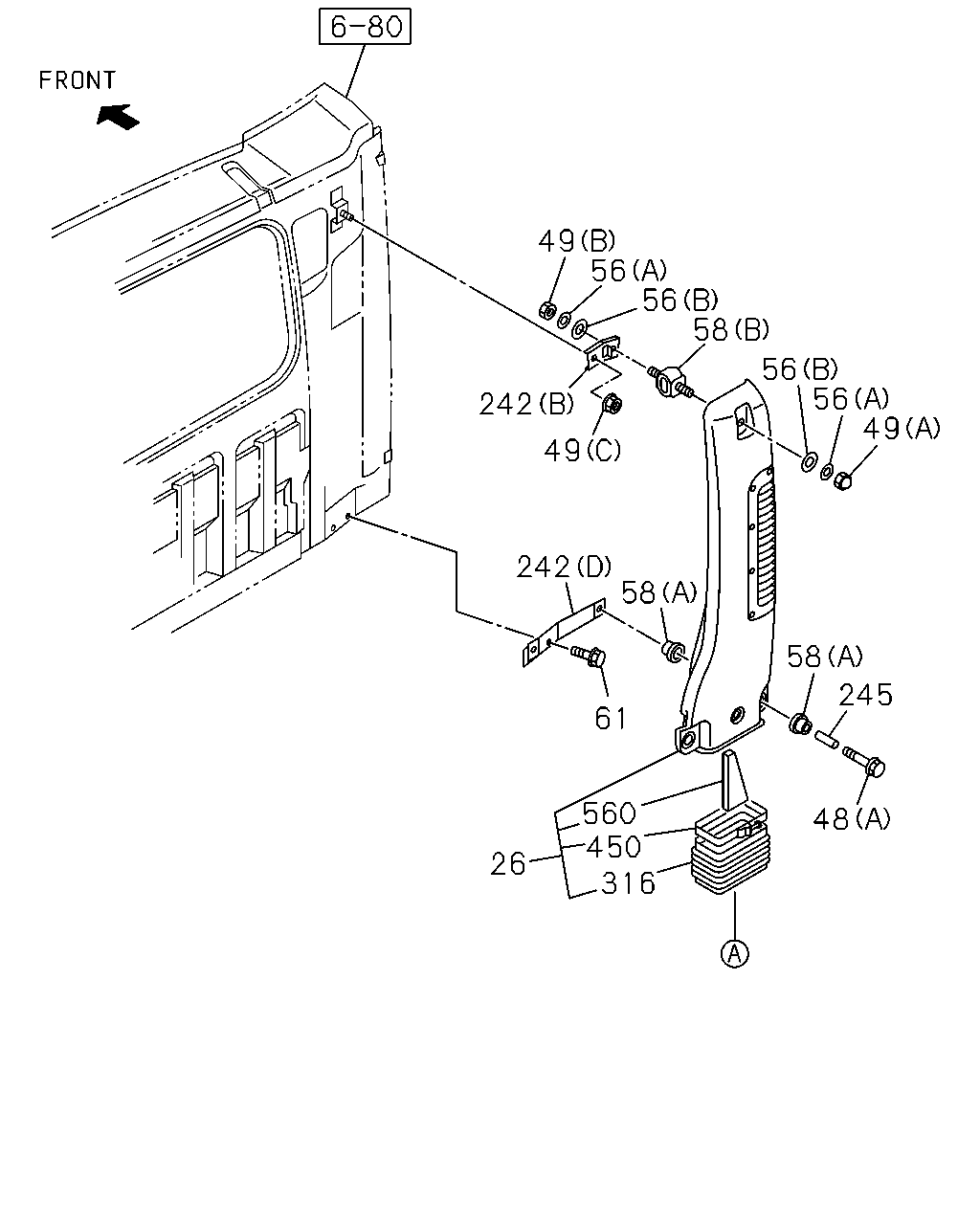

49
56
56
58
56
56
49
242
49
242
58
58
245
61
560
450
316
48
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0906-
48
BOLT; AIR DUCT
(B) M10X25 FLANGE
0-28651-025-0
04
1
0906-
48
BOLT; AIR DUCT
(A) M10X26
1-09030-044-1
02
1
0906-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0906-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0906-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
01
1
0906-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0906-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0906-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0906-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0906-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0906-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0906-
242
BRACKET; AIR DUCT
(D)
8-98050-679-1
01
1
0906-
242
BRACKET; AIR DUCT
(A)
8-98089-456-1
01
1
0906-
242
BRACKET; AIR DUCT
(C)
8-98092-771-0
01
1
0906-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0906-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
450
CLAMP; HOSE
9-09915-504-1
01
1
0906-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
0906-

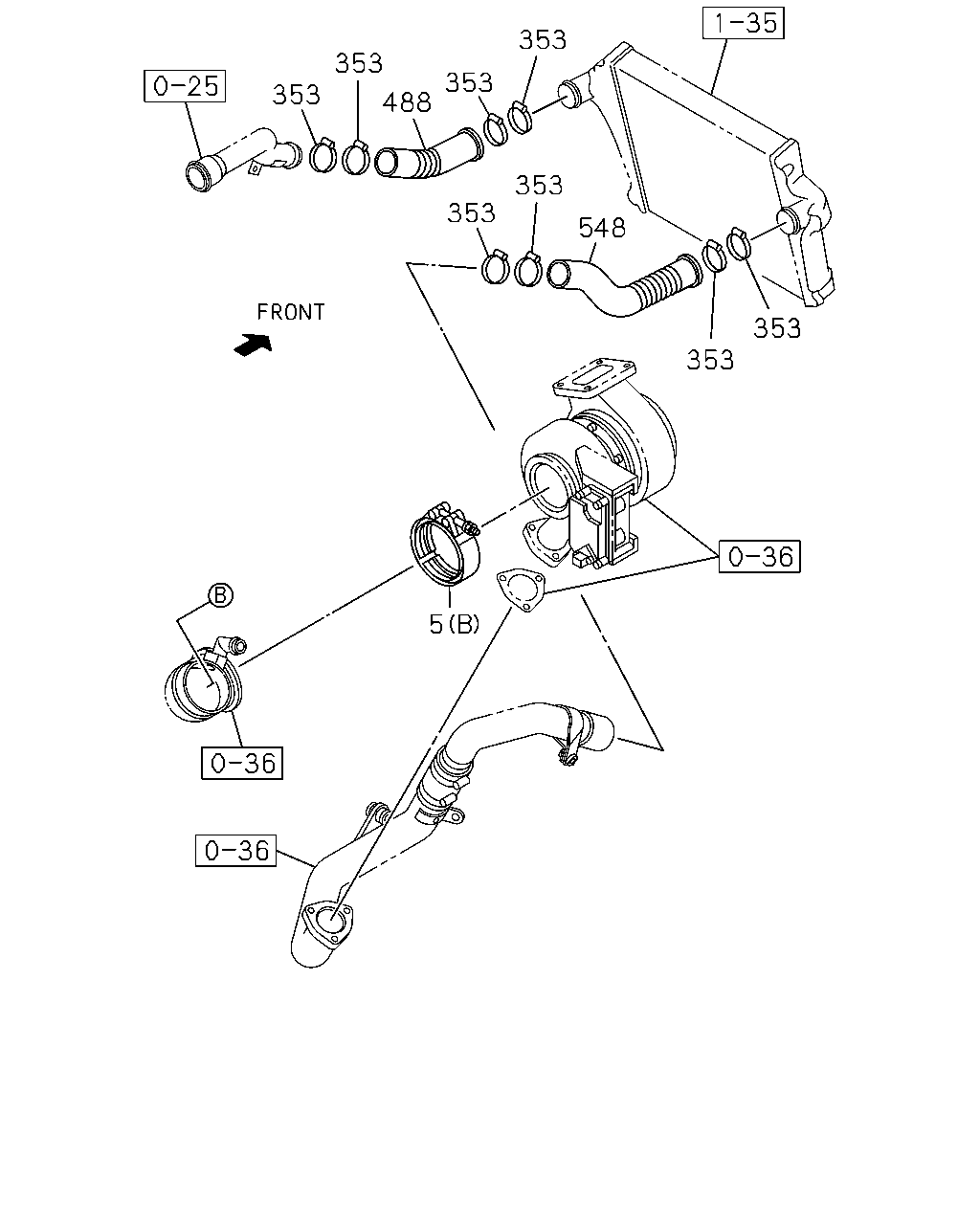

353
353
353
353
488
353
353
548
353
353
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0906-
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
03
1
0906-
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0906-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0906-
488
HOSE; RUBBER,PIPE
8-98017-224-1
01
1
0906-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98017-223-2
01
1
0906-

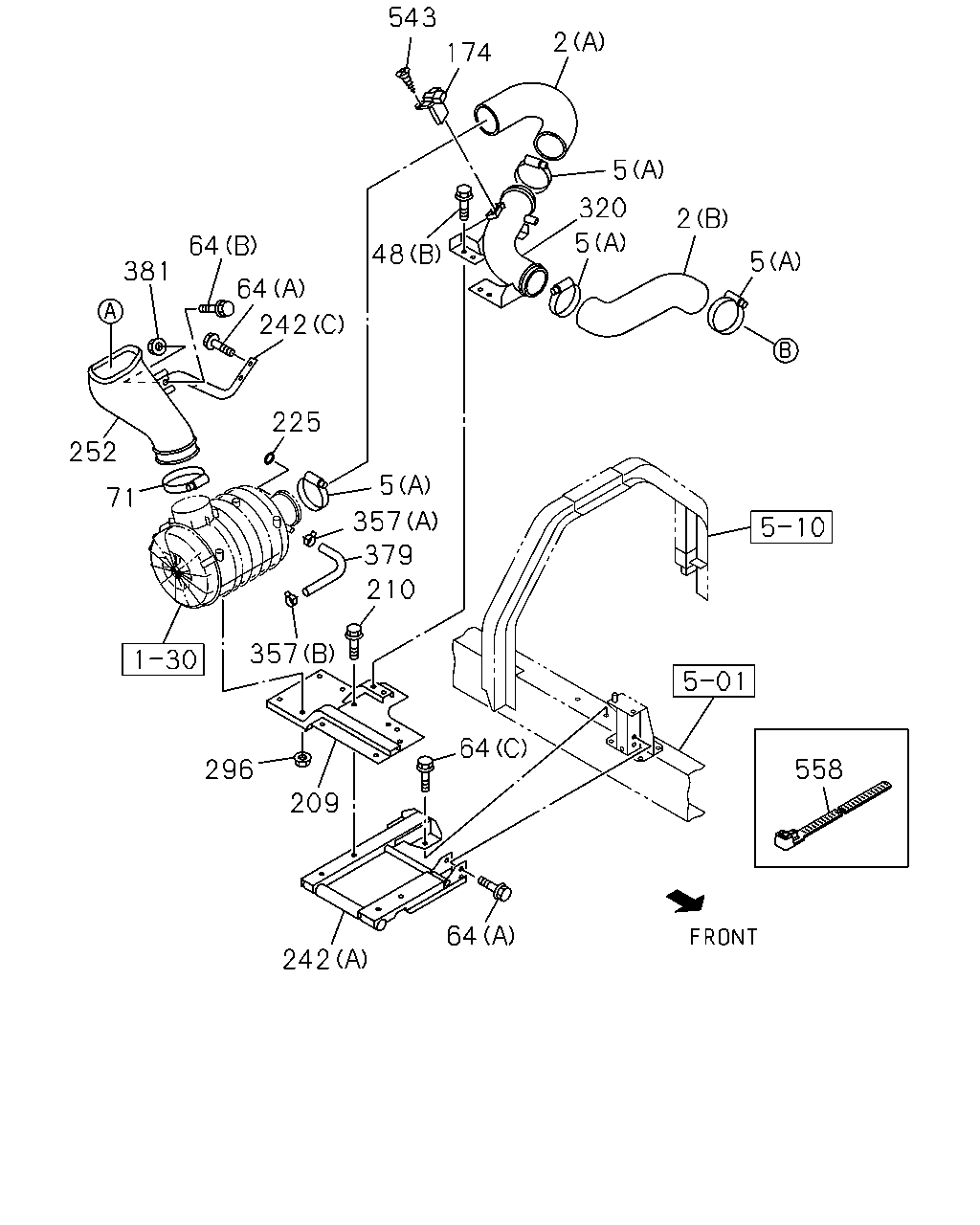

543
2
174
5
320
2
5
64
48
5
381
64
242
225
252
5
71
357
379
210
357
64
558
296
209
64
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
(A)
8-98050-682-0
01
1
0906-
2
HOSE; ACL
(B)
8-98065-313-0
01
1
0906-
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0906-
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
03
1
0906-
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0906-
48
BOLT; AIR DUCT
(B) M10X25 FLANGE
0-28651-025-0
04
1
0906-
48
BOLT; AIR DUCT
(A) M10X26
1-09030-044-1
02
1
0906-
64
BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
03
1
1005-
64
BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
05
1
0906-1004
64
BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
02
1
1005-
64
BOLT; BRKT,AIR DUCT
(C) M10X35 FLANGE
0-28651-035-0
02
1
0906-
64
BOLT; BRKT,AIR DUCT
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0906-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
0906-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0906-
209
BRACKET; ACL
8-98089-455-1
01
1
0906-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
0906-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
0906-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0906-
242
BRACKET; AIR DUCT
(D)
8-98050-679-1
01
1
0906-
242
BRACKET; AIR DUCT
(A)
8-98089-456-1
01
1
0906-
242
BRACKET; AIR DUCT
(C)
8-98092-771-0
01
1
0906-
252
DUCT; AIR INT
8-98050-681-0
01
1
0906-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0906-
320
HOSE; CONN,ACL
8-98092-944-1
01
1
0906-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
0906-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0906-
379
HOSE; RUBBER
8-98073-021-0
01
1
0906-
381
NUT; BRKT,AIR DUCT
M8 FLANGE
0-91180-108-0
01
1
0906-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0906-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
0906-
