Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

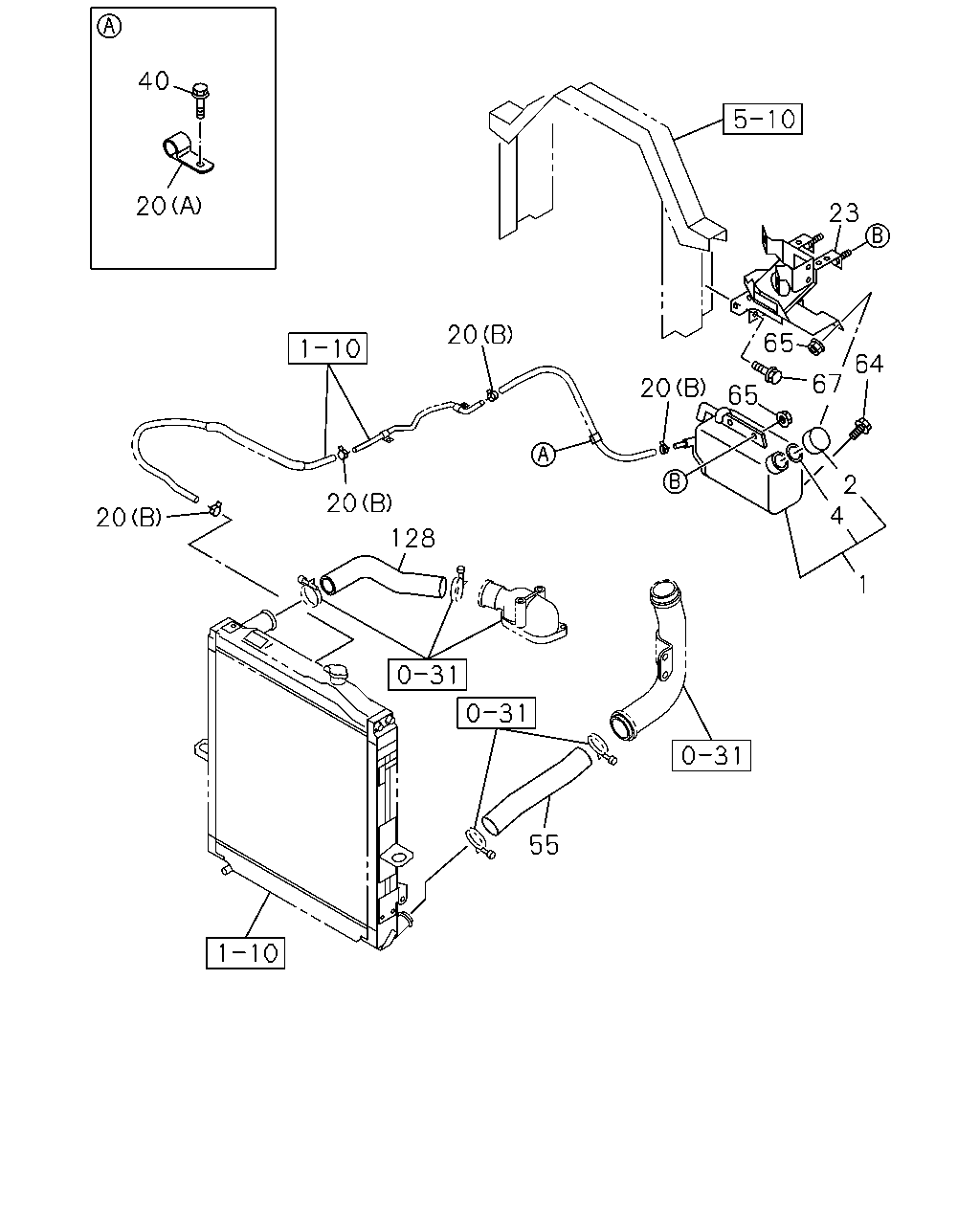

1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#56223) — 14 parça
40
20
23
20
65
64
67
20
65
2
4
20
20
128
1
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98125-804-0
01
1
0906-1009
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-
2
CAP; SURGE TANK
8-98125-843-0
01
1
0906-1009
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
0906-1009
20
CLIP; HOSE,RAD
(A) ID=13 L=50
0-95235-286-0
02
1
0906-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0906-
23
BRACKET; RESERVE TANK
8-98058-220-2
01
1
0906-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0906-
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
0906-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
0906-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
01
1
0906-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0906-
128
HOSE; WATER,RAD INL
8-98010-576-2
01
1
0906-
