◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#56220) — 77 parça

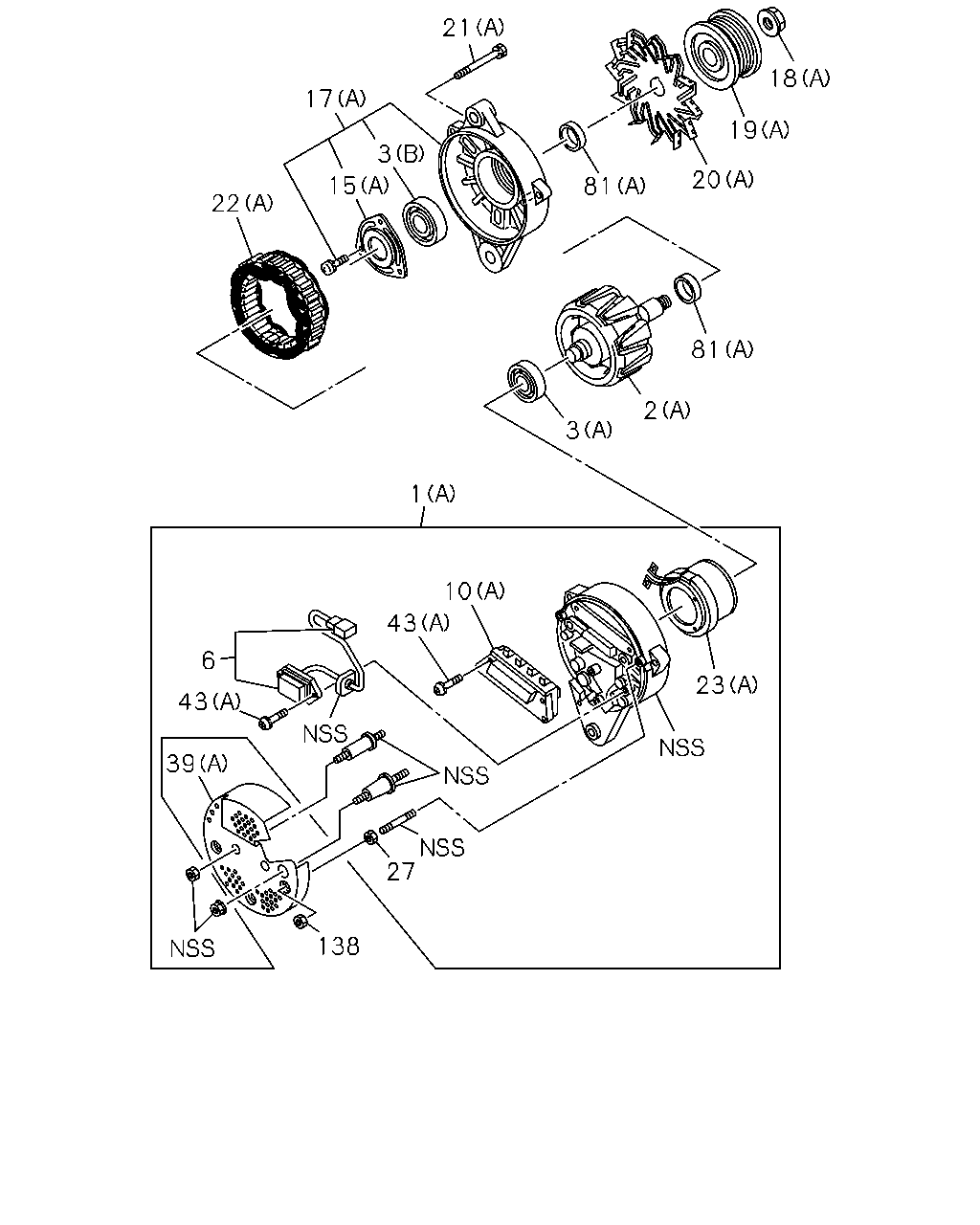

çizim 165303
22 17 21 15 3 81 20 19 18 3 2 81 1 6 43 23 43 39 138 27 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-684-0 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-009-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-638-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-000-1 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-2 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-2 		8-98048-001-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-686-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-011-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-760-1 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-004-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-872-0 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-643-0 01 1 -
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-2 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-641-0 01 1 -
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-007-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-2 		1-81223-003-1 01 1 -
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-382-0 03 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-2 		1-81229-661-0 04 1 -
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-4 		8-98040-639-0 01 1 -
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-4 		8-98040-640-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-002-0 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-645-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-008-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-689-0 01 1 -1011
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-012-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98181-103-0 01 1 1012-
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-2 		8-98048-058-0 04 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-2 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-870-0 02 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-690-0 03 1 -

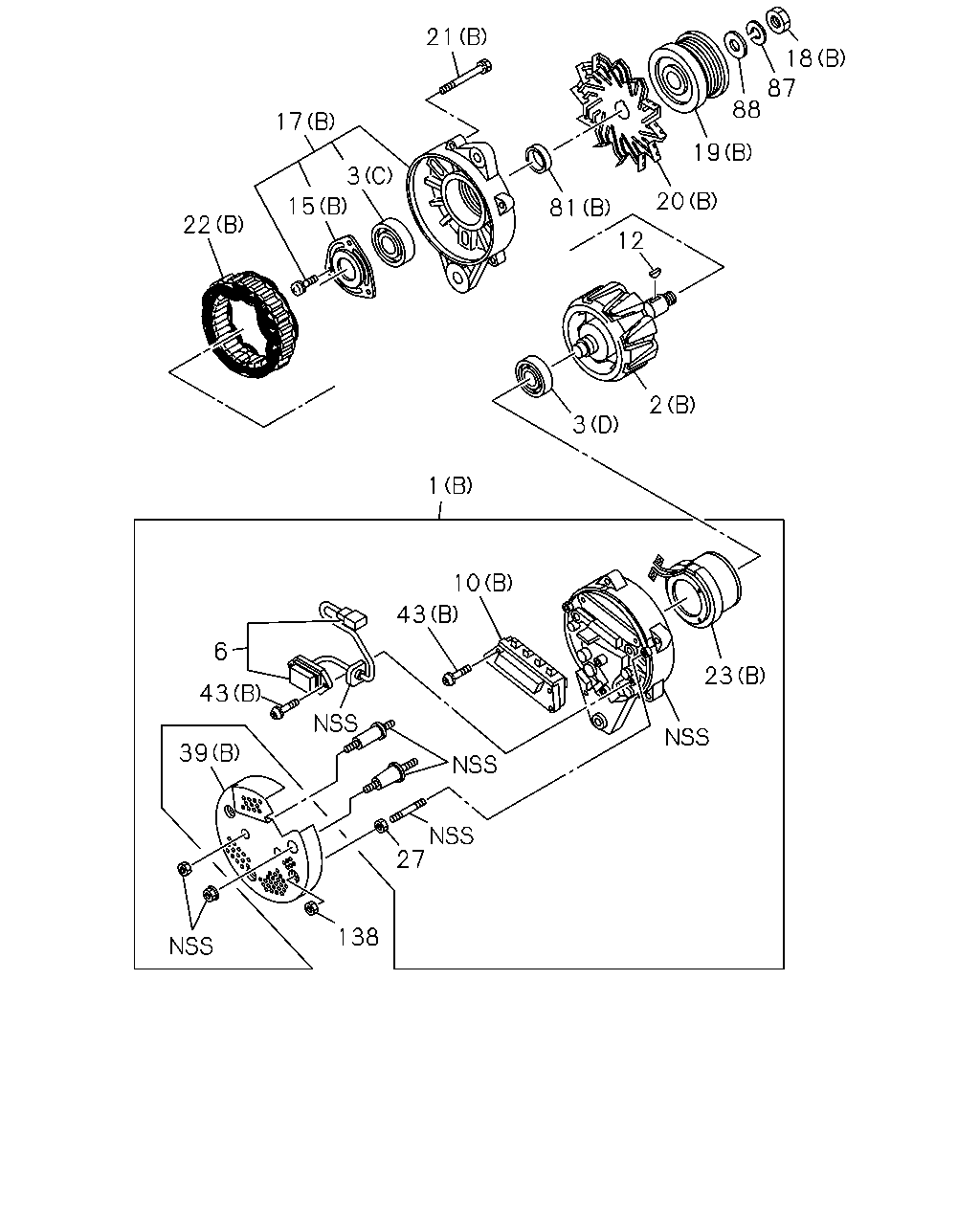

çizim 165304
21 17 22 15 3 81 20 19 88 87 18 12 2 3 1 10 43 6 43 39 138 27 23
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-684-0 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-009-0 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-638-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-000-1 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: C = 8-98013-463-2 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: C = 8-98013-463-2 		8-98048-001-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-686-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-011-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: C = 8-98013-463-2 		9-82215-867-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-760-1 01 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-004-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-872-0 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-003-0 01 1 -
18 NUT; PULLEY,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-643-0 01 1 -
18 NUT; PULLEY,GEN
(B) ASM PART: C = 8-98013-463-2 		9-82216-098-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-641-0 01 1 -
19 PULLEY; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-007-0 01 1 -
20 FAN; GEN
(B) ASM PART: C = 8-98013-463-2 		1-81223-003-1 01 1 -
20 FAN; GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-382-0 03 1 -
21 BOLT; THROUGH,GEN
(B) ASM PART: C = 8-98013-463-2 		1-81229-661-0 04 1 -
22 STATOR; GEN
(A) ASM PART: A = 8-98013-461-4 		8-98040-639-0 01 1 -
22 STATOR; GEN
(A) ASM PART: B = 8-98013-462-4 		8-98040-640-0 01 1 -
22 STATOR; GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-002-0 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-645-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-008-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98040-689-0 01 1 -1011
39 COVER; END,RR COVER,GEN
(B) ASM PART: C = 8-98013-463-2 		8-98048-012-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-98181-103-0 01 1 1012-
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(B) ASM PART: C = 8-98013-463-2 		8-98048-058-0 04 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: C = 8-98013-463-2 		1-81229-627-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4 		8-97382-870-0 02 1 -
87 WASHER; PULLEY,GEN
ASM PART: C = 8-98013-463-2 		1-81229-672-0 01 1 -
88 WASHER; PL,PULLEY GEN
ASM PART: C = 8-98013-463-2 		1-81229-673-0 01 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2 		8-98040-690-0 03 1 -
