◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#5622) — 64 parça

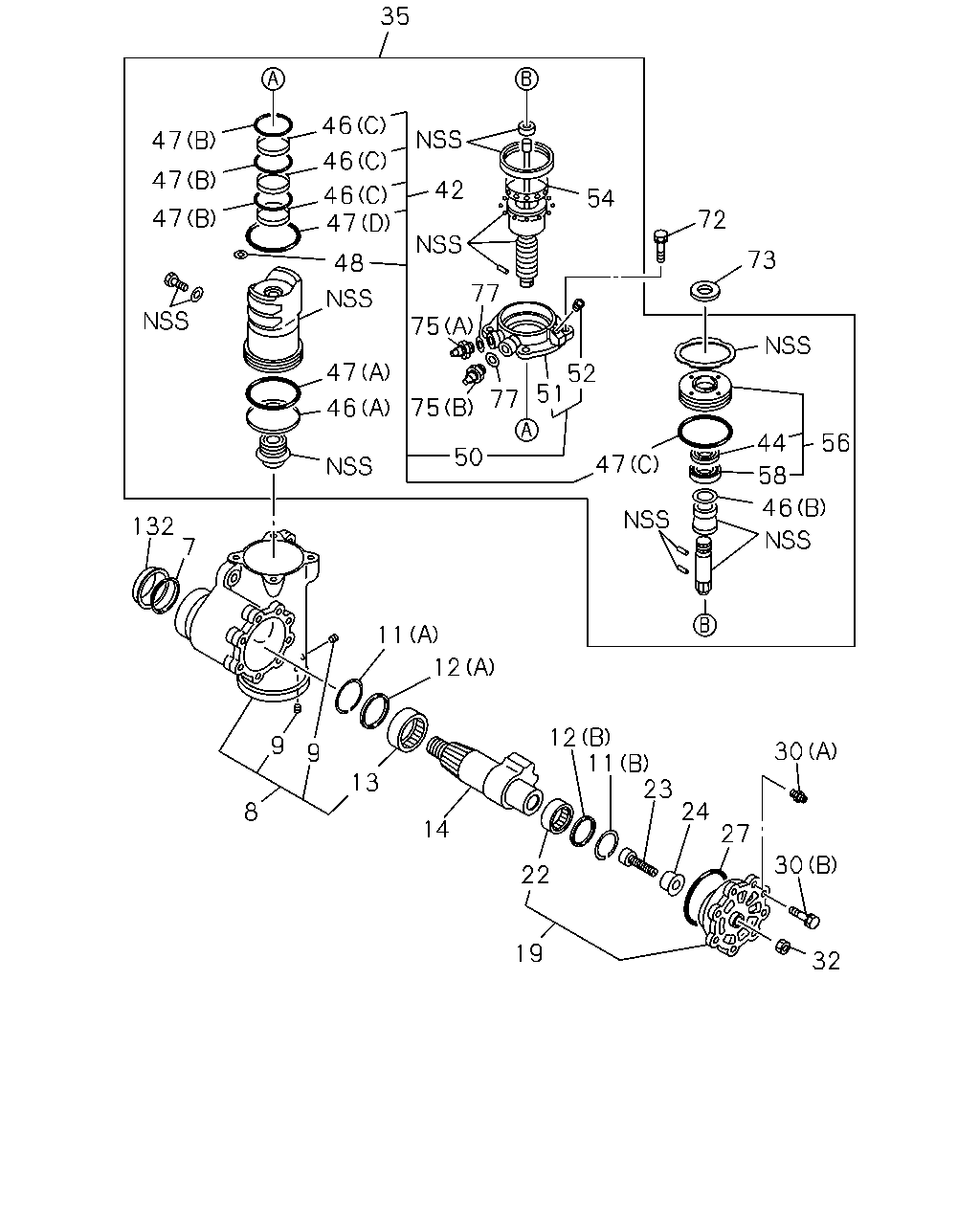

çizim 8341
35 46 47 46 47 42 46 47 54 47 72 73 48 77 75 47 52 51 77 75 46 56 44 50 47 58 46 132 7 11 12 12 11 23 24 9 30 9 13 8 14 27 30 22 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44519-071-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44150-073-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44150-084-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-845-0 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-845-0 		1-44259-035-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-227-0 01 1 -

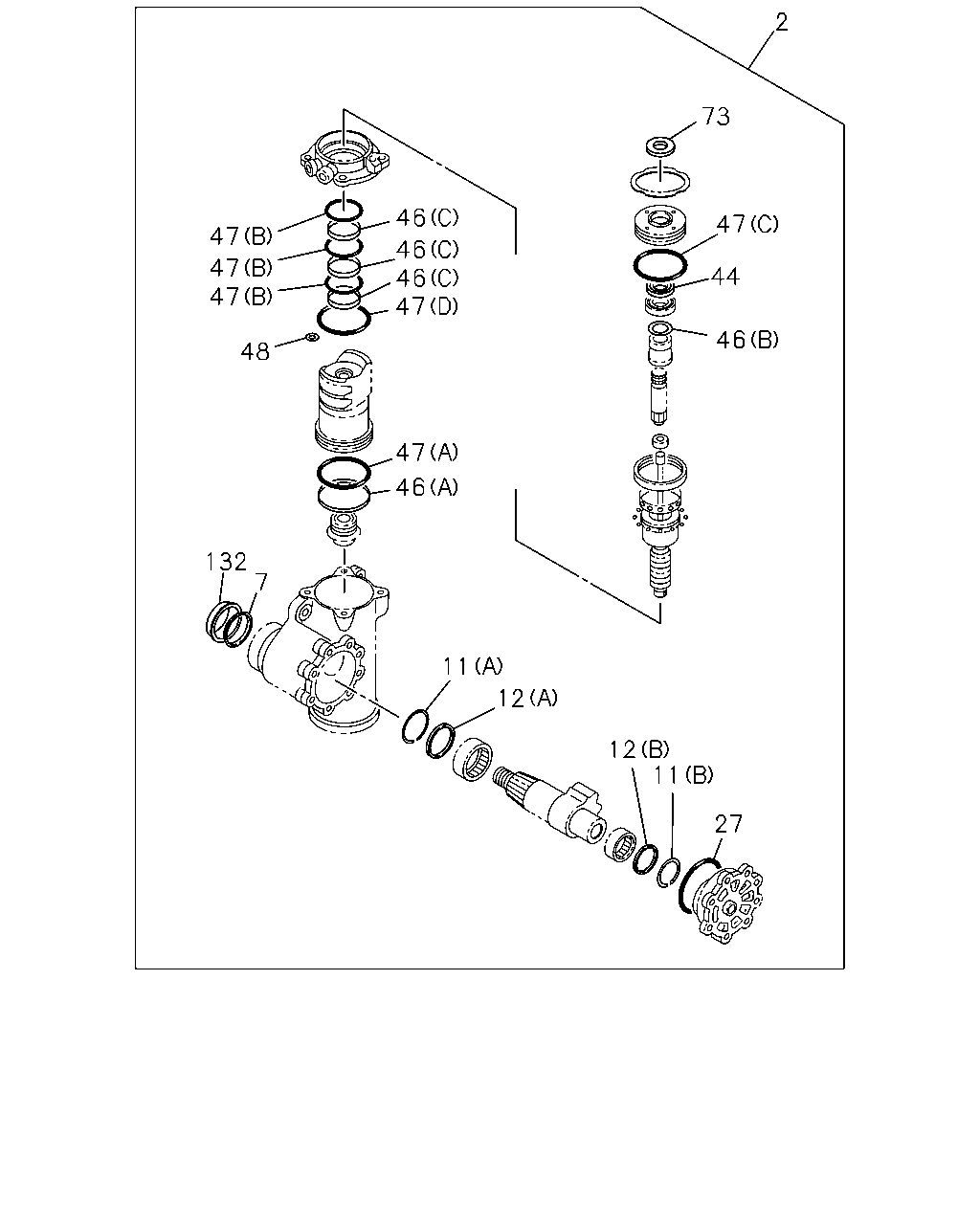

çizim 40926
2 73 46 47 47 46 46 47 47 47 44 46 48 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-227-0 01 1 -
