4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5621) — 52 parça

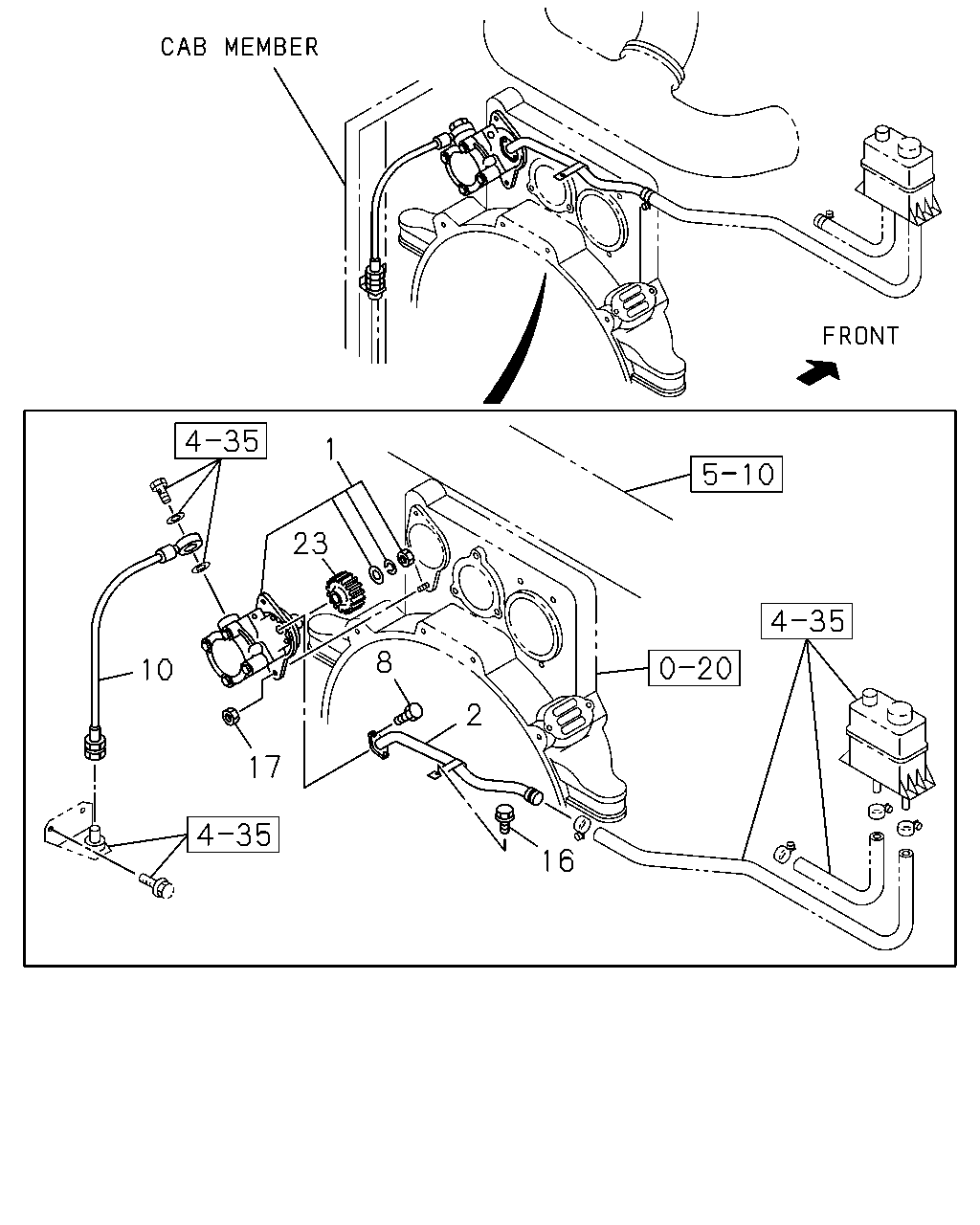

çizim 42101
1 23 8 10 2 17 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9603-9904
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905-
2 PIPE ASM; OIL,SUCTION
10PE1S(60L) 		1-13313-568-0 01 1 9603-9608
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-692-0 01 1 9609-
8 BOLT; OIL PIPE
10PE1S(60L) M8X12 FLANGE 		0-28080-812-0 02 1 9603-9904
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9905-
8 BOLT; OIL PIPE
6WA1 TC-S(56L) M8X16 FLANGE 		0-28080-816-0 02 1 9603-9810
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9811-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9603-
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9603-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811-
16 BOLT; STAY,P/S OIL PUMP
10PE1S(60L) M8X14 FLANGE 		0-28080-814-0 01 1 9603-9904
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9905-
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L) M6X35 FLANGE 		0-28680-635-0 02 1 9603-9810
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9811-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9603-
23 GEAR; OIL PUMP
10PE1S(60L) Z=20 		1-19581-011-2 01 1 9603-9904
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-2 01 1 9905-
23 GEAR; OIL PUMP
6WA1 TC-S(56L) Z=20 		1-19581-023-2 01 1 9603-9904
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9905-9910
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911-

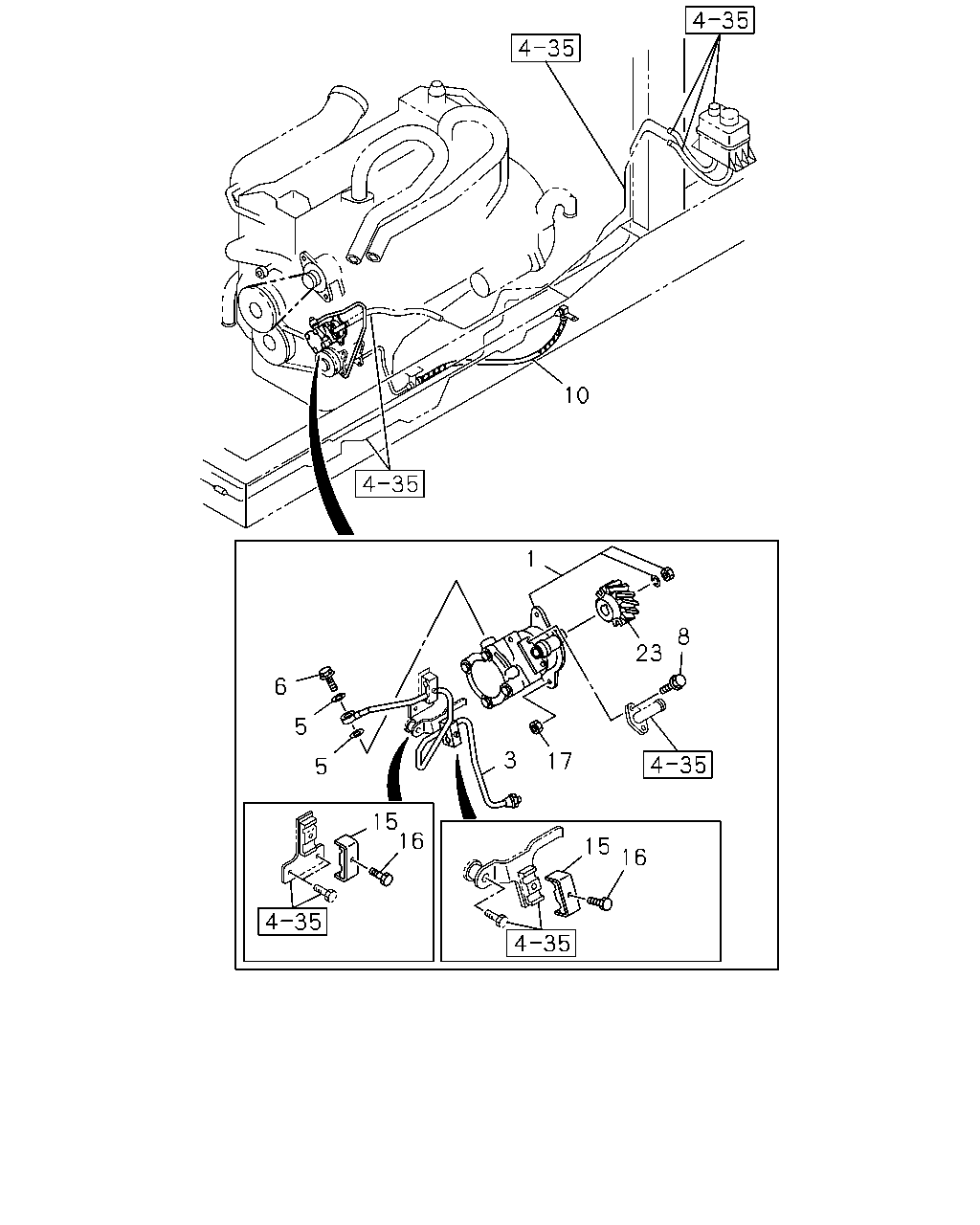

çizim 42264
10 1 8 23 6 5 3 17 5 15 16 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-0 01 1 9603-9904
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) 		1-19500-447-2 01 1 9905-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 9905-
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-640-0 01 1 9603-9604
3 PIPE; OIL,CHARGE,P/S
L TYPE ENG<90L> 		1-13313-637-1 01 1 9605-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9603-9810
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). L TYPE ENG<90L> ID=18.2 OD=24.4 		1-09630-087-0 02 1 9811-
6 BOLT; EYE,P/S PIPE
6WA1 TC-S(56L) M18X36 		1-09675-174-0 01 1 9603-9810
6 BOLT; EYE,P/S PIPE
L TYPE ENG<90L> M18X36 		1-09675-174-0 01 1 9811-
8 BOLT; OIL PIPE
10PE1S(60L) M8X12 FLANGE 		0-28080-812-0 02 1 9603-9904
8 BOLT; OIL PIPE
V TYPE ENG<91L> M8X12 FLANGE 		0-28080-812-0 02 1 9905-
8 BOLT; OIL PIPE
6WA1 TC-S(56L) M8X16 FLANGE 		0-28080-816-0 02 1 9603-9810
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X16 FLANGE 		0-28080-816-0 02 1 9811-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> L=430 		0-09671-430-0 01 1 9603-
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09364-893-0 01 1 9603-9810
10 HOSE; FLEX,P/S OIL PUMP,INL
V TYPE ENG<91L> L=510 		1-09365-044-0 01 1 9811-
15 CLIP; OIL PIPE SUCTION
6WA1 TC-S(56L) 		1-09701-195-1 02 1 9603-9810
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> 		1-09701-195-2 02 1 9811-
16 BOLT; STAY,P/S OIL PUMP
10PE1S(60L) M8X14 FLANGE 		0-28080-814-0 01 1 9603-9904
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> M8X14 FLANGE 		0-28080-814-0 01 1 9905-
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-S(56L) M6X35 FLANGE 		0-28680-635-0 02 1 9603-9810
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> M6X35 FLANGE 		0-28680-635-0 02 1 9811-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 9603-
23 GEAR; OIL PUMP
10PE1S(60L) Z=20 		1-19581-011-2 01 1 9603-9904
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-2 01 1 9905-
23 GEAR; OIL PUMP
6WA1 TC-S(56L) Z=20 		1-19581-023-2 01 1 9603-9904
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-023-2 01 1 9905-9910
23 GEAR; OIL PUMP
L TYPE ENG<90L> Z=20 		1-19581-038-0 01 1 9911-
