Sayfa 4-35 - Isuzu EPC

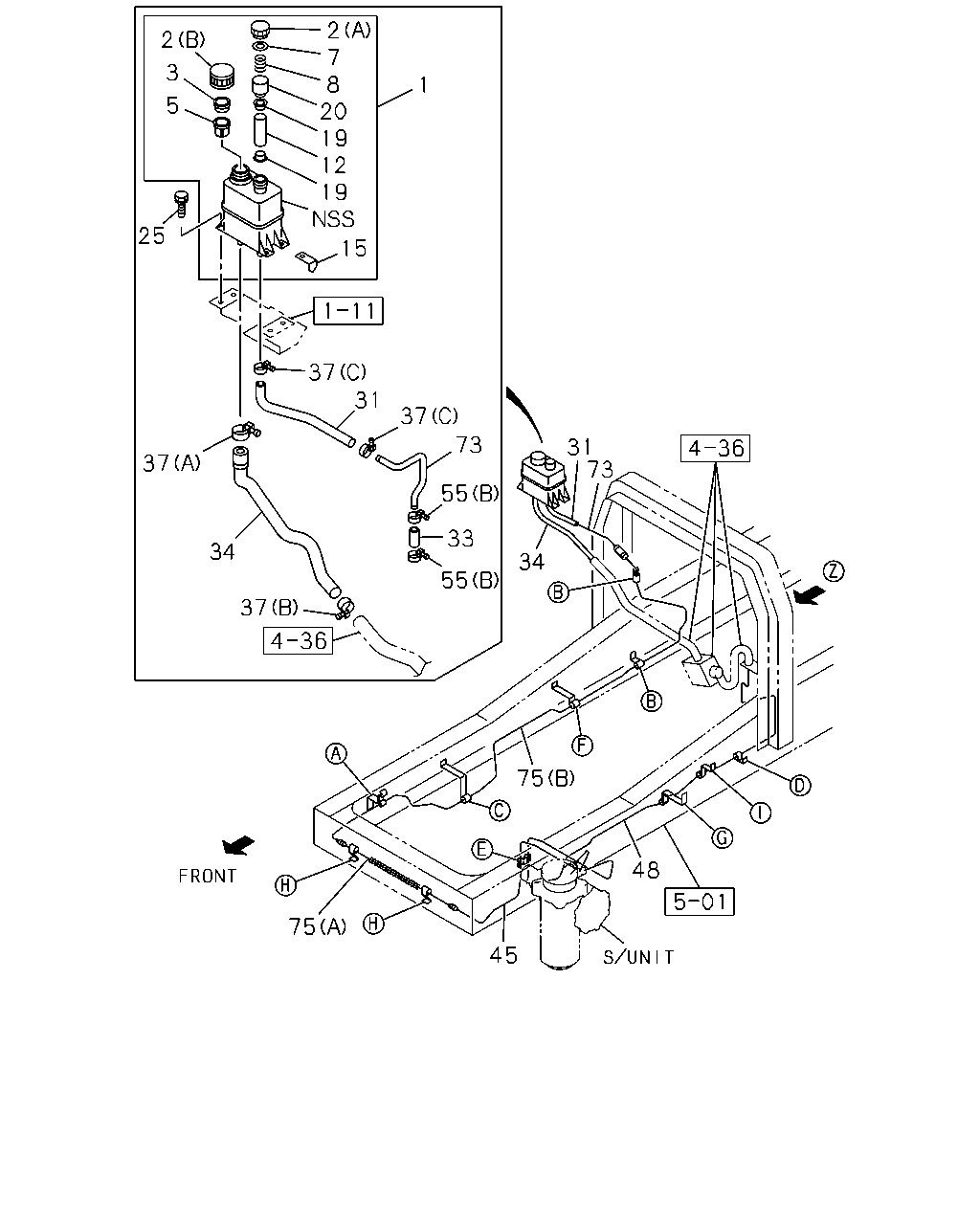

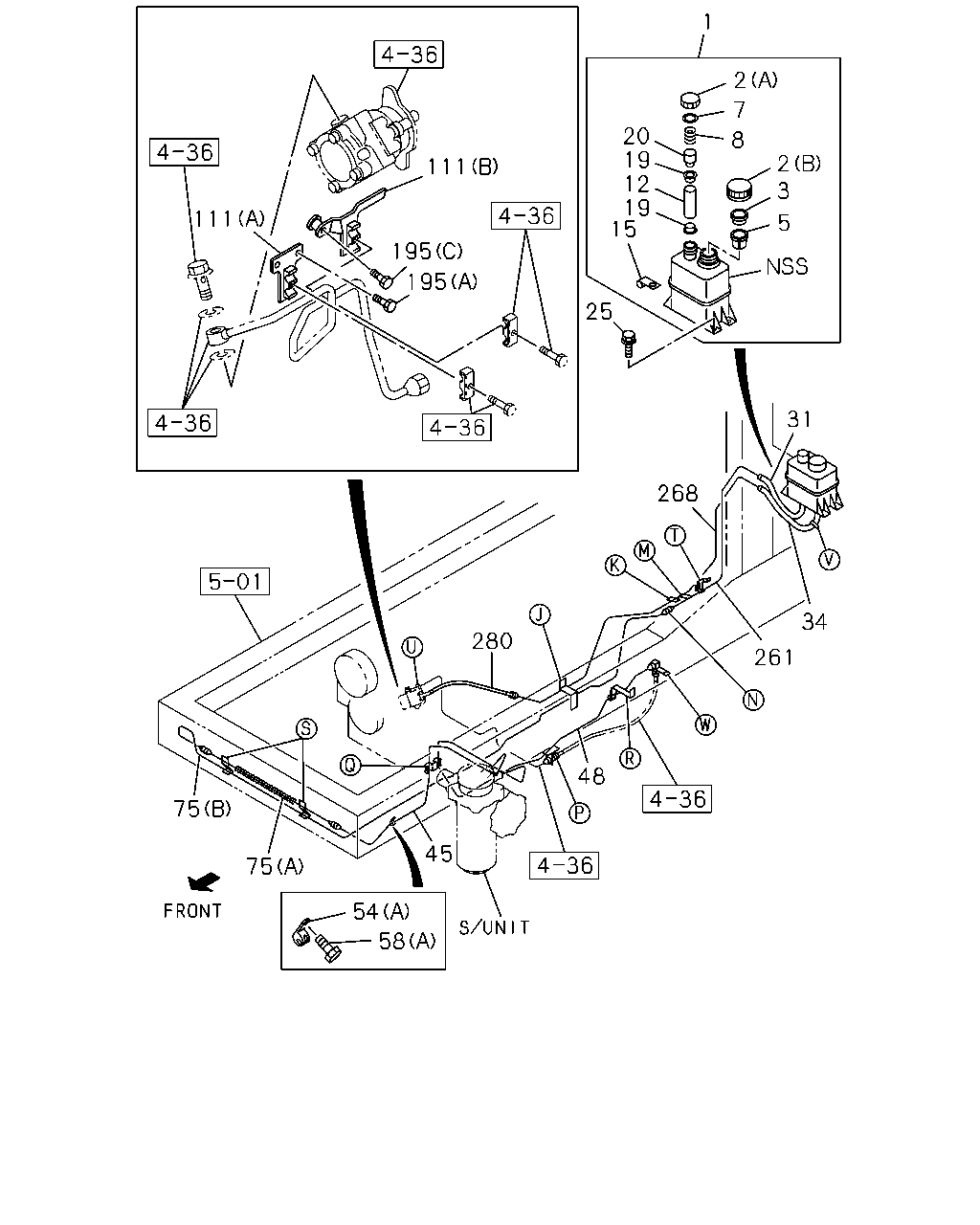

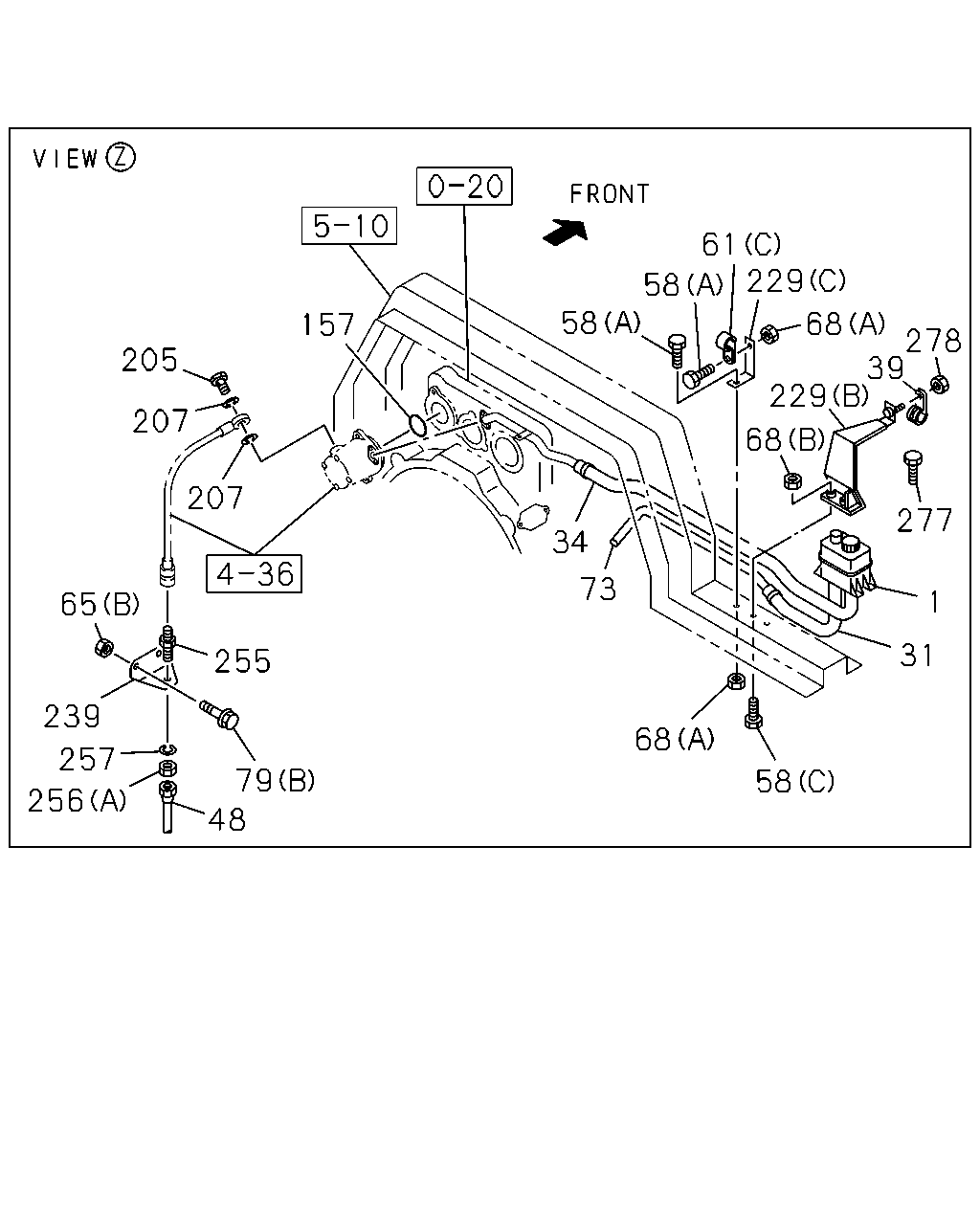

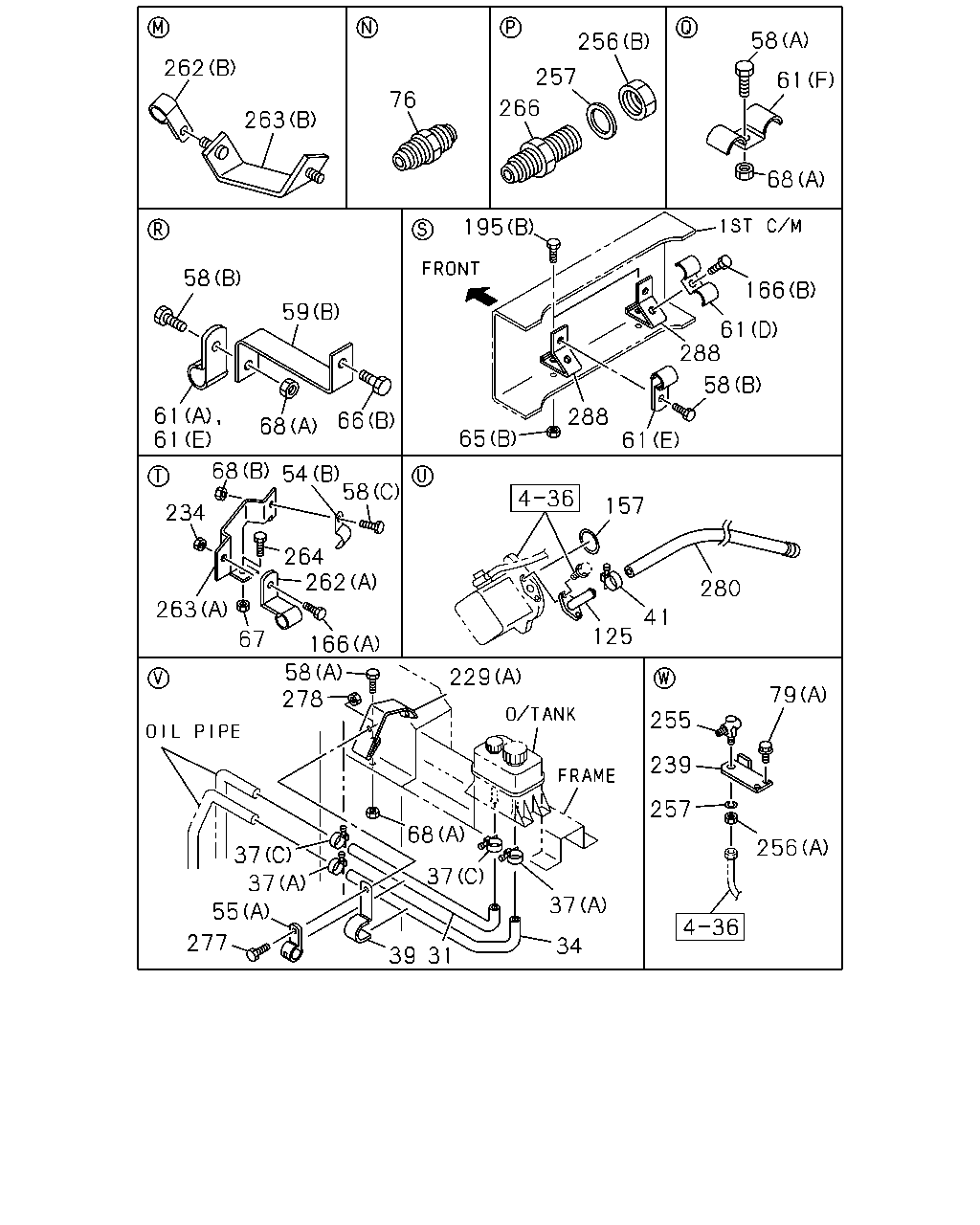

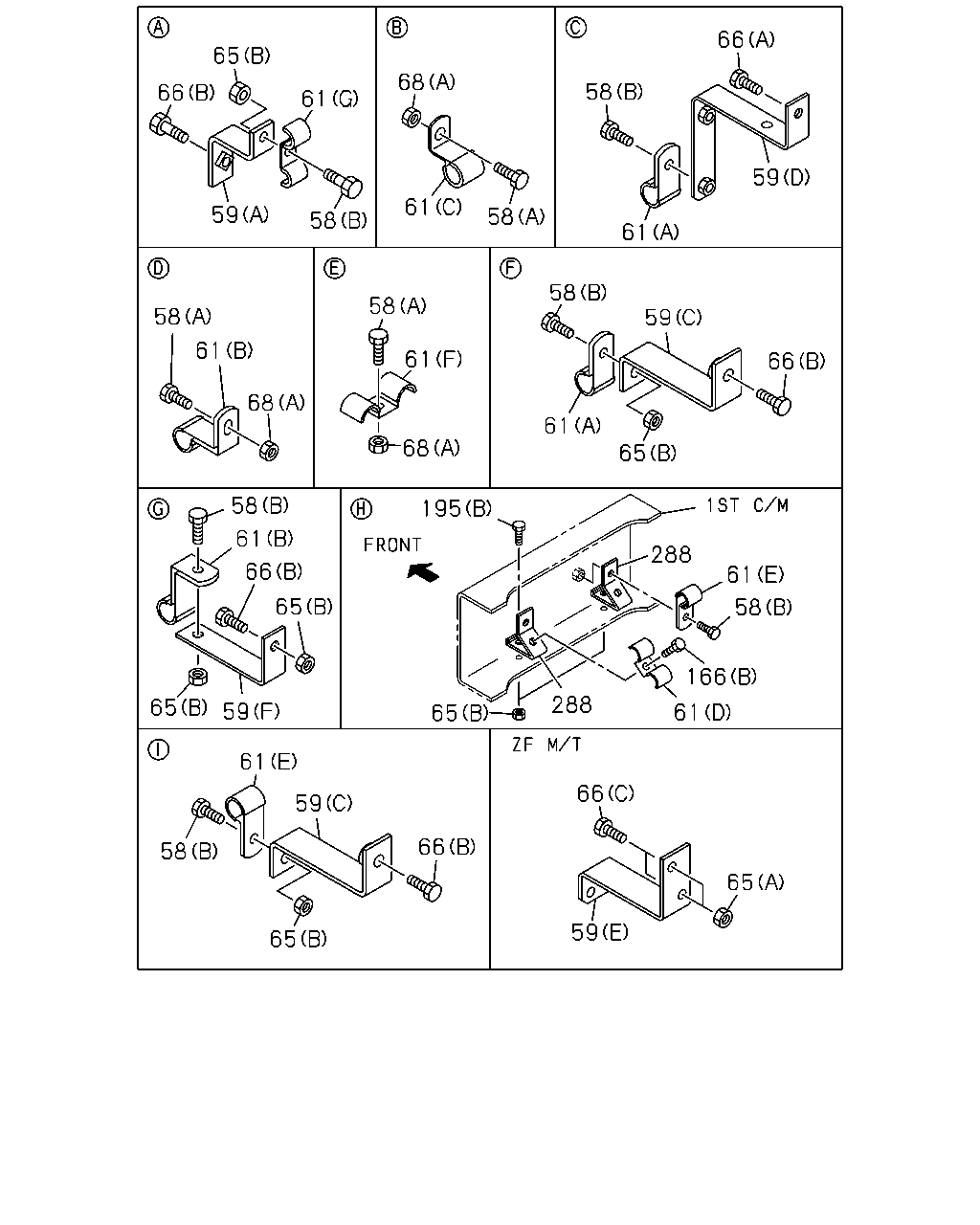

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#5620) — 690 parça

66 65 68 58 66 61 59 61 59 58 58 61 58 58 58 59 61 61 66 68 61 68 65 58 195 61 288 66 61 65 58 166 65 288 65 59 61 61 66 59 66 58 65 59 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-9904
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-881-0	01	1	9603-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (A)	1-47475-881-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (G)	1-47477-145-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (E)	1-47477-235-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-47476-712-0	01	1	9603-9608
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-34656-009-0	01	1	9609-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	02	1	9603-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9603-9712
61	CLIP; OIL PIPE (F) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904
61	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9603-9608
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9603-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> L TYPE ENG<90L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9904
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 L=20	9-09525-535-0	02	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9608
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904
61	CLIP; OIL PIPE (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9603-
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9801-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	06	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9607-9904
65	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10	9-09110-510-0	02	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10 FLANGE	0-91150-210-0	02	1	9607-9712
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X25 FLANGE	0-28080-825-0	04	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X30 FLANGE	0-28680-830-0	04	1	9607-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
68	NUT; CLIP,OIL PIPE (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8	9-09110-508-0	03	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10	9-09110-510-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10 FLANGE	0-91150-210-0	01	1	9607-
166	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
166	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-
166	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
166	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-
195	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
195	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-
195	BOLT; BRKT 6WA1 TC-S(56L) (C) M10X35 FLANGE	0-28181-035-0	01	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (C) M10X35 FLANGE	0-28181-035-0	01	1	9811-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9603-

58 256 262 257 61 76 266 263 68 195 58 166 59 61 288 58 61 61 288 66 68 65 61 68 54 58 157 234 264 262 280 263 41 125 67 166 58 278 229 79 255 239 257 68 256 37 37 37 37 55 277 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9603-9806
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9603-9806
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9603-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9603-9806
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9603-
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9603-
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	01	1	9603-9710
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	02	1	9711-9806
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-041-1	02	1	9807-
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=23.6 L=35	1-09700-634-0	02	1	9603-
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	01	1	9905-
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9603-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9603-9806
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-9904
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-881-0	01	1	9603-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (A)	1-47475-881-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (G)	1-47477-145-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (E)	1-47477-235-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-47476-712-0	01	1	9603-9608
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-34656-009-0	01	1	9609-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	02	1	9603-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9603-9712
61	CLIP; OIL PIPE (F) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904
61	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9603-9608
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9603-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> L TYPE ENG<90L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9904
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 L=20	9-09525-535-0	02	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9608
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904
61	CLIP; OIL PIPE (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9603-
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9801-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	06	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9607-9904
65	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10	9-09110-510-0	02	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10 FLANGE	0-91150-210-0	02	1	9607-9712
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X25 FLANGE	0-28080-825-0	04	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X30 FLANGE	0-28680-830-0	04	1	9607-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712
67	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606
67	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8	9-09110-508-0	03	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10	9-09110-510-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10 FLANGE	0-91150-210-0	01	1	9607-
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9603-
79	BOLT; BRKT L TYPE ENG<90L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
79	BOLT; BRKT L TYPE ENG<90L> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
125	CONNECTOR; P/S PUMP L TYPE ENG<90L>	1-13313-532-0	01	1	9603-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9603-
166	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
166	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-
166	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
166	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-
195	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
195	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-
195	BOLT; BRKT 6WA1 TC-S(56L) (C) M10X35 FLANGE	0-28181-035-0	01	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (C) M10X35 FLANGE	0-28181-035-0	01	1	9811-
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9603-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9603-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9603-
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9603-
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9603-9904
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9603-9904
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9904
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9603-
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9603-9810
256	NUT; UNION L TYPE ENG<90L> (B) M22	9-09111-522-0	01	1	9811-
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9604-9609
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9610-9810
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9610-9810
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9811-
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9603-9702
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9603-
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-3	01	1	9603-
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9607-
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9810
266	UNION; OIL PIPE,P/S L TYPE ENG<90L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9811-
277	BOLT; HOSE CLIP L TYPE ENG<90L> M10X20 FLANGE	0-28081-020-0	01	1	9603-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
277	BOLT; HOSE CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
278	NUT; HOSE CLIP L TYPE ENG<90L> M10	9-09110-510-0	01	1	9603-9606
278	NUT; HOSE CLIP L TYPE ENG<90L> M10 FLANGE	0-91150-210-0	01	1	9607-
278	NUT; HOSE CLIP V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606
278	NUT; HOSE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9603-9704
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9705-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9603-

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 37 73 31 73 37 55 33 34 34 55 37 75 48 75 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9603-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9603-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9603-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9603-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9603-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9603-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9603-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9603-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9603-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9603-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9603-9806
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9603-9806
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9603-
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9603-9806
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9603-9904
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L>	1-21115-570-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L>	1-21116-847-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L>	1-21116-402-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L>	1-21116-848-0	01	1	0007-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21115-569-0	01	1	9603-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-186-0	01	1	9905-9905
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-470-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L>	1-21115-381-0	01	1	9603-9608
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21115-754-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21116-350-0	01	1	9905-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21115-753-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21116-349-0	01	1	9905-
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9603-
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9603-9806
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9603-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-450-0	01	1	9603-0006
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> (B)	1-21115-622-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21116-403-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION ZF M/T<X9E> L TYPE ENG<90L> (B)	1-21115-586-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-531-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION V TYPE ENG<91L> ISUZU M/T<X9A> (B)	1-21115-531-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-532-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION V TYPE ENG<91L> ZF M/T<X9E> (B)	1-21115-532-0	01	1	9905-

1 2 7 20 19 12 19 15 8 2 3 111 111 5 195 195 25 31 268 34 280 261 48 75 45 75 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9603-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9603-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9603-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9603-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9603-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9603-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9603-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9603-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9603-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9603-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9603-9904
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L>	1-21115-570-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION V TYPE ENG<91L>	1-21116-847-0	01	1	0007-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L>	1-21116-402-0	01	1	9905-0006
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L>	1-21116-848-0	01	1	0007-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21115-569-0	01	1	9603-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-186-0	01	1	9905-9905
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-470-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L>	1-21115-381-0	01	1	9603-9608
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21115-754-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21116-350-0	01	1	9905-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21115-753-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21116-349-0	01	1	9905-
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=23.6 L=35	1-09700-634-0	02	1	9603-
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	01	1	9905-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-9904
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-450-0	01	1	9603-0006
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A> L TYPE ENG<90L> (B)	1-21115-622-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21116-403-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION ZF M/T<X9E> L TYPE ENG<90L> (B)	1-21115-586-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L) ISUZU M/T<X9A> (B)	1-21115-531-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION V TYPE ENG<91L> ISUZU M/T<X9A> (B)	1-21115-531-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION 10PE1S(60L) ZF M/T<X9E> (B)	1-21115-532-0	01	1	9603-9904
75	PIPE; OIL,P/S,UNION TO UNION V TYPE ENG<91L> ZF M/T<X9E> (B)	1-21115-532-0	01	1	9905-
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A)	1-13345-186-0	01	1	9603-9810
111	BRACKET; OIL PIPE L TYPE ENG<90L> (A)	1-13345-186-0	01	1	9811-
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-13345-187-0	01	1	9603-9810
111	BRACKET; OIL PIPE L TYPE ENG<90L> (B)	1-13345-187-0	01	1	9811-
195	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
195	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-
195	BOLT; BRKT 6WA1 TC-S(56L) (C) M10X35 FLANGE	0-28181-035-0	01	1	9603-9810
195	BOLT; BRKT L TYPE ENG<90L> (C) M10X35 FLANGE	0-28181-035-0	01	1	9811-
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9603-0104
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9603-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21116-854-0	01	1	0007-
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9603-9704
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9705-

64 58 65 61 58 59 66 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=23.6 L=35	1-09700-634-0	02	1	9603-
54	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	01	1	9905-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-9904
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-881-0	01	1	9603-9904
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (A)	1-47475-881-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (G)	1-47477-145-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (E)	1-47477-235-0	01	1	9905-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-47476-712-0	01	1	9603-9608
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (F)	1-34656-009-0	01	1	9609-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9603-
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	02	1	9603-
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9603-9712
61	CLIP; OIL PIPE (F) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904
61	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9603-9608
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9603-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> L TYPE ENG<90L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9904
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 L=20	9-09525-535-0	02	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9608
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904
61	CLIP; OIL PIPE (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9603-
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9801-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-0103
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	0104-
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	06	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9607-9904
65	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10	9-09110-510-0	02	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10 FLANGE	0-91150-210-0	02	1	9607-9712
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9905-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X25 FLANGE	0-28080-825-0	04	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (B) M8X30 FLANGE	0-28680-830-0	04	1	9607-
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
66	BOLT; BRKT,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712

61 229 58 58 68 157 278 39 229 205 207 68 207 277 34 73 1 65 31 255 239 68 257 79 48 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9603-
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9603-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21115-569-0	01	1	9603-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-186-0	01	1	9905-9905
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L>	1-21116-470-0	01	1	9906-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L>	1-21115-381-0	01	1	9603-9608
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21115-754-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E> V TYPE ENG<91L>	1-21116-350-0	01	1	9905-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21115-753-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT V TYPE ENG<91L> ISUZU M/T<X9A>	1-21116-349-0	01	1	9905-
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606
58	BOLT; CLIP ISUZU M/T<X9A> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP ZF M/T<X9E> L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-9904
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
58	BOLT; CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-
61	CLIP; OIL PIPE (F) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904
61	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9603-9608
61	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=13 L=20	9-09525-235-0	01	1	9609-9904
61	CLIP; OIL PIPE (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9603-9904
61	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702
61	CLIP; OIL PIPE ISUZU M/T<X9A> L TYPE ENG<90L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> L TYPE ENG<90L> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9904
61	CLIP; OIL PIPE L TYPE ENG<90L> (H) ID=16 L=20	9-09525-535-0	02	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9603-9608
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE V TYPE ENG<91L> (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9904
61	CLIP; OIL PIPE (G) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-
61	CLIP; OIL PIPE ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9603-
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702
61	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	01	1	9801-9904
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	03	1	9905-
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8	9-09110-508-0	01	1	9603-9606
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9712
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9801-9904
65	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9905-
65	NUT; BRKT V TYPE ENG<91L> (B) M8	9-09110-508-0	06	1	9603-9606
65	NUT; BRKT V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	06	1	9607-9904
65	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10	9-09110-510-0	02	1	9603-9606
65	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (A) M10 FLANGE	0-91150-210-0	02	1	9607-9712
68	NUT; CLIP,OIL PIPE (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8	9-09110-508-0	03	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (A) M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10	9-09110-510-0	01	1	9603-9606
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (B) M10 FLANGE	0-91150-210-0	01	1	9607-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9603-
79	BOLT; BRKT L TYPE ENG<90L> (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
79	BOLT; BRKT L TYPE ENG<90L> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9603-
205	BOLT; EYE,FLEX HOSE,P/S V TYPE ENG<91L> M18X40	1-09675-153-0	01	1	9603-
207	GASKET; FLEX HOSE,P/S PUMP V TYPE ENG<91L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9603-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9603-
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9603-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9603-
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9603-9904
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9603-9904
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9904
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9603-
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9603-9810
256	NUT; UNION L TYPE ENG<90L> (B) M22	9-09111-522-0	01	1	9811-
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9603-9603
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9604-9609
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9610-9810
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9610-9810
257	WASHER; LK,UNION L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9811-
277	BOLT; HOSE CLIP L TYPE ENG<90L> M10X20 FLANGE	0-28081-020-0	01	1	9603-9606
277	BOLT; HOSE CLIP L TYPE ENG<90L> M10X25 FLANGE	0-28681-025-0	01	1	9607-
277	BOLT; HOSE CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
277	BOLT; HOSE CLIP V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
278	NUT; HOSE CLIP L TYPE ENG<90L> M10	9-09110-510-0	01	1	9603-9606
278	NUT; HOSE CLIP L TYPE ENG<90L> M10 FLANGE	0-91150-210-0	01	1	9607-
278	NUT; HOSE CLIP V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606
278	NUT; HOSE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
