Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶

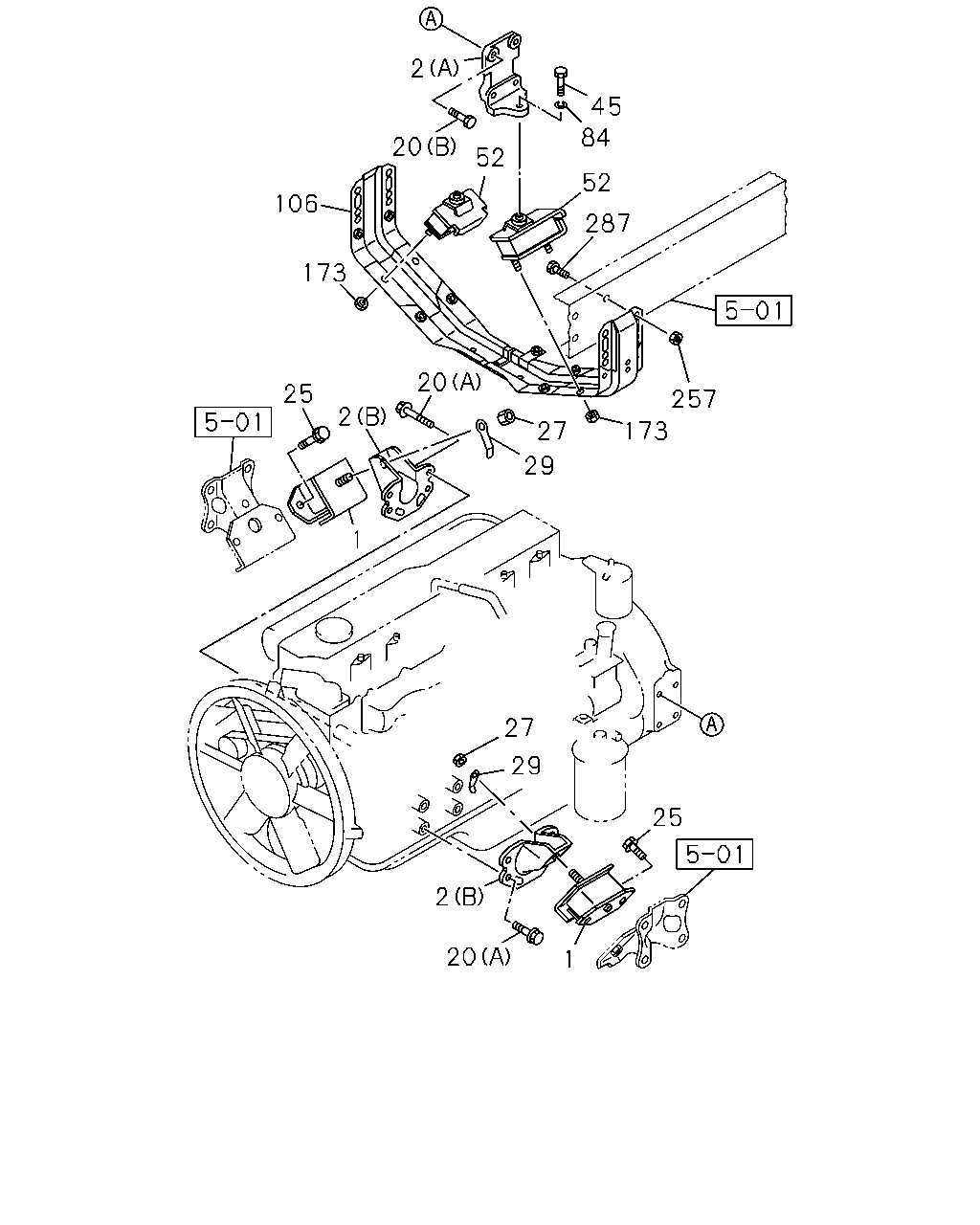

0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#56199) — 19 parça
25
20
1
2
29
27
29
27
20
2
25
173
106
173
257
287
52
84
45
2
52
20
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-184-0
02
1
0906-
2
FOOT; ENG
(A)
8-94390-563-1
01
1
0906-
2
FOOT; ENG
(A)
8-94390-564-1
01
1
0906-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
0906-1008
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1009-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0906-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0906-1008
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1009-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0906-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0906-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
0906-
45
BOLT; CUSHION RUBBER TO FRAME
M16X60
0-10956-660-0
02
1
0906-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-314-1
01
1
0906-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-313-1
01
1
0906-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=17
9-09164-516-0
02
1
0906-
106
MEMBER; MTG,RR
1-53221-199-0
01
1
0906-
173
NUT; ENG MTG RR TO FRAME
M12 FLANGE
0-91180-212-0
04
1
0906-
257
NUT; MEMBER
M12 FLANGE
0-91180-212-0
08
1
0906-
287
BOLT; MEMBER
M12X40 FLANGE
0-28651-240-0
08
1
0906-
