2-85 — POWER TAKE OFF CONTROL (#56191) — 31 parça

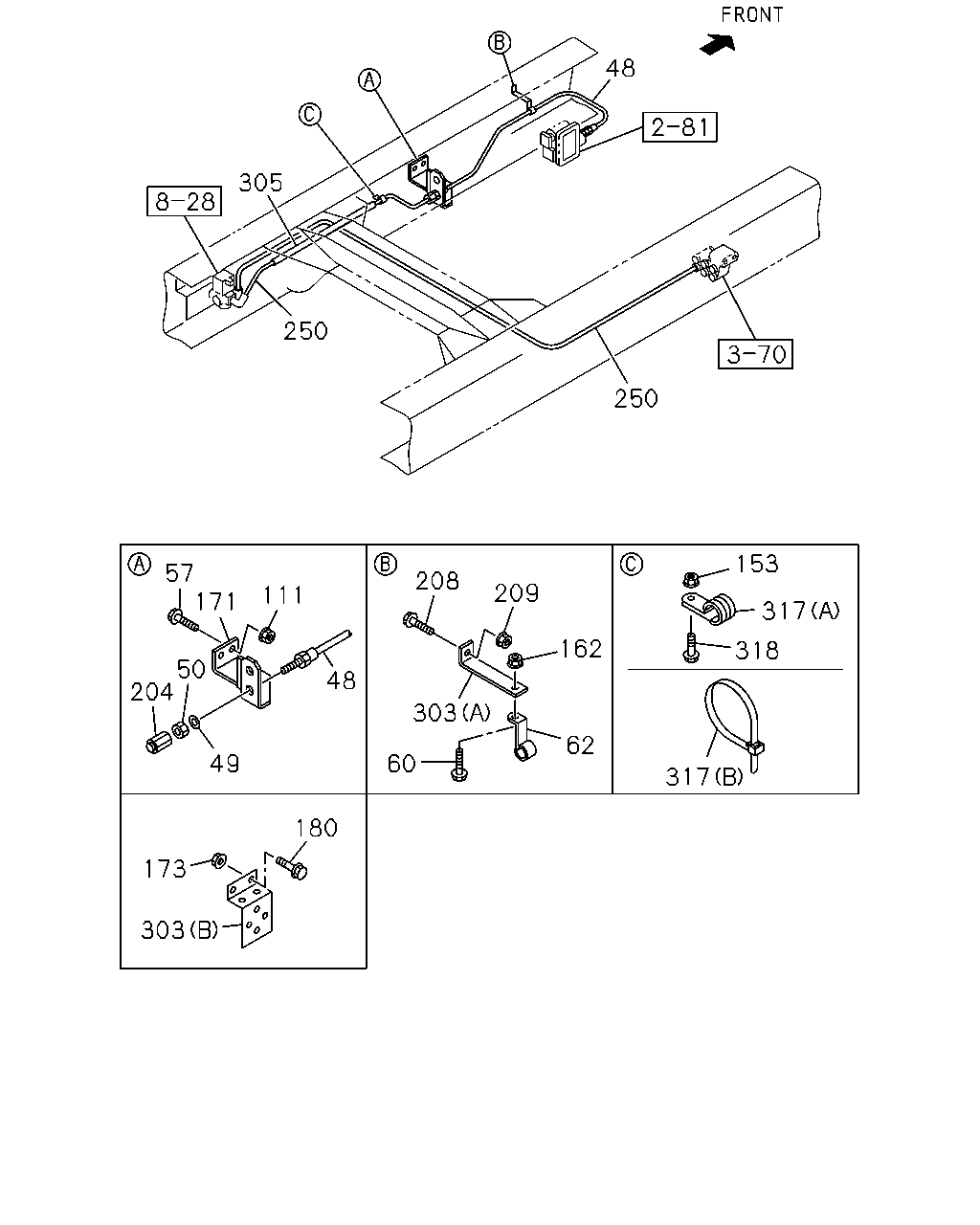

çizim 167691
48 305 250 250 153 57 171 208 209 111 317 162 318 50 204 48 303 62 49 60 317 180 173 303
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) FUEL TANK 400L<SDH> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=840 		1-09363-852-0 01 1 1008-
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) FUEL TANK 550L<EDP> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=880 		1-09363-819-0 01 1 1008-
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) FUEL TANK 400L<SDH> L=400 		1-09363-606-0 01 1 1008-
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) FUEL TANK 550L<EDP> L=420 		1-09363-633-0 01 1 1008-
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1008-1008
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-812-0 01 1 1009-
50 NUT; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1008-
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
60 BOLT; CLIP FIX
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1008-
111 NUT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1008-
153 NUT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1008-
162 NUT; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-088-0 01 1 1008-
173 NUT; BRKT
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1008-
180 BOLT; BRKT
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1008-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1008-
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) FUEL TANK 550L<EDP>,FUEL TANK 400L<SDH> SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1008-
303 BRACKET; CLIP
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82698-424-0 01 1 1008-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=95 		1-82699-085-0 01 1 1008-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1008-
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) ID=11 L=16 		0-95235-025-0 01 1 1008-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=350 		1-09707-183-0 01 1 1008-
318 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
çizim 167701
3 3 1 3 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> 		1-79907-045-1 01 1 1008-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1008-
55 GROMMET; CABLE
EXC. PTO CONTROL<SV6> 		1-09983-068-0 01 1 1008-
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 1008-
