2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#56185) — 87 parça

503 503 477 477 385 441 442 441 457 310 390 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

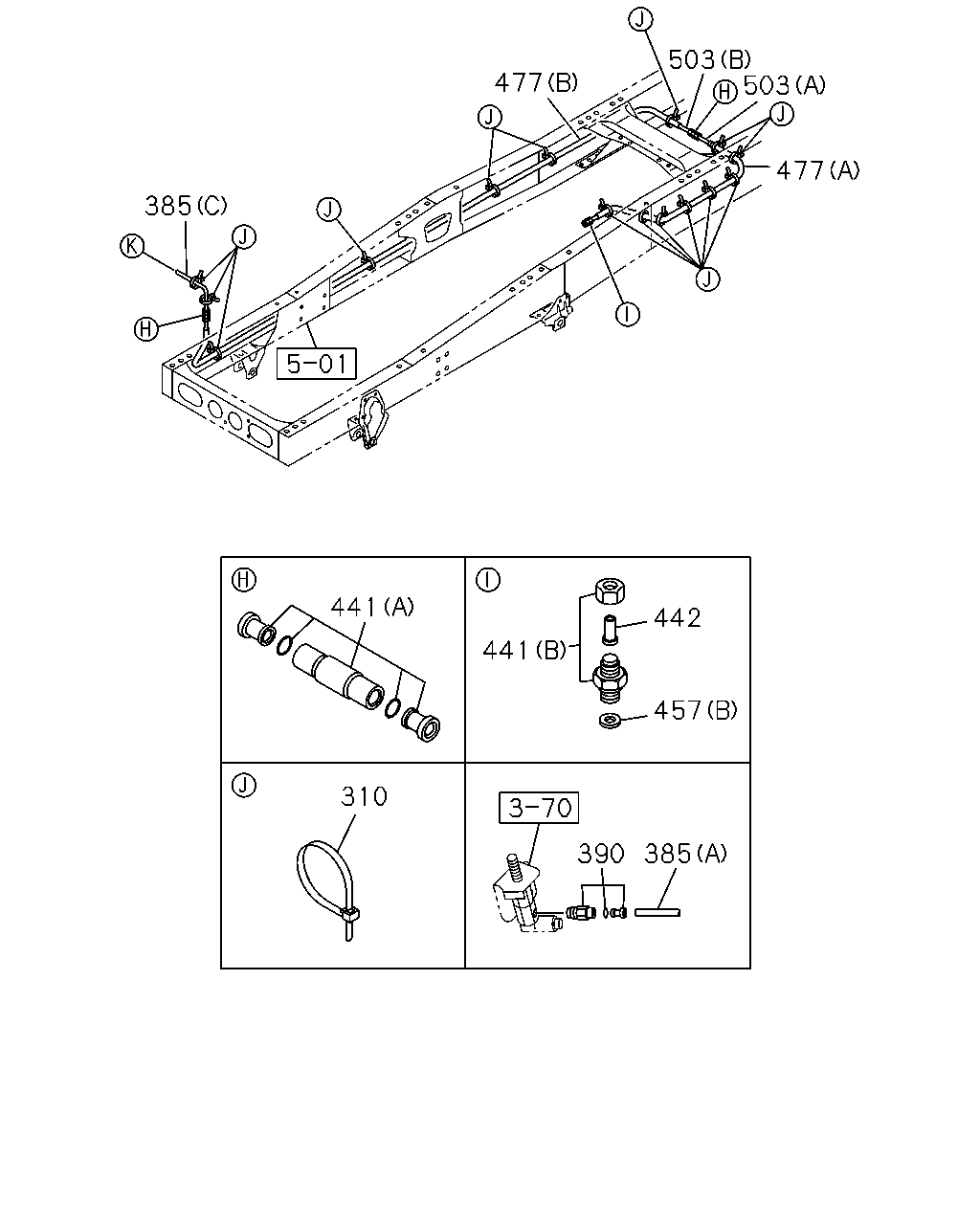

310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	01	1	1111-
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	19	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z)	1-09661-174-0	01	1	1008-
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	1008-
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A)	8-98134-660-0	02	1	1008-
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1008-
457	GASKET (A)	1-09623-594-0	04	1	1008-
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7	1-87411-018-0	01	1	1008-
503	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
503	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	1008-

501 387 460 385 385 460 386 460 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

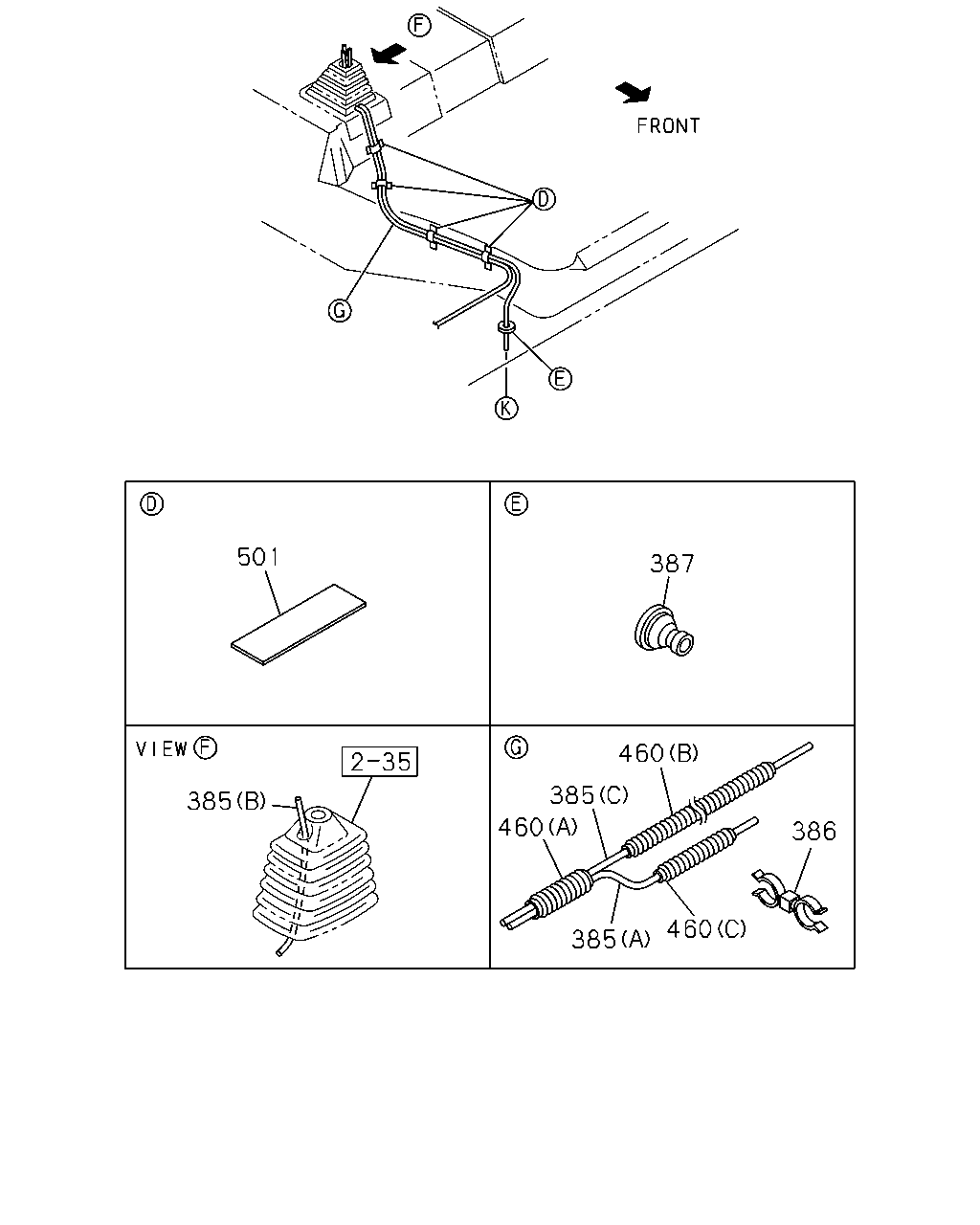

385	TUBE; NYLON MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	1008-
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z)	1-09332-102-0	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (C) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) 100X40	1-72498-022-1	04	1	1008-

457 118 365 88 118 457 457 268 88 118 100 115 118 457 253 254 16 253 458 283 71 35 34 46 103 162 33 34 466 46 242 100 34 507 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

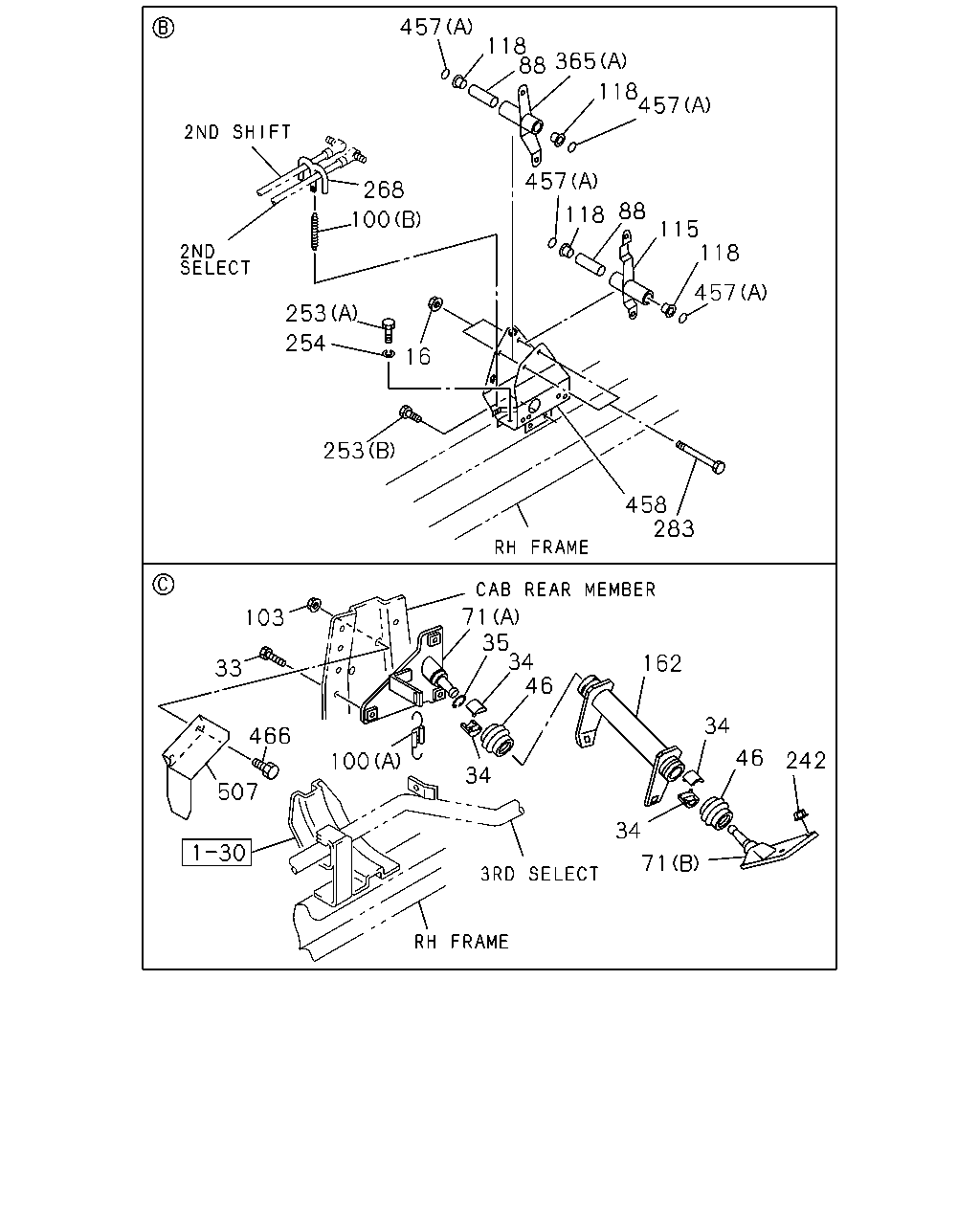

16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	1008-
33	BOLT; BRKT,3RD RELAY LEVER M10X35 FLANGE	0-28651-035-0	03	1	1008-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	1008-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	1008-
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	1008-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	1008-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	1008-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	1008-
100	SPRING (A)	1-09583-319-0	01	1	1008-
100	SPRING (B)	1-09583-351-0	01	1	1008-
103	NUT M8 FLANGE	0-91180-108-0	01	1	1008-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	1008-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	1008-
162	LEVER; RELAY	1-33651-625-1	01	1	1008-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1008-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	1008-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28051-025-0	02	1	1008-
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	1008-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	1008-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1008-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-
365	LEVER; RELAY,SELECT EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	1-33659-242-1	01	1	1008-
365	LEVER; RELAY,SELECT EURO4 SPECIFICATION<KBT> (B)	1-33651-832-1	01	1	1008-
457	GASKET (A)	1-09623-594-0	04	1	1008-
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	1008-
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-
507	PROTECTOR; HEAT	1-14181-287-1	01	1	1008-

359 362 104 87 364 113 245 375 112 166 257 165 246 264 363 367 264 246 111 154 151 367 367 110 367 111 165 362 359 365 104 375 110 245 154 104 257 166 112 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

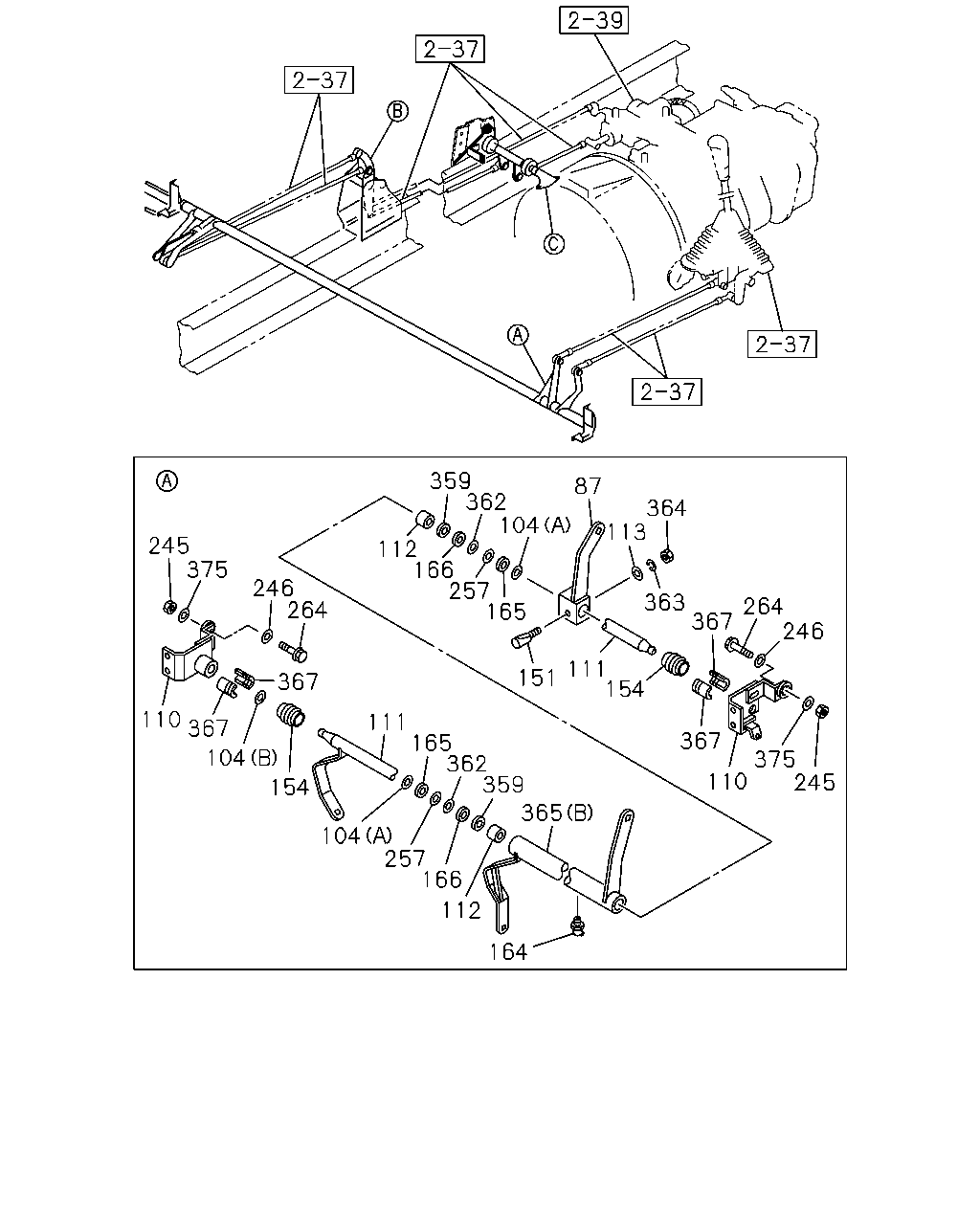

87	LEVER; RELAY,SELECT EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-33651-666-0	01	1	1008-
87	LEVER; RELAY,SELECT EURO4 SPECIFICATION<KBT>	1-33651-833-0	01	1	1008-
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	1008-
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	1008-
110	BRACKET; RELAY LEVER,1ST EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-33657-617-0	01	1	1008-
110	BRACKET; RELAY LEVER,1ST EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-33657-618-0	01	1	1008-
110	BRACKET; RELAY LEVER,1ST EURO4 SPECIFICATION<KBT>	1-33657-858-0	01	1	1008-
110	BRACKET; RELAY LEVER,1ST EURO4 SPECIFICATION<KBT>	1-33657-859-0	01	1	1008-
111	SHAFT; RELAY LEVER,1ST EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-33659-239-0	01	1	1008-
111	SHAFT; RELAY LEVER,1ST EURO4 SPECIFICATION<KBT>	1-33659-252-0	01	1	1008-
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	1008-
113	WASHER; RELAY LEVER EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ID=10.5	0-91610-710-0	01	1	1206-1407
113	WASHER; RELAY LEVER ID=10.5	0-91610-710-0	01	1	1408-
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	1008-1205
113	WASHER; RELAY LEVER EURO4 SPECIFICATION<KBT> ID=10.5 OD=26	9-09160-710-0	01	1	1206-1407
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	1008-
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	1008-
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1008-1205
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD EURO4 SPECIFICATION<KBT> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1206-1407
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	1008-
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	1008-
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	1008-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	1008-
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	1008-
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28651-030-0	02	1	1008-
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	1008-
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	1008-
362	SHIM	1-09503-172-0	AR	1	1008-
363	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	01	1	1008-
364	NUT; KEY BOLT M10	0-91111-510-0	01	1	1008-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-
365	LEVER; RELAY,SELECT EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	1-33659-242-1	01	1	1008-
365	LEVER; RELAY,SELECT EURO4 SPECIFICATION<KBT> (B)	1-33651-832-1	01	1	1008-
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	1008-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1008-
