2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#56184) — 53 parça

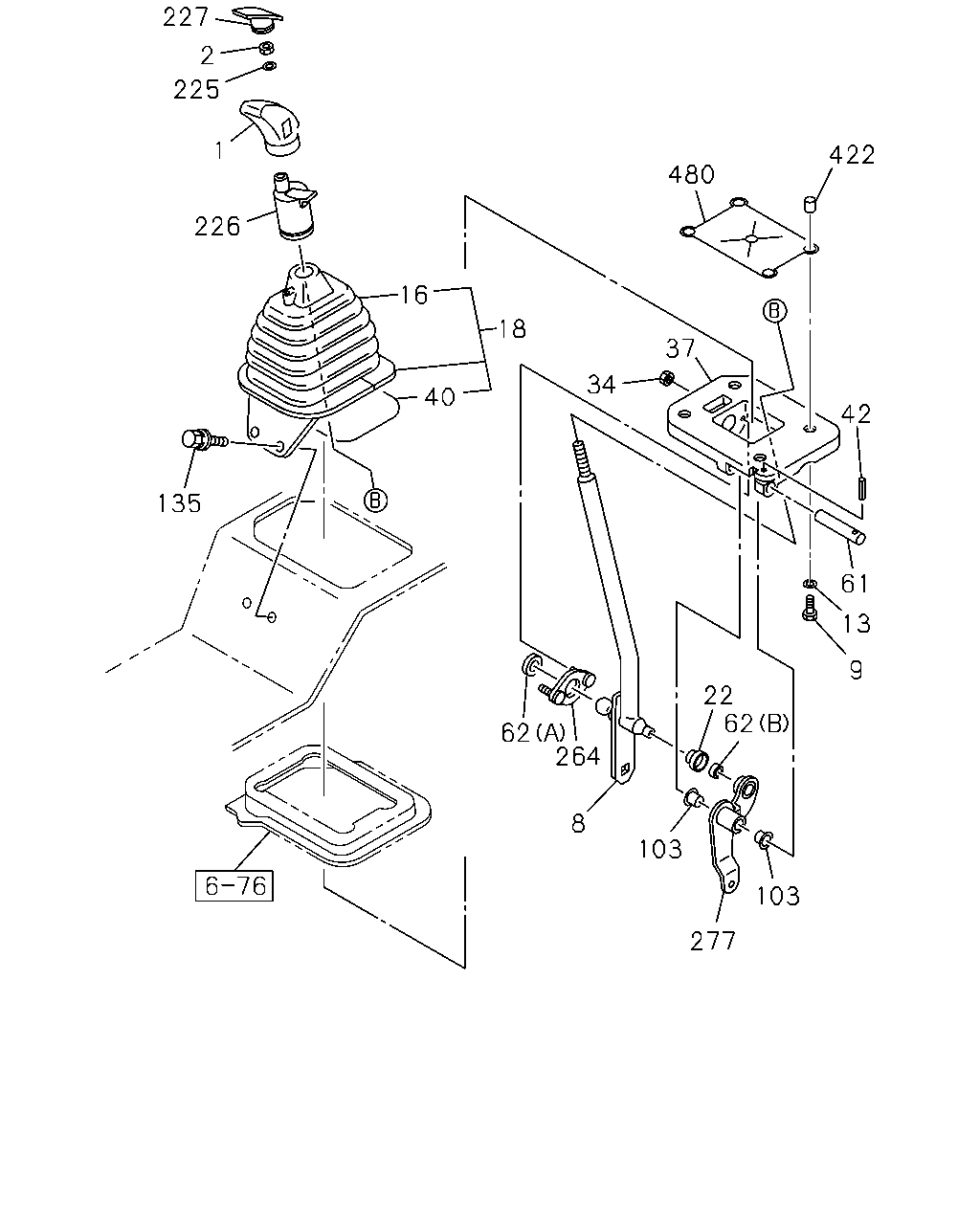

çizim 167661
227 2 225 1 422 480 226 16 18 37 34 40 42 135 61 13 9 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1008-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 1008-
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91180-210-0 01 1 1008-
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		1-33613-344-0 01 1 1008-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 1008-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 1008-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1008-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 1008-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 1008-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-436-2 01 1 1008-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 1008-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1008-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1008-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1008-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1008-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1008-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1008-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1008-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1008-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1008-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1008-
226 VALVE; SELECTOR
MJX16P M/T(Y3Z) 		1-33710-008-0 01 1 1008-
227 COVER; KNOB
MJX16P M/T(Y3Z) 		1-33619-219-0 01 1 1008-
264 PLATE; COVER 1-33619-469-0 01 1 1008-
277 LEVER; RELAY 1-33651-636-1 01 1 1008-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1008-
480 RUBBER; COVER 8-98119-365-0 01 1 1008-

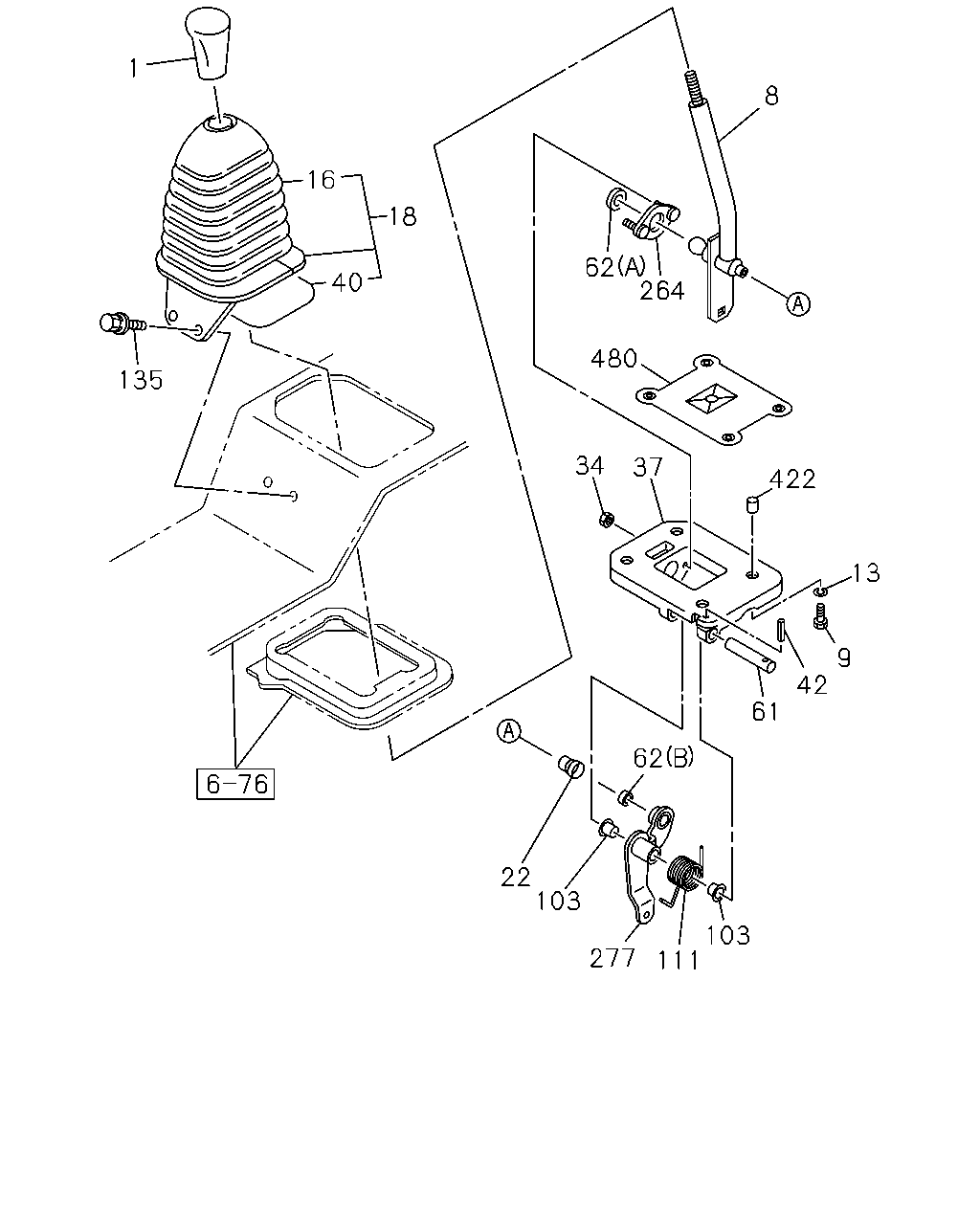

çizim 167746
1 8 16 18 62 40 264 480 135 34 37 422 13 9 42 61 62 22 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1008-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 1008-
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		1-33613-344-0 01 1 1008-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 1008-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 1008-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1008-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 1008-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 1008-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-436-2 01 1 1008-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 1008-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1008-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1008-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1008-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1008-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1008-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1008-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1008-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1008-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1008-
111 SPRING
MJT7S M/T(Y3E) 		1-09585-136-0 01 1 1008-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-
264 PLATE; COVER 1-33619-469-0 01 1 1008-
277 LEVER; RELAY 1-33651-636-1 01 1 1008-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1008-
480 RUBBER; COVER 8-98119-365-0 01 1 1008-
