Isuzu WW
▶
TRUCKS
▶
EXR
▶
11273 - EXR LHD EURO2/3/4 WITH 3STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#56183) — 340 parça
Tümü
A - MJT7S M/T
B - MJX16P M/T
◀
[230A] MJT;UPPER (58 parça)
[230A] MJX;SWITCH (21 parça)
[230A] MJX;OTHER PARTS NO.1 (4 parça)
[230A] MJX;OTHER PARTS NO.2 (54 parça)
[230A] MJX;UPPER (66 parça)
[230A] MJX;LOWER (71 parça)
[230A] MJT;LOWER (66 parça)
▶

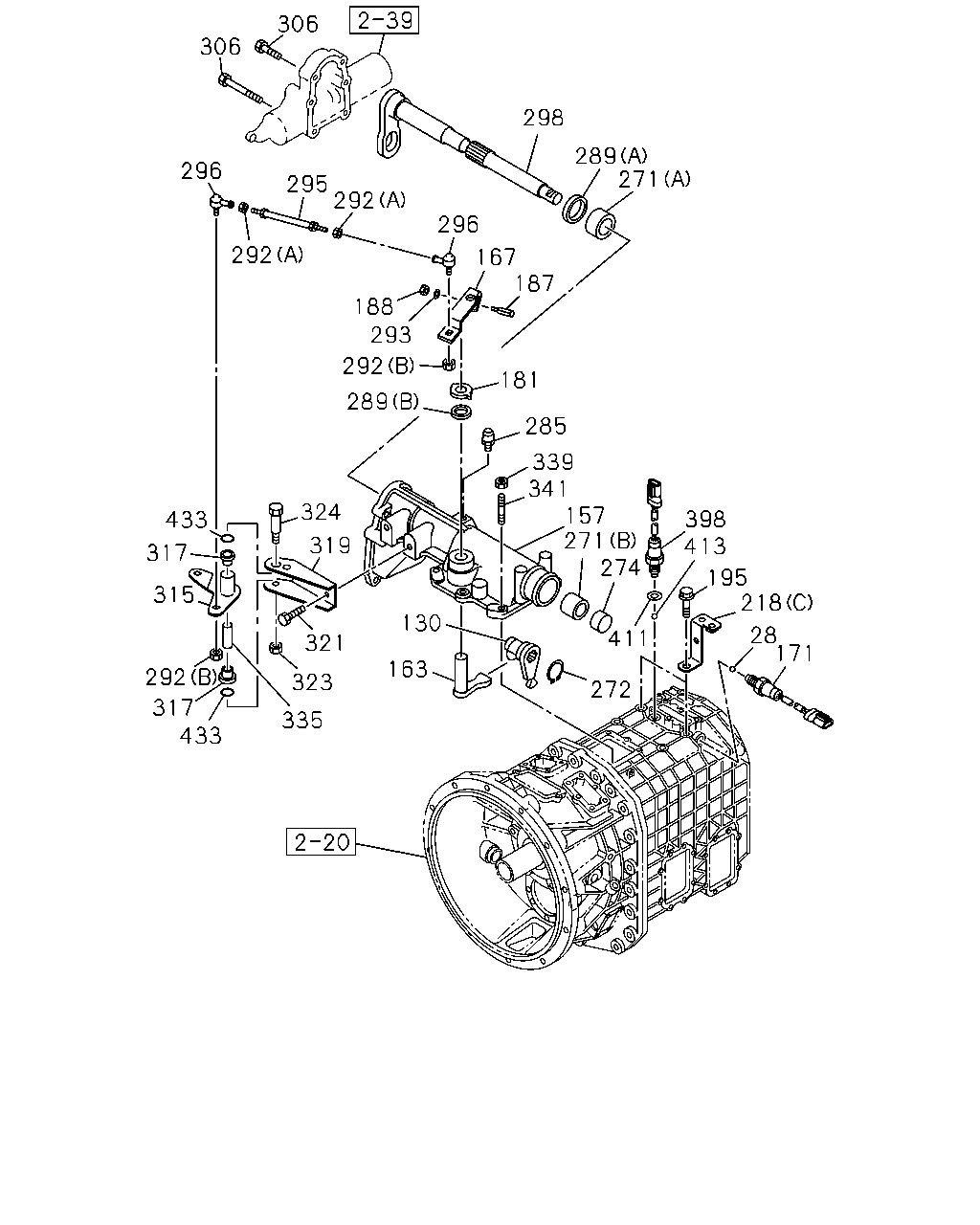

306
306
298
289
271
296
295
292
296
292
167
187
188
293
292
181
289
285
339
341
157
271
274
324
398
413
433
319
317
315
195
218
130
411
28
171
321
292
163
323
272
317
335
433
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
28
BALL; INTER LK
9-00097-501-0
04
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
02
1
1008-
●
130
LEVER; SHIFT,INTERNAL
1-33521-124-0
01
1
1008-
●
130
LEVER; SHIFT,INTERNAL
1-33521-189-0
01
1
1008-
●
157
BOX; QUAD,TRANS
1-33541-507-3
01
1
1008-1311
●
157
BOX; QUAD,TRANS
8-98231-390-0
01
1
1312-
●
157
BOX; QUAD,TRANS
1-33541-534-0
01
1
1008-
●
163
LEVER; SELECT,INTERNAL
1-33522-162-1
01
1
1008-
●
163
LEVER; SELECT,INTERNAL
1-33522-171-1
01
1
1008-
●
167
LEVER; SELECT,EXTERNAL
1-33521-163-0
01
1
1008-
●
167
LEVER; SELECT,EXTERNAL
1-33521-190-0
01
1
1008-1506
●
167
LEVER; SELECT,EXTERNAL
8-98232-015-0
01
1
1507-
●
171
SWITCH; NEUTRAL
8-98166-989-0
01
1
1008-1109
●
●
171
SWITCH; NEUTRAL
8-97640-725-0
01
1
1110-
●
●
181
WASHER; PL,SELECT LEVER
OD=40
1-09532-008-0
01
1
1008-
●
●
187
BOLT; SELECT LEVER
M8X42
1-33659-045-0
01
1
1008-
●
●
188
NUT; SELECT LEVER
M8 FLANGE
1-09440-062-1
01
1
1008-
●
●
195
BOLT
M10X25 FLANGE
0-28751-025-0
02
1
1008-
●
195
BOLT
M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(C)
1-82699-639-1
02
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(A)
1-82698-350-0
01
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(B)
1-82698-490-0
01
1
1008-
●
271
BUSHING; QUAD BOX
(B) ID=20 OD=23
1-33549-016-0
01
1
1008-
●
●
271
BUSHING; QUAD BOX
(A) ID=28 OD=32
1-33549-104-0
01
1
1008-
●
●
272
RING; SNAP,QUAD BOX
1-09588-175-0
01
1
1008-
●
272
RING; SNAP,QUAD BOX
1-09588-213-0
01
1
1008-
●
274
COVER; SHAFT,QUAD BOX
9-33545-017-1
01
1
1008-
●
274
COVER; SHAFT,QUAD BOX
1-33545-010-0
01
1
1008-
●
285
BREATHER; AIR,QUAD BOX
1-33149-008-0
01
1
1008-
●
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1008-
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30
1-09625-386-0
01
1
1008-
●
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41
1-09625-647-0
01
1
1008-
●
●
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
1008-
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1008-
●
●
293
WASHER; PL,TAPER BOLT
ID=8.4 OD=22
0-91610-708-0
01
1
1008-
●
●
295
ROD; LINK,RELAY LEVER
9-08400-816-0
01
1
1008-
●
295
ROD; LINK,RELAY LEVER
1-33652-924-0
01
1
1008-
●
296
ROD END
1-09760-108-0
02
1
1008-
●
●
298
SHAFT; SHIFT LEVER
1-33522-180-0
01
1
1008-
●
298
SHAFT; SHIFT LEVER
1-33522-196-0
01
1
1008-
●
306
BOLT; SHIFT ASSISTOR
M10X45 FLANGE
0-28151-045-0
02
1
1008-
●
●
306
BOLT; SHIFT ASSISTOR
M10X80 FLANGE
0-28151-080-0
04
1
1008-
●
●
315
LEVER; SELECT
1-33651-754-0
01
1
1008-
●
●
317
BUSHING; LEVER
1-09330-119-0
02
1
1008-
●
●
319
BRACKET; SELECT LEVER
1-33657-753-0
01
1
1008-
●
●
321
BOLT; BRKT,RELAY LEVER
M10X22 FLANGE
0-28181-022-0
02
1
1008-
●
●
323
NUT; LK,SELECT LEVER
1-33659-219-0
01
1
1008-
●
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28081-060-0
01
1
1008-
●
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-220-0
01
1
1008-
●
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
06
1
1008-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
05
1
1008-
●
341
STUD; QUAD BOX
M10X25 L=40
0-44011-025-0
06
1
1008-
●
341
STUD; QUAD BOX
M10X35 L=50
0-44011-035-0
05
1
1008-
●
398
SWITCH; REV LAMP
8-98042-853-0
01
1
1008-1209
●
●
398
SWITCH; REV LAMP
8-98228-482-0
01
1
1210-
●
●
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
1008-
●
413
BALL; BACK SW
9-00097-013-0
01
1
1008-
●
433
GASKET; BUSHING
1-09623-636-0
02
1
1008-
●
●

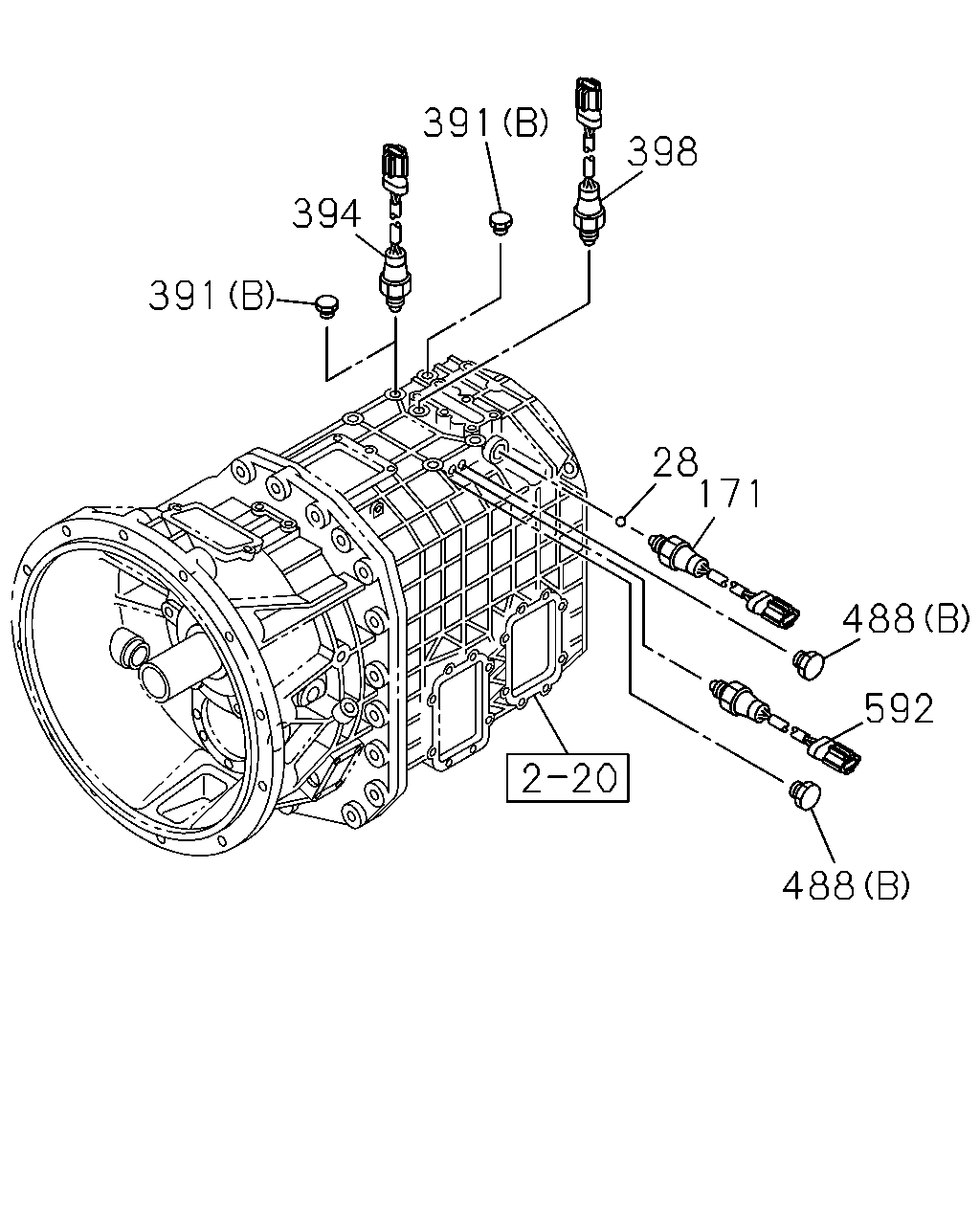

391
398
394
391
28
171
488
592
488
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
28
BALL; INTER LK
9-00097-501-0
04
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
02
1
1008-
●
171
SWITCH; NEUTRAL
8-98166-989-0
01
1
1008-1109
●
●
171
SWITCH; NEUTRAL
8-97640-725-0
01
1
1110-
●
●
391
PLUG; SW HOLE
(A) M12X9
9-99202-312-0
01
1
1008-1304
●
391
PLUG; SW HOLE
(A) M12X9
0-92002-412-0
01
1
1305-
●
391
PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9
8-98042-944-0
02
1
1008-
●
391
PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9
8-98042-944-0
02
1
1008-
●
391
PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9
8-98042-944-0
01
1
1008-
●
391
PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9
8-98042-944-0
01
1
1008-
●
394
SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12)
8-98042-853-0
01
1
1008-1209
●
394
SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2)
8-98042-853-0
01
1
1008-1209
●
394
SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12)
8-98228-482-0
01
1
1210-
●
394
SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2)
8-98228-482-0
01
1
1210-
●
398
SWITCH; REV LAMP
8-98042-853-0
01
1
1008-1209
●
●
398
SWITCH; REV LAMP
8-98228-482-0
01
1
1210-
●
●
488
PLUG; AIR CYL
(B) M14X9
8-98042-944-0
02
1
1008-
●
488
PLUG; AIR CYL
(A)
9-09204-510-0
01
1
1008-
●
488
PLUG; AIR CYL
(C) PT1/4
9-99204-513-0
01
1
1008-
●
592
SWITCH; POSITION
8-98042-853-0
01
1
1008-1209
●
592
SWITCH; POSITION
8-98228-482-0
01
1
1210-
●

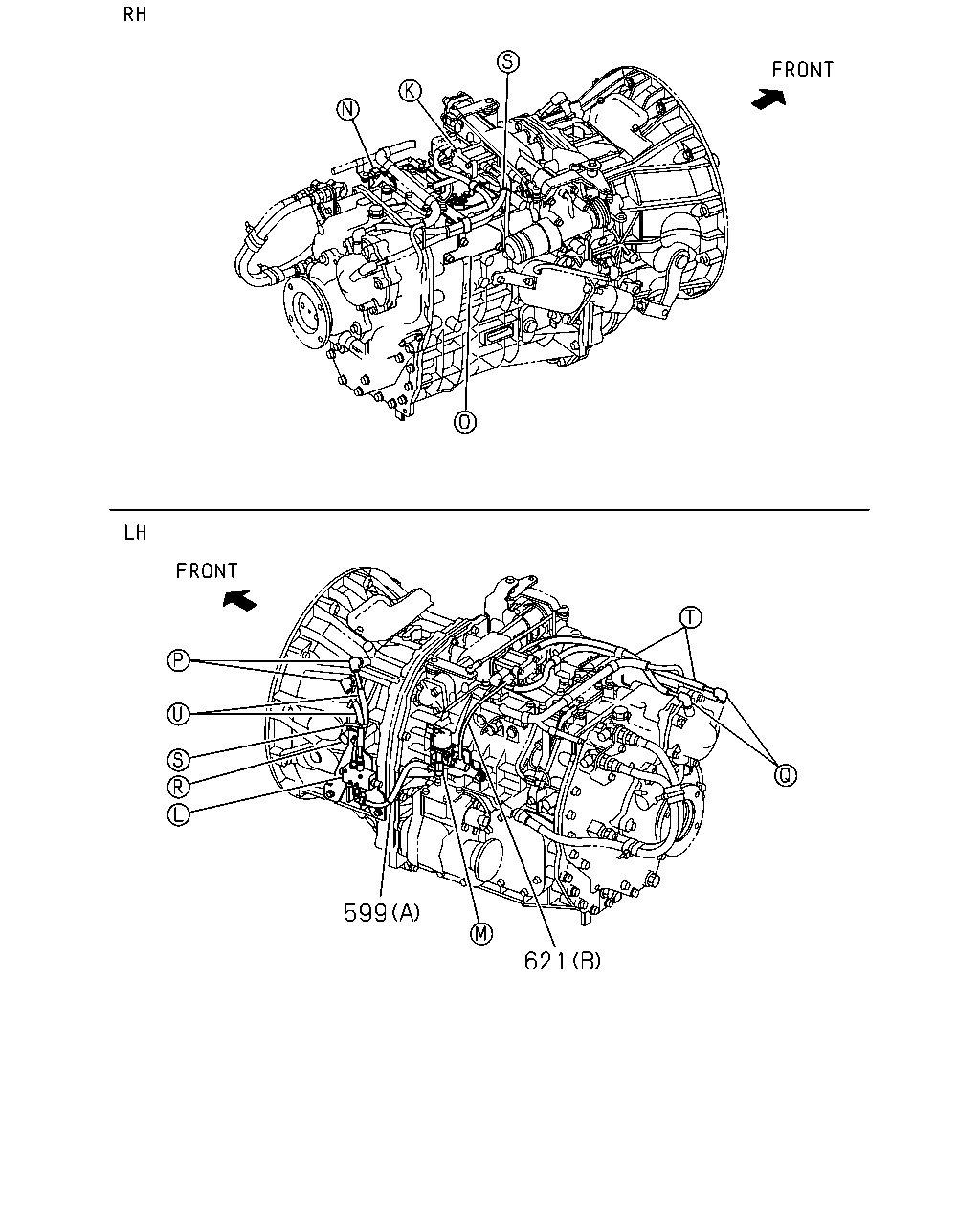

599
621
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
599
TUBE; NYLON
(A)
1-09377-036-1
01
1
1008-
●
599
TUBE; NYLON
(B)
1-33712-027-0
01
1
1008-
●
621
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
1008-
●
621
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
03
1
1008-
●

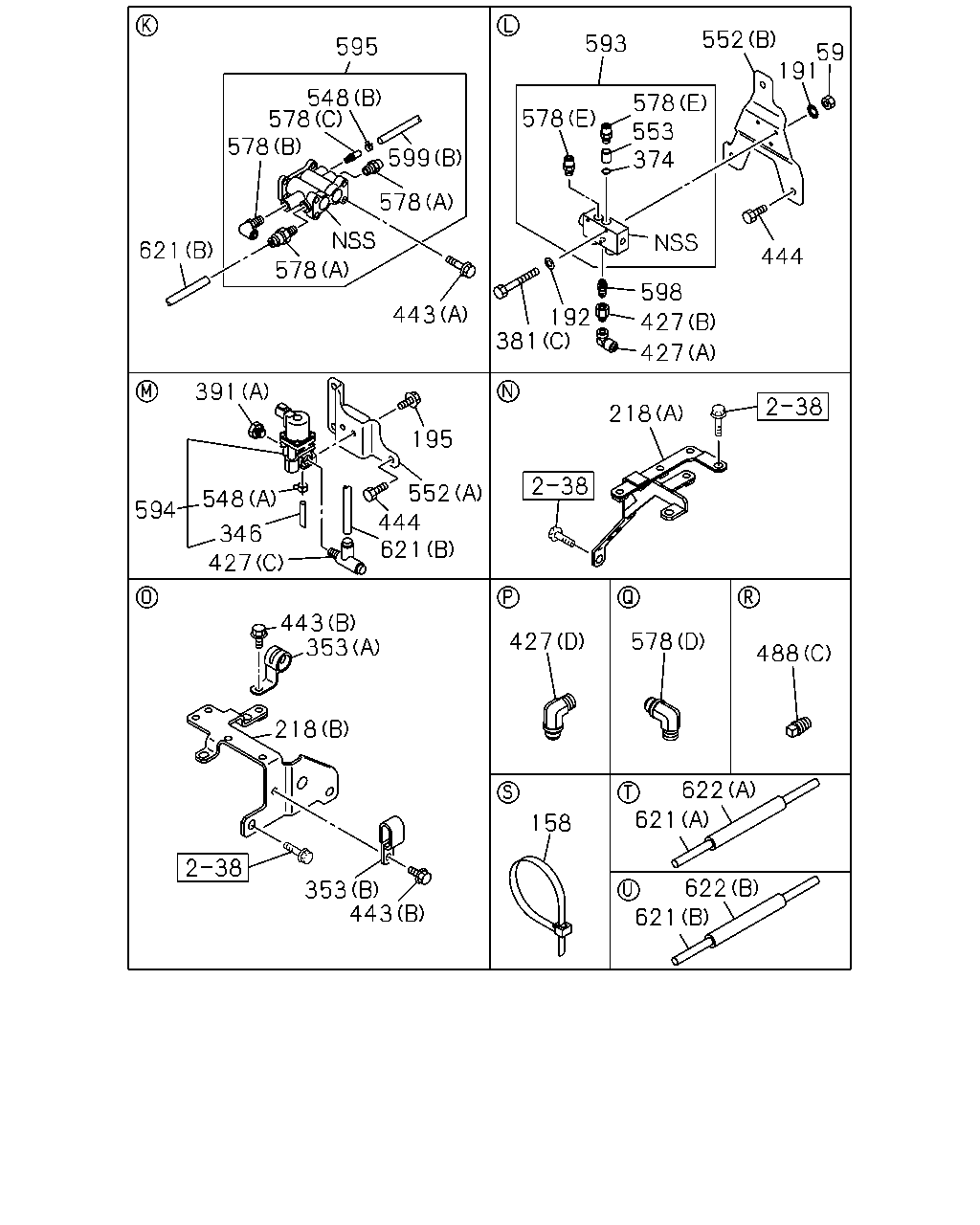

595
548
578
578
621
578
578
599
443
391
594
548
346
427
621
444
552
195
443
353
218
353
443
158
427
621
622
621
622
578
488
218
381
192
427
427
598
444
374
553
578
593
578
552
59
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
59
NUT
1-09440-068-0
04
1
1008-
●
158
CLIP; HARNESS
L=140
5-09707-031-1
02
1
1008-
●
191
WASHER; LK
1-09503-311-0
04
1
1008-
●
192
WASHER; PL
ID=16.5
9-09857-042-0
01
1
1008-
●
192
WASHER; PL
1-09503-310-0
04
1
1008-
●
195
BOLT
M10X25 FLANGE
0-28751-025-0
02
1
1008-
●
195
BOLT
M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(C)
1-82699-639-1
02
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(A)
1-82698-350-0
01
1
1008-
●
218
BRACKET; HARNESS CLIP,QUAD BOX
(B)
1-82698-490-0
01
1
1008-
●
346
HOSE; AIR
ID=6 OD=9 L=150
1-33739-872-0
01
1
1402-
●
353
CLIP; AIR HOSE
(A) ID=20 H=23 L=27
1-09700-861-0
01
1
1008-
●
353
CLIP; AIR HOSE
(B) ID=16X2 L=40
9-09535-576-0
01
1
1008-
●
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T).
1-09661-390-0
01
1
1008-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1008-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1008-
●
●
381
BOLT
(C)
1-09044-111-0
04
1
1008-
●
391
PLUG; SW HOLE
(A) M12X9
9-99202-312-0
01
1
1008-1304
●
391
PLUG; SW HOLE
(A) M12X9
0-92002-412-0
01
1
1305-
●
391
PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9
8-98042-944-0
02
1
1008-
●
391
PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9
8-98042-944-0
02
1
1008-
●
391
PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9
8-98042-944-0
01
1
1008-
●
391
PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9
8-98042-944-0
01
1
1008-
●
427
CONNECTOR; NYLON TUBE
(D) DIN8 & R1/4 ELBOW
1-09660-649-1
02
1
1008-
●
427
CONNECTOR; NYLON TUBE
(A) DIN8 ELBOW
1-09660-924-1
01
1
1008-
●
427
CONNECTOR; NYLON TUBE
(B) M12
1-09660-931-1
01
1
1008-
●
427
CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY
1-09660-997-0
01
1
1008-
●
443
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
443
BOLT; CLIP
(A) M8X90 FLANGE
0-28050-890-0
04
1
1008-
●
444
BOLT; CLIP
M10X25 FLANGE
0-28751-025-0
06
1
1008-
●
488
PLUG; AIR CYL
(B) M14X9
8-98042-944-0
02
1
1008-
●
488
PLUG; AIR CYL
(A)
9-09204-510-0
01
1
1008-
●
488
PLUG; AIR CYL
(C) PT1/4
9-99204-513-0
01
1
1008-
●
548
CLIP; HOSE
(A) ID=7.8
8-94246-958-0
11
1
1008-1401
●
548
CLIP; HOSE
(A) ID=7.8
8-94246-958-0
01
1
1402-
●
548
CLIP; HOSE
(B)
1-33712-028-0
01
1
1008-
●
552
BRACKET
(A)
1-33719-082-0
01
1
1008-
●
552
BRACKET
(B)
1-33719-083-0
01
1
1008-
●
553
ADAPTER; AIR
1-09661-389-0
01
1
1008-
●
578
CONNECTOR
(D) DIN8 & R1/4 ELBOW
1-09660-649-1
02
1
1008-
●
578
CONNECTOR
(E)
1-09661-292-0
02
1
1008-
●
578
CONNECTOR
(A)
1-33712-023-0
02
1
1008-
●
578
CONNECTOR
(B)
1-33712-024-0
01
1
1008-
●
578
CONNECTOR
(C)
1-33712-026-0
01
1
1008-
●
593
VALVE; SPLITTER
1-33712-009-0
01
1
1008-
●
594
VALVE; MAGNETIC,AIR
1-82564-069-0
01
1
1008-
●
595
VALVE; RANGE
1-33712-029-1
01
1
1008-
●
598
UNION
M10 & M12 STRAIGHT
1-09664-235-0
01
1
1008-
●
599
TUBE; NYLON
(A)
1-09377-036-1
01
1
1008-
●
599
TUBE; NYLON
(B)
1-33712-027-0
01
1
1008-
●
621
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
1008-
●
621
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
03
1
1008-
●
622
TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10
1-87410-088-0
02
1
1008-
●
622
TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10
1-87411-019-0
02
1
1008-
●

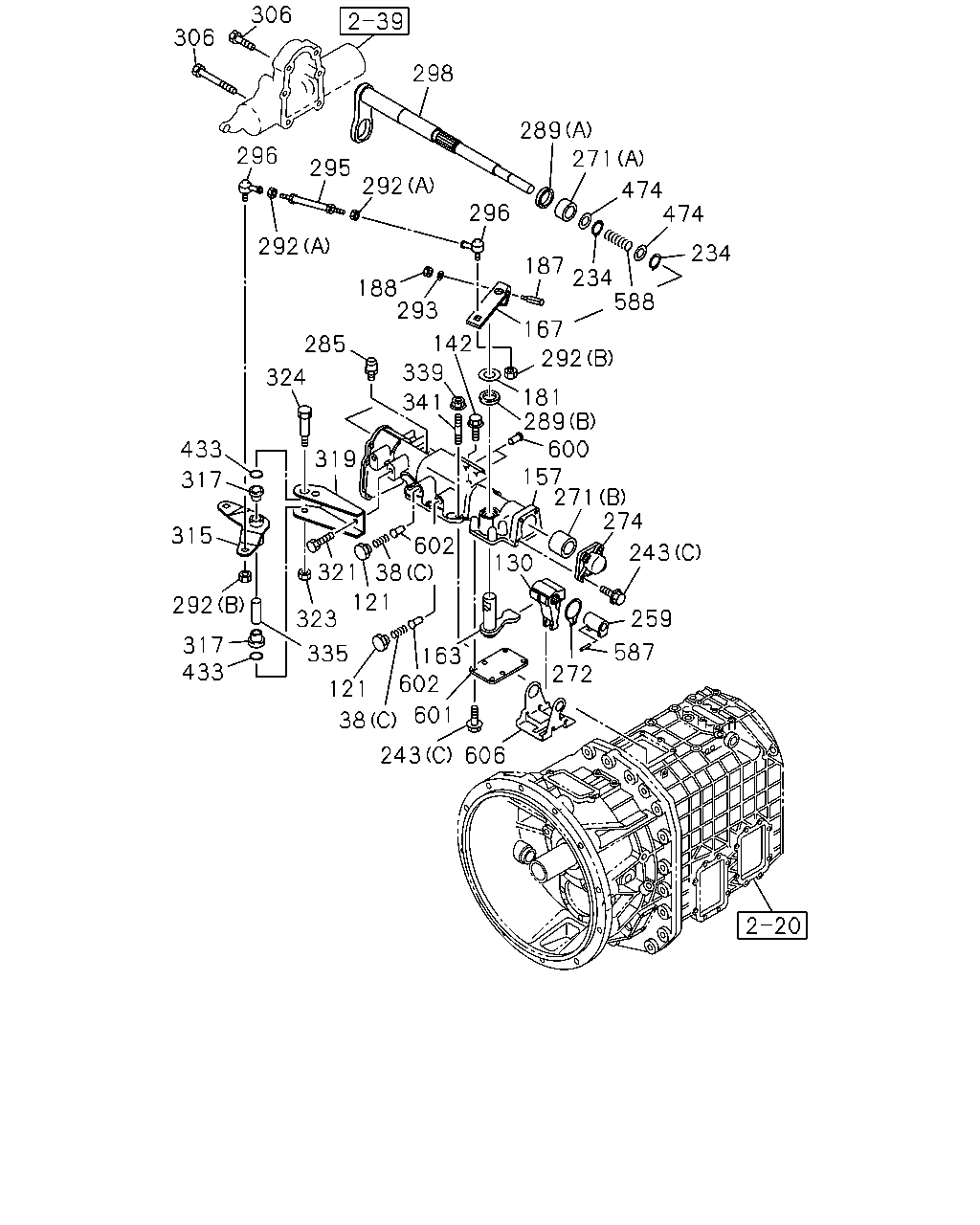

306
306
298
289
296
271
295
292
474
474
296
292
234
187
234
588
188
293
142
167
285
292
339
324
181
289
600
157
271
274
341
433
319
317
602
38
130
315
243
321
121
292
259
323
317
433
163
602
587
335
272
121
601
38
243
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
38
SPRING; DETENT
(A)
1-09580-379-0
04
1
1008-
●
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
1008-
●
38
SPRING; DETENT
(D)
1-09580-379-0
03
1
1008-
●
38
SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
(C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
EXC. CHINA EQUIPMENT(YT2) (C) BLUE
1-09580-580-0
01
1
1008-
●
121
PLUG; DETENT SPR
M16X12
0-92002-416-0
01
1
1008-
●
121
PLUG; DETENT SPR
M14X9
8-98042-944-0
02
1
1008-
●
130
LEVER; SHIFT,INTERNAL
1-33521-124-0
01
1
1008-
●
130
LEVER; SHIFT,INTERNAL
1-33521-189-0
01
1
1008-
●
142
BOLT; QUAD BOX
M10X30 FLANGE
0-28751-030-0
01
1
1008-
●
157
BOX; QUAD,TRANS
1-33541-507-3
01
1
1008-1311
●
157
BOX; QUAD,TRANS
8-98231-390-0
01
1
1312-
●
157
BOX; QUAD,TRANS
1-33541-534-0
01
1
1008-
●
163
LEVER; SELECT,INTERNAL
1-33522-162-1
01
1
1008-
●
163
LEVER; SELECT,INTERNAL
1-33522-171-1
01
1
1008-
●
167
LEVER; SELECT,EXTERNAL
1-33521-163-0
01
1
1008-
●
167
LEVER; SELECT,EXTERNAL
1-33521-190-0
01
1
1008-1506
●
167
LEVER; SELECT,EXTERNAL
8-98232-015-0
01
1
1507-
●
181
WASHER; PL,SELECT LEVER
OD=40
1-09532-008-0
01
1
1008-
●
●
187
BOLT; SELECT LEVER
M8X42
1-33659-045-0
01
1
1008-
●
●
188
NUT; SELECT LEVER
M8 FLANGE
1-09440-062-1
01
1
1008-
●
●
234
RING; SNAP
ID=14.7
0-91800-616-0
02
1
1008-
●
243
BOLT; COVER
(A) M10X30 FLANGE
0-28151-030-0
08
1
1008-
●
243
BOLT; COVER
(B) M10X28 FLANGE REAMER
8-97365-375-0
04
1
1008-
●
243
BOLT; COVER
(C) M8X35 FLANGE
0-28650-835-0
10
1
1008-
●
259
GUIDE; SELECT,CONT BOX
1-33519-135-0
01
1
1008-
●
271
BUSHING; QUAD BOX
(B) ID=20 OD=23
1-33549-016-0
01
1
1008-
●
●
271
BUSHING; QUAD BOX
(A) ID=28 OD=32
1-33549-104-0
01
1
1008-
●
●
272
RING; SNAP,QUAD BOX
1-09588-175-0
01
1
1008-
●
272
RING; SNAP,QUAD BOX
1-09588-213-0
01
1
1008-
●
274
COVER; SHAFT,QUAD BOX
9-33545-017-1
01
1
1008-
●
274
COVER; SHAFT,QUAD BOX
1-33545-010-0
01
1
1008-
●
285
BREATHER; AIR,QUAD BOX
1-33149-008-0
01
1
1008-
●
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1008-
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30
1-09625-386-0
01
1
1008-
●
●
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41
1-09625-647-0
01
1
1008-
●
●
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
1008-
●
●
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1008-
●
●
293
WASHER; PL,TAPER BOLT
ID=8.4 OD=22
0-91610-708-0
01
1
1008-
●
●
295
ROD; LINK,RELAY LEVER
9-08400-816-0
01
1
1008-
●
295
ROD; LINK,RELAY LEVER
1-33652-924-0
01
1
1008-
●
296
ROD END
1-09760-108-0
02
1
1008-
●
●
298
SHAFT; SHIFT LEVER
1-33522-180-0
01
1
1008-
●
298
SHAFT; SHIFT LEVER
1-33522-196-0
01
1
1008-
●
306
BOLT; SHIFT ASSISTOR
M10X45 FLANGE
0-28151-045-0
02
1
1008-
●
●
306
BOLT; SHIFT ASSISTOR
M10X80 FLANGE
0-28151-080-0
04
1
1008-
●
●
315
LEVER; SELECT
1-33651-754-0
01
1
1008-
●
●
317
BUSHING; LEVER
1-09330-119-0
02
1
1008-
●
●
319
BRACKET; SELECT LEVER
1-33657-753-0
01
1
1008-
●
●
321
BOLT; BRKT,RELAY LEVER
M10X22 FLANGE
0-28181-022-0
02
1
1008-
●
●
323
NUT; LK,SELECT LEVER
1-33659-219-0
01
1
1008-
●
●
324
BOLT; SHAFT
M10X60 FLANGE
0-28081-060-0
01
1
1008-
●
●
335
COLLAR; DIST,RELAY LEVER ASM
1-33659-220-0
01
1
1008-
●
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
06
1
1008-
●
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
05
1
1008-
●
341
STUD; QUAD BOX
M10X25 L=40
0-44011-025-0
06
1
1008-
●
341
STUD; QUAD BOX
M10X35 L=50
0-44011-035-0
05
1
1008-
●
433
GASKET; BUSHING
1-09623-636-0
02
1
1008-
●
●
474
WASHER; SPRING STOPPER
9-09160-716-0
02
1
1008-
●
587
PIN; SHIFT GUIDE
9-08160-420-0
01
1
1008-
●
588
SPRING; RETURN,QUADRANT BOX
1-09580-576-0
01
1
1008-
●
600
PLUNGER; VLV
1-33263-037-0
02
1
1008-
●
601
COVER; SHAFT,SELECT
1-33545-011-0
01
1
1008-
●
602
PLUNGER; DETENT
1-33263-037-0
02
1
1008-
●
606
INHIBITOR
1-33529-116-0
01
1
1008-
●

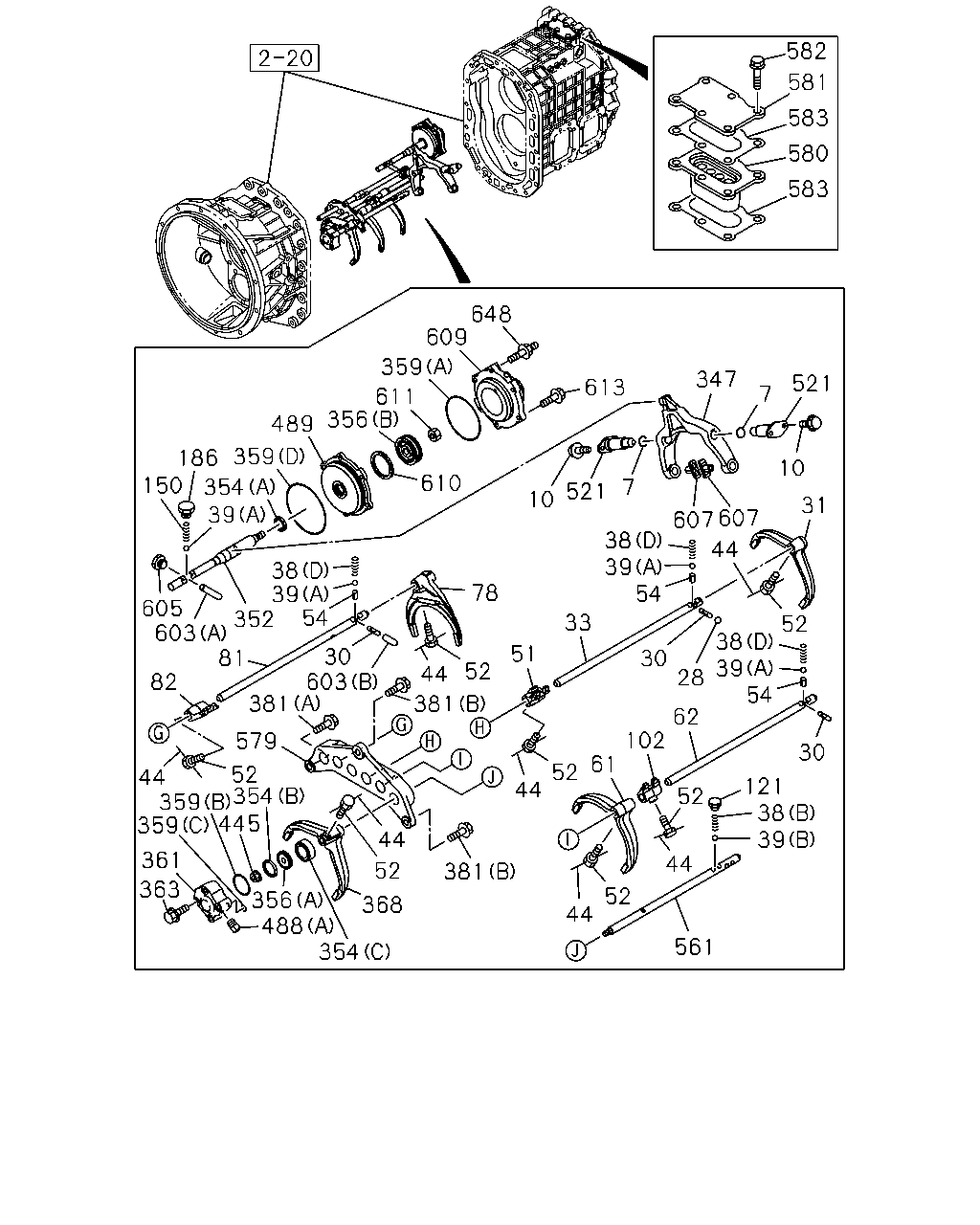

582
581
583
580
583
648
609
359
347
521
613
7
611
356
489
359
186
150
10
610
354
39
7
521
10
31
38
39
54
44
38
39
81
78
605
603
33
52
38
39
54
51
30
603
381
30
52
44
28
82
381
62
102
579
30
61
52
44
52
354
359
121
38
39
44
52
44
361
44
52
381
363
488
354
52
368
44
561
359
445
352
54
607
607
356
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4
1-09623-057-0
02
1
1008-
●
10
BOLT; SPINDLE
M10X30 FLANGE
0-28751-030-0
04
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
04
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
02
1
1008-
●
30
PIN; INTER LK
9-33534-003-0
03
1
1008-
●
●
31
ARM; SHIFT,LOW & 2ND
1-33511-587-0
01
1
1008-
●
33
ROD; SHIFT,LOW & 2ND
1-33531-458-0
01
1
1008-
●
38
SPRING; DETENT
(A)
1-09580-379-0
04
1
1008-
●
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
1008-
●
38
SPRING; DETENT
(D)
1-09580-379-0
03
1
1008-
●
38
SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
(C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
EXC. CHINA EQUIPMENT(YT2) (C) BLUE
1-09580-580-0
01
1
1008-
●
39
BALL; DETENT
(A)
1-09843-012-0
04
1
1008-
●
●
39
BALL; DETENT
(B)
9-00097-013-0
01
1
1008-
●
44
WIRE; LK
L=180
1-09780-024-0
10
1
1008-
●
44
WIRE; LK
L=200
9-08351-020-0
02
1
1008-
●
44
WIRE; LK
L=200
9-08351-020-0
07
1
1008-
●
51
BLOCK; SHIFT,1ST & 2ND
1-33511-617-0
01
1
1008-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
12
1
1008-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
07
1
1008-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
03
1
1008-
●
●
61
ARM; SHIFT,3RD & 4TH
1-33511-586-0
01
1
1008-
●
62
ROD; SHIFT,3RD & 4TH
1-33531-459-0
01
1
1008-
●
78
ARM; SHIFT,REV
1-33511-589-0
01
1
1008-
●
81
ROD; SHIFT,REV BLOCK
1-33531-457-0
01
1
1008-
●
82
BLOCK; SHIFT,REV
1-33511-600-0
01
1
1008-
●
102
BLOCK; SHIFT,3RD & 4TH
1-33511-615-0
01
1
1008-
●
121
PLUG; DETENT SPR
M16X12
0-92002-416-0
01
1
1008-
●
121
PLUG; DETENT SPR
M14X9
8-98042-944-0
02
1
1008-
●
150
SPRING; DETENT BALL
1-09580-379-0
01
1
1008-
●
186
PLUG; SHIFTER ROD
M16X12
0-92002-416-0
01
1
1008-
●
347
ARM; SHIFT,RANGE CHANGE
1-33511-585-0
01
1
1008-
●
352
ROD; SHIFT,RANGE CHANGE
1-33531-482-0
01
1
1008-
●
354
SEAL; AIR CYL
(A)
1-19387-056-0
01
1
1008-
●
354
SEAL; AIR CYL
(B)
1-33739-978-0
01
1
1008-
●
354
SEAL; AIR CYL
(C)
1-33739-981-0
01
1
1008-
●
356
PISTON; AIR CYL
(A)
1-33551-017-0
01
1
1008-
●
356
PISTON; AIR CYL
(B)
1-33551-025-0
01
1
1008-
●
359
GASKET; AIR CYL
(A) ID=124.6
1-09623-468-0
01
1
1008-
●
359
GASKET; AIR CYL
(B) ID=55.6
8-98075-598-0
01
1
1008-
●
359
GASKET; AIR CYL
(C) ID=6.8
9-09565-107-0
01
1
1008-
●
359
GASKET; AIR CYL
(D) ID=144.4
9-09920-735-0
01
1
1008-
●
361
CYLINDER; AIR,SHIFT
1-33561-019-0
01
1
1008-
●
363
BOLT; AIR CYL
M10X60 FLANGE
8-98169-763-0
04
1
1008-
●
368
ARM; SHIFT,SPLITTER GEAR
1-33511-588-0
01
1
1008-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1008-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1008-
●
●
381
BOLT
(C)
1-09044-111-0
04
1
1008-
●
445
NUT; SHIFT CYL
M12 LOCK NUT FLANGE
0-91380-012-0
01
1
1008-
●
488
PLUG; AIR CYL
(B) M14X9
8-98042-944-0
02
1
1008-
●
488
PLUG; AIR CYL
(A)
9-09204-510-0
01
1
1008-
●
488
PLUG; AIR CYL
(C) PT1/4
9-99204-513-0
01
1
1008-
●
489
COVER; AIR CYL
1-33569-052-0
01
1
1008-
●
521
SPINDLE; 6TH
1-33519-131-0
02
1
1008-
●
561
ROD; SHIFT
1-33531-466-0
01
1
1008-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-065-1
01
1
1008-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-066-2
01
1
1008-
●
580
BLOCK; INTERLOCK
1-33539-064-1
01
1
1008-
●
●
581
COVER; BLOCK
1-33141-056-0
01
1
1008-
●
●
582
BOLT; SPRING GUIDE
M10X35 FLANGE
0-28151-035-0
06
1
1008-
●
●
583
GASKET; SPRING GUIDE
1-33142-047-0
02
1
1008-
●
●
603
ROD; INTER LK
(B) L=49
1-33534-005-0
01
1
1008-
●
603
ROD; INTER LK
(A) L=77
1-33534-010-0
01
1
1008-
●
605
PLUG; INTER LK
M18X12
0-92002-418-0
01
1
1008-
●
607
PIECE; SHIFT
1-33518-010-0
02
1
1008-
●
609
BODY; AIR,CYL
1-33561-018-0
01
1
1008-
●
610
SEAL; PISTON
1-33738-054-0
01
1
1008-
●
611
NUT; SHAFT
8-97324-304-0
01
1
1008-
●
613
BOLT; AIR CYL
M10X45 FLANGE
0-28151-045-0
03
1
1008-
●
648
STUD; AIR CYL
M10X20,M10X45 L=75
8-98010-335-0
03
1
1008-
●

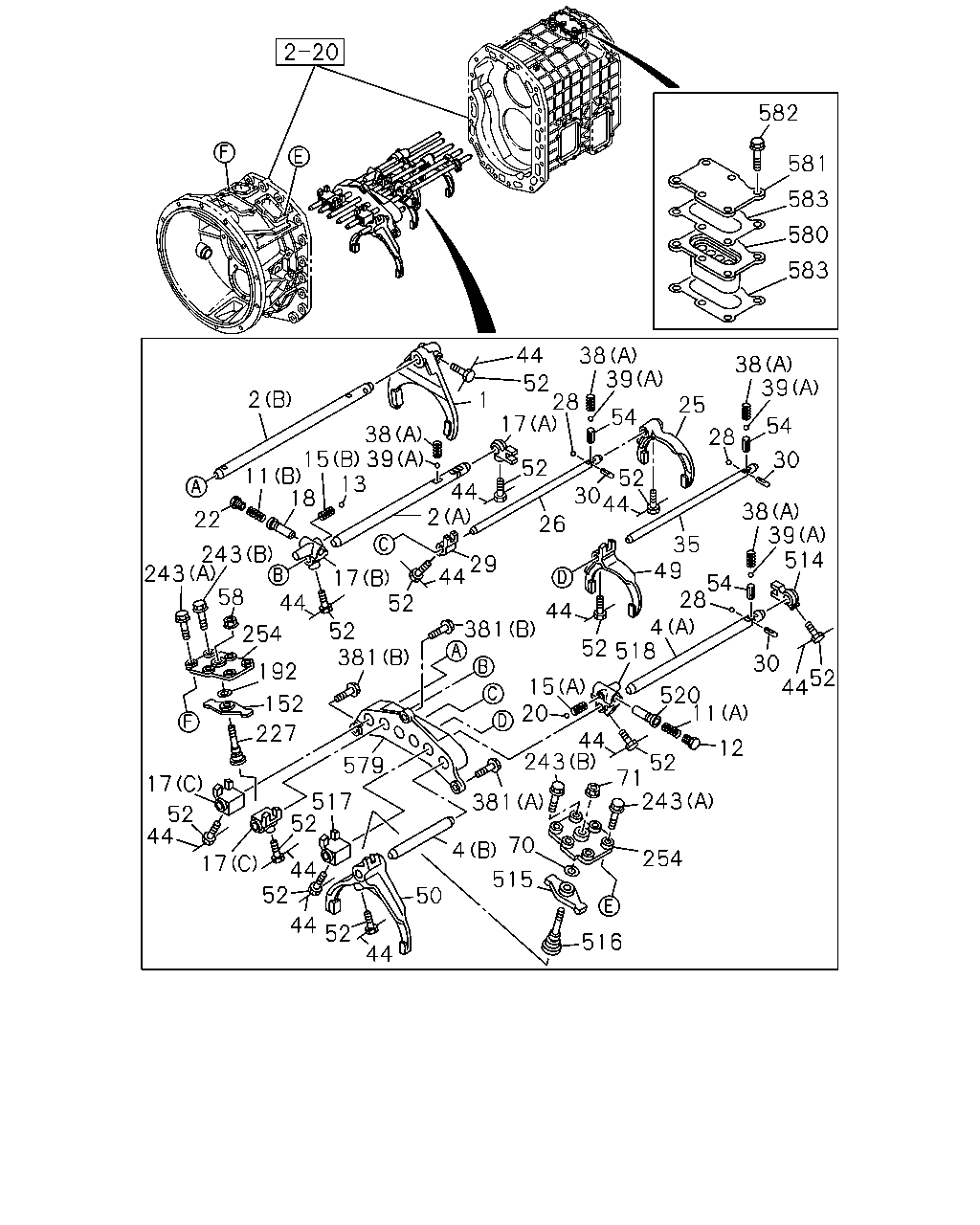

582
581
583
580
583
44
38
52
39
28
38
39
28
2
1
25
54
17
54
38
11
13
18
30
52
52
30
44
44
2
38
39
514
22
26
35
49
243
243
58
29
44
17
52
54
28
4
52
518
44
44
254
381
52
381
192
30
52
44
15
20
520
11
152
227
44
243
12
579
52
71
243
17
517
52
381
52
44
70
4
254
44
52
17
515
50
44
52
516
44
15
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; SHIFT,1ST & REV
1-33511-579-0
01
1
1008-
●
2
ROD; SHIFT,1ST & REV
(A)
1-33531-438-0
01
1
1008-
●
2
ROD; SHIFT,1ST & REV
(B)
1-33531-456-0
01
1
1008-
●
4
ROD; SHIFT,6TH
(A)
1-33531-443-1
01
1
1008-
●
4
ROD; SHIFT,6TH
(B)
1-33531-445-0
01
1
1008-
●
11
SPRING; RETURN,SHIFT SLEEVE
(B)
1-09580-444-0
01
1
1008-
●
11
SPRING; RETURN,SHIFT SLEEVE
(A)
9-09941-160-0
01
1
1008-
●
12
CAP; RETURN SPR,SHIFT BLOCK
1-33516-039-1
01
1
1008-
●
13
BALL; LK,SHIFT SLEEVE
9-00097-509-0
01
1
1008-
●
15
SPRING; LK,SHIFT SLEEVE
(B)
1-09580-438-0
01
1
1008-
●
15
SPRING; LK,SHIFT SLEEVE
(A)
9-09941-007-0
01
1
1008-
●
17
BLOCK; SHIFT,1ST & REV
(A)
1-33511-202-3
01
1
1008-
●
17
BLOCK; SHIFT,1ST & REV
(B)
1-33511-552-1
01
1
1008-
●
17
BLOCK; SHIFT,1ST & REV
(C)
1-33511-557-0
02
1
1008-
●
18
SLEEVE; 1ST & REV,SHIFT BLOCK
1-33516-022-1
01
1
1008-
●
20
BALL; DETENT SLEEVE
9-00097-509-0
01
1
1008-
●
22
CAP; RETURN SPR,SHIFT BLOCK
1-33516-039-1
01
1
1008-
●
25
ARM; SHIFT,2ND & 3RD
1-33511-435-0
01
1
1008-
●
26
ROD; SHIFT,2ND & 3RD
1-33531-440-1
01
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
04
1
1008-
●
28
BALL; INTER LK
9-00097-501-0
02
1
1008-
●
29
BLOCK; SHIFT,2ND & 3RD
1-33511-376-1
01
1
1008-
●
30
PIN; INTER LK
9-33534-003-0
03
1
1008-
●
●
35
ROD; SHIFT,4TH & 5TH BLOCK
1-33531-442-1
01
1
1008-
●
38
SPRING; DETENT
(A)
1-09580-379-0
04
1
1008-
●
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
1008-
●
38
SPRING; DETENT
(D)
1-09580-379-0
03
1
1008-
●
38
SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
(C) YELLOW
1-09580-574-0
01
1
1008-
●
38
SPRING; DETENT
EXC. CHINA EQUIPMENT(YT2) (C) BLUE
1-09580-580-0
01
1
1008-
●
39
BALL; DETENT
(A)
1-09843-012-0
04
1
1008-
●
●
39
BALL; DETENT
(B)
9-00097-013-0
01
1
1008-
●
44
WIRE; LK
L=180
1-09780-024-0
10
1
1008-
●
44
WIRE; LK
L=200
9-08351-020-0
02
1
1008-
●
44
WIRE; LK
L=200
9-08351-020-0
07
1
1008-
●
49
ARM; SHIFT,4TH & 5TH
1-33511-466-1
01
1
1008-
●
50
ARM; SHIFT,6TH
1-33511-550-0
01
1
1008-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
12
1
1008-
●
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
07
1
1008-
●
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
03
1
1008-
●
●
58
NUT
M12 FLANGE
0-91180-212-0
01
1
1008-
●
70
WASHER; PL,SHIFT LEVER
ID=16.5
9-09857-042-0
01
1
1008-
●
71
NUT; SHIFT LEVER
M12 FLANGE
0-91180-212-0
01
1
1008-
●
152
LEVER; RELAY,SELECT
1-33511-560-1
01
1
1008-
●
192
WASHER; PL
ID=16.5
9-09857-042-0
01
1
1008-
●
192
WASHER; PL
1-09503-310-0
04
1
1008-
●
227
SPINDLE; 1ST & REV
1-33519-104-0
01
1
1008-
●
243
BOLT; COVER
(A) M10X30 FLANGE
0-28151-030-0
08
1
1008-
●
243
BOLT; COVER
(B) M10X28 FLANGE REAMER
8-97365-375-0
04
1
1008-
●
243
BOLT; COVER
(C) M8X35 FLANGE
0-28650-835-0
10
1
1008-
●
254
COVER; LEVER
1-33141-054-0
02
1
1008-
●
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
1008-
●
●
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
1008-
●
●
381
BOLT
(C)
1-09044-111-0
04
1
1008-
●
514
BLOCK; 6-7 SETTING
1-33511-605-0
01
1
1008-
●
515
LEVER; SHIFT,6TH & 7TH
1-33511-560-1
01
1
1008-
●
516
SPINDLE; 6TH & 7TH
1-33519-104-0
01
1
1008-
●
517
BLOCK; SHIFT,6TH & 7TH
1-33511-557-0
01
1
1008-
●
518
BLOCK ASM; SHIFT,6TH & 7TH
1-33511-558-1
01
1
1008-
●
520
SLEEVE; 6TH & 7TH
1-33516-022-1
01
1
1008-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-065-1
01
1
1008-
●
579
BLOCK; SHIFT,ROD GUIDE
1-33539-066-2
01
1
1008-
●
580
BLOCK; INTERLOCK
1-33539-064-1
01
1
1008-
●
●
581
COVER; BLOCK
1-33141-056-0
01
1
1008-
●
●
582
BOLT; SPRING GUIDE
M10X35 FLANGE
0-28151-035-0
06
1
1008-
●
●
583
GASKET; SPRING GUIDE
1-33142-047-0
02
1
1008-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
