2-25 — SPEEDOMETER DRIVEN GEAR (#56181) — 36 parça

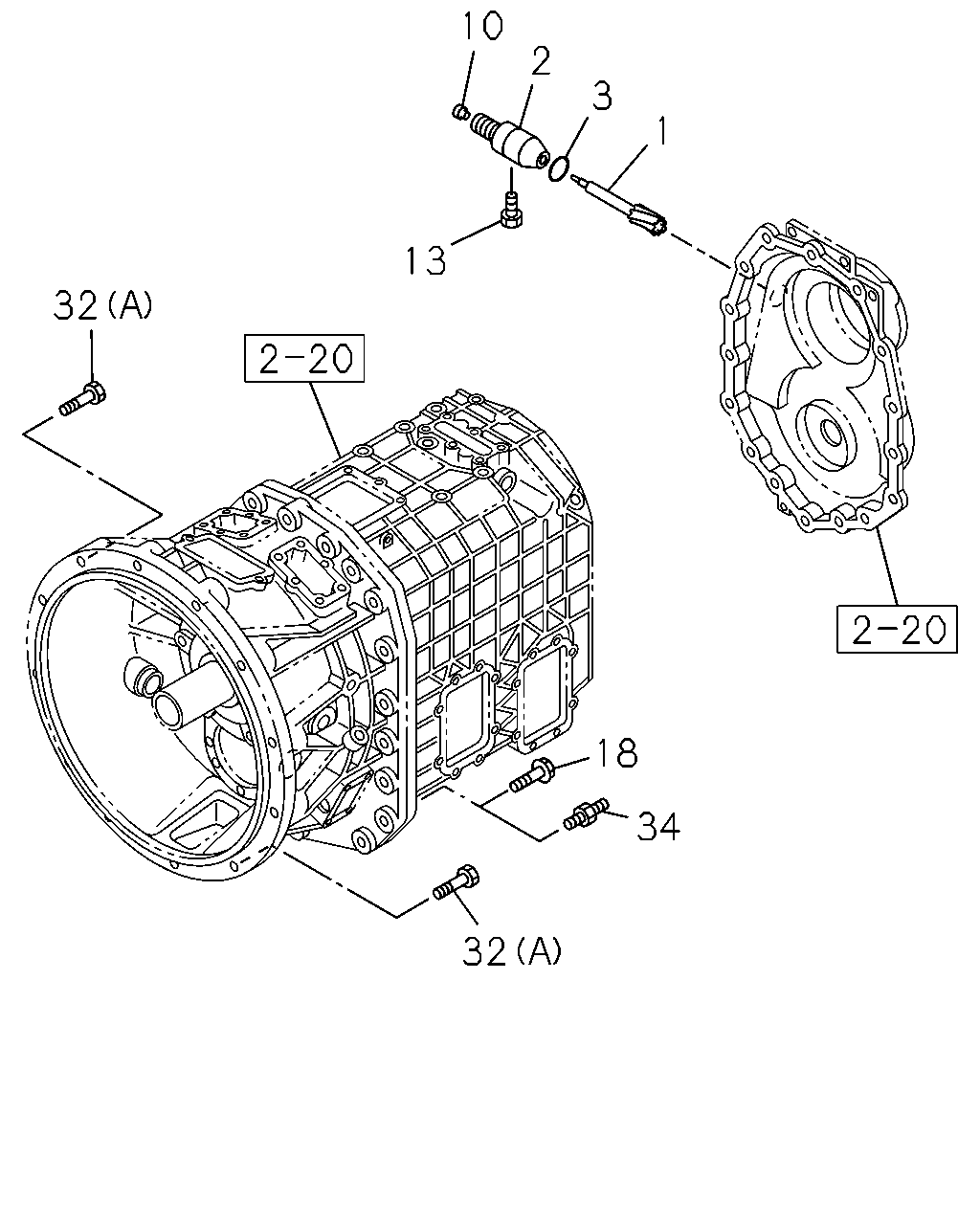

çizim 167664
10 2 3 1 13 32 18 34 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-147-4 01 1 1008- ●
1 GEAR; DRIVEN,SPD
Z=17 		1-33372-120-4 01 1 1008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-077-0 01 1 1008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-084-0 01 1 1008- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 1008- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-069-0 01 1 1008- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 1008- ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1008- ● ●
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 17 1 1008- ●
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 19 1 1008- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE 		0-28151-260-0 12 1 1008-1103 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE 		0-28151-270-0 12 1 1104- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X100 FLANGE 		0-28151-200-0 06 1 1008-1207 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X110 FLANGE 		0-28156-211-0 06 1 1208- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X100 L=129.5 		1-09049-039-1 02 1 1008-1207 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1208- ●
34 STUD; CLU HSG
M10X28,M12X50 L=89.7 		1-09049-037-0 02 1 1008- ●

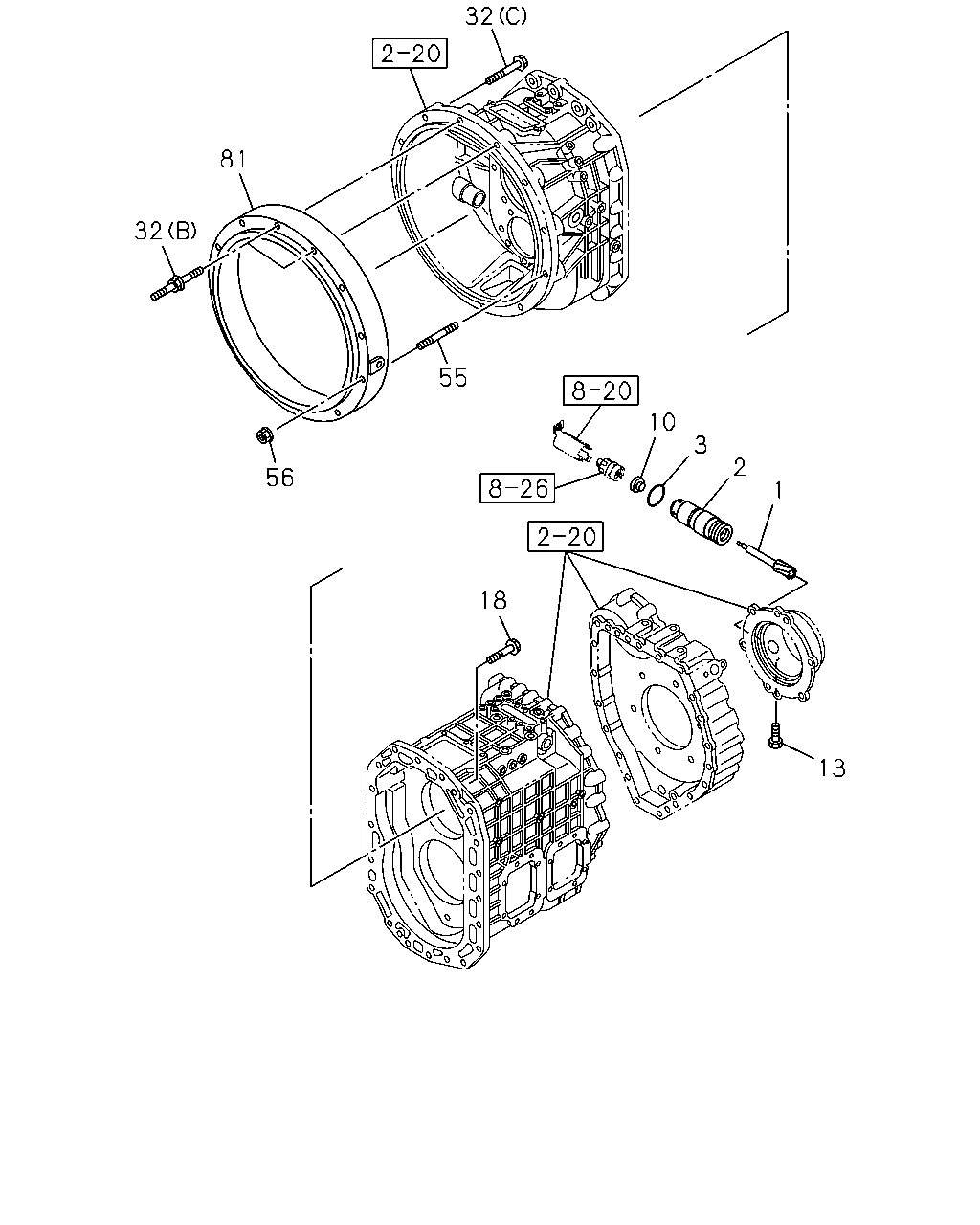

çizim 167676
32 81 32 55 10 3 2 56 1 18 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-147-4 01 1 1008- ●
1 GEAR; DRIVEN,SPD
Z=17 		1-33372-120-4 01 1 1008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-077-0 01 1 1008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-084-0 01 1 1008- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 1008- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-069-0 01 1 1008- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 1008- ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1008- ● ●
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 17 1 1008- ●
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 19 1 1008- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE 		0-28151-260-0 12 1 1008-1103 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE 		0-28151-270-0 12 1 1104- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X100 FLANGE 		0-28151-200-0 06 1 1008-1207 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X110 FLANGE 		0-28156-211-0 06 1 1208- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X100 L=129.5 		1-09049-039-1 02 1 1008-1207 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1208- ●
55 STUD; FLYWHEEL HSG
M12X105 L=123 		1-09302-166-0 04 1 1008- ●
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 04 1 1008- ●
81 SPACER 1-31119-017-0 01 1 1008- ●
