4-31 — STEERING COLUMN AND SHAFT (#5618) — 92 parça

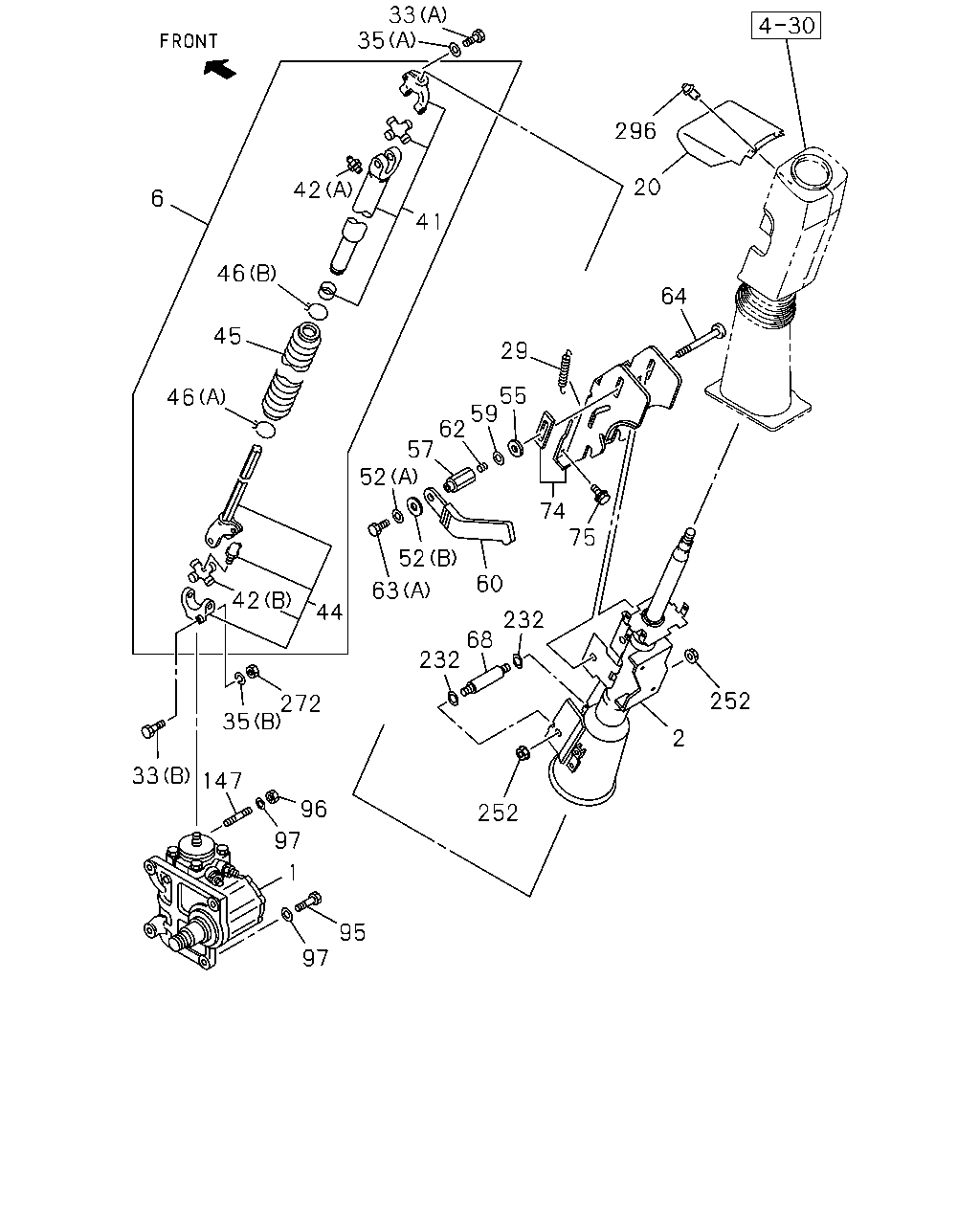

çizim 8673
33 35 41 42 46 45 46 6 42 44 272 35 33 147 97 96 1 95 97 252 2 252 232 68 232 63 52 60 52 57 62 59 29 55 296 20 64 74 75
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-845-0 01 1 9603-9904
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 9905-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 9905-
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9603-9804
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9905-
6 SHAFT; STRG LWR 1-44135-301-0 01 1 9603-9804
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9603-
29 SPRING; COLUMN 1-44227-136-0 02 1 9603-9804
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9603-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9603-
41 YOKE; SLEEVE,STRG 1-44135-303-0 01 1 9603-9804
42 NIPPLE; GREASE,SLEEVE YOKE
(B) M6 STRAIGHT 		9-09031-006-0 01 1 9603-9804
42 NIPPLE; GREASE,SLEEVE YOKE
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9603-9804
44 SHAFT; SPLINE,STRG 1-44135-305-0 01 1 9603-9804
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9603-9804
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9603-9804
55 PLATE; GUIDE 1-44227-132-0 01 1 9603-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9603-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9603-9804
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9603-9804
68 PIN; TILT CENTER 1-44227-133-1 01 1 9603-9804
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9603-9804
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9603-
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9603-9804
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9603-9804
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603-

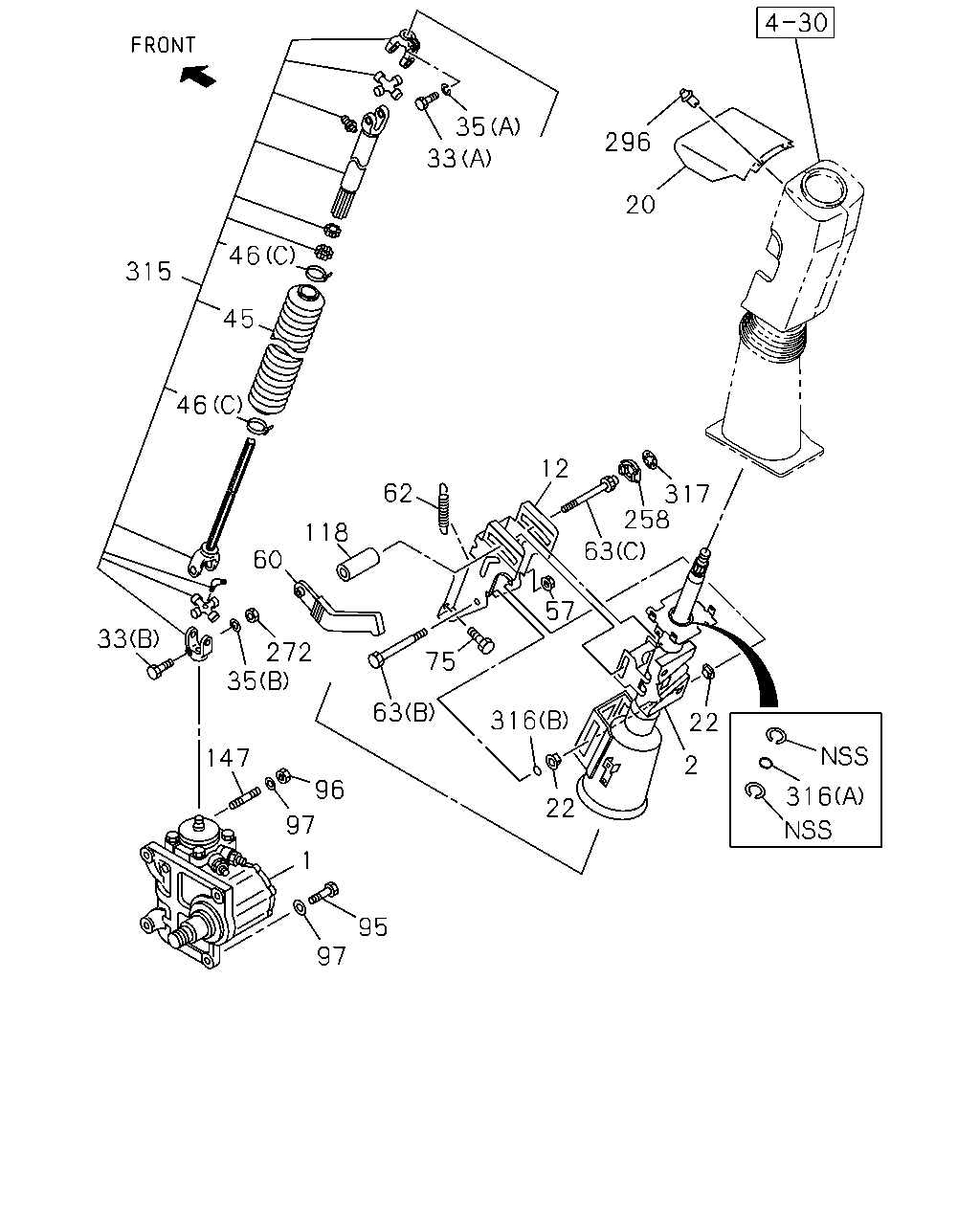

çizim 40958
35 33 296 20 46 315 45 46 12 62 317 258 63 118 60 57 33 272 35 75 63 316 22 147 2 96 316 22 97 1 95 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-845-0 01 1 9603-9904
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY> 		1-44000-861-2 01 1 9905-
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY> 		1-44000-866-1 01 1 9905-
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9603-9804
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9905-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9603-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9603-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9603-9804
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 9603-9804
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 9805-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 9603-
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9603-9804
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9603-9804
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9603-9804
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9603-9804
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9603-9804
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9603-9804
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9603-9804
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-145-0 01 1 9805-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9603-9606
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9607-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 9603-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 9603-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 9603-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 9603-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 9603-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9603-
315 JOINT; SPLINE 1-44135-338-0 01 1 9805-9806
315 JOINT; SPLINE 1-44135-343-0 01 1 9807-
316 RING
(A) 		1-44139-152-0 01 1 9805-9806
316 RING
(B) 		1-44227-152-0 01 1 9805-
317 NUT; PUSH 1-44227-148-0 01 1 9805-
