Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#56172) — 197 parça

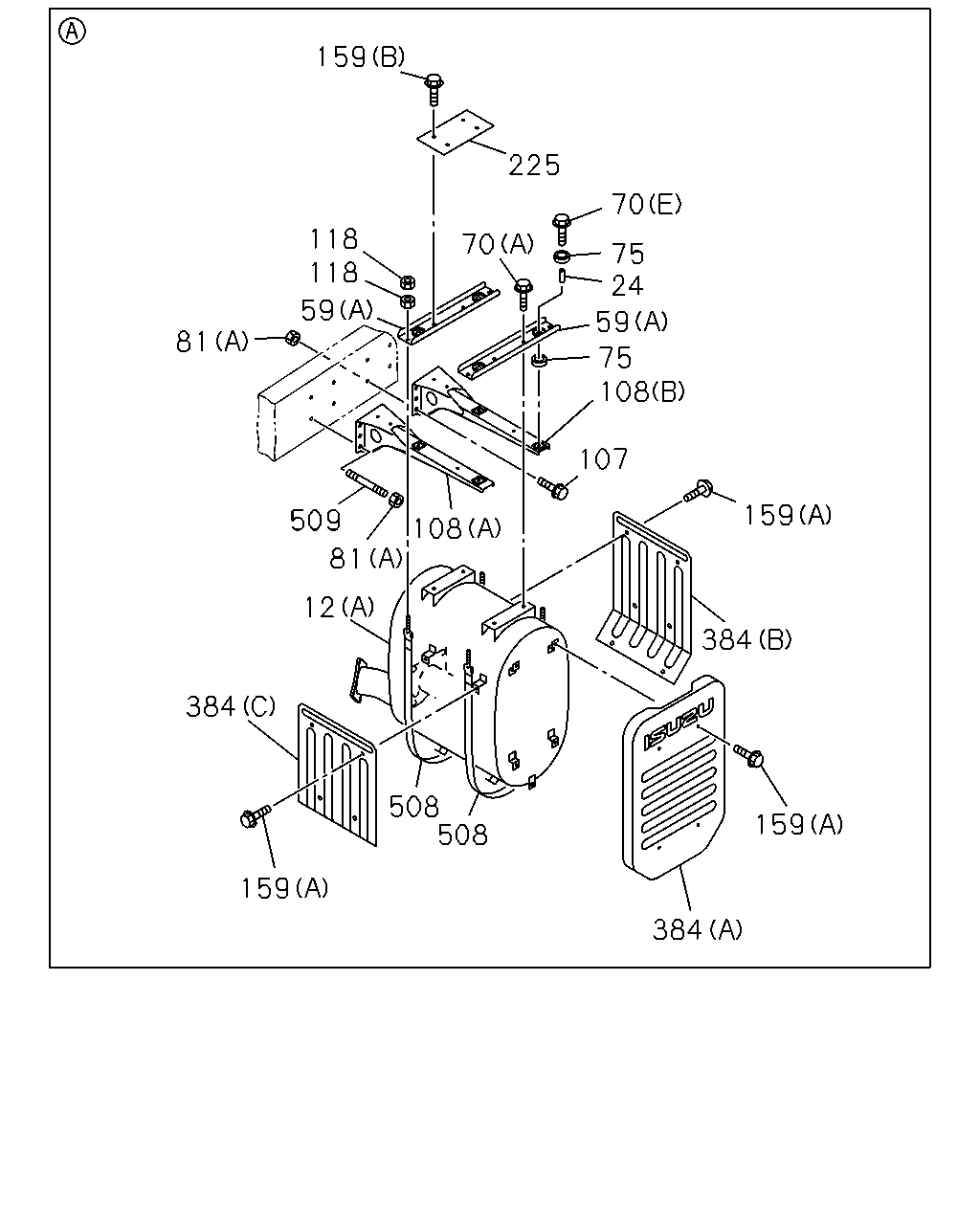

159 225 70 118 118 70 75 24 59 59 81 75 108 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-814-0	01	1	1008-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97635-321-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97611-402-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> (A)	8-98169-661-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1008-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (E) M10X20 FLANGE	0-28051-020-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1008-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1008-
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1008-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	1008-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	1008-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1008-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
159	BOLT; HEAT PROTECTOR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-515-0	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-341-3	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-378-4	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22119-527-0	01	1	1008-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	1008-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	1008-

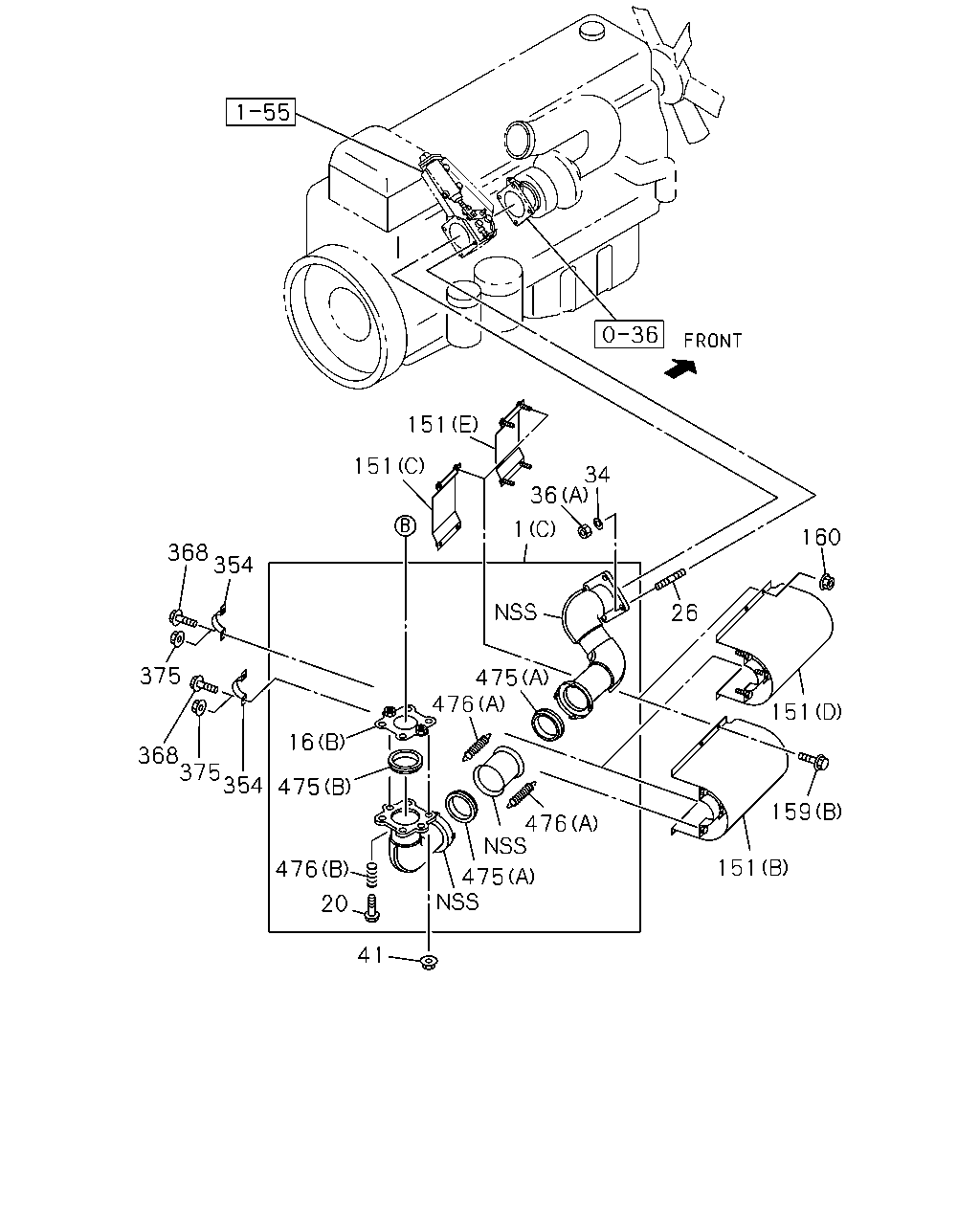

151 151 36 34 1 368 354 375 368 375 354 16 475 476 20 475 476 476 475 26 160 151 159 151 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1008-
1	PIPE; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97636-102-1	01	1	1008-
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-
1	PIPE; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-683-1	01	1	1008-
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-
16	FLANGE; EXH PIPE (B)	1-22115-148-1	01	1	1008-
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1008-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1008-
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	03	1	1008-
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97641-322-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-323-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1008-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
159	BOLT; HEAT PROTECTOR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1008-
368	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28050-830-0	04	1	1008-1207
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-

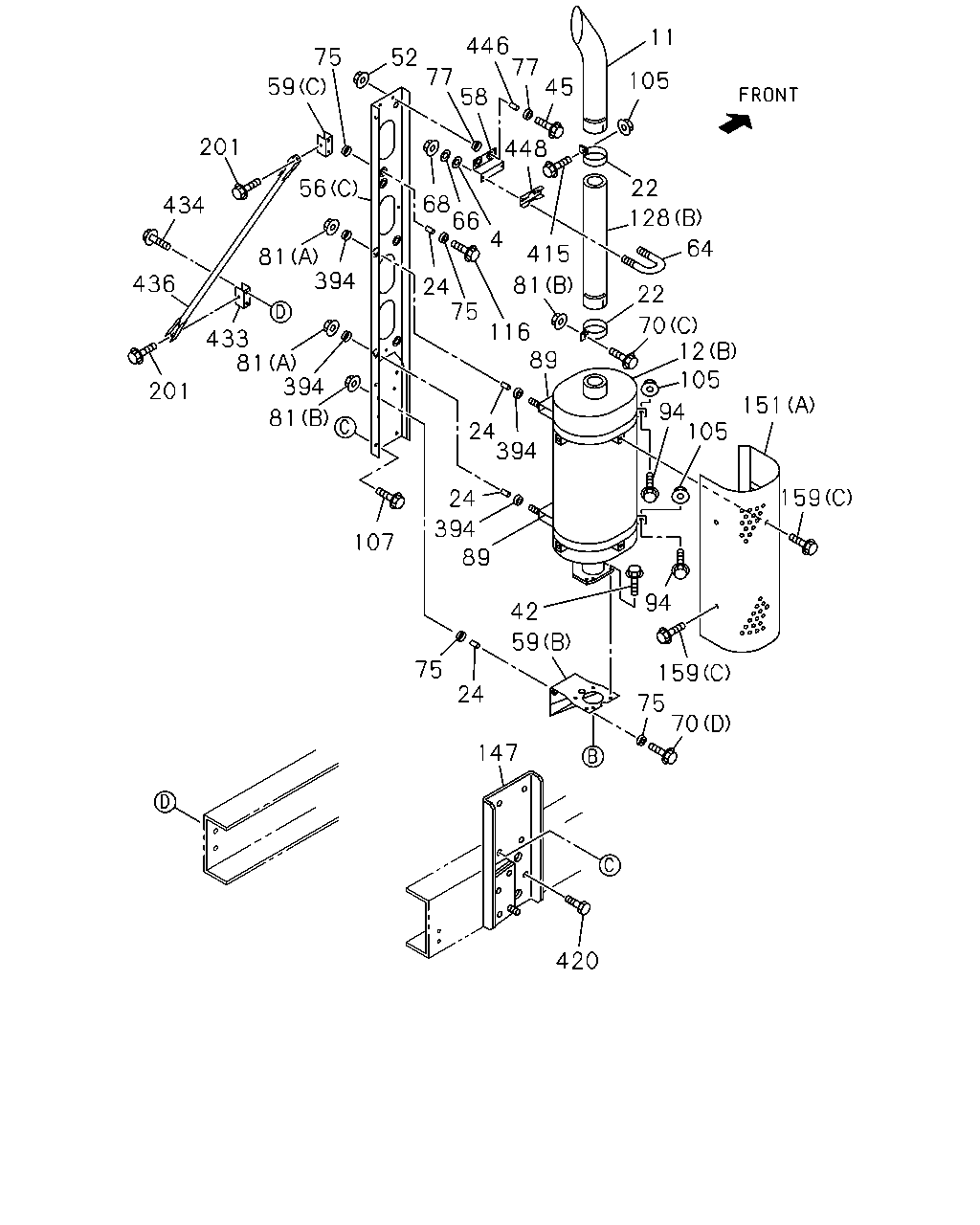

11 446 77 45 75 52 77 58 105 59 201 448 68 22 56 434 128 4 64 415 81 394 436 81 24 75 22 70 12 105 116 89 433 81 394 201 94 105 151 81 24 394 24 159 394 89 107 94 42 59 75 159 24 75 70 147 420 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1008-
11	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1008-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-814-0	01	1	1008-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97635-321-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97611-402-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> (A)	8-98169-661-0	01	1	1008-
12	SILENCER ASM; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1008-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-
22	CLAMP; EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-964-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-335-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1008-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1008-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1008-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1008-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (E) M10X20 FLANGE	0-28051-020-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1008-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1008-
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-
89	CLAMP; EXH SILENCER,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1008-
89	CLAMP; EXH SILENCER,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28>	8-97632-339-0	02	1	1008-
94	BOLT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1008-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-153-0	01	1	1008-
128	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	1-22123-087-1	01	1	1008-
128	PIPE; EXH,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1008-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97641-322-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-323-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1008-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
159	BOLT; HEAT PROTECTOR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1008-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1008-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1008-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1008-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1008-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1008-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1008-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1008-

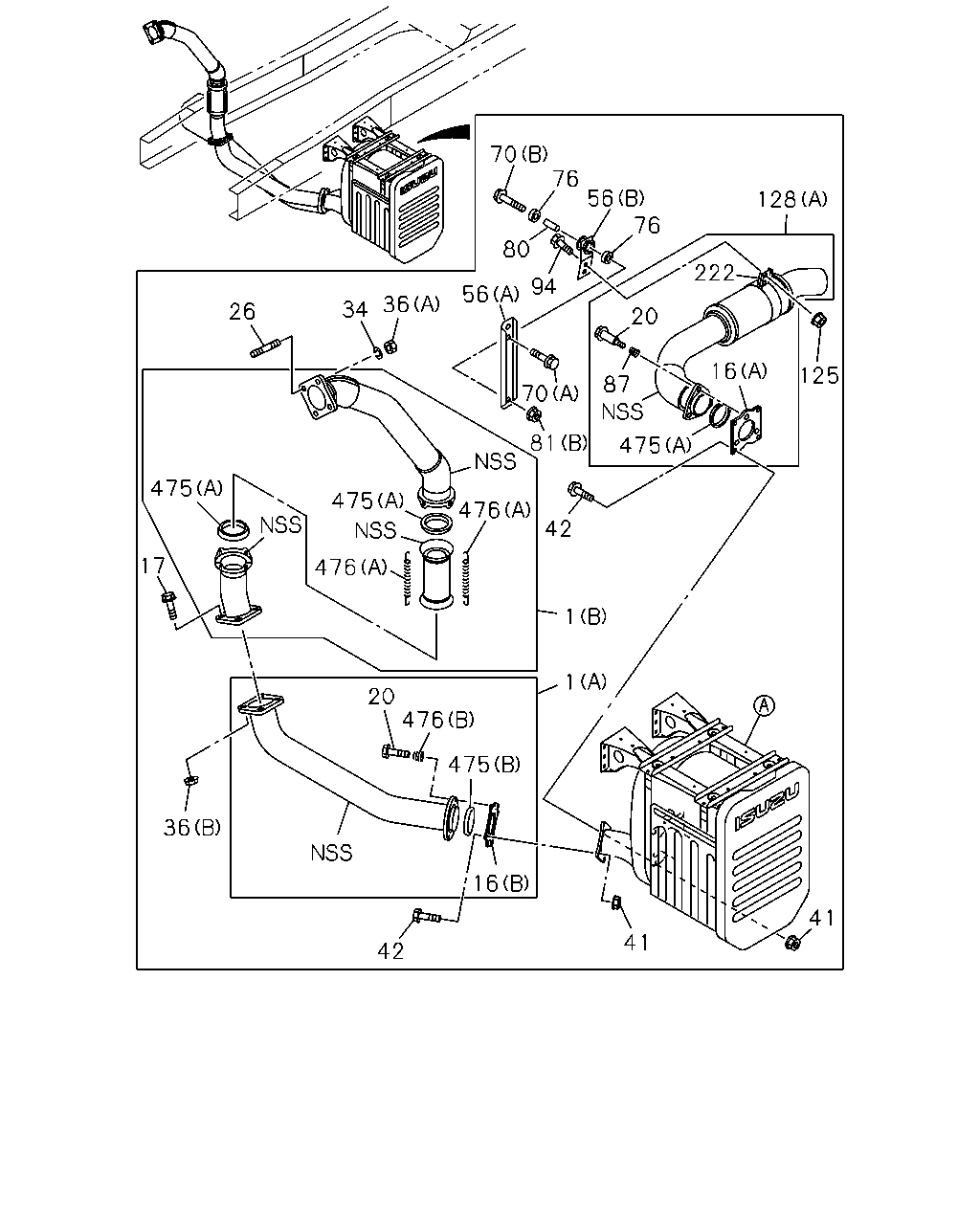

70 76 56 76 128 80 222 94 56 36 34 26 20 16 125 87 70 81 475 475 475 476 42 17 476 1 1 20 476 36 16 41 41 42 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1008-
1	PIPE; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97636-102-1	01	1	1008-
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-
1	PIPE; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-683-1	01	1	1008-
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-
16	FLANGE; EXH PIPE (B)	1-22115-148-1	01	1	1008-
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1008-
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1008-
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	03	1	1008-
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-964-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-335-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (E) M10X20 FLANGE	0-28051-020-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-
76	SUPPORT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	1008-
80	COLLAR; DIST,SUPPORT RUBBER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1008-
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1008-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1008-
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-
87	SPRING; PRE SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	1008-
94	BOLT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-
125	NUT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-153-0	01	1	1008-
128	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	1-22123-087-1	01	1	1008-
128	PIPE; EXH,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1008-
222	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-293-0	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
